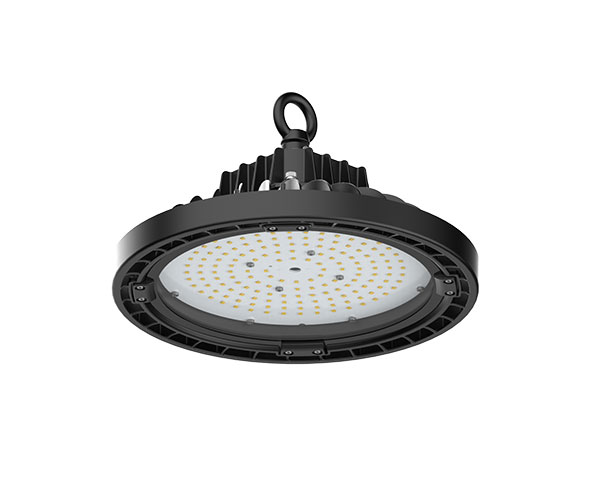

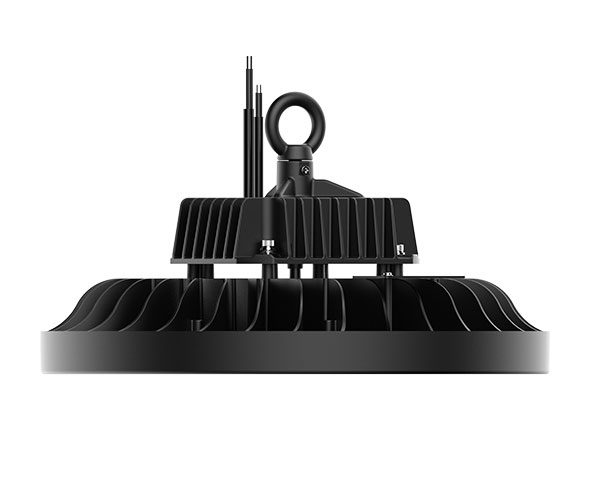

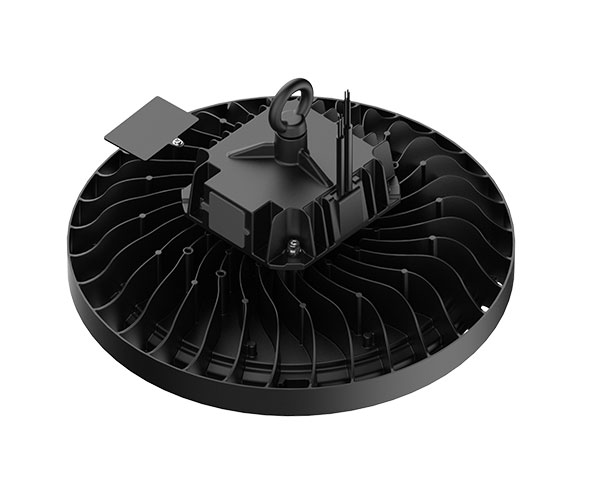

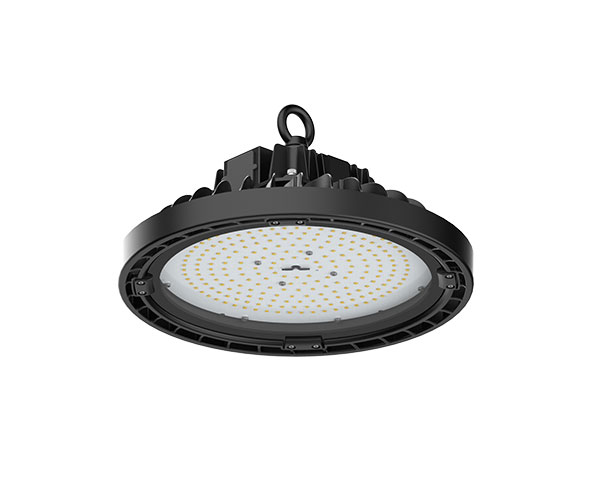

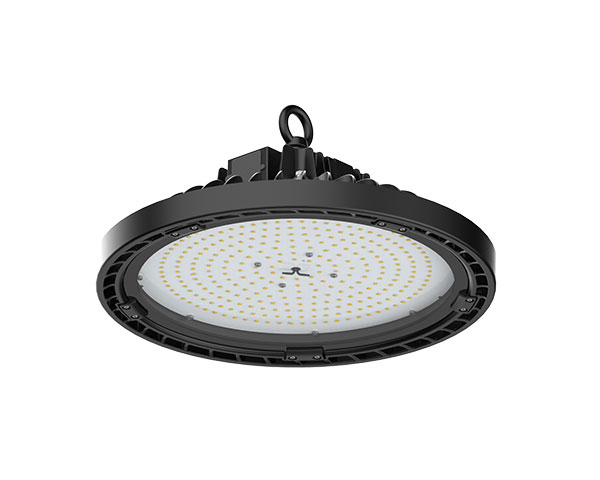

HB65 Hi-temp HighBay Light


High efficiency up to 160lm/W

Designed for 65℃ environment application

Tempered glass,resistant to high temperature and yellowing IP65 protection

CRI>80

5 Years warranty

Inquire Now

Specifications


Model No.  HB65-H-80W HB65-H-130W HB65-H-190W
Product Dimension φ280*165(mm) φ320*178(mm) φ360*178(mm)
Efficiency 160±10%lm/W (Ra>80)
Luminous Flux (±10%) 12800±10%lm 20800±10%lm 30400±10%lm

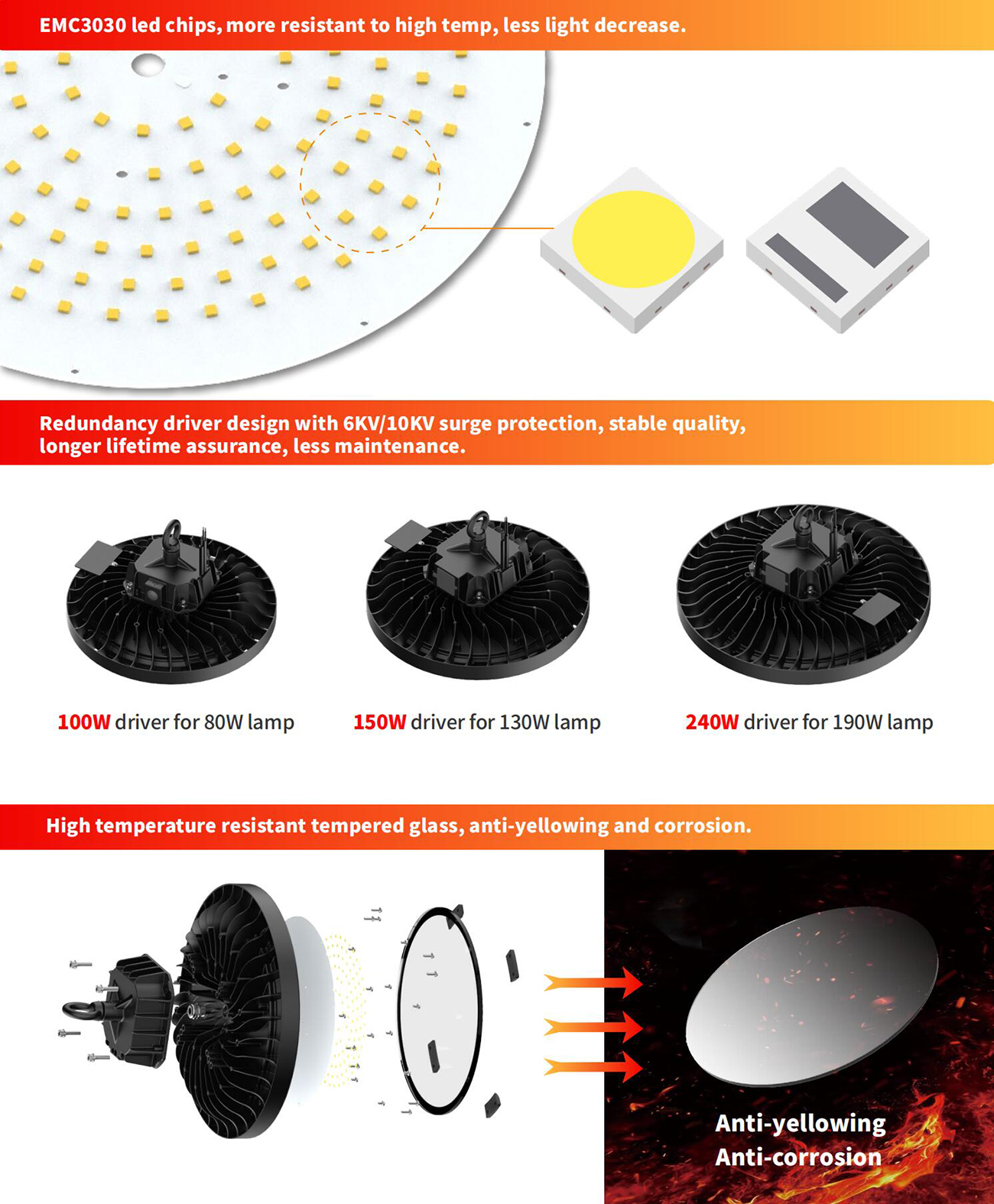

LED Chips EMC 3030
CCT 3000K;4000K;5000K;5700K;6500K
Ingress Protection IP65
Color Rendering Index Ra>80
Beam Angle 110°
Driver Brand TOMCARLINE
Input Voltage AC120-277V
Power Factor 0.95
Frequency 47-63HZ
Driver Type Constant Current (CC)
Luminaire Net Weight 2.7kg 3.5kg 4.8kg
Packing Information
1PCS/CTN
1PCS/CTN 1PCS/CTN
Export Carton Size
33*33*18CM
37*37*19CM
41*41*19CM
Gross Weight 3.5kg 4.5kg 6kg
Material Housing Aluminum Alloy
Optics Tempered Glass
Finish Powder Coating
Fixture Color Black
Mounting Option Ring mounting/Ceiling Mounting
Storage temperature range -30℃-+70℃
Storage humidity range 85% max.
Operating temperature range -40~+65℃
Operating humidity range 85% max.
Life Time 50.000 hours
Warranty 5 Years
Dimmable 1-10V/0-10V dimmable
Optional Accessories ±45° adjustable brackets
Safety rope (0.5m length)

HB65 Hi-temp HighBay Light

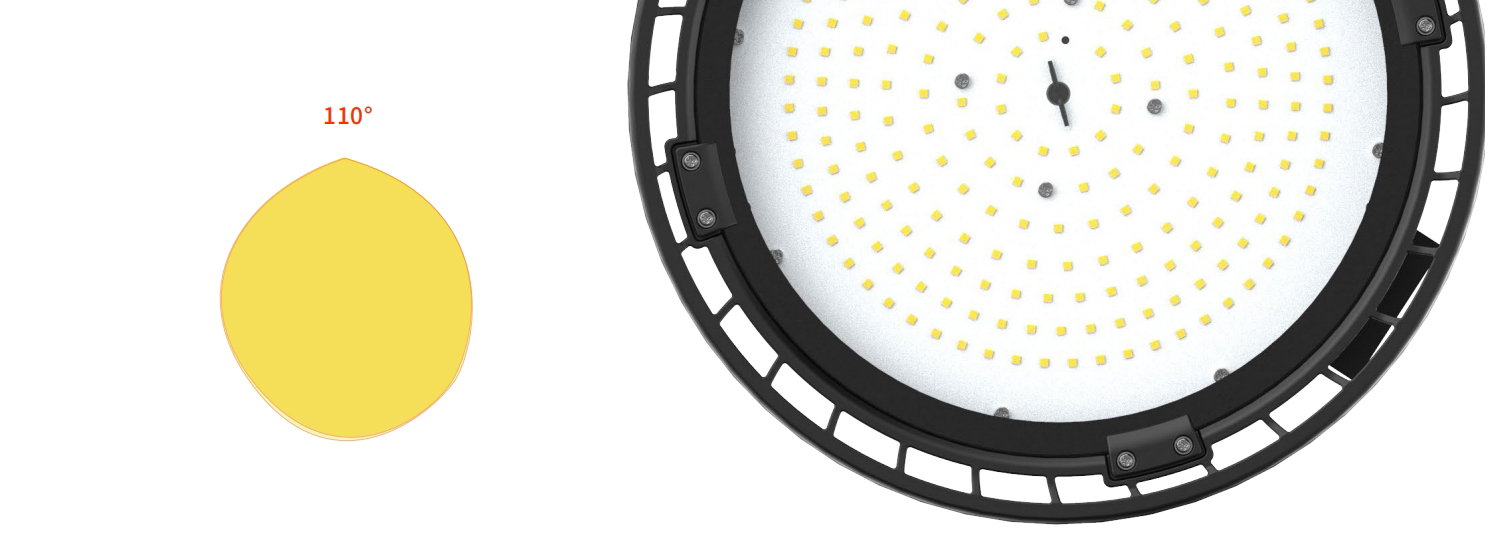

Photometry

HB65 Hi-temp HighBay Light

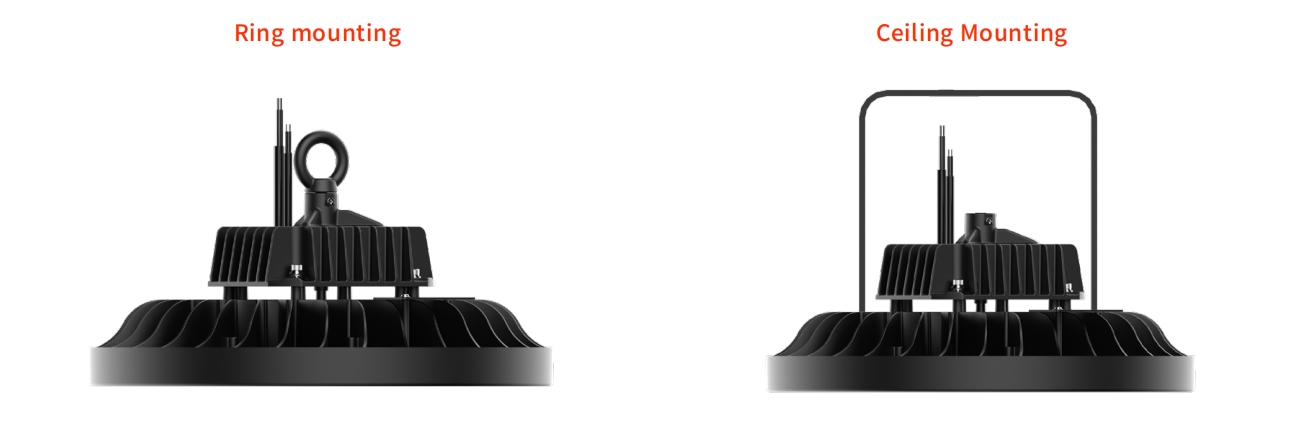

Mounting Options

HB65 Hi-temp HighBay Light

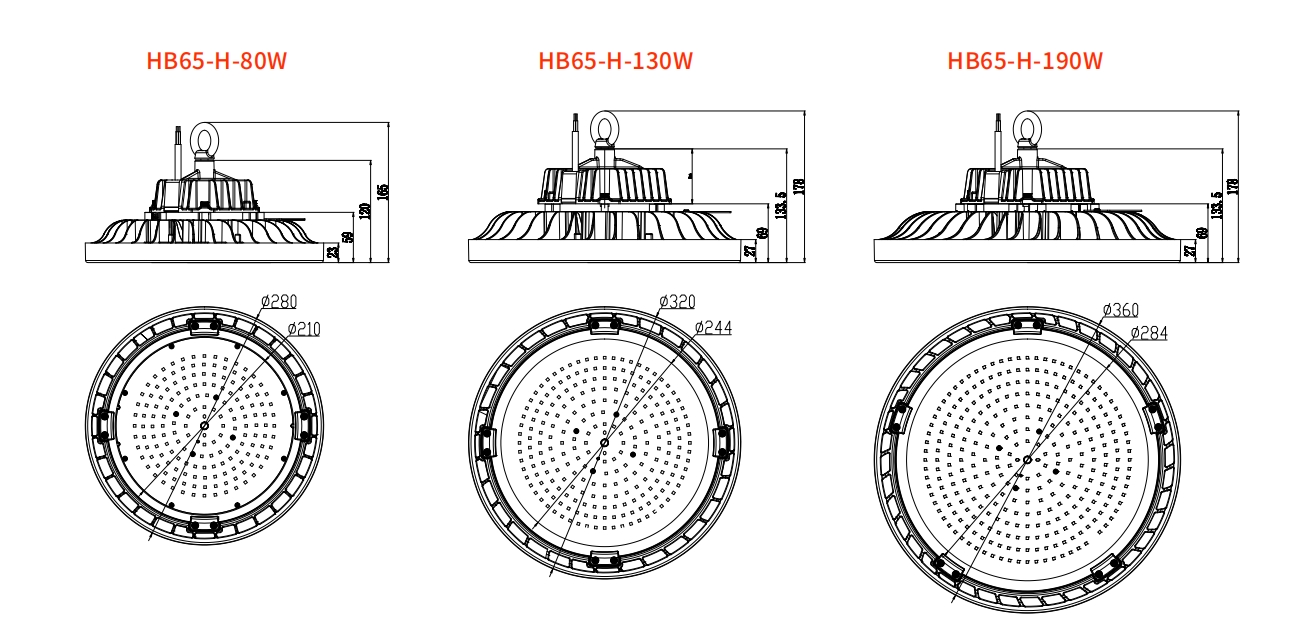

Dimensions

HB65 Hi-temp HighBay Light

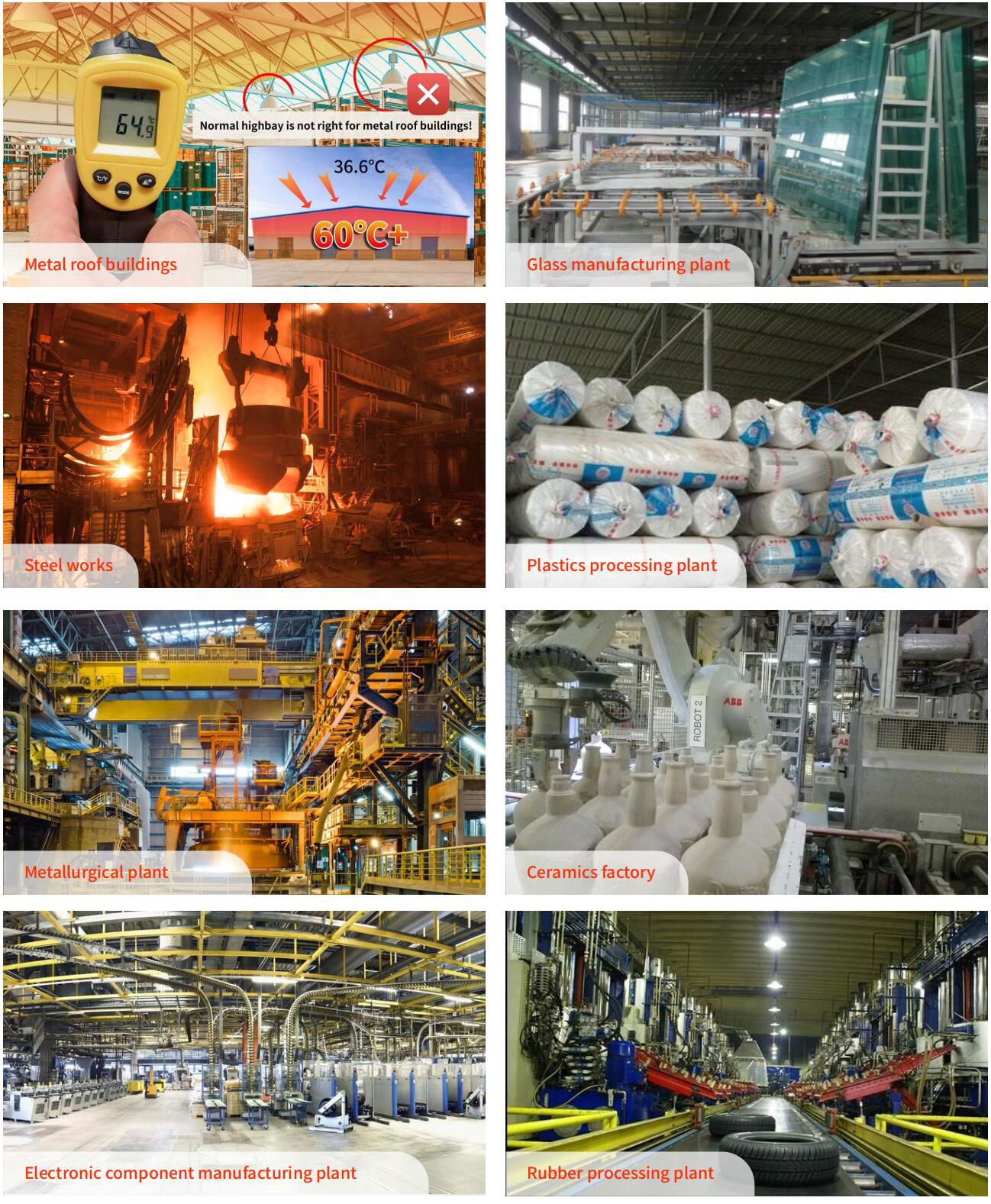

Applications

HB65 Hi-temp HighBay Light
