Shine a Light in Every Corner!
Shine a Light in Every Corner!
The integrated die-cast thickened aluminium body provides excellent heat dissipation due to its high thermal conductivity.
Equipped with high-brightness LED chips, it delivers uniform and long-lasting illumination with an extended lifespan.
The adjustable rotating bracket, made from reinforced materials, allows for flexible multi-angle adjustment, making installation more convenient.
Inquire Now
|
Model No.
|
3650-400W
|
3650-500W
|
3650-800W
|
3650-1000W
|
3650-1200W
|
3650-1500W
|
||
|---|---|---|---|---|---|---|---|---|
|
Power
|
400W
|
500W
|
800W
|
1000W
|
1200W
|
1500W
|
||
|

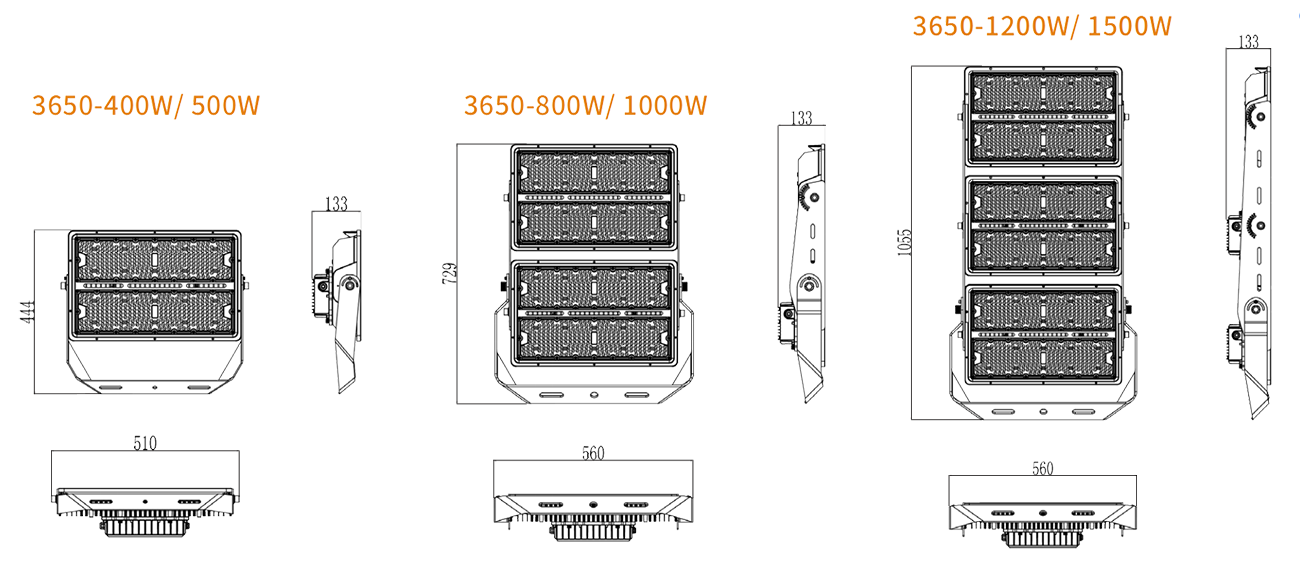

Product Dimension
|
444*510*133MM
|
444*510*133MM
|
729*560*133MM
|
729*560*133MM
|
1055*560*133MM
|
1055*560*133MM
|
||
| Efficiency |
160±10lm/W
|
|||||||
|
Luminous Flux(±10%)
|
64000±4000lm
|
80000±5000lm
|
128000±8000lm
|
160000±10000lm
|
192000±12000lm
|
240000±15000lm
|
||
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
|||||||
|
Ingress Protection
|
IP66
|
|||||||
|
IK Rating
|
IK10
|
|||||||
|
Surge protection
|
6KV/10KV
|
|||||||
|
Color Rendering Index
|
Ra80
|
|||||||
|

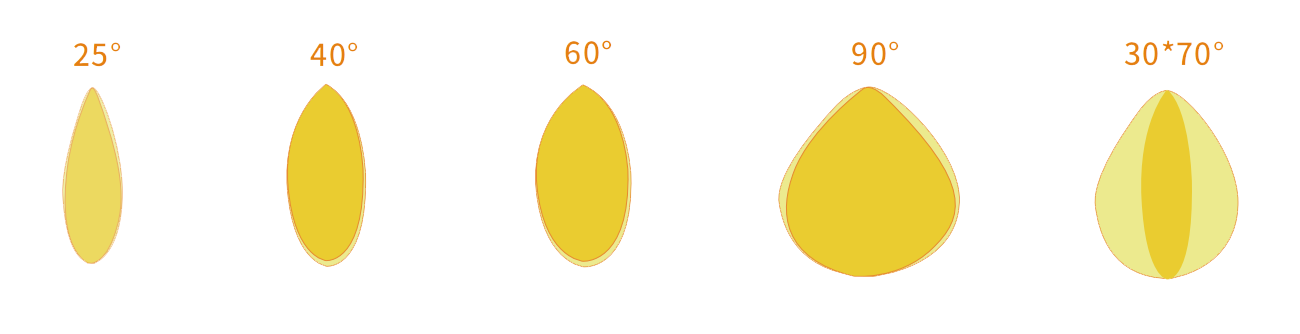

Beam Angle
|
25°/40°/60°/90°/30*70°
|
|||||||
|
Driver Brand
|
TOMCARLINE
|
|||||||
|
Input Voltage
|
AC200-277V
|
|||||||
|
Power Factor
|
0.95
|
|||||||
|
Frequency
|
47-63HZ
|
|||||||
|
Driver Type
|
Constant Current (CC)
|
|||||||
|
Luminaire Net Weight
|
9.5kg
|
9.5kg
|
18kg
|
18kg
|
27.5kg
|
27.5kg
|
||
| Packing Information |
1pcs
|
1pcs
|
1pcs
|
1pcs
|
1pcs
|
1pcs
|
||
|
Export Carton Size
|
48*62*19cm
|
48*62*19cm
|
78*62*19cm
|
78*62*19cm
|
110*62*19cm
|
110*62*19cm
|
||
|
Gross Weight
|
11.7kg
|
11.7kg
|
21kg
|
21kg
|
31kg
|
31kg
|
||
|
Material
|
Housing
|
Aluminum alloy
|
||||||
|
Optics
|
PC
|
|||||||
|
Finish
|
Pow der coating
|
|||||||
|
Fixture Color
|
silver
|
|||||||
|
Mounting Option
|
Bracket mounting
|
|||||||
|
Storage temperature range
|
-30℃ - +70℃
|
|||||||
|
Storage humidity range
|
85% max.
|
|||||||
|
Operating temperature range
|
-30℃ - +45℃ | |||||||
|
Operating humidity range
|
85% max.
|
|||||||
|
Life Time
|
50.000 hours
|
|||||||
|
Warranty
|
5 Years
|
|||||||
|
Dimmable
|
Non-dimmable
|
|||||||
|
Optional Accessories
|
0-10V/1-10V dimmable
|
|||||||
|
Full-voltage Driver (100-277V)
|
||||||||
|
DALI dimmable
|
||||||||
|
Ra90 lamp beads
|
||||||||
|
Hood
|
||||||||
|
Secure chain
|
||||||||
