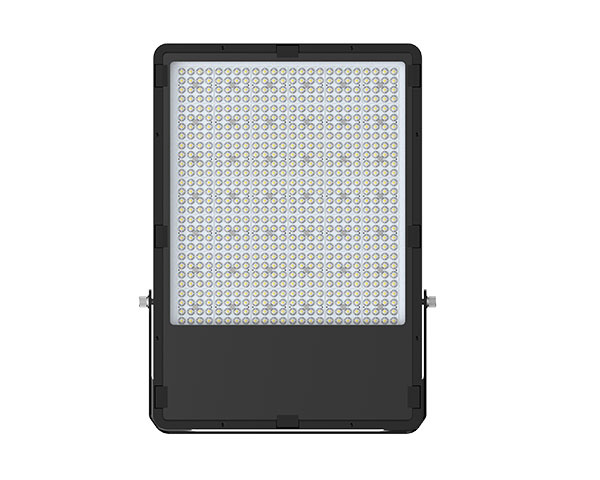

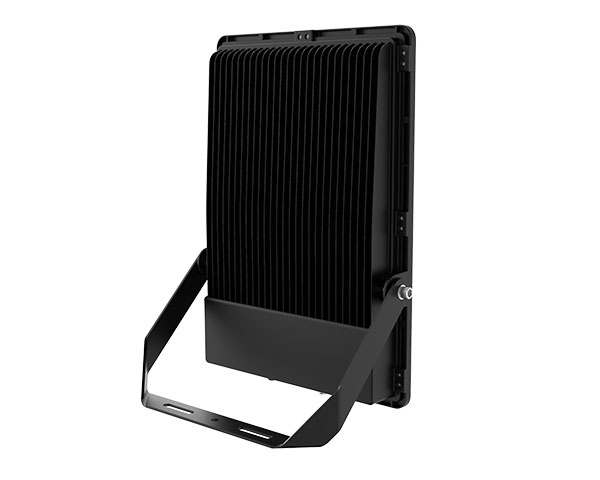

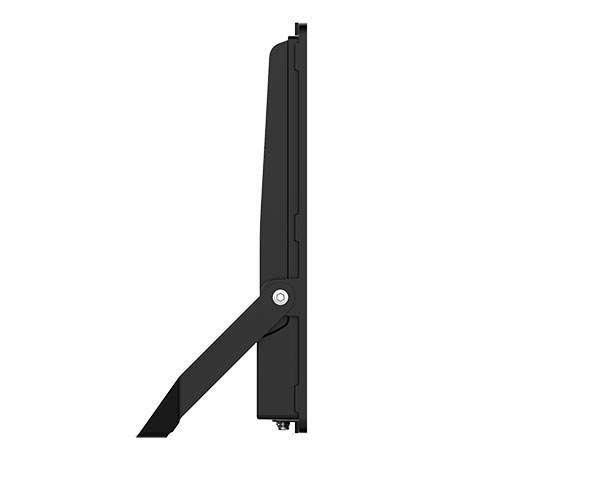

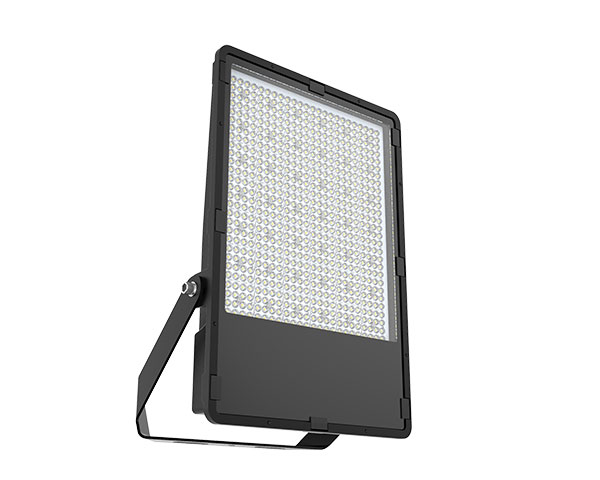

3720(300-500W) Flood Light/ Highmast Light


1. 300W/400W/500W

2. IP66 protection

3. PF>0.95, surge protection 6KV/10KV

4. Up to 170lm/W

5. Professional optical lenses suitable for various outdoor lighting applications

6. Excellent heat dissipation design, high-quality powder coating, anti-corrosion and anti-rust.

7. Breathing valve balances internal and external pressure to ensure longer lamp lifetime.


Inquire Now

Specifications


Model No
3720-300W
3720-400W
3720-500W
Power
300W
400W
500W
Product Dimension
465×360×67mm
479×410×63mm
539×410×66mm
Efficiency(Ra>70)

135±10lm/W (10°)
Luminous Flux
40500±3000 lm
54000±4000 lm
67500±5000 lm
Efficiency(Ra>80)
140±10lm/W (25°/ 40°/ 60°/ 90°/ 120°/90*120°)
Luminous Flux
42000±3000 lm
56000±4000 lm
70000±5000 lm
Efficiency(Ra>70)
150±10lm/W (15°)
Luminous Flux
45000±3000 lm
60000±4000 lm
75000±5000 lm
Efficiency(Ra>70)
170±10lm/W (25°/ 40°/ 60°/ 90°/ 120°/ 90*120°)
Luminous Flux
51000±3000 lm
68000±4000 lm
85000±5000 lm
CCT
3000K;4000K;5000K;5700K;6500K
Ingress Protection
IP66/ IK08
Color Rendering Index
Ra>80/70
Beam Angle
10°/15°/25°/ 40°/ 60°/ 90°/ 120°/ 90*120°
Input Voltage
200-277V
Power Factor
0.95
Frequency
50-60HZ
Driver Type
Constant Current
Luminaire Net Weight
6.8kg
8.2kg
9kg
Packing Information
1pcs
1pcs
1pcs
Export Carton Size
61*45*14CM
66*50*14CM
71*50*14CM
GrossWeight
8.3KG
10KG
11.5KG
Material Housing
Aluminum Alloy
Optics
PC+Tempered glass
Finish
Powder Coating
Fixture Color
Black
Mounting Option
Bracket mounting
Storage temperature range
-30℃~+70℃
Storage humidity range
85% max.
Operating temperature range
-30℃~+45℃
Operating humidity range
85% max.
Life Time
50000 hours
Warranty
5 Years
Dimmable
1-10V Dimmable
Optional Accessories
AC120-277
0-10V Dimmable
Aluminum shading cover
Wire guard
CRI>80/90
SPD 20KV

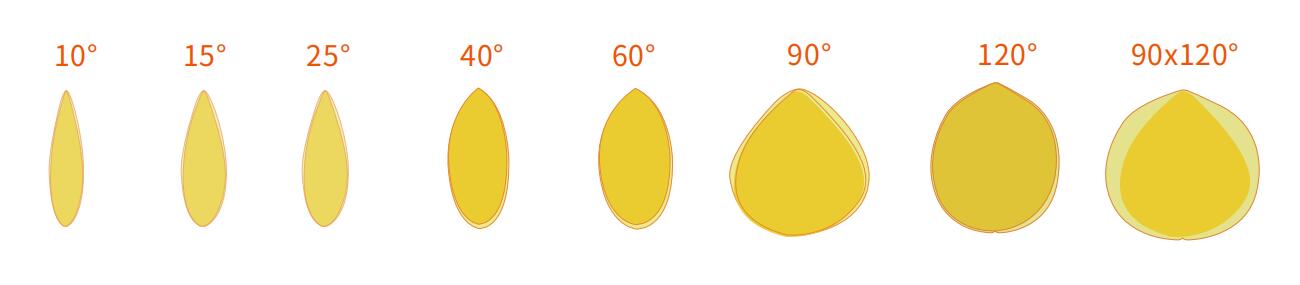

Light Distribution

3720 LED Flood Light/ Highmast Light

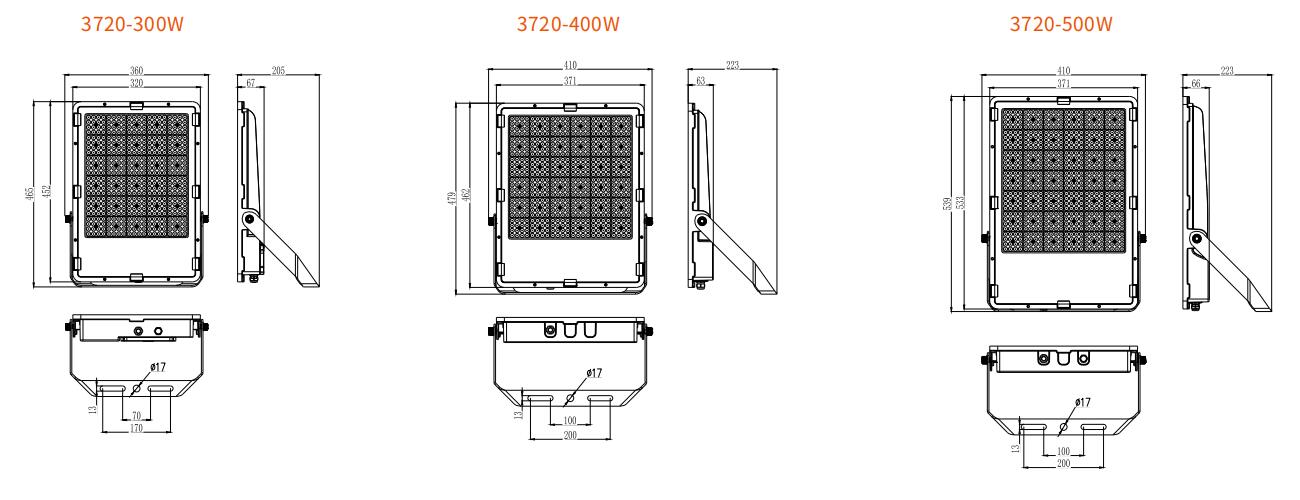

Dimensions

3720 LED Flood Light/ Highmast Light
