25W to 300W full power range, suitable for various environment.
Junction box design, easy access to wiring. Straightforward and fast installation, reducing labour costs and time to side.
Up to 180lm/W， IP66 protection.
Linkable use optional.
PF>0.95, surge protection 6KV/10KV
Professional optical lenses suitable for various outdoor lighting applications
Excellent heat dissipation design, high-quality powder coating, anti-corrosion and anti-rust.
Breathing valve balances internal and external pressure to ensure longer lamp lifetime.
Inquire Now
| Model No |
3720-25W
|
3720-45W
|
3720-75W
|
3720-100W
|
3720-150W
|
3720-200W
|
3720-240W
|
3720-300W
|
|
|---|---|---|---|---|---|---|---|---|---|
|
Power
|
25W
|
45W
|
75W
|
100W
|
150W
|
200W
|
240W
|
300W
|
|
| Product Dimension |
261*193*126mm
|
261*193*126mm
|
253*289*162mm
|
304*289*162mm
|
348*289*165mm
|
413*360*205mm
|
413*360*205mm
|
465*360*205mm
|
|
|
Efficiency(Ra>70) |
150±10lm/W
|
||||||||
| Luminous Flux |
3750±250lm
|
6750±450lm
|
11250±750lm
|
15000±1000lm
|
22500±1500lm
|
30000±2000lm
|
36000±2400lm
|
45000±3000lm
|
|
| Efficiency(Ra>70) |
180±10lm/W
|
||||||||
| Luminous Flux |
4500±250lm
|
8100±450lm
|
13500±750lm
|
18000±1000lm
|
27000±1500lm
|
36000±2000lm
|
43200±2400lm
|
54000±3000lm
|
|
|
CCT Options
|
3000K 4000K 5000K 5700K 6500K
|
||||||||
|
Ingress Protection
|
IP66/ IK08
|
||||||||
|
Color Rendering Index
|
Ra>80/70
|
||||||||
|

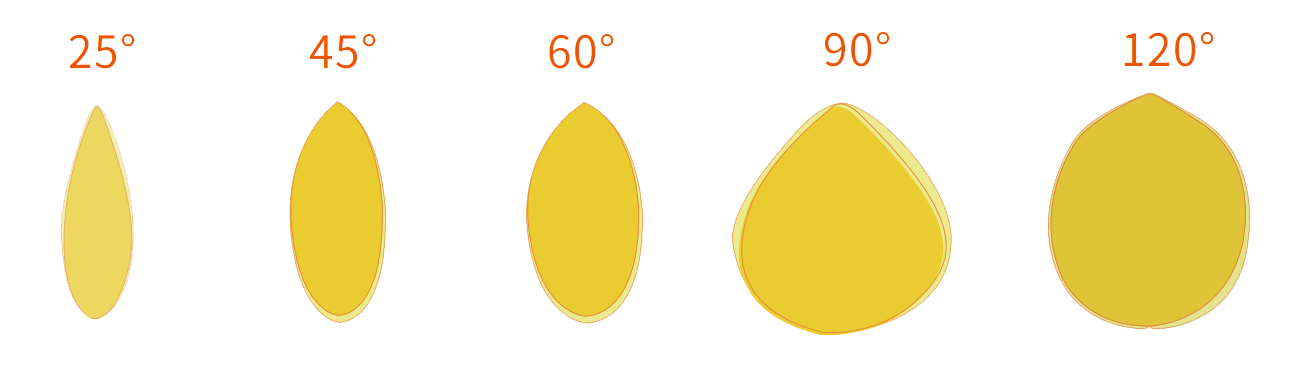

Beam Angle
|
25°/ 45°/ 60°/ 90°/ 120°
|
||||||||
|
Input Voltage
|
200-277V
|
||||||||
|
Power Factor
|
0.95
|
||||||||
|
Frequency
|
50/60HZ
|
||||||||
|
Driver Type
|
Constant Current
|
||||||||
|
Luminaire Net Weight
|
1.7Kg
|
1.7Kg
|
2.6Kg
|
3Kg
|
3.6Kg
|
5.2Kg
|
5.3Kg
|
6.1kg
|
|
|
Packing Information
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
|
|
Export Carton Size
|
36*23.5*18.5CM
|
36*23.5*18.5CM
|
36*32.5*18.5CM
|
41*32.5*18.5CM
|
45.5*32.5*19.5CM
|
55*39.5*21.5CM
|
55*39.5*21.5CM
|
60*39.5*21.5CM
|
|
|
GrossWeight
|
3.8Kg
|
3.8Kg
|
5.7Kg
|
6.6Kg
|
7.8Kg
|
11.3Kg
|
11.5Kg
|
13.2Kg
|
|
| Material | Housing |
Aluminum Alloy
|
|||||||
| Optics |
PC+Tempered glass
|
||||||||
| Finish |
Powder Coating
|
||||||||
| Fixture Color |
Black
|
||||||||
| Mounting Option |
Bracket mounting
|
||||||||
|
Storage temperature range
|
-30℃~+80℃
|
||||||||
|
Storage humidity range
|
85% max. | ||||||||
|
Operating temperature range
|
-30℃~+45℃
|
||||||||
|
Operating humidity range
|
85% max.
|
||||||||
|
Life Time
|
50000 hours
|
||||||||
|
Warranty
|
5 Years
|
||||||||
|
Dimmable
|
1-10V Dimmable
|
||||||||
|
Optional Accessories
|
AC120-277
|
||||||||
|
0-10V Dimmable
|
|||||||||
|
Aluminum shading cover
|
|||||||||
|
Wire guard
|
|||||||||
|
CRI>80/90
|
|||||||||
|
SPD 20KV
|
|||||||||
Courtyard
Park
Bridge
Sports
Buildings
Others
