Shine a Light in Every Corner!
Shine a Light in Every Corner!
1. Efficiency up to 160lm/W.
2. Super-high desgin.
3. Wide range of beam angles to suit any environment.
4. Suspending ropes or surface mounting available.
5. IP65 & IK10.
6. Ra>80.
Inquire Now

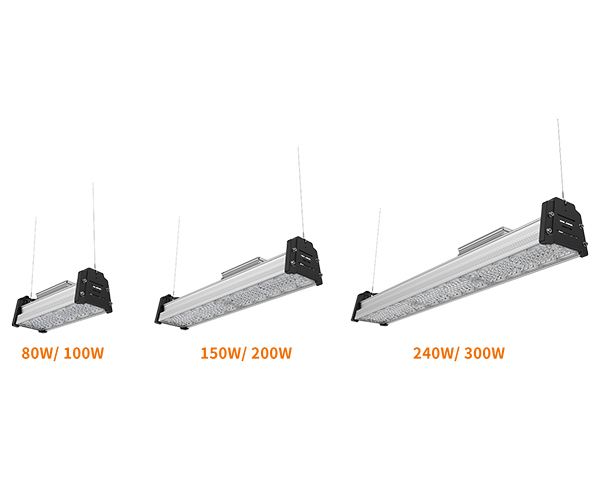

| Model No. | WH313-80W01 | WH313-100W01 | WH313-150W02 | WH313-200W02 | WH313-240W03 | WH313-300W03 | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 80W | 100W | 150W | 200W | 240W | 300W | |

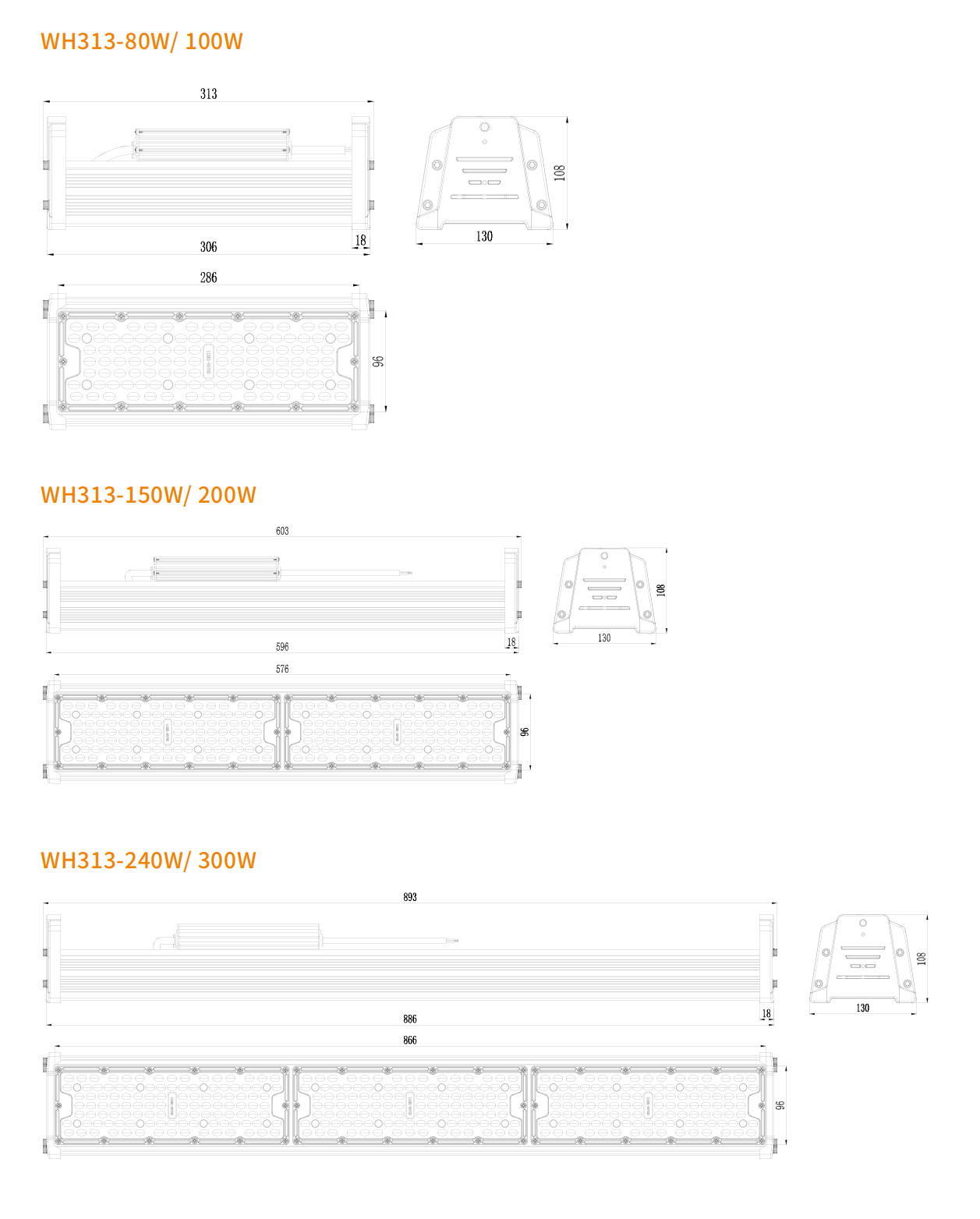

| Product Dimension | 313*130*108(mm) | 313*130*108(mm) | 603*130*108(mm) | 603*130*108(mm) | 893*130*108(mm) | 893*130*108(mm) | |
| Efficiency |
160±10%lm/W
|
145±10%lm/W
|
160±10%lm/W
|
145±10%lm/W
|
160±10%lm/W
|
145±10%lm/W
|
|
| Luminous Flux (±10%) | 12800±10%lm | 14500±10%lm | 24000±10%lm | 29000±10%lm | 38400±10%lm | 43500±10%lm | |
|
LED Quantity
|
112 PCS SMD 2835 | 117 PCS EMC 3030 | 224 PCS SMD 2835 | 234 PCS EMC 3030 | 336 PCS SMD 2835 | 351 PCS EMC 3030 | |
| CCT |
3000K;4000K;5000K;5700K;6500K
|
||||||
|
Ingress Protection
|
IP65 | ||||||
| IK grade | IK10 | ||||||
| Color Rendering Index | Ra>80 | ||||||

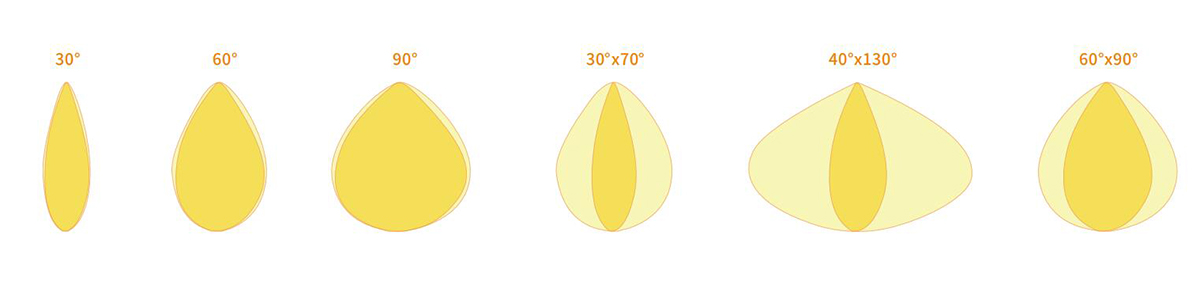

| Beam Angle |
30°/60°/90°/30*70°/40*130°/60*90°
|
||||||
| Driver Brand |
TOMCARLINE MW or other brand optional)
|
||||||
| Input Voltage |
AC120-277V
|
||||||
| Power Factor | 0.95 | ||||||
| Frequency | 47-63HZ | ||||||
| Driver Type |
Constant Current
|
||||||
| Luminaire Net Weight | 2.3kg | 2.3kg | 3.8kg | 3.9kg | 5.2kg | 5.3kg | |
| Packing Information | 4PCS/CTN | 4PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | |
| Export Carton Size | 70*31*16(cm) | 70*31*16(cm) | 65*31*16(cm) | 65*31*16(cm) | 94*31*16(cm) | 94*31*16(cm) | |
| Gross Weight | 11.8kg | 11.8kg | 9.5kg | 9.7kg | 12.8kg | 13kg | |
| Material | Housing | Aluminum-6063 | |||||
| Optics | PClens | ||||||
| Finish | Powder coating | ||||||
| Fixture Color | Silver | ||||||
| Mounting Option |

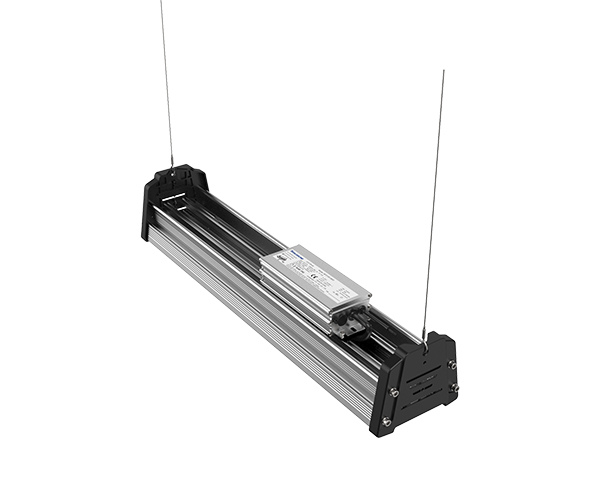

Suspending ropes/ Surface Mounting
|
||||||
| Ambient Temperature | -35℃~+50℃ | ||||||
| Life Time | 50.000 hours | ||||||
| Warranty | 5 Years | ||||||
| Dimmable | 1-10V Dimmable | ||||||
| Intelligent Control |
PLug & play 12V PIR / Daylight / Microwave motion sensor
|
||||||
| Optional Accessories | 0-10V/DALI driver | ||||||
| 100-277V/ 277-480V | |||||||
|

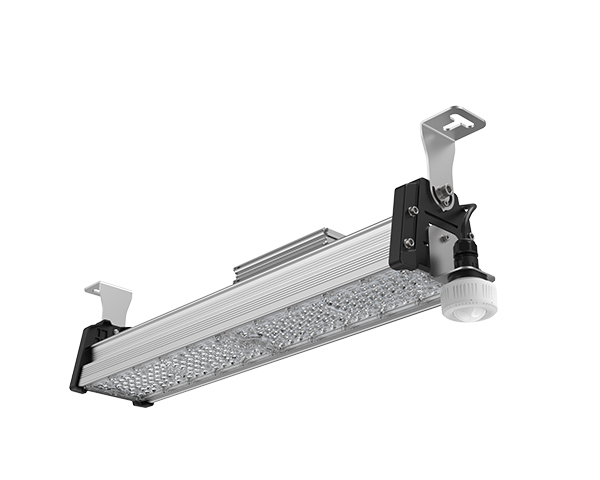

±45° Adjustable surface mounting
|
|||||||
| Ra>90 optional | |||||||
0-10V Dimmable driver or DALI Dimmable driver
100-277V/ 277-480V driver
Ceiling mounting brackets
12V Plug-and-Play PIR Sensor + Remote Control
