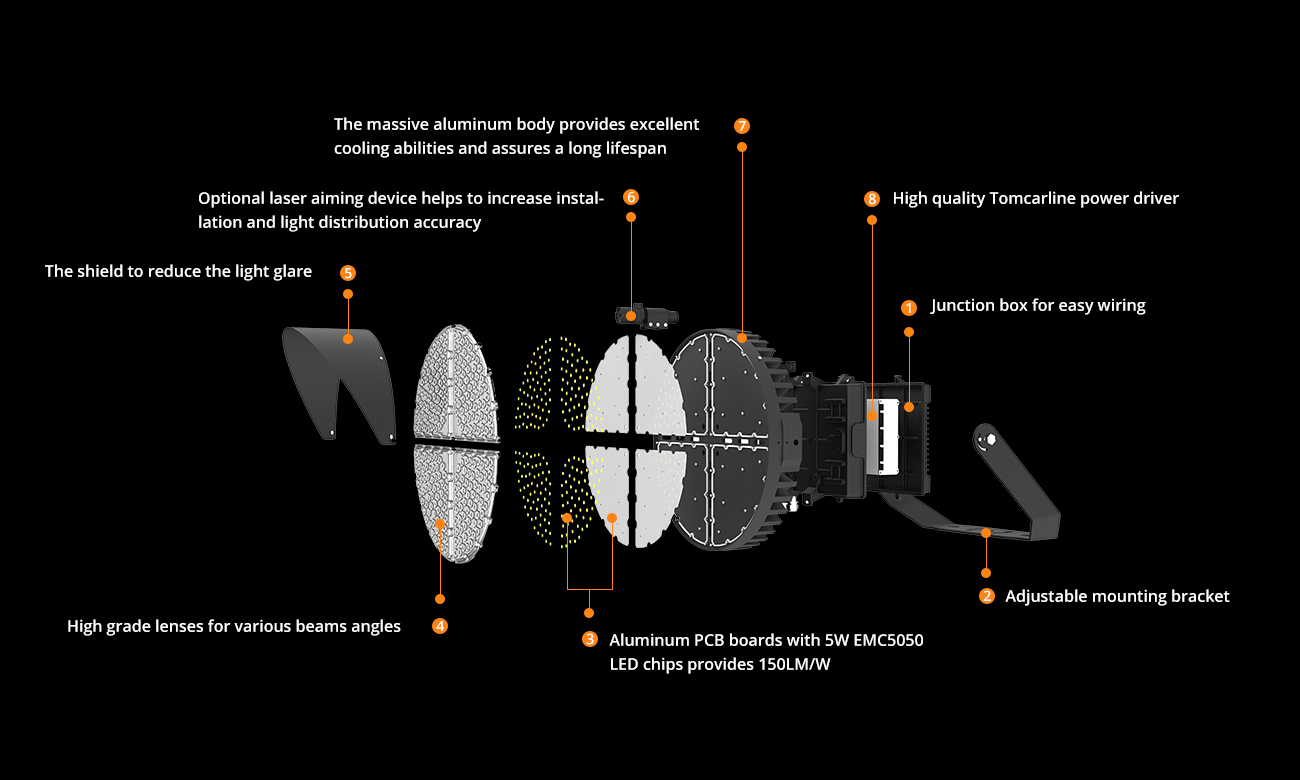

1.Heavy-Duty, lightweight and durable die-cast design
2.Compact design with no expose electronics or wiring
3.As high as 150lm/W system light efficiency
4.High level of lighting quality, flicker free
Inquire Now

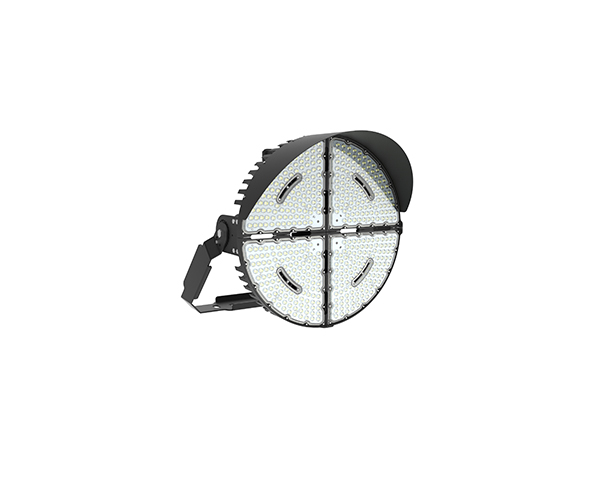

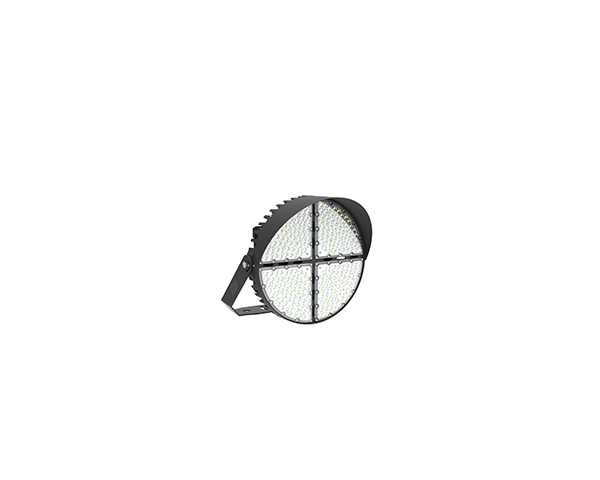

The Winner Sports & Flood Light is ideal for sports field lighting, back yard sports courts, parks, signs, parking lot lighting, and other general applications where sports lighting may come into use. It has wattages ranging from 300 watt to 500 watts. With different beam spreads available, we can adjust your LED sports light fixture output to eliminate dark sports on your sports field.
CRI>80
480V high voltage driver
SPD protection
Laser aiming device
DLC，UL，CE，ROHS

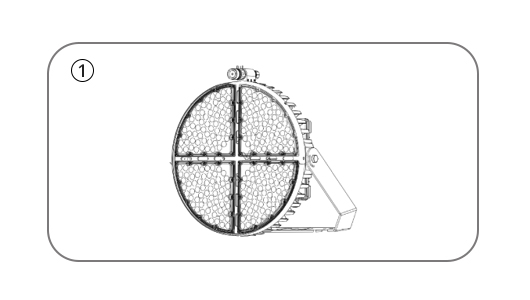

1.Please take out the fixture from the package.

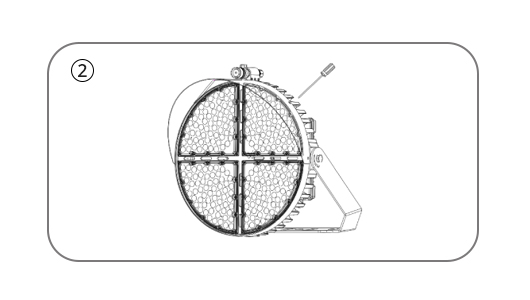

2.Please use 5pcs M4*8 screws to install the shading board on the fixture.

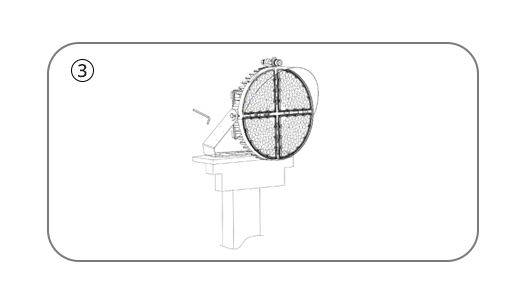

3.Please install the fixture onto the pole, fasten the screws.

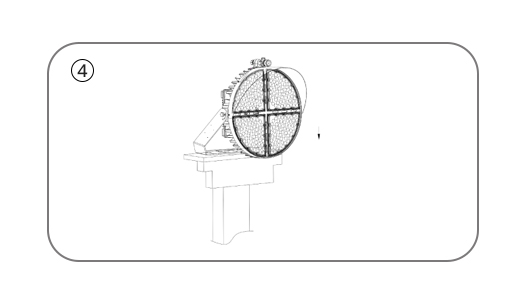

4.Please loosen the screws on the both sides of fixture, adjust the beam angle of fixture. (Please do not loosen the screws totally)

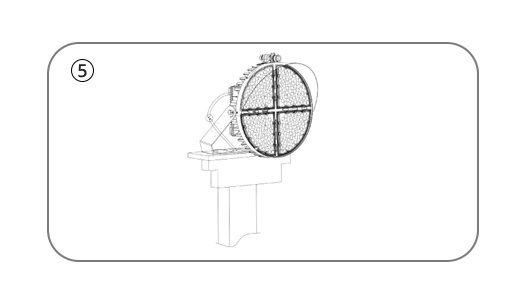

5.Please connect the fixture with AC100-277V electricity.
Sports & Other outdoor lighting
Sports
Parking lots
Roads and streets
| Standard lumen (150lm/W) | |||||||
|---|---|---|---|---|---|---|---|

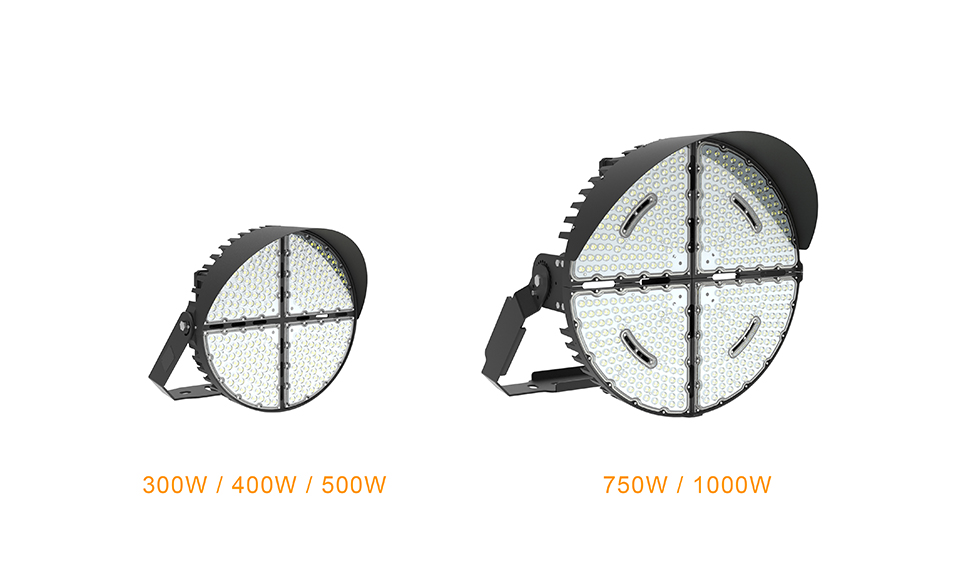

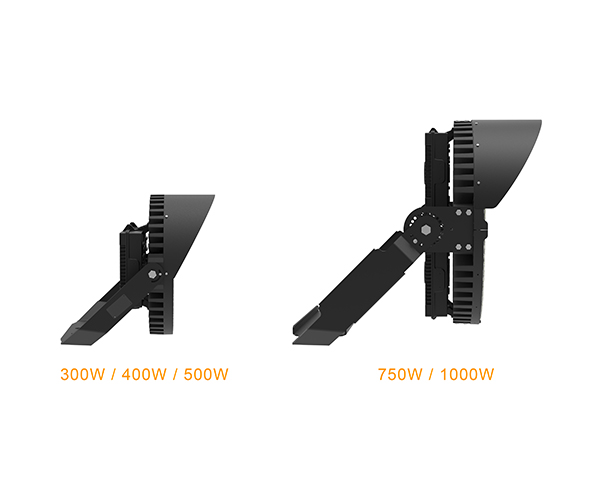

| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T35B-300W | 300W | AC100~277V 50~60Hz | 150±10 | 45000±3000 | 15°、30°、 60°、90° | 176 PCS EMC 5050 | >70 |
| T35B-400W | 400W | 150±10 | 60000±4000 | 216 PCS EMC 5050 | |||
| T35B-500W | 500W | 150±10 | 75000±5000 | 256 PCS EMC 5050 | |||
| T35B-750W | 750W | 150±10 | 112500±5000 | 384 PCS EMC 5050 | |||
| T35B-1000W | 1000W | 150±10 | 150000±5000 | 480 PCS EMC 5050 | |||
| Electrical data | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white; daylight white |
| Type of current | AC100-277V 360V 480V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >70 |
| Efficiency in % | >92% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 15°、30°、60°、90° |
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | 5~+70℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection short circuit protection overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | DLC，UL，CE，ROHS | ||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 5 Years | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | 1-10V Dimmable，DALI Dimmable |
| Lumen maintenance at e.o.l. | 70% | ||
| Packing Information | |||||
|---|---|---|---|---|---|

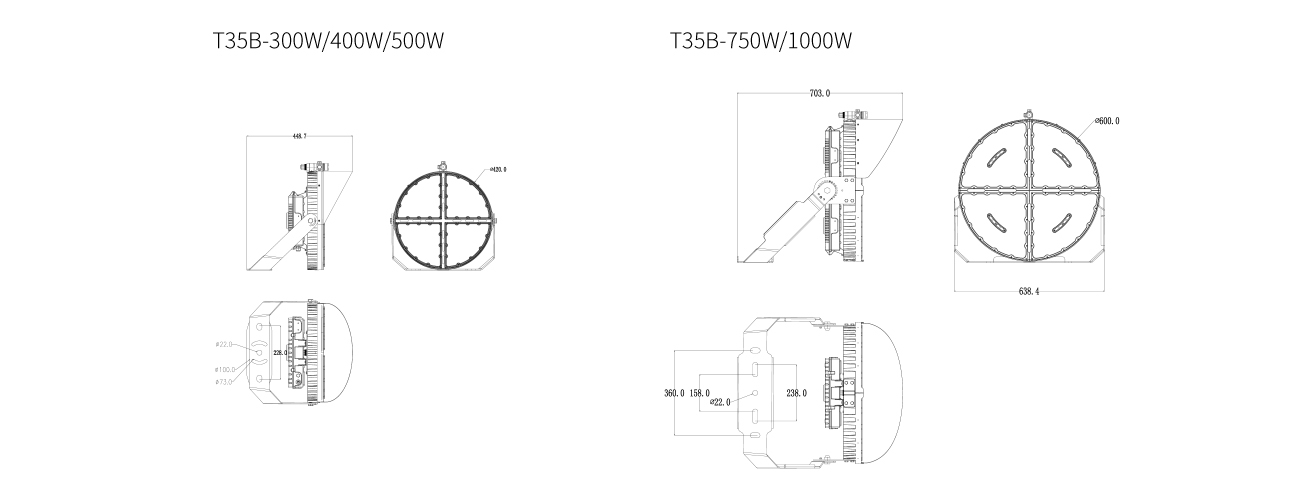

| Model | Dimension(MM) | CTN SIZE(CM) | QT Y/ CT N | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |

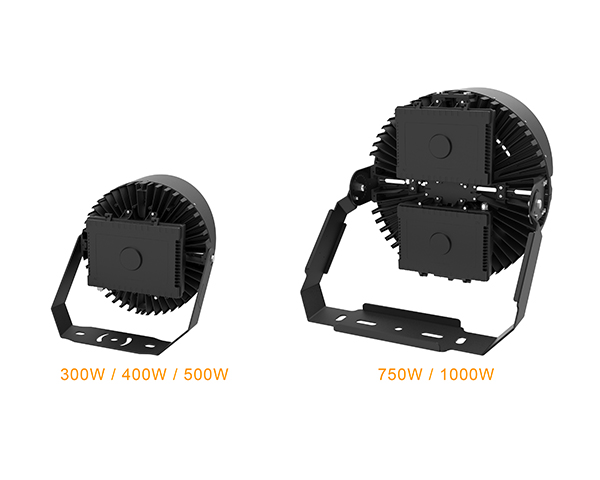

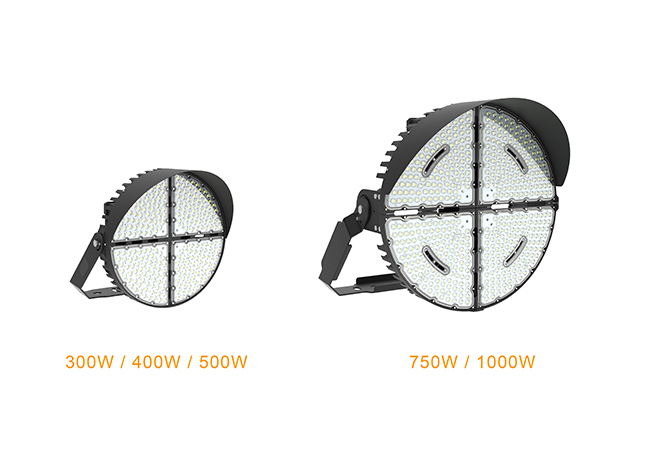

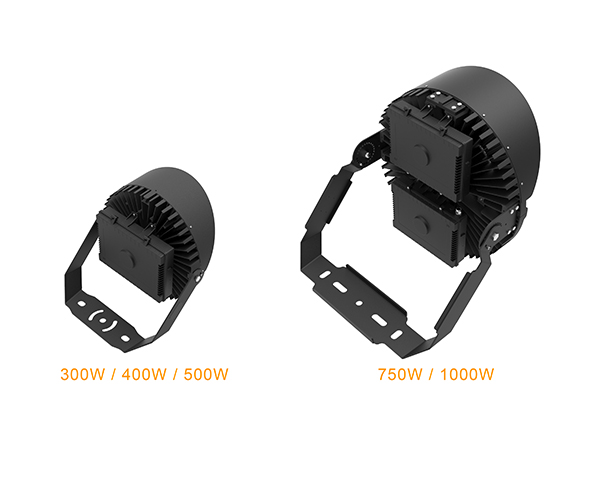

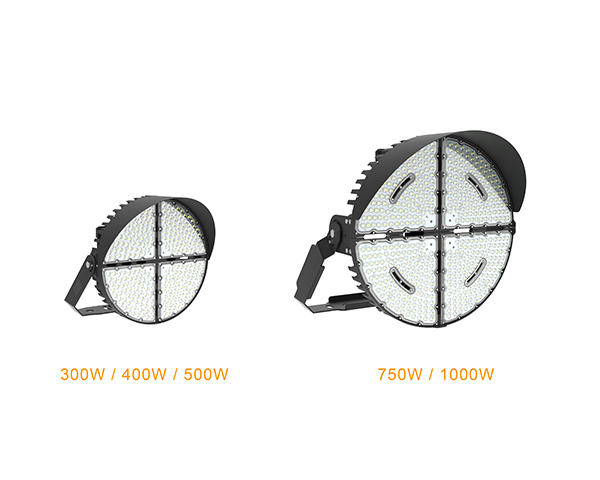

| T35B-300/400/500W | Φ420X450 | 61*51*25 | 1PCS | 13.8 | 14.7 |
| T35B-750/1000W | Φ600X700 | 89*71*27.5 | 1PCS | 28.5 | 29.6 |
