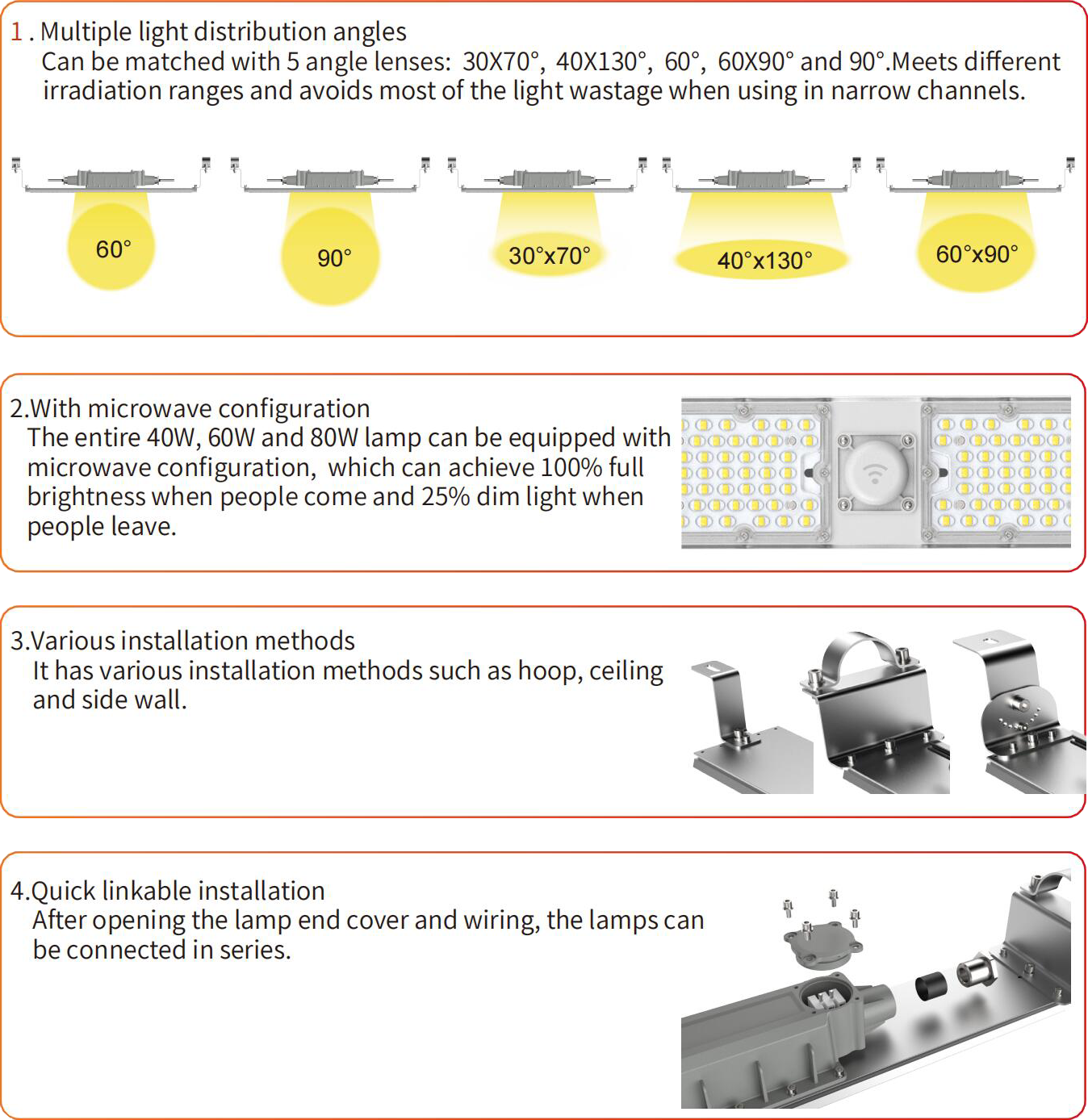

1. Can be matched with 5 angle lenses: 30X70°，40X130°，60°，60X90°and 90°.Meets different irradiation ranges and avoids most of the light wastage when using in narrow channels.
2. The entire 40W, 60W and 80W lamp can be equipped with microwave configuration,which can achieve 100% full brightness when people come and 25% dim light when people leave.
3. It has various installation methods such as hoop, ceiling and side wall.
4. After opening the lamp end cover and wiring, the lamps can be connected in series.
Inquire Now
|
Model No.
|
HL162-40W
|
HL162-60W
|
HL162-80W
|
||||
|---|---|---|---|---|---|---|---|
|

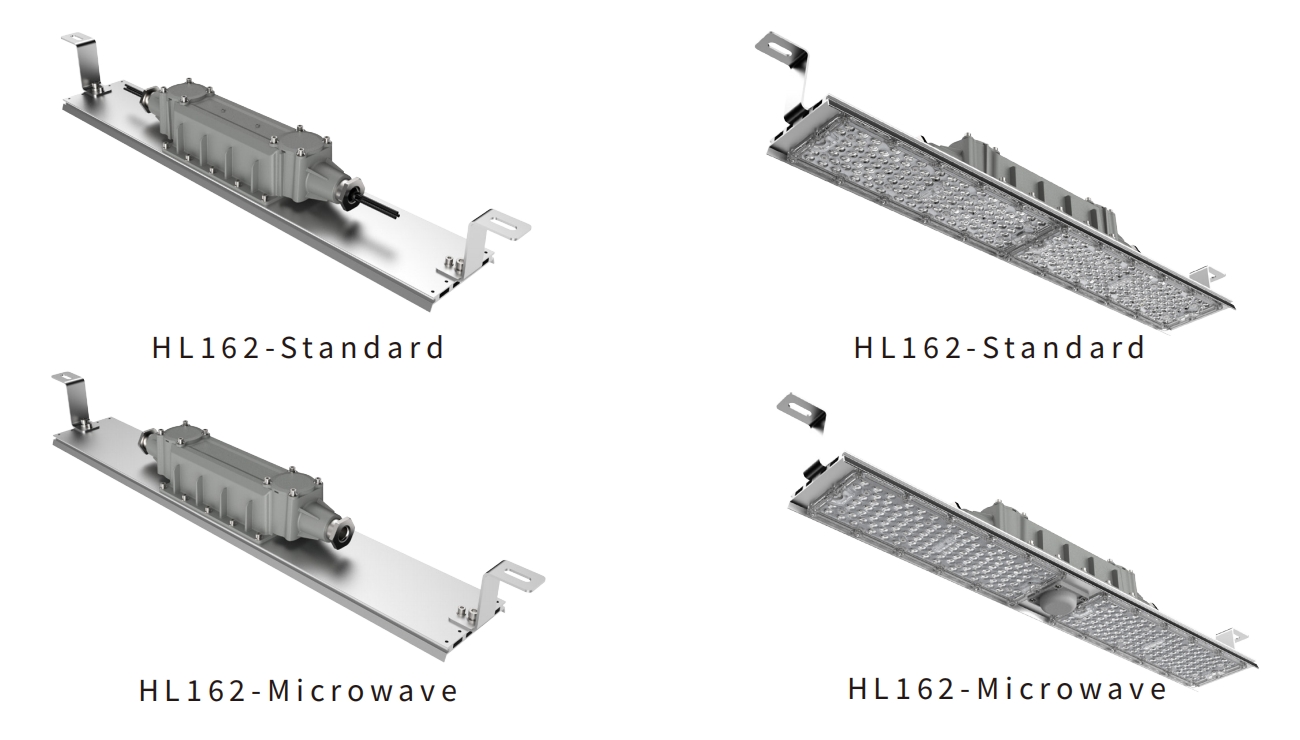

Configuration
|
standard model
|
microwave model
|
standard model
|
microwave model
|
standard model
|
microwave model
|
|
|

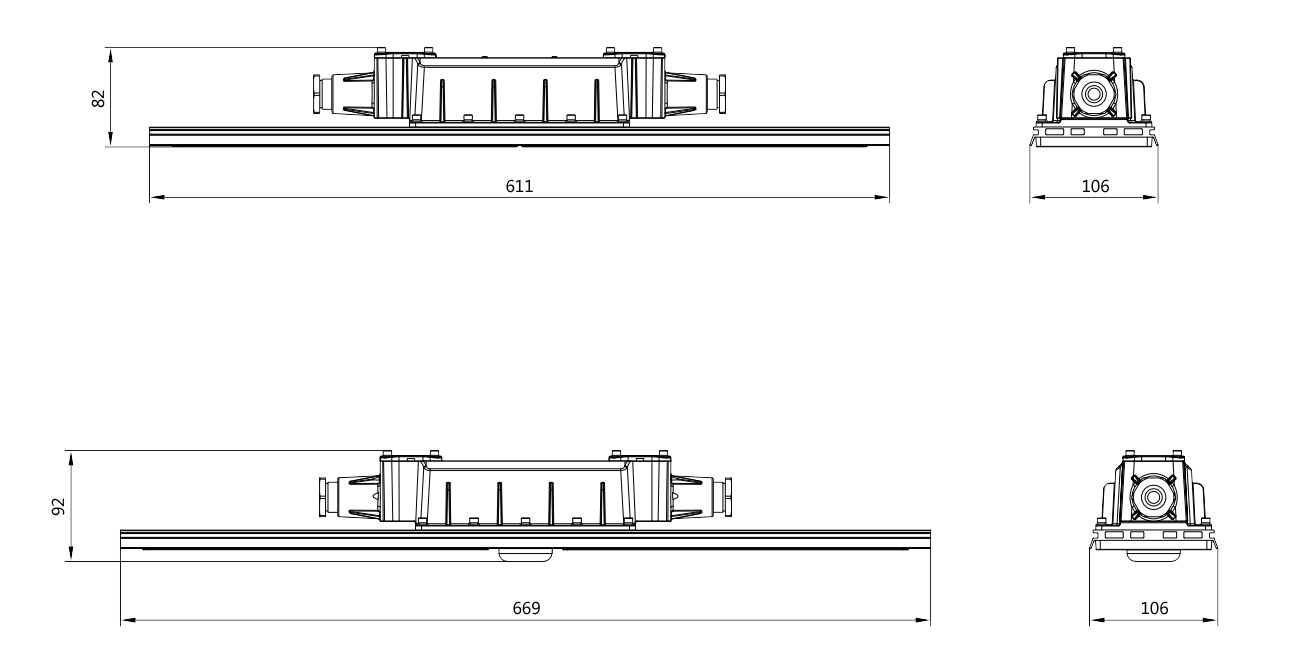

Dimensions
|
611*106*82mm
|
669*106*92mm
|
611*106*82mm
|
669*106*92mm
|
611*106*82mm
|
669*106*92mm
|
|
|
Luminous efficiency
|
150±10Lm/W
|
||||||
|
Luminous flux
|
6000±400LM
|
9000±600LM
|
12000±800LM
|
||||
|
Color temperature
|
3000K;4000K;5000K;5700K
|
||||||
|
Protection grade
|
IP66
|
||||||
|
IK grade
|
IK10
|
||||||
|
Wind resistance grade
|
12级
|
||||||
|
Color rendering index
|
Ra > 70
|
||||||
|
Beam angle
|
30X70°、40X130°、60°、60X90°、90°
|
||||||
|
Input voltage
|
AC120V-277V
|
||||||
|
Power factor
|
＞0.9
|
||||||
|
Frequency
|
50Hz/60Hz
|
||||||
|
Power supply type
|
constant current
|
||||||
|
Net weight of lamps
|
2.9KG
|
3KG
|
2.9KG
|
3KG
|
2.9KG
|
3KG
|
|
|
Packaging Information
|
1PCS/CTN
|
||||||
|
Carton size
|
74.3cm*17.0cm*14.8cm
|
||||||
|
Gross weight
|
3.7KG
|
3.8KG
|
3.7KG
|
3.8KG
|
3.7KG
|
3.8KG
|
|
|
Pull in sealing ring through
wire diameter size
|
Φ8mm-Φ14mm
|
||||||
|
Cable entry thread
|
M25×1.5
|
||||||
|
Installation method
|
Side wall installation, ceiling installation, hoop installation
|
||||||
|
Material
|
Main body
|
6063-T5、ADC12
|
|||||
|
Optics
|
lens+PC
|
||||||
|
Appearance color
|
silver gray
|
||||||
|
Service life
|
50000h
|
||||||
|
Warranty
|
5 years
|
||||||
|
Explosion-proof signs
|
Ex nR IIC T6 Gc; Ex tb IIIC T80°C Db(EX db nR IIC T6 Gc; Ex tb IIIC T80°C Db)
|
||||||

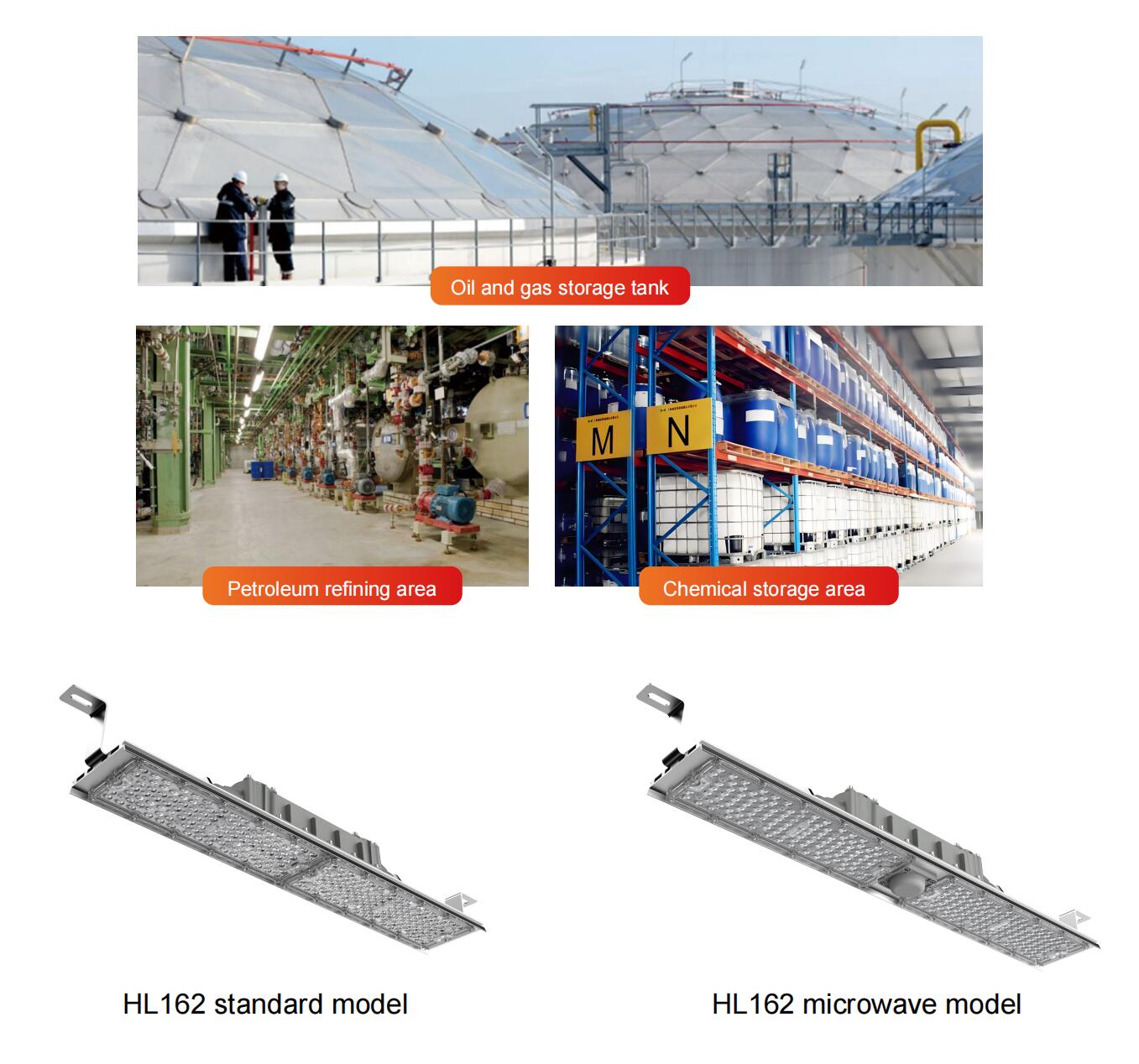

HL162 products are mainly used for lighting in oil and gas storage tanks, petroleum refining areas, and chemical storage areas in various factories.
