Shine a Light in Every Corner!
Shine a Light in Every Corner!

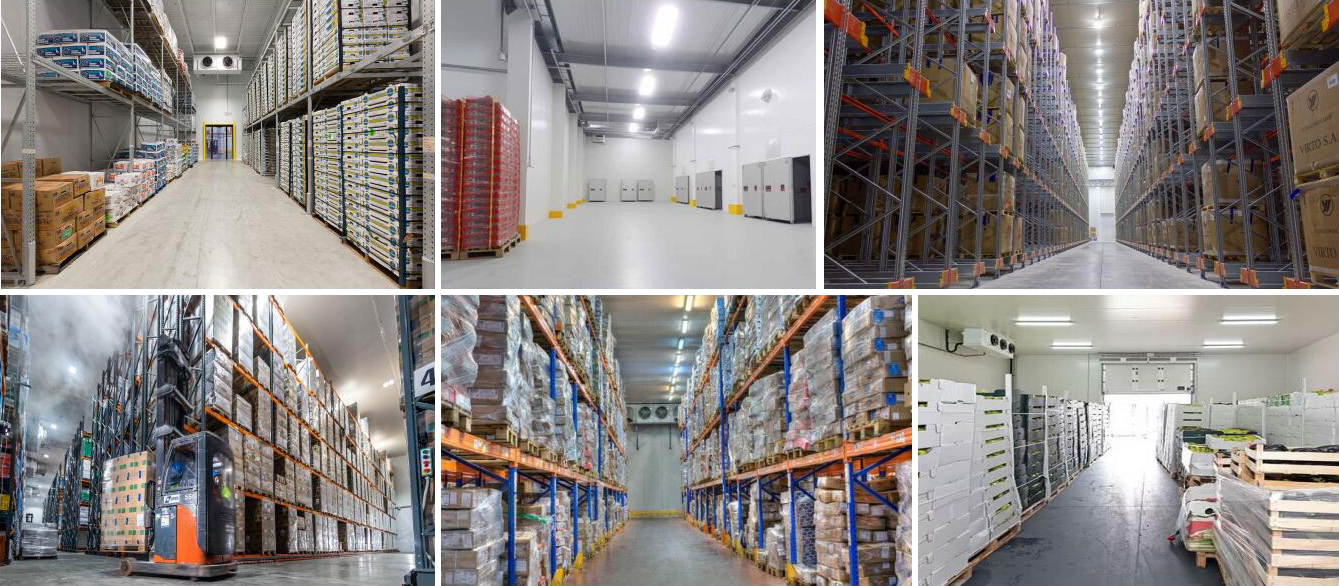

The unique rectangle light distribution provides precise and efficient lighting for high shelves warehouse
UGR<16, more comfortable visual effects
Up to 160lm/W, saving more energy
Special power supply for cold storage with 50,000 hours lifetime @ -50 ℃
IP66 grade protection，more reliable for cold storage
6KV/10KV surge protection, no fear for high surge voltage generated by large compressor refrigeration
Sensor optional, more intelligent and more energy saving
Inquire Now
| Model No. |
CS317-200W
|
|
|---|---|---|
|
Power Selectable
|
200W-150W-100W
|
|

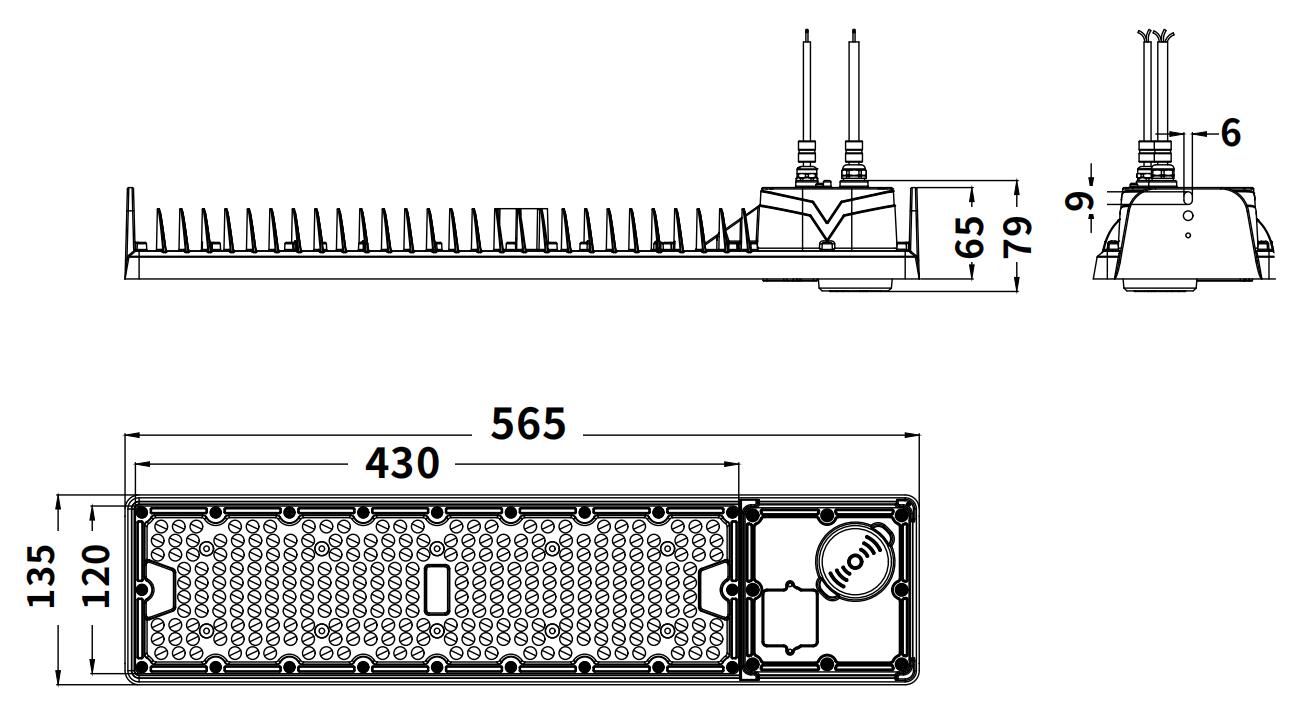

| Product Dimension |
565*135*79MM
|
|
| Efficiency |
160±10lm/W
|
|
| Luminous Flux |
200W(32000±2000lm)-150W(24000±1500lm)-100W(16000±1000lm)
|
|
|
Driver Brand
|
TOMCARLINE
|
|
|
CCT
|
3000K;4000K;5000K;6500K
|
|
|
UGR
|
<16
|
|
|
Ingress Protection
|
IP66
|
|
|
Impact Protection
|
IK10
|
|
|
Color Rendering Index
|
Ra>80
|
|
|
Beam Angle
|
20° / 40° / 60° / 90° 30*70° / 60*130°
|
|
|
Input Voltage
|
AC120-277V
|
|
|
Power Factor
|
0.95
|
|
|
Frequency
|
50/60HZ
|
|
|
Driver Type
|
Constant Current
|
|
|
Luminaire Net Weight
|
3KG
|
|
|
Packing Information
|
1PCS / CTN
|
|
| Export Carton Size |
64*20*15.5CM
|
|
|
GrossWeight
|
3.6KG
|
|
| Material | Housing | Aluminum Alloy |
| Optics | PC | |
| Finish | Powder Coating | |
|
Fixture Color
|
White | |
|
Mounting Option
|
Suspending ropes installation｜Surface mounting brackets
Pendant G1/2"NPT installation｜Pendant G3/4"NPT installation
|
|
|
Storage temperature range
|
-40℃ - +70℃ | |
|
Storage humidity range
|
85% max.
|
|
|
Operating temperature range
|
-50℃ - +50℃ | |
|
Operating humidity range
|
85% max.
|
|
|
Life Time
|
50000 hours
|
|
|
Warranty
|
5 Years | |
|
Dimmable
|
0-10V/1-10V dimmable
|
|
|
Intelligent Control
|
12V Microwave motion sensor
|
|
