Shine a Light in Every Corner!
Shine a Light in Every Corner!
IP65 Waterproof
Quick wiring, flexible installation
Light efficiency up to 150lm/W
Large luminous surface, soft and uniform light
Linkable use optional
Optional magnetic installation, no drilling, save labor and installation costs
Inquire Now
|
Power
|
Input Voltage
|
Numbers
|
|
20W
|
100-277Vac
|
60
|
|
40W
|
35 | |
|
50W
|
28
|
| Model No. |
T581-20W06
|
T581-40W12
|
T581-50W15
|
|
|---|---|---|---|---|
|
Power
|
20W
|
40W
|
50W
|
|

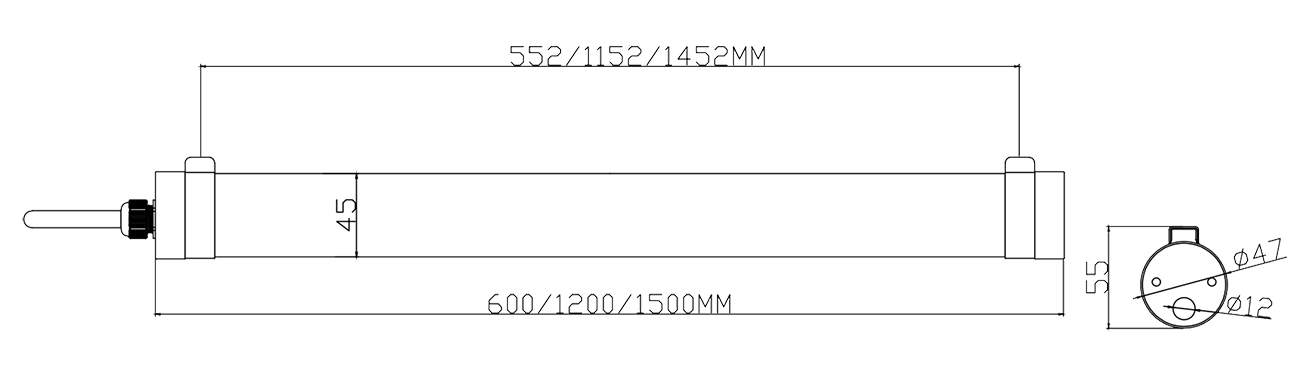

| Product Dimension |
620* 55MM
|
1220* 55MM
|
1520* 55MM
|
|
| Efficiency |
150±10 lm/W
|
|||
| Luminous Flux |
3000±200lm
|
6000±400lm
|
7500±500lm
|
|
| CCT |
3000K;4000K;5000K;5700K;6500K
|
|||
| Ingress Protection |
IP65/IK08
|
|||
| Color Rendering Index |
Ra>80(Ra>70 Optional)
|
|||

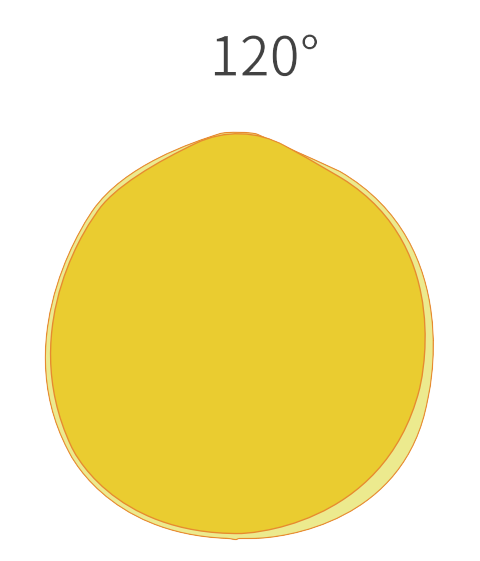

| Beam Angle |
>120°
|
|||
|
Driver Brand
|
TOMCARLINE
|
|||
| Input Voltage |
AC100-277V
|
|||
| Power Factor |
PF>0.9
|
|||
| Frequency |
50/60Hz
|
|||
|
Driver Type
|
Constant Current(CC)
|
|||
| Luminaire Net Weight |
0.48Kg
|
0.71Kg
|
0.91Kg
|
|
| Packing Information |
12PCS/CTN
|
12PCS/CTN
|
12PCS/CTN
|
|
| Export Carton Size |
72*28*21.5CM
|
132*28*21.5CM
|
162*28*21.5CM
|
|
| Gross Weight |
10Kg
|
14Kg
|
18Kg
|
|
| Material | Housing |
Aluminum Alloy
|
||
| Optics |
Special PMMA material
|
|||
| Fixture Color |
White
|
|||
| Mounting Option |
Ceiling mounted
|
|||
| Storage temperature range |
-20℃ - +50℃
|
|||
| Storage humidity range | 85% max. | |||
| Operating temperature range |
-30~+45℃
|
|||
| Operating humidity range |
85% max.
|
|||
| Life Time |
50,000 hours
|
|||
| Warranty |
5 Years
|
|||
|
Dimmable
|
1-10VDimmable
|
|||
|
Optional Accessories
|
Linkable use
|
|||
|
Suspending ropes/ Magnetic mounting
|
||||
