Shine a Light in Every Corner!
Shine a Light in Every Corner!

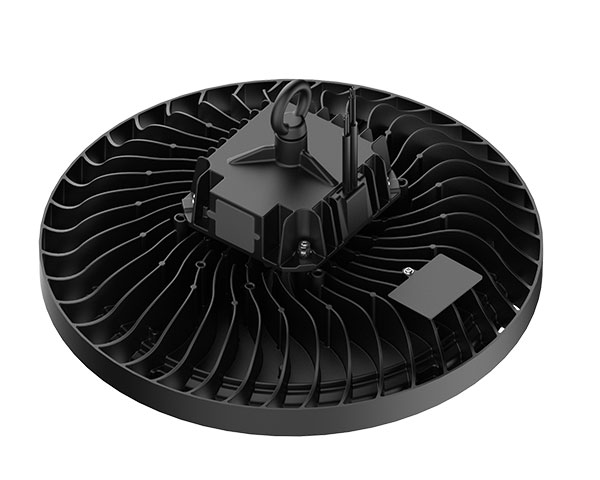

1.Perfect heat dissipation design ensures stable and excellent performance even under high temperature conditions up to 70 ° C.
2.High efficiency up to 160lm/W.
3.IP66 waterproof grade, not afraid of wet conditions.
4.Tempered glass cover design, easy to clean, corrosion resistant, providing protection in harsh environments.
5.EMC3030 led chips, more resistant to high temp, less light decrease.
6.Redundancy driver design with 6KV/10KV surge protection, stable quality, longer lifetime assurance, less maintenance.
Inquire Now
| Model No. |
HB65-H-80W
|
HB65-H-130W
|
HB65-H-190W
|
|
|---|---|---|---|---|
| Product Dimension |
φ280*165(mm)
|
φ320*178(mm)
|
φ360*178(mm)
|
|
| Efficiency |
160±10%lm/W (Ra>80)
|
|||
| Luminous Flux |
12800±10%lm
|
20800±10%lm
|
30400±10%lm
|
|
|
LED Chips
|
EMC 3030
|
|||
| CCT |
3000K;4000K;5000K;5700K;6500K
|
|||
| Ingress Protection |
IP65
|
|||
| Color Rendering Index | Ra>80 | |||
| Beam Angle |
110°
|
|||
|
Driver Brand
|
TOMCARLINE
|
|||
| Input Voltage |
AC120-277V
|
|||
| Power Factor | 0.95 | |||
| Frequency |
47-63HZ
|
|||
|
Driver Type
|
Constant Current (CC)
|
|||
| Luminaire Net Weight |
2.7kg
|
3.5kg
|
4.8kg
|
|
| Packing Information |
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
|
| Export Carton Size |
33*33*18CM
|
37*37*19CM
|
41*41*19CM
|
|
| Gross Weight |
3.5kg
|
4.5kg
|
6kg
|
|
| Material | Housing |
Aluminum Alloy
|
||
| Optics |
Tempered Glass
|
|||
|
Finish
|
Powder Coating
|
|||
| Fixture Color |
Black
|
|||
| Mounting Option |
Ring mounting/Ceiling Mounting
|
|||
| Storage temperature range | -30℃-+70℃ | |||
| Storage humidity range | 85% max. | |||
| Operating temperature range | -40~+70℃ | |||
| Operating humidity range | 85% max. | |||
| Life Time |
50.000 hours
|
|||
| Warranty |
5 Years
|
|||
|
Dimmable
|
1-10V/0-10V dimmable
|
|||
|
Optional Accessories
|
±45° adjustable brackets
|
|||
|
Safety rope (0.5m length)
|
||||
