Shine a Light in Every Corner!
Shine a Light in Every Corner!
High efficiency up to 160lm/W
IP66&IK10 protection
Power range from 60W to 240W
0-10V Dimmable

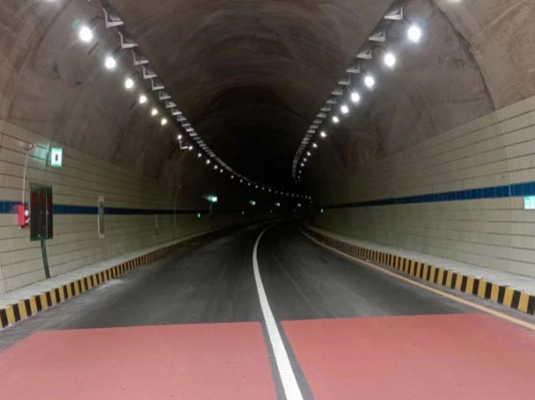

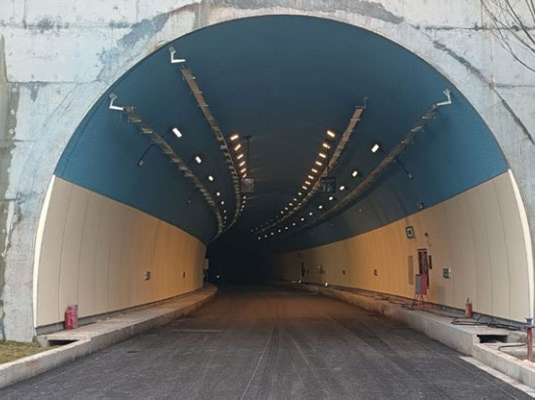

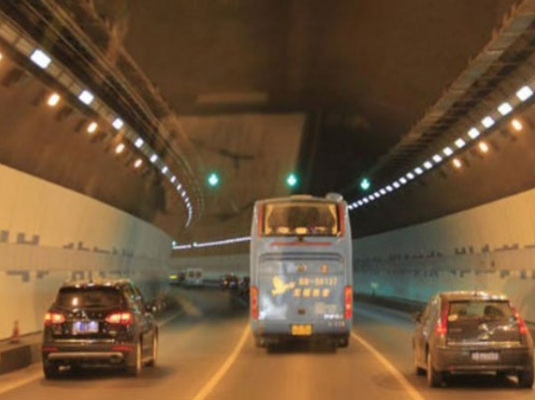

Specialized Optical Lenses for Tunneling Applications
Surge protection 6KV/10KV
Inquire Now

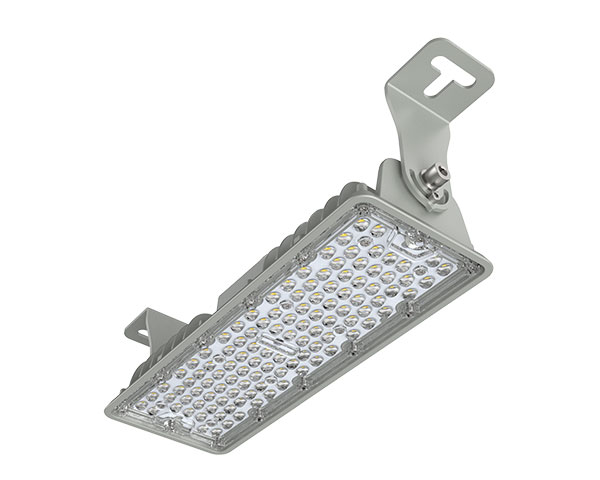

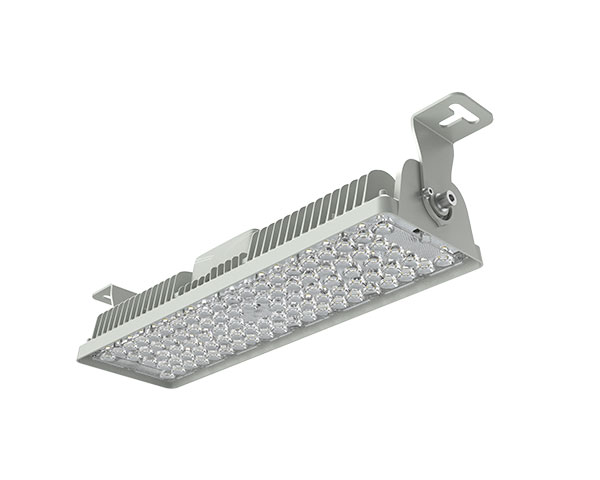

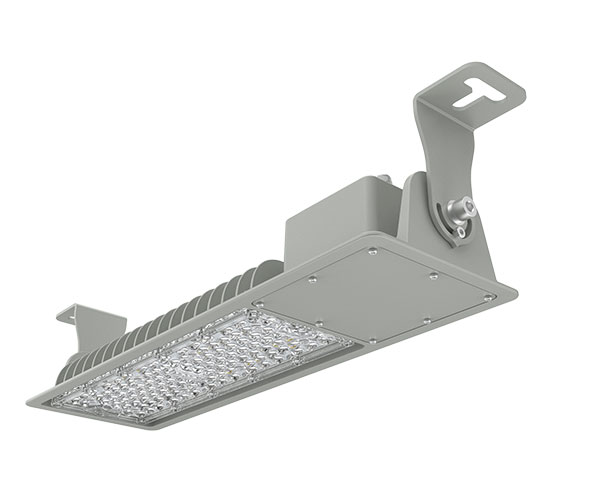

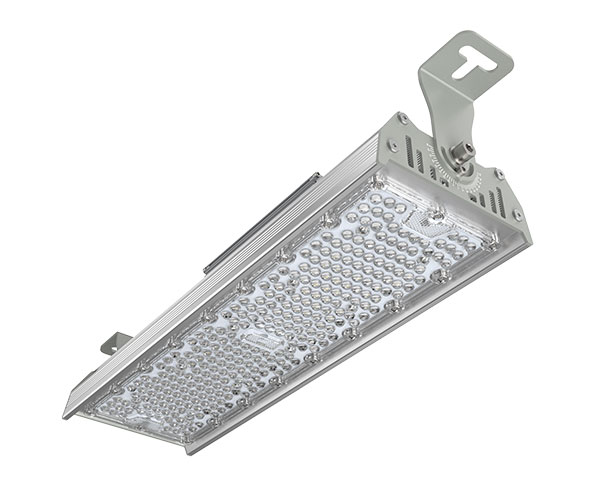

| Model No. |
TNC711-60W
|
TNC711-110W
|
TNC711-180W
|
TNC711-240W
|
|
|---|---|---|---|---|---|
|
Power
|
20-60W
|
70-110W
|
120-180W
|
190-240W
|
|

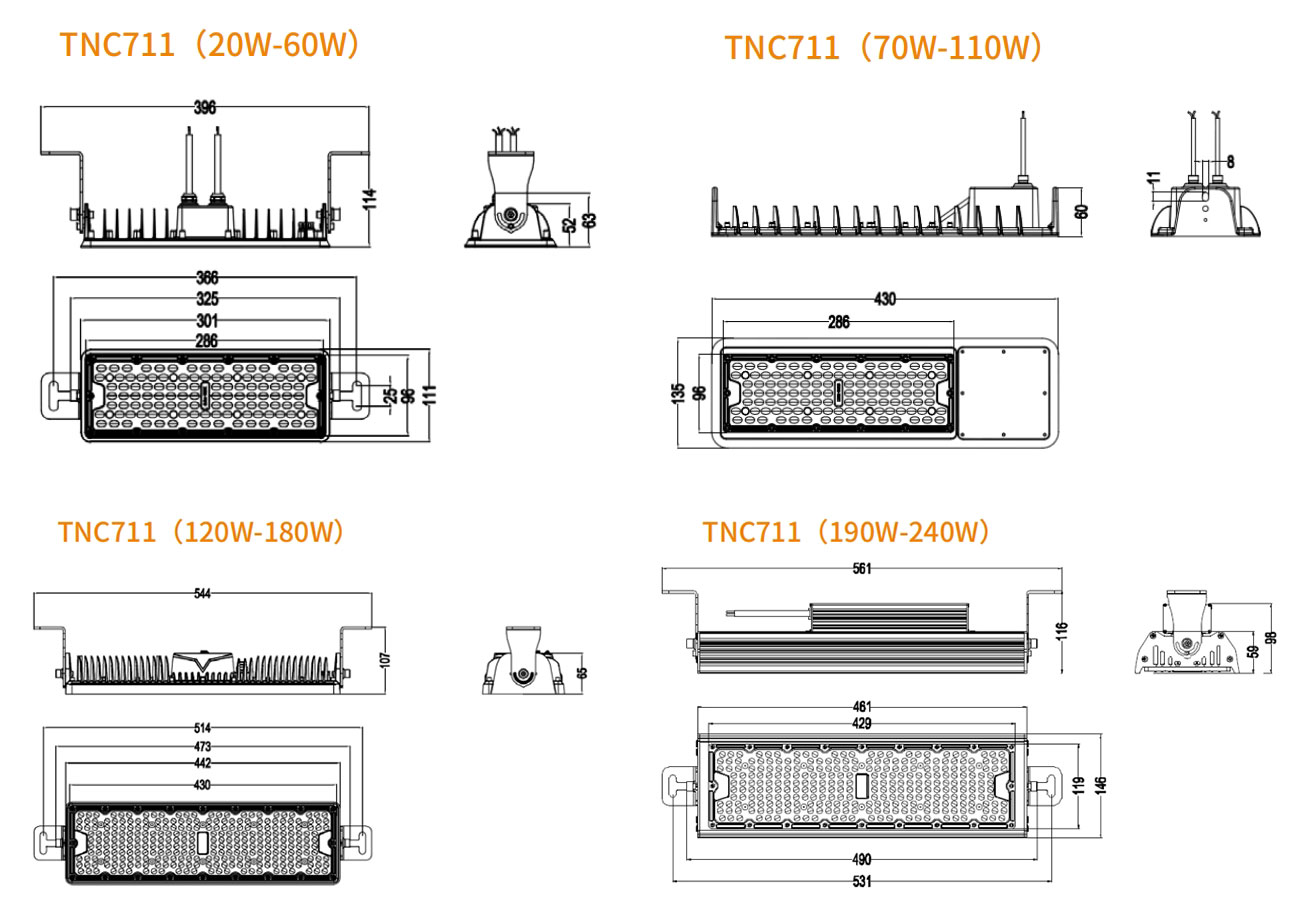

| Product Dimension |
396*111*114 mm
|
525*135*110 mm
|
544*132*107 mm
|
761*146*116 mm
|
|
| Efficiency |
160 lm/W
|
150 lm/W
|
160 lm/W
|
150 lm/W
|
|
| Luminous Flux (±10%) |
3200-9600lm
|
10500-16500lm
|
19200-28800lm
|
28500-36000lm
|
|
| CCT |
3000K；4000K；5000K；5700K；6500K
|
||||
| Ingress Protection |
IP66/ IK10
|
IP65/ IK10
|
|||
| Color Rendering Index |
Ra>80 (70、90 optional)
|
||||
| Beam Angle |
30°/ 60°/ 90°/ 60*90°/ 60*130°
|
||||
| Driver Brand |
Tomcarline
|
||||
| Input Voltage |
AC200-240V
|
||||
| Power Factor |
0.95
|
||||
| Frequency |
50/60HZ
|
||||
| Driver Type |
Constant Current
|
||||
| Luminaire Net Weight |
1.4kg
|
1.9kg
|
4.2kg
|
2.2kg
|
|
| Packing Information |
4PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
2PCS/CTN
|
|
| Export Carton Size |
55.5*36.5*16.5CM
|
49.5*19.5*14.5CM
|
55*28.5*17CM
|
52*27.5*20.5CM
|
|
| Gross Weight |
6.4kg
|
3kg
|
4.9kg
|
5.2kg
|
|
| Material | Housing | Aluminum Alloy | |||
| Optics | PC lens | ||||
| Finish |
Powder Coating
|
Anodic oxidation
|
|||
| Fixture Color |
Silver gray RAL9006
|
Aluminum Natural
|
|||

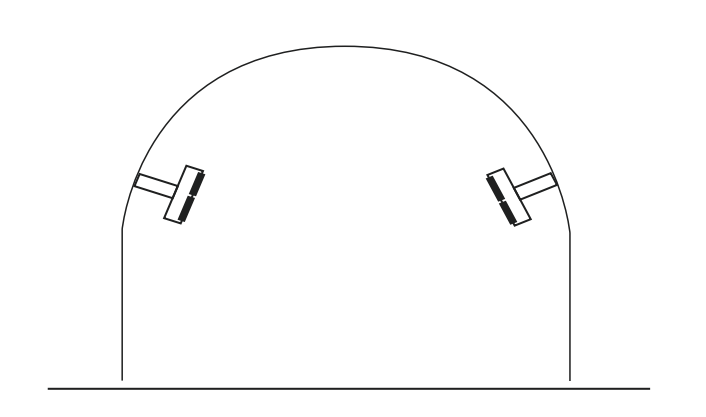

| Mounting Option |
L-Bracket Mounting
|
||||
| Storage temperature range |
-40℃~+70℃
|
||||
| Storage humidity range | 85% max. | ||||
| Operating temperature range |
-30℃+45℃
|
||||
| Operating humidity range | 85% max. | ||||
| Life Time | 50.000 hours | ||||
| Warranty | 5 Years | ||||
| Dimmable |
10-0Vnegative logic dimming
|
||||
| Optional Accessories |
U-Bracket / Plastic Breathing Apparatus / Metal Breathing Apparatus
|
||||
