Model No.
|
HL181
|
|
|---|---|---|
|
Power
|
30W-50W
|
|
|

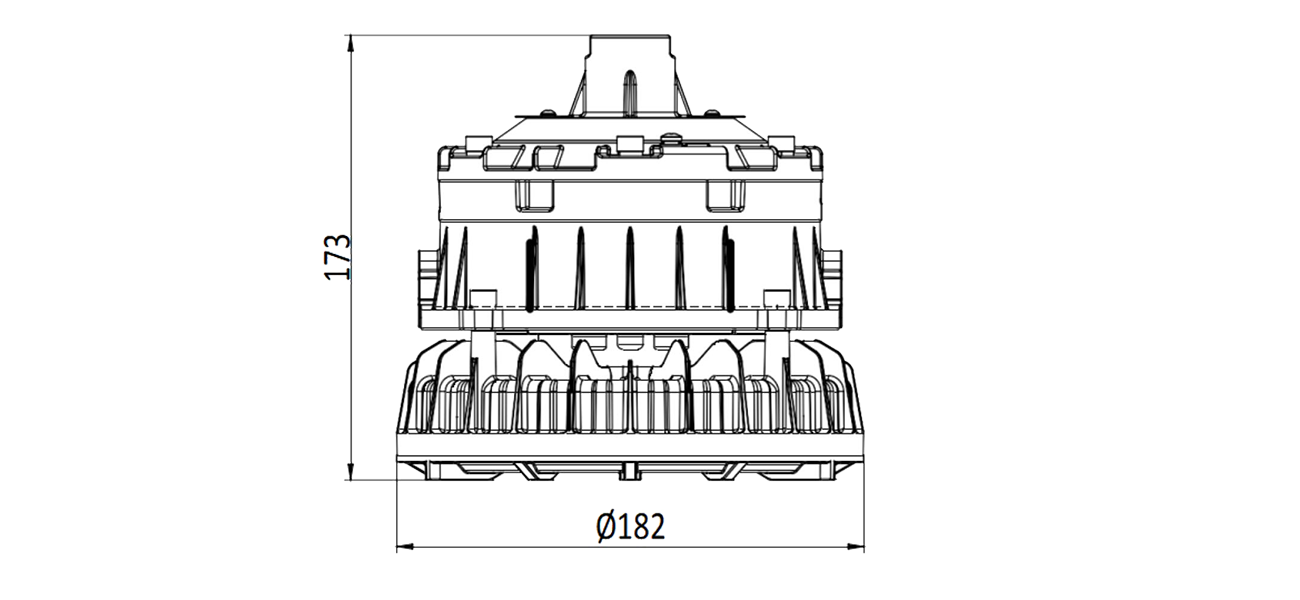

Product Dimension
|
Ø182×173mm
|
|
| Efficiency |
150±10lm/W
|
|
|
Luminous Flux(±10%)
|
4200-8000lm
|
|
|
LED
|
SMD 3030
|
|
|
CCT
|
3000K; 4000K; 5000K; 5700K; 6500K
|
|
|
Ingress Protection
|
IP66,IK10
|
|
|
Wind resistance
|
Class12(32.7 36.9 m/s)
|
|
|
Color Rendering Index
|
Ra>70
|
|
|

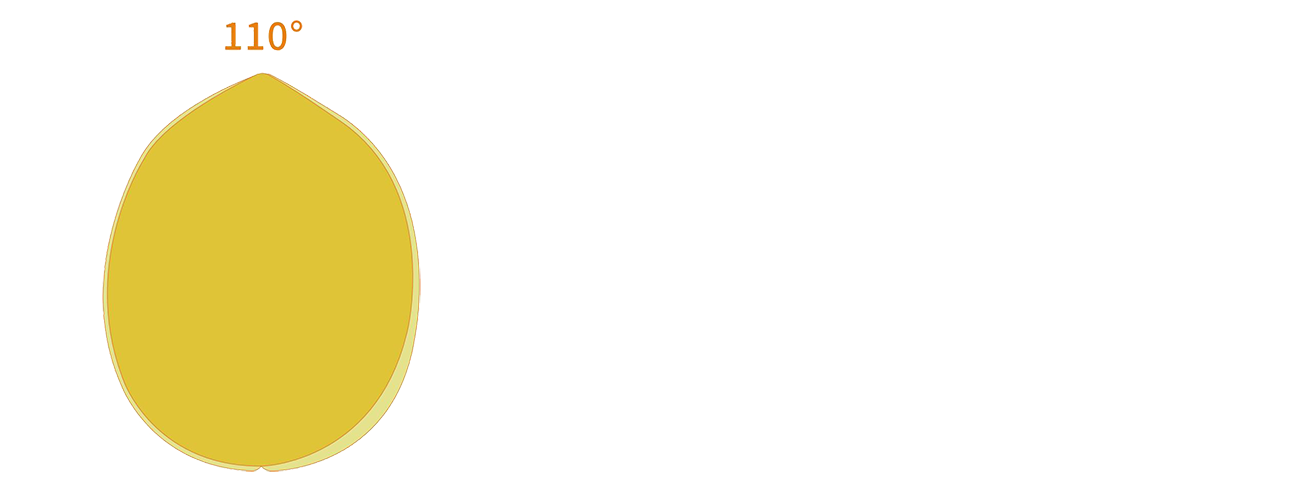

Beam Angle
|
110°
|
|
|
Driver Brand
|
TOMCARLINE
|
|
|
Input Voltage
|
AC120-277V
|
|
|
Power Factor
|
>0.9
|
|
|
Frequency
|
50 / 60Hz
|
|
|
Driver Type
|
Constant Current(CC)
|
|
|
Luminaire Net Weight
|
3.2kg
|
|
|
Packing Information
|
1PCS / CTN
|
|
|
Export Carton Size
|
23.5×23.5×29.0cm
|
|
|
Cable entry
|
NPT3/4
|
|
|
Material
|
Housing
|
6063-T5 ADC12
|
|
Optics
|
Glass
|
|
|
Fixture Color
|
Red/Yellow/Gray
|
|
|
Installation
|
Pipe installation / Ceiling installation / Bracket installation
|
|
|
Operating temperature
|
-20℃~+60℃
|
|
|
Life Time
|
50,000 h
|
|
|
Warranty
|
5 years
|
|
|
Dimmable
|
Non-dimmable
|
|
|
Certifications
|
UL,CE
|
|
