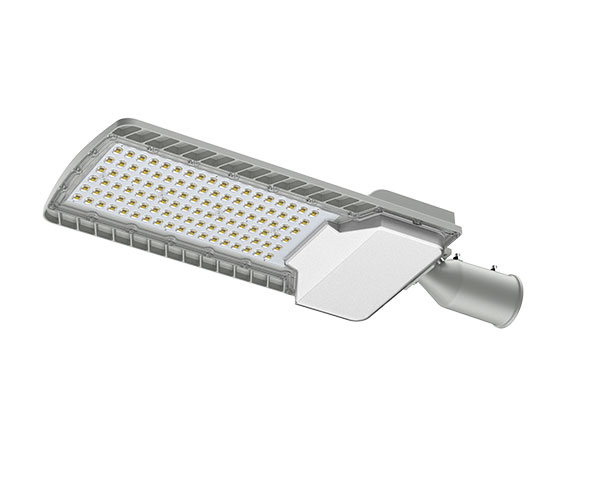

Shine a Light in Every Corner!
Shine a Light in Every Corner!
Excellent light efficiency up to 170lm/W
Full range covering 20W-240W
Robust and durable aluminum housing
IP66 protection grade
Slip-Fitter for 42/50/60mm poles

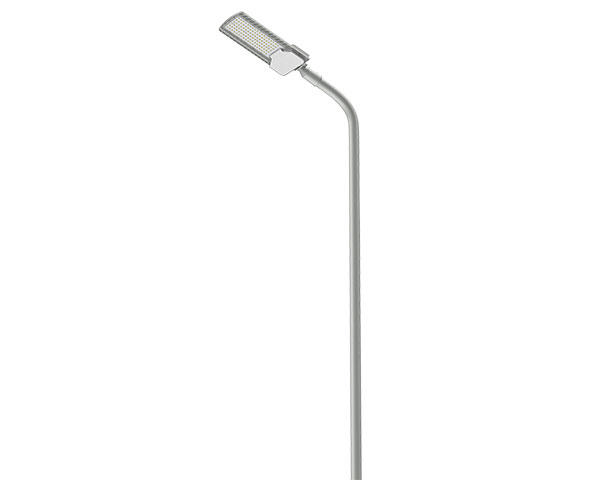

Horizontal and vertical installation
Inquire Now
| Model No. |
SLA102-30W
|
SLA102-40W
|
SLA102-50W
|
SLA102-75W
|
SLA102-100W
|
SLA102-150W
|
SLA102-200W
|
SLA102-240W
|
|
|
Power
|
30W
|
40W
|
50W
|
75W
|
100W
|
150W
|
200W
|
240W
|
|
|

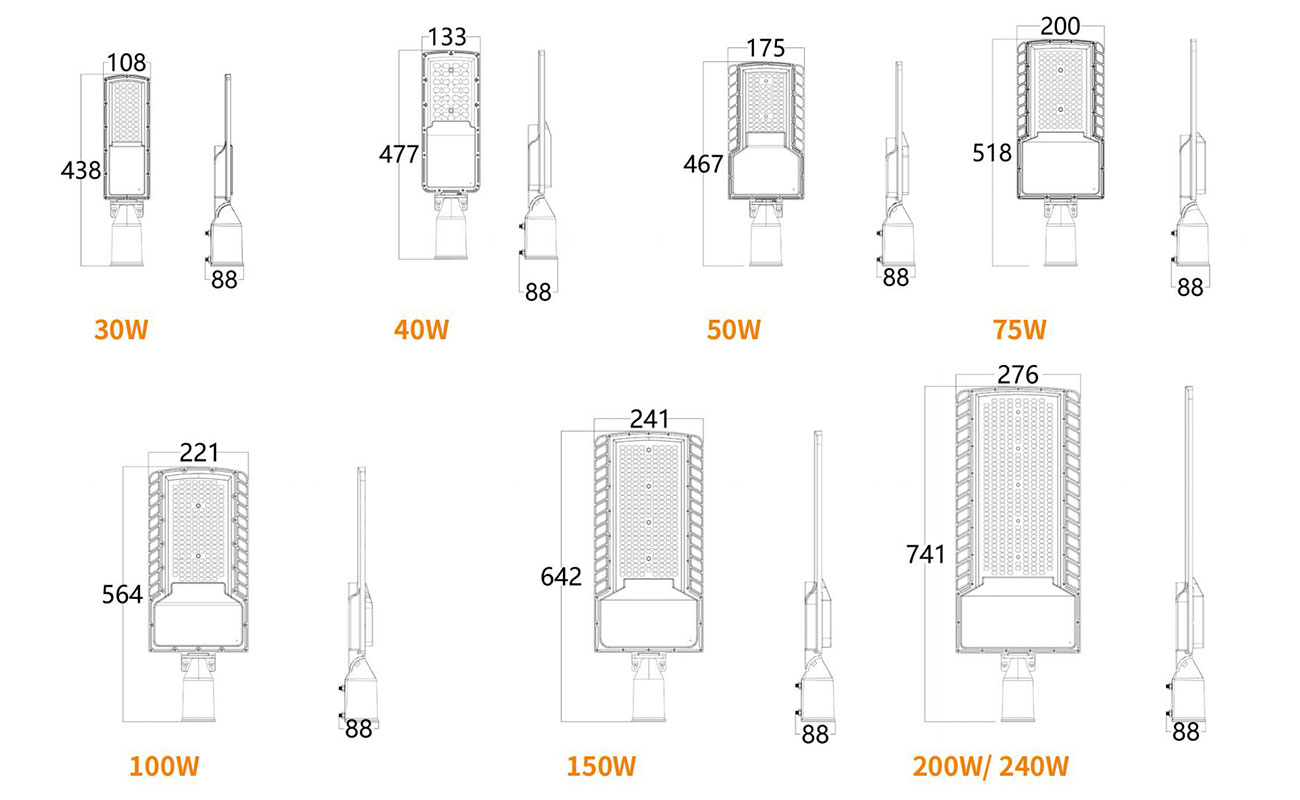

Product Dimension
|
438*108*88mm
|
477*133*88mm
|
467*175*88mm
|
518*200*88mm
|
564*221*88mm
|
642*241*88mm
|
740*276*88mm
|
741*276*88mm
|
|
| Efficiency |
170±10lm/W
|
||||||||
| Luminous Flux |
5100±300lm
|
6800±400lm
|
8500±500lm
|
12750±750lm
|
17000±1000lm
|
25500±1500lm
|
34000±2000lm
|
40800±2400lm
|
|
| CCT |
3000K;4000K;5000K;5700K 6500K
|
||||||||
|
Protection grade
|
IP66 & IK10
|
||||||||
|
Color Rendering Index
|
Ra>70
|
||||||||
|

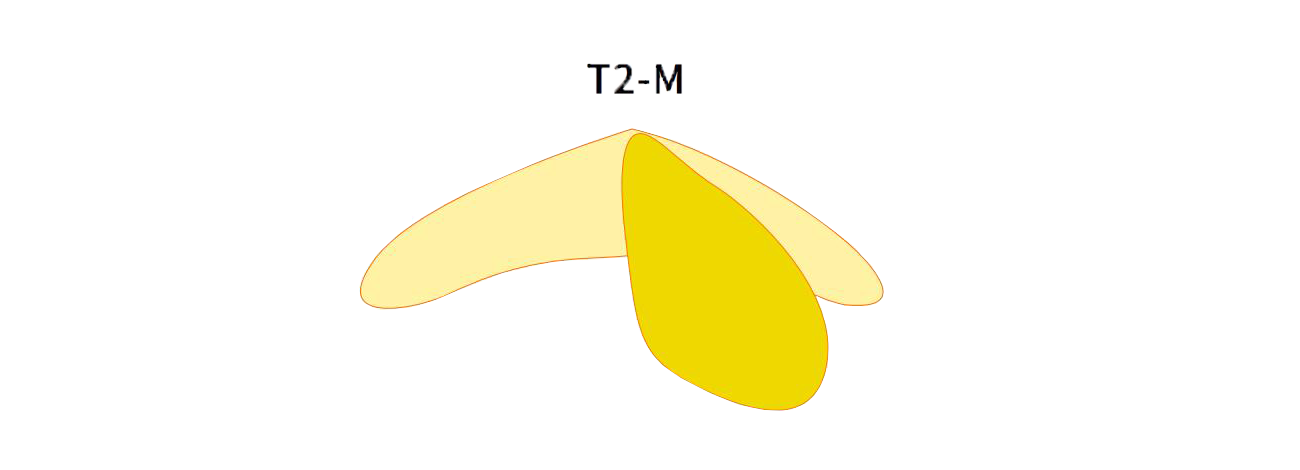

Beam Angle
|
T2-M
|
||||||||
| Driver Brand |
MOSO / SOSEN
|
||||||||
| Input Voltage |
AC100V-277V
|
||||||||
| Power Factor | 0.95 | ||||||||
|
Frequency
|
50/60HZ
|
||||||||
| Driver Type |
Constant Current
|
||||||||
| Luminaire Net Weight |
0.94kg
|
1.36kg
|
1.56kg
|
2.03kg
|
2.57kg
|
3.05kg
|
3.77kg
|
3.77kg
|
|
| Packing Information |
6PCS/CTN
|
4PCS/CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN | 1PCS/ CTN | |
| Export Carton Size |
52*49*12CM
|
49.5*32.5*17.5CM
|
48.7*21.6*12CM
|
52.8*22.5*11.8CM
|
58.5*24*12CM
|
66.2*26.4*12CM
|
76.2*31.5*12CM
|
76.2*31.5*12CM
|
|
| Gross Weight |
6.57kg
|
5.81kg
|
1.93kg
|
2.53kg
|
3.02kg
|
3.61kg
|
4.45kg
|
4.45kg
|
|
| Material | Housing |
Aluminum Alloy
|
|||||||
| Optics | PC Lens | ||||||||
| Finish |
Powder Coating
|
||||||||
| Fixture Color |
Silvery grey
|
||||||||
| Mounting Option |
Horizontal/ Vertical Installation
|
||||||||
|
Storage temperature range
|
-40℃~+75℃ | ||||||||
|
Storage humidity range
|
85% max.
|
||||||||
|
Operating temperature range
|
-30℃~+50℃ | ||||||||
|
Operating humidity range
|
85% max.
|
||||||||
| Life Time | 30.000 hours | ||||||||
| Warranty | 3 Years | ||||||||
| Optional Accessories |
0/1-10V dimmable
|
||||||||
|
Slip-Fitter for 42mm/ 50mm/ 60mm poles
|
|||||||||
|
Circuit breaker
|
|||||||||
|

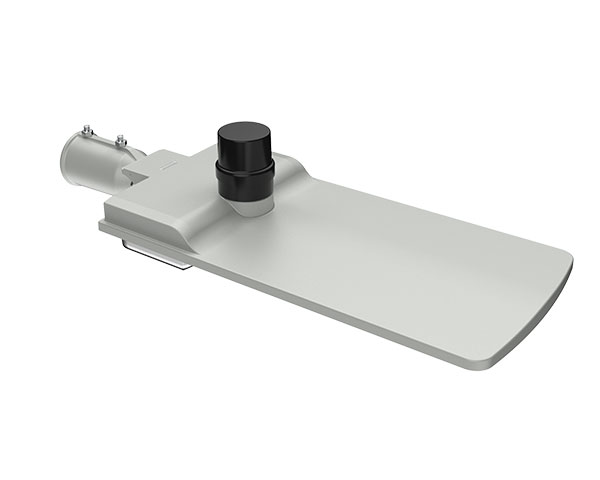

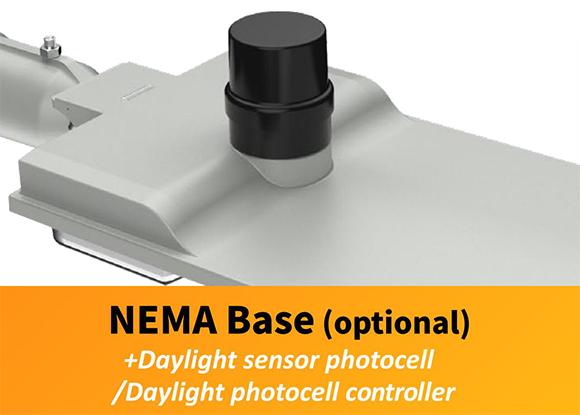

3pin, 5pin, 7pin NEMA base
|
|||||||||
|
Shorting cap socket for NEMA base
|
|||||||||
|
Daylight sensor photocell/ Daylight photocell controller
|
|||||||||
|
ZHAGA base with 12V plug& play Daylight/ Daylight control sensor
|
|||||||||
|
10KV/ 20KV SPD
|
|||||||||
0/1-10V dimmable
NEMA base( 3 pin/5 pin/7pin)/Shorting Cap socket

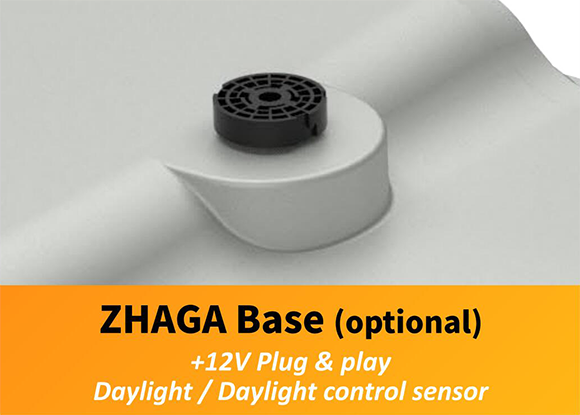

ZHAGA base
12V plug & play Daylight /Daylight control sensor
10KV/ 20 KV SPD
Daylight sensor photocell/Daylight photocontroller
Circuit breaker
