Shine a Light in Every Corner!
Shine a Light in Every Corner!
High efficiency up to 180lm/W Max power up to 500W

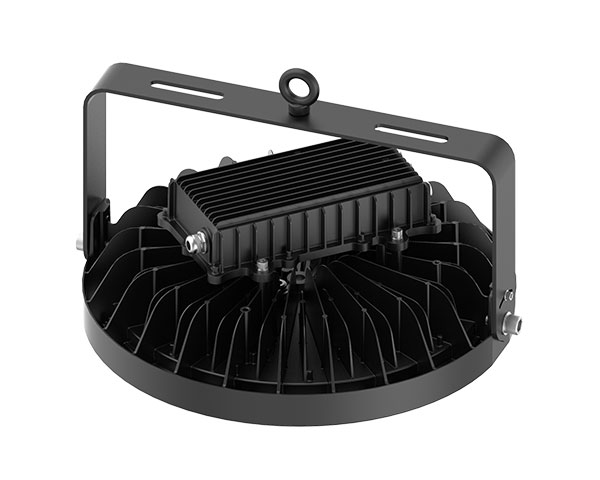

Excellent heat dissipation design, outstanding heat dissipation
effect, low light attenuation
IP66 protection
5 years warranty
Certifications:
Inquire Now
|

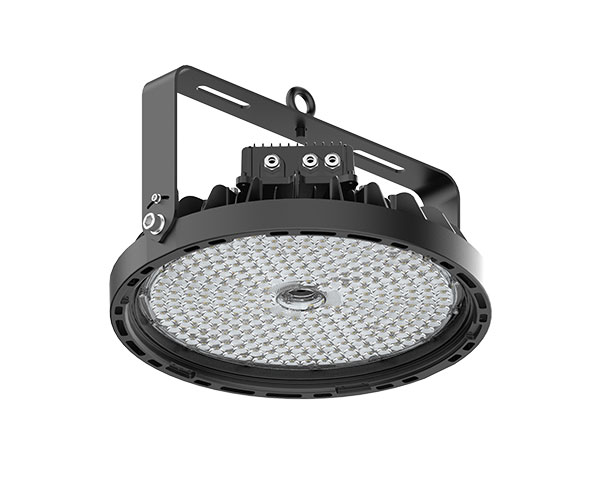

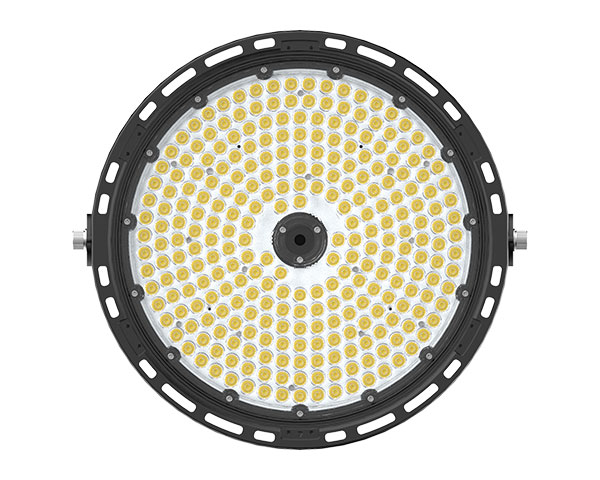

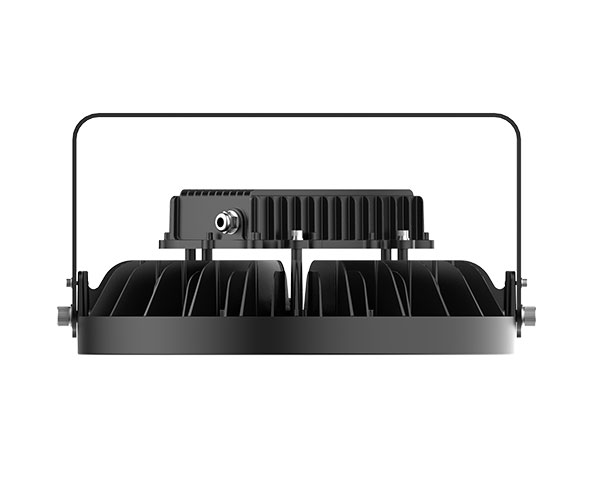

Model No.
|
HB100-400W
|
HB100-500W
|
||
|---|---|---|---|---|
|
Power
|
400W
|
500W
|
||
|
Product Dimension
|
Φ400*219.2(mm)
|
|||
| Efficiency |
160±10lm/W Ra>80)
|
|||
|
Luminous Flux
|
64000±4000lm
|
80000±5000lm
|
||
|
Efficiency Pro
|
180±10lm/W Ra>70)
|
|||
|
Luminous Flux
|
72000±4000lm
|
90000±5000lm
|
||
|
CCT
|
4000K;5000K;5700K;6500K
|
|||
|
Ingress Protection
|
IP66/IK10
|
|||
|
CRI
|
Ra>70/80
|
|||
|

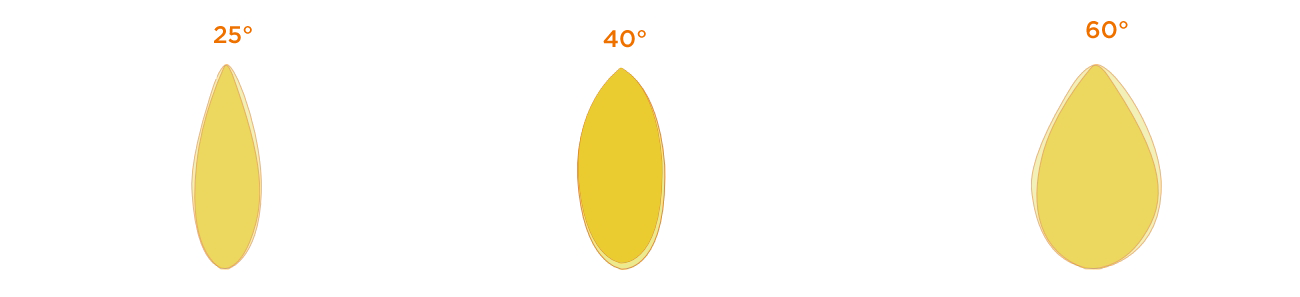

Beam Angle
|
25° 40° 60°
|
|||
|
Driver Brand
|
TOMCARLINE
|
|||
|
Input Voltage
|
AC120-277V
|
|||
|
Power Factor
|
0.95
|
|||
|
Frequency
|
47-63HZ
|
|||
|
Driver Type
|
Constant Current(CC)
|
|||
| Luminaire Net Weight |
8.2Kg
|
|||
|
Packing Information
|
1PCS/CTN
|
|||
|
Export Carton Size
|
46*46*21CM
|
|||
|
Gross Weight
|
9.8Kg
|
|||
|
Material
|
Housing
|
Aluminum Alloy
|
||
|
Optics
|
PC
|
|||
|
Finish
|
Powder Coating
|
|||
|
Fixture Color
|
Black
|
|||
|

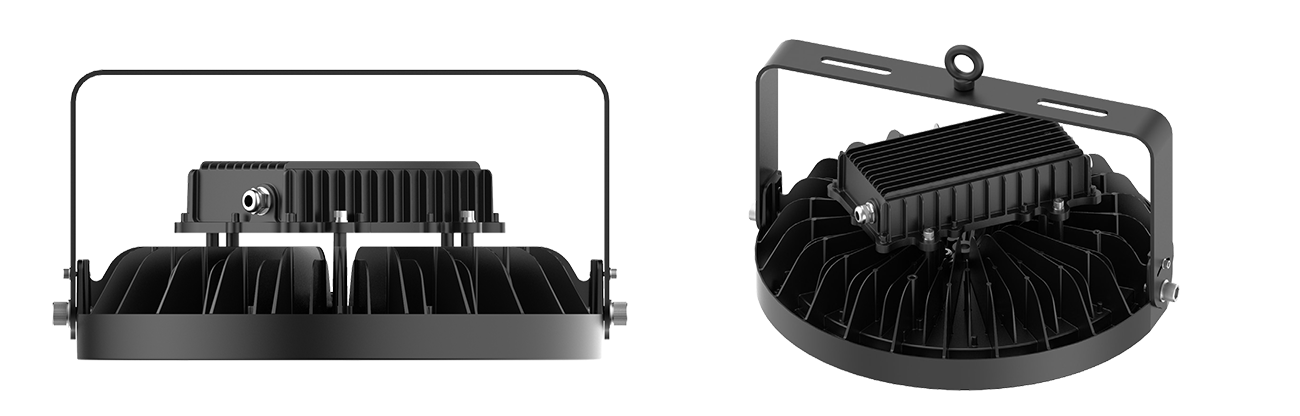

Mounting Option
|
Ceiling Mounting/Ring mounting
|
|||
|
Storage temperature range
|
-30 - +70℃
|
|||
|
Storage humidity range
|
85% max.
|
|||
|
Operating temperature range
|
-30℃ - +45℃ | |||
|
Operating humidity range
|
85% max.
|
|||
|
Life Time
|
50.000 hours
|
|||
|
Warranty
|
5 Years
|
|||
|
Dimmable
|
0-10V dimmable
|
|||
|
Optional Accessories
|
Safety rope (0.5m length)
|
|||
