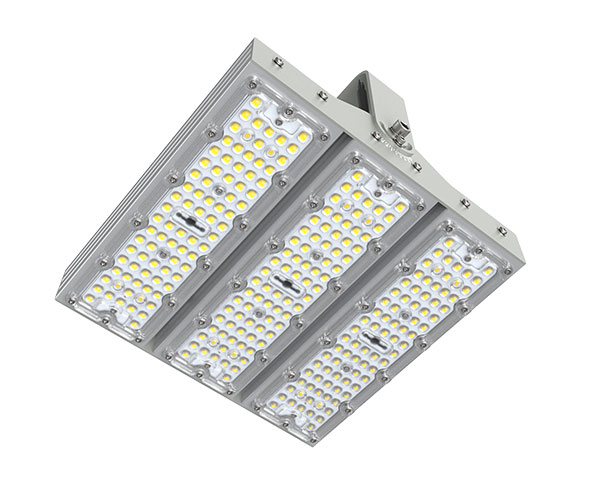

TNC701 Tunnel Light


Multiple beam angle design, perfect choice for tunnel areas

Soft light increases visual comfort and safety

IP65 and IK10

5 Years warranty

Inquire Now

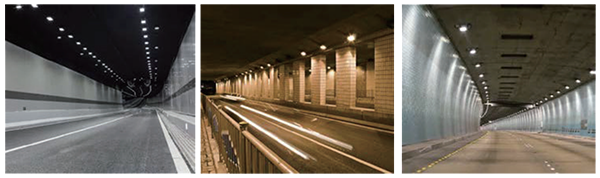

Applications

TNC701 Tunnel Light

Certifications:

  • TNC701 Tunnel Light

Specifications


Model No.
TNC701-60W
TNC701-120W
TNC701-180W
TNC701-240W
Chips
BMTC/LUMILEDS/Samsung/osram
Input voltage
AC 100-277V 50/60Hz
Power factor
≥0.95
Power range
30-60W
70-120W
130-180W
190-240W
Rated power
60W
120W
180W
240W
Efficiency
≥130LM/W(4000K CRI70)
Luminous Flux
7800
15600
23400
31200
CCT(K)
3000±300K/4000±300K/5000±300K/6000±500K
CRI
≥70
Beam angle
30°/60°/90°/60*90°/70*140°
Working temperature
-40℃~45℃
Working humidity
-20℃~65℃, 20%~90%H.R.
Storage temperature
-40℃~85℃, 10%~90%H.R.
Operating life
50000 Hrs
Material
aluminum+PC
Waterproof grade
IP65
Installation
M10 Expansion screws
Installation height
5-7M
Installation angle
-45°~45°
Dimension
L*W*H MM
275*80*159
275*168*159
275*256*159
275*344*159
Package size
L*W*HMM
L565*W33*H210
L740*W335*H210
L565*W335*H210
L740*W335*H210
Netweight(Kg±5%)
1.7Kg
2.7Kg
3.7Kg
4.3Kg

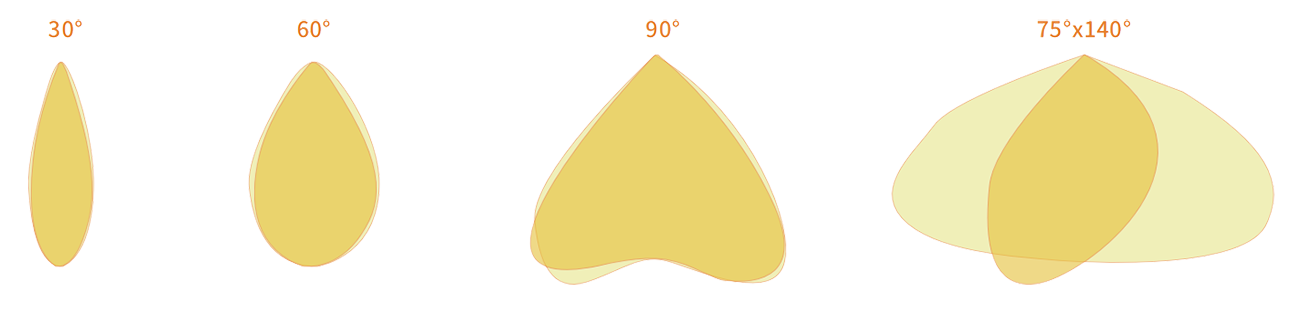

Light Distribution

TNC701 Tunnel Light

Product Dimensions

TNC701 Tunnel Light

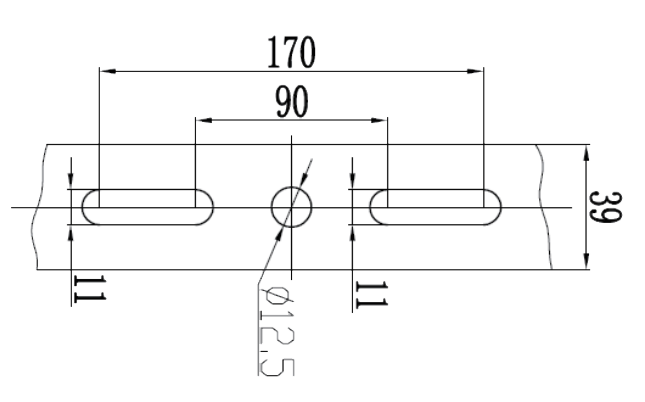

Installation bracket

TNC701 Tunnel Light
