Shine a Light in Every Corner!
Shine a Light in Every Corner!
Up to 150lm/W
100W/150W/200W
Professional optical lenses suitable for various outdoor lighting applications
IP66 protection
PF>0.95, surge protection 6KV/10KV
Power and CCT adjustable optional
Microwave motion sensor optional
Inquire Now

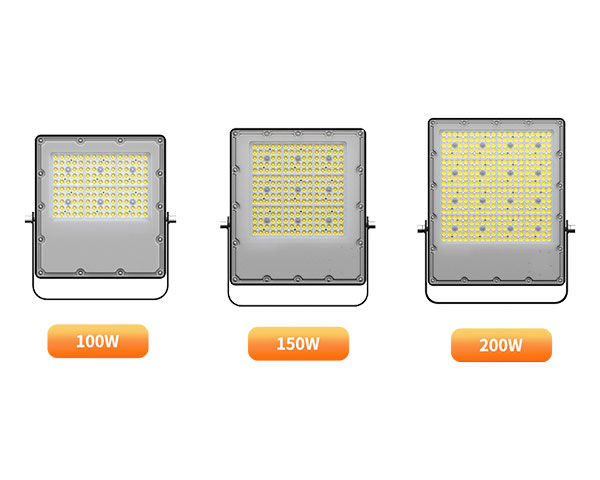

| Model No. |
3717-100W
|
3717-150W
|
3717-200W
|
|
|
Power Selectable (Optional)
|
100W-70W-55W
|
150W-120W-90W
|
200W-150W-130W
|
|
|

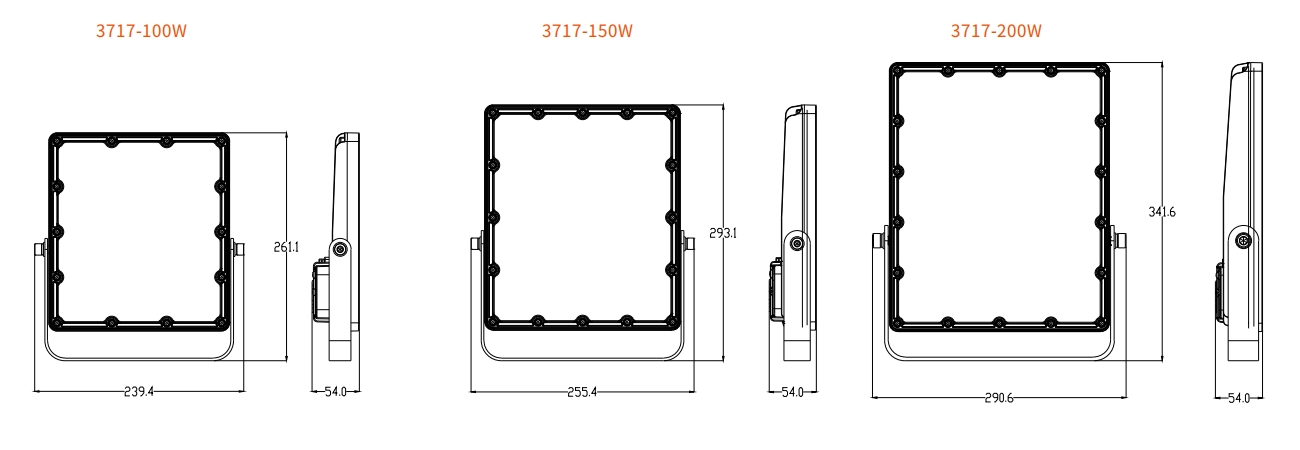

Product Dimension
|
261×239×54mm
|
293×255×54mm
|
342×291×54mm
|
|
| Efficiency |
150±10lm/W
|
|||
| Luminous Flux |
15000±1000lm
|
22500±1500lm
|
30000±2000lm
|
|
| CCT |
3000K 4000K 5000K 5700K 6500K
|
|||
|
Ingress Protection
|
IP66 / IK10
|
|||
|
Color Rendering Index
|
Ra>70
|
|||
|

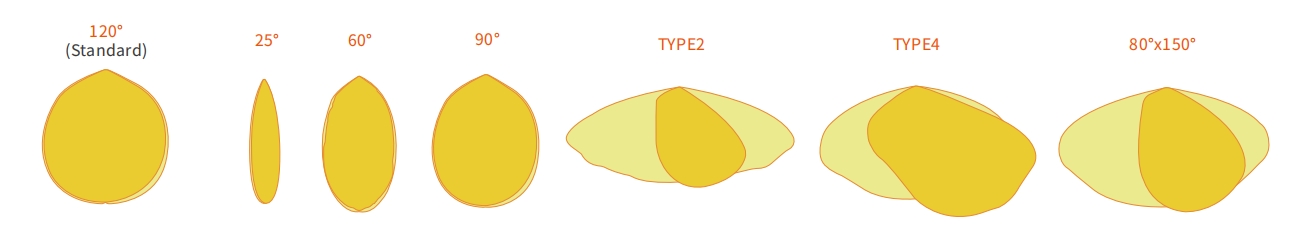

Beam Angle
|
25°, 60°, 90°, 120°, TYPE2, TYPE4, 80°x150°
|
|||
| Driver Brand | TOMCARLINE | |||
| Input Voltage |
AC220-240V/100-277V
|
|||
| Power Factor | 0.95 | |||
|
Frequency
|
50/60HZ
|
|||
| Driver Type |
Constant Current
|
|||
| Luminaire Net Weight |
2.0kg
|
2.4kg
|
2.98kg
|
|
| Packing Information | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | |
| Export Carton Size |
30.5x27x9.5CM
|
33.5x28.5X9.5CM
|
38x32x9.5CM
|
|
| Gross Weight |
2.3kg
|
2.75kg
|
3.5kg
|
|
| Material | Housing |
Aluminum Alloy
|
||
| Optics | PC Lens | |||
| Finish | Powder coating | |||
| Fixture Color |
Black
|
|||
| Mounting Option | Bracket installation | |||
|
Storage temperature range
|
-30℃~+70℃ | |||
|
Storage humidity range
|
85% max.
|
|||
|
Operating temperature range
|
-40℃~+45℃ | |||
|
Operating humidity range
|
85% max.
|
|||
| Life Time | 50.000 hours | |||
| Warranty | 5 Years | |||
| Dimmable |
0-10V / 1-10V Dimmable
|
|||
| Optional Accessories |
Microwave motion sensor（build-in）
|
|||
|
Power Selectable
|
||||
|
CCT Selectable
|
||||
|
Power + CCT Selectable
|
||||
