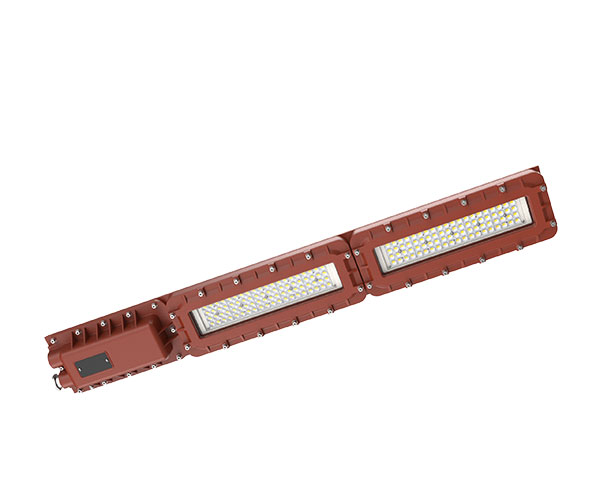

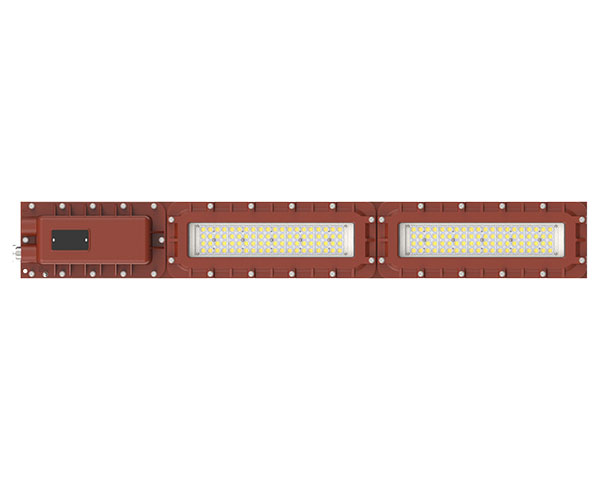

HL161 LED Explosion-proof Light

Inquire Now

1. The explosion-proof level is high. The whole lamp adopts pure explo sion-proof "db" design, which meets the requirements for use in explo sion-proof gas zone 1 and dust zone 21.
2. The optical design has multiple angles to meet the needs of different scenes, with uniform illumination and soft light;
3. High grade explosion-proof glass, thickness ≥10mm, resistant to drastic changes in heat, meeting the impact strength requirement of 7J;
4. Strong vibration resistance, passed 3G vibration test, lamp parts are not easy to fall off, safe and reliable to use;
5. Strong wind resistance, passed the level 12 typhoon wind test, the mechanical structure of the lamp is firmly connected, not easy to bend and deform, and the installation is safe and reliable;
6. The redundant design of explosion-proof structure exceeds the national standard by 1.3 to 1.6 times the explosion-proof distance, making explosion-proof safer;

7. Explosion-proof linkable installation mode to saves explosion-proof installation costs;
8. It adopts IIC level explosion-proof structural design and IP66 protec tion level sealing design, and has excellent explosion-proof, waterproof, dust-proof and anti-corrosion functions;
9. High power factor, high grid utilization, dual-stage PFC circuit, flick er-free;
10. It has a DC1-10V dimming interface and can be used with a dimming intelligent lighting system to achieve brightness adjustment, secondary energy saving and waste reduction.
11. It has complete explosion-proof certificates and has domestic, Euro pean, international and North American explosion-proof certifications.

Model No.		HL161-30W	HL161-40W	HL161-60W	HL161-80W	HL161-100W
Power		30W	40W	60W	80W	100W

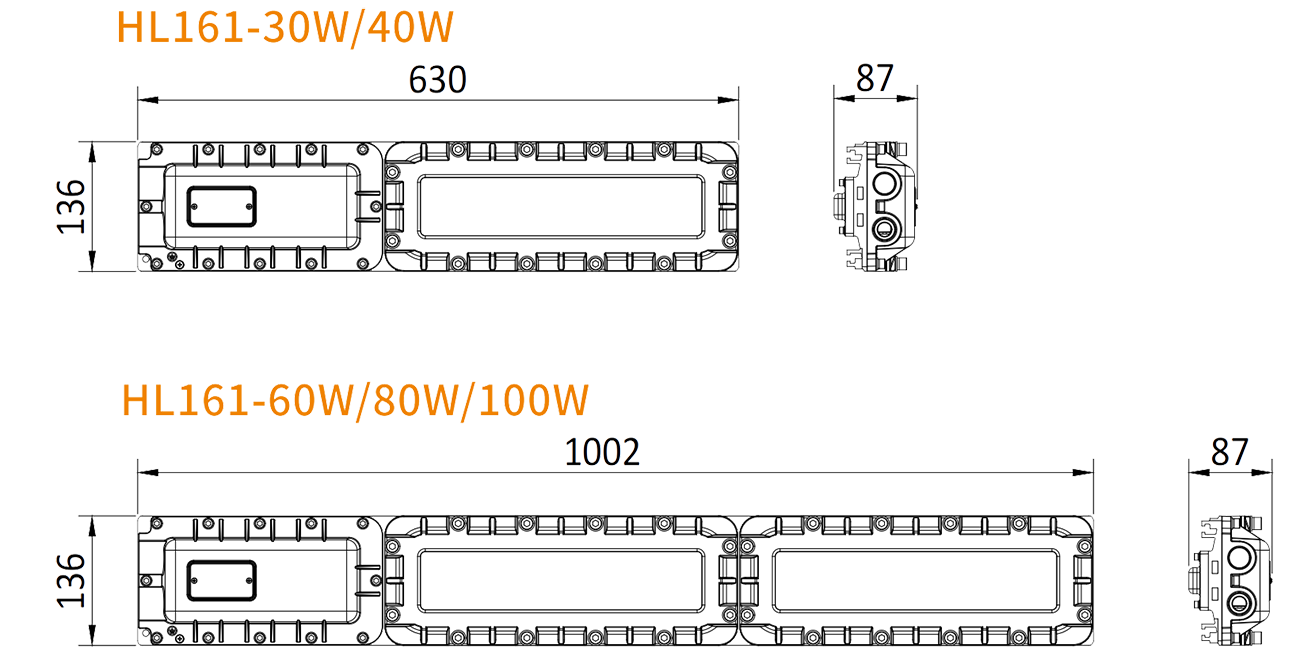

Product Dimension		630×136×87mm		1002×136×87mm
Efficiency		140±10lm/W
Luminous Flux		4200±300lm	5600±400lm	8400±600lm	11200±800lm	14000±1000lm
CCT		3000K; 4000K; 5000K; 5700K; 6500K
Ingress Protection		IP66 & IK10
Wind resistance		Class12(32.7 36.9 m/s)
Color Rendering Index		Ra>70

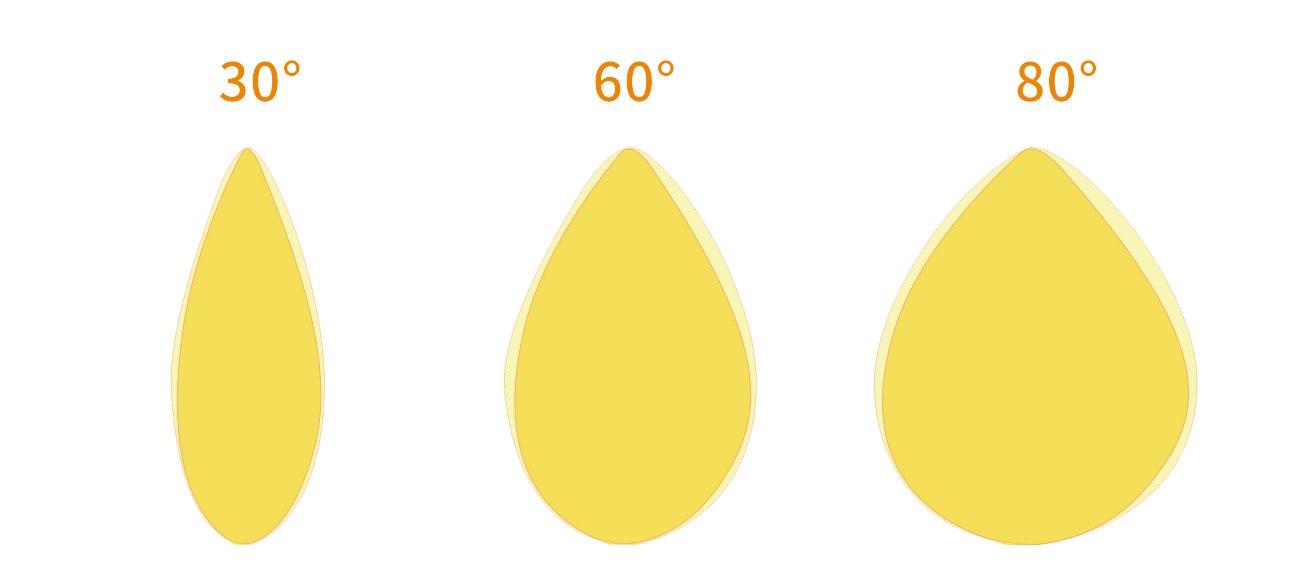

Beam Angle		30° 60° 80°
Driver Brand		TOMCARLINE
Input Voltage		AC120-277V
Power Factor		>0.9
Frequency		50/60Hz
Driver Type		Constant Current(CC)
Luminaire Net Weight		6.5kg		10.4kg	10.5kg
Packing Information		1PCS/CTN		1PCS/CTN	1PCS/CTN
Gross Weight	Ceiling	7.9kg		12.0kg	12.1kg
	Side wall	8.3kg		12.4kg	12.5kg
	Pole	8.8kg		12.9kg	13.0kg
Export Carton Size		88.5×20.6×13.5cm		125.5×20.6×13.5cm
Conduit opening		NPT3/4-14
Material	Housing	6063-T5 ADC12
Material	Optics	Lens and Light-transmitting parts
Fixture Color		Red

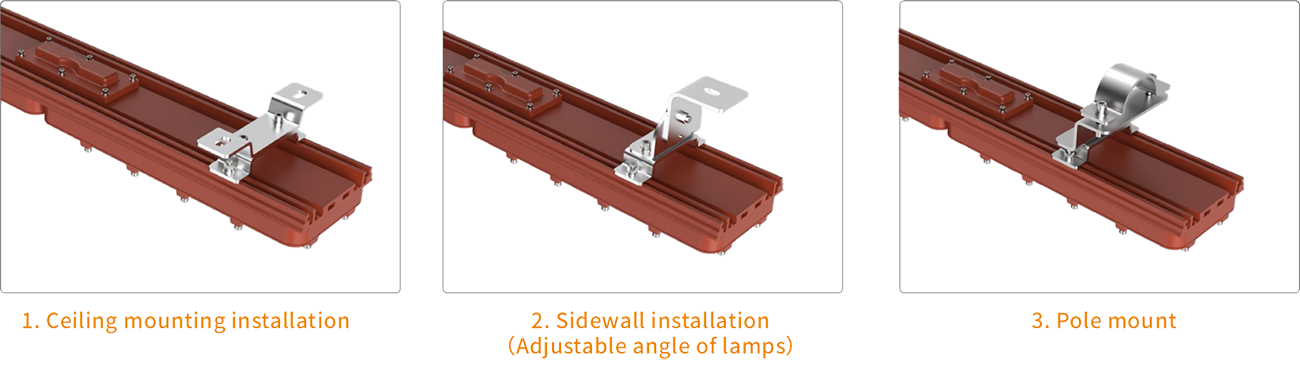

Installation		Side wall mounting/ Ceiling mounting/ Pole mounting
Operating temperature range		-20℃~+60℃
Life Time		50,000 hours
Warranty		5 Years
Dimmable		Non-dimmable
Certifications		Class I Division 1 Group B,C D T6 / Class I Division 2 Group B,C D T6
