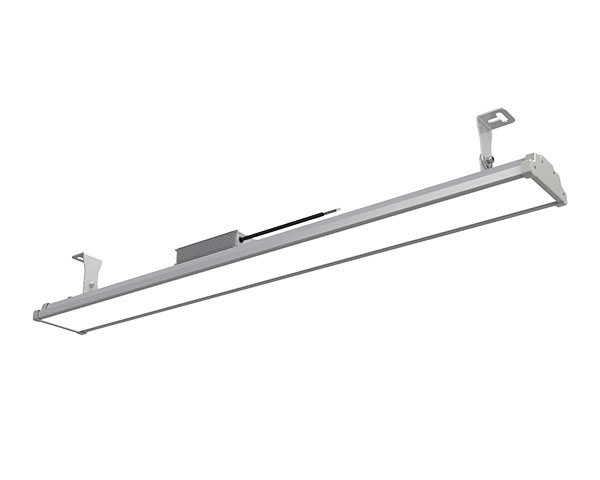

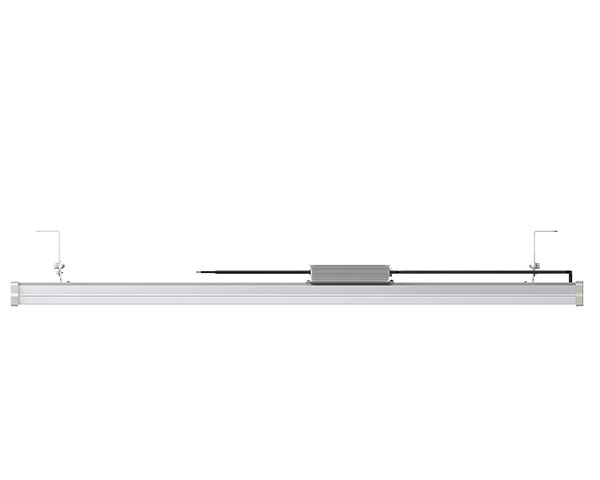

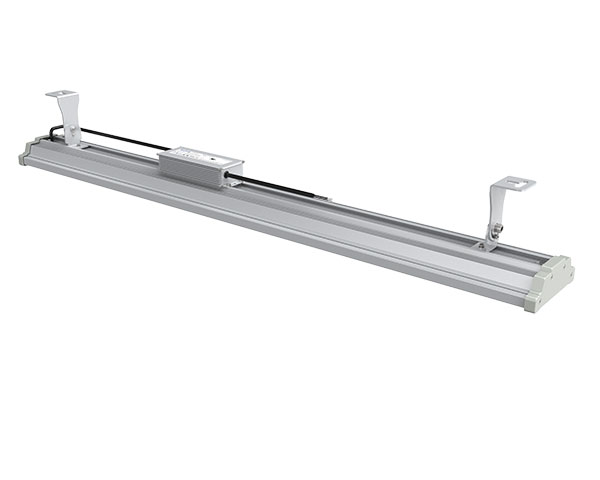

TNC702 Linear Tunnel Light


Inquire Now

Specifications

Model No. TNC702-10W TNC702-15W TNC702-20W TNC702-30W TNC702-60W TNC702-80W TNC702-100W TNC702-120W TNC702-150W TNC702-200W
Product Dimension 1000 ( 1200 / 1500 Optional ) *150*160mm
Efficiency  ≥130±10 lm/W
Luminous Flux 1300 lm 1950 lm 2600 lm 3900 lm 7800 lm 10400 lm 13000 lm 15600 lm 19500 lm 26000 lm
CCT 3000K;4000K;5000K;6000K
Protection Grade IP65
Color Rendering Index Ra≥70
Beam Angle 110°
Input Voltage AC 100-277V
Power Factor ≥ 0.95
Frequency 50/60HZ
Driver Type Constant Current
Luminaire Net Weight 3kg / 3.5kg / 4.3kg
Material Aluminum Alloy / Tempered glass
Installation M10

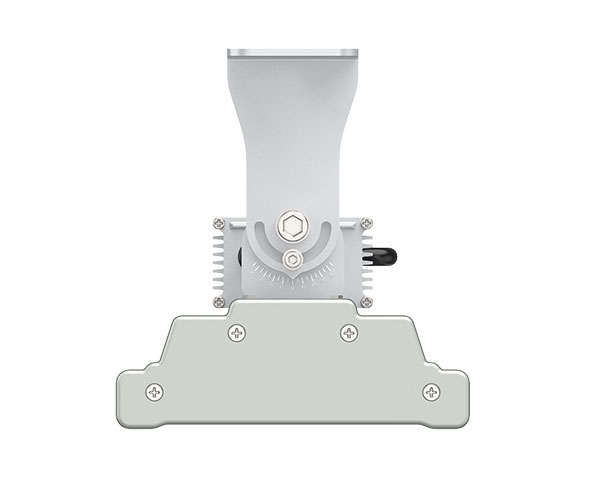

Angle adjustment range -90° ~ 90°
Recommended installation height 5-7 m
Storage temperature range -50℃ - +50℃
Operating temperature range -20~+45℃
Life Time 50000 hours
Warranty 5 Years
