Shine a Light in Every Corner!
Shine a Light in Every Corner!
160lm/W with anti-glare design.

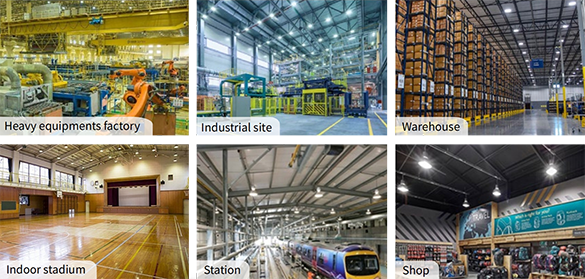

Higher surge protection up to 6KV/10KV, very suitable for large surge industrial sites with heavy equipments.
IP65 protection grade.
Power adjustable function optional (200W-150W-100W), saving SKU and stocking cost.
Inquire Now
| Model No. |
HB62-100W
|
HB62-150W
|
HB62-200W
|
HB62-200W
(Power Adjustable)
|
|
|---|---|---|---|---|---|

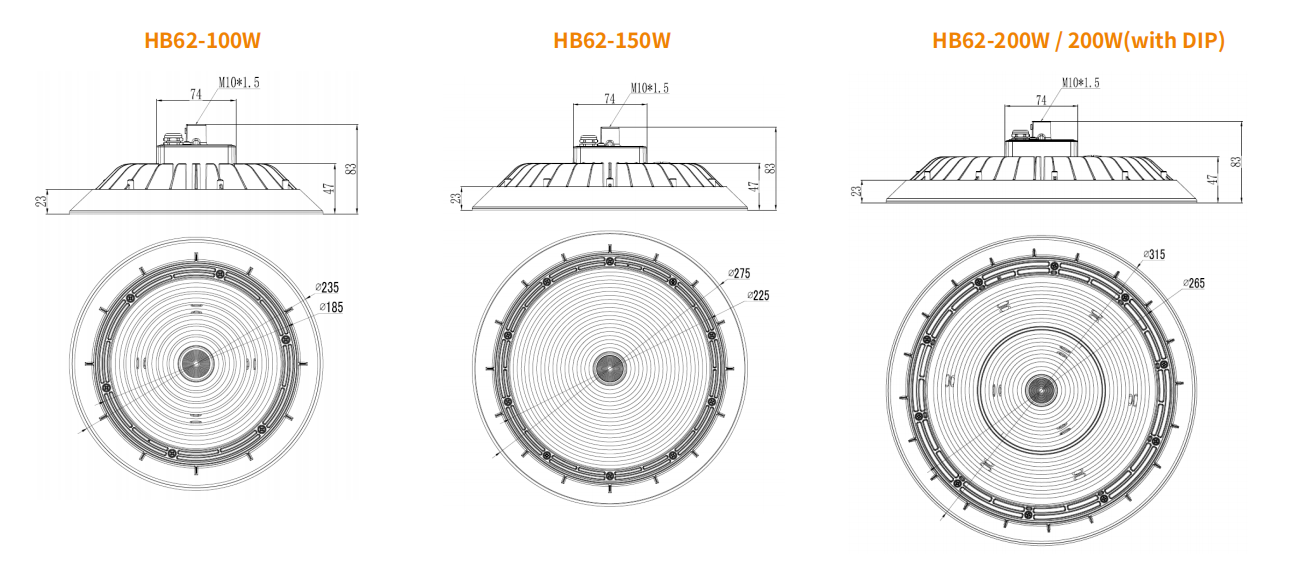

| Product Dimension |
φ235*83(mm)
|
φ275*83(mm)
|
φ315*83(mm)
|
φ315*83(mm)
|
|
| Efficiency |
160±10lm/W
|
||||
| Luminous Flux |
16000±1000lm
|
24000±1500lm
|
32000±2000lm
|
32000±2000lm
|
|
| CCT |
3000K;4000K;5000K;5700K;6500K
|
||||
| Ingress Protection |
IP65
|
||||
| Color Rendering Index | Ra>80 | ||||

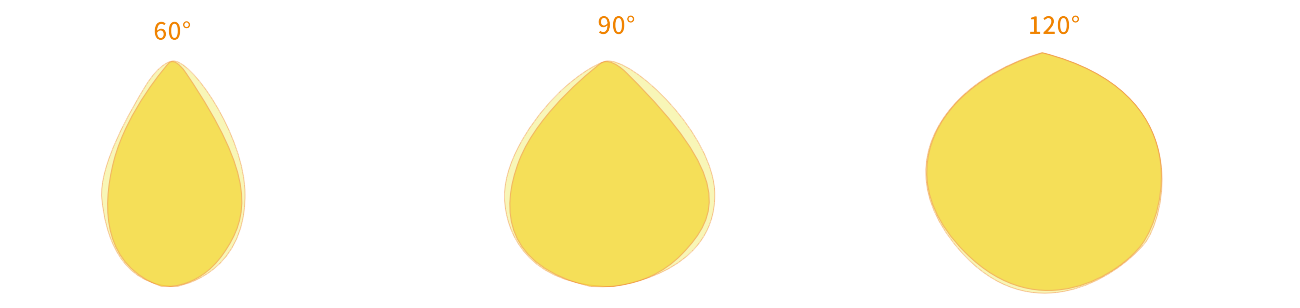

| Beam Angle |
60°、90°、120°
|
||||
|
Driver Brand
|
TOMCARLINE
|
||||
| Input Voltage |
AC200-277V
|
||||
|
Lightning protection rating
|
6KV/10KV
|
||||
| Power Factor | 0.95 | ||||
| Frequency |
50-60HZ
|
||||
|
Driver Type
|
Constant Current (CC)
|
||||
| Luminaire Net Weight |
1.2kg
|
1.7kg
|
2.3kg
|
2.3kg
|
|
| Packing Information |
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
2PCS/CTN
|
|
| Export Carton Size |
30*24*32CM
|
34*24*36CM
|
38*24*40CM
|
38*24*40CM
|
|
| Gross Weight |
3.3kg
|
4.4kg
|
5.6kg
|
5.6kg
|
|
| Material | Housing | Aluminum Alloy | |||
| Optics | PC | ||||
| Finish | Powder Coating | ||||
| Fixture Color | Black | ||||
| Mounting Option |
Hook installation
|
||||
| Storage temperature range | -30℃-+70℃ | ||||
| Storage humidity range | 85% max. | ||||
| Operating temperature range | -20~+40℃ | ||||
| Operating humidity range | 85% max. | ||||
| Life Time |
50.000 hours
|
||||
| Warranty |
3 Years standard (5 Years optional)
|
||||
|
Dimmable
|
1-10V dimmable
|
||||
