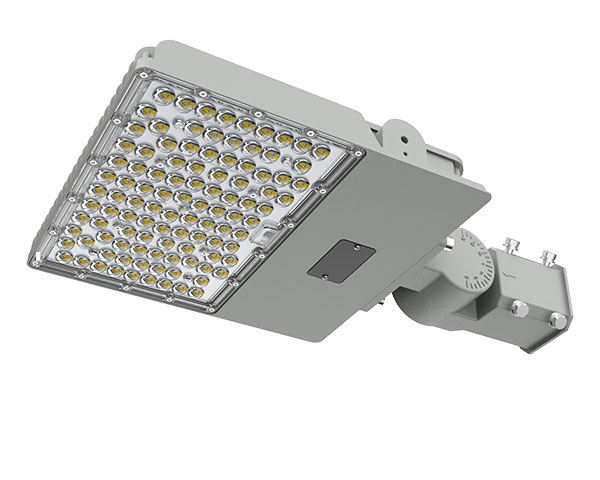

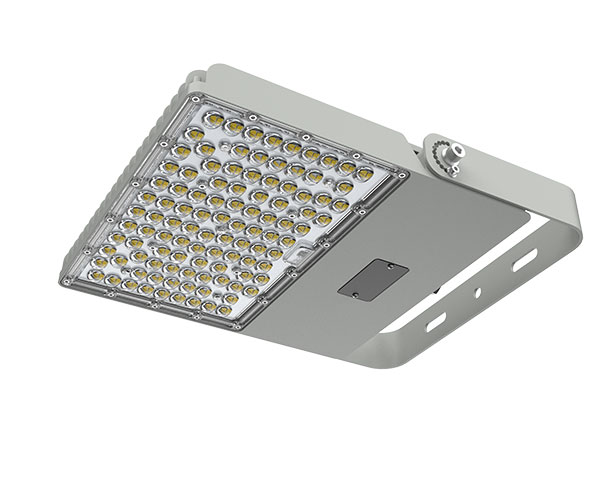

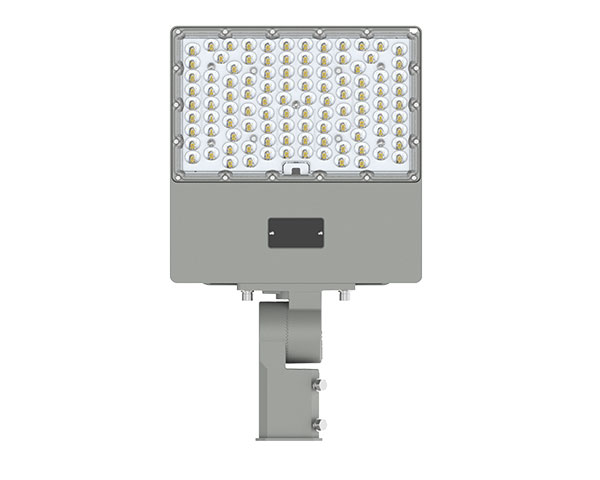

HL102 LED Explosion-proof street Light

Inquire Now

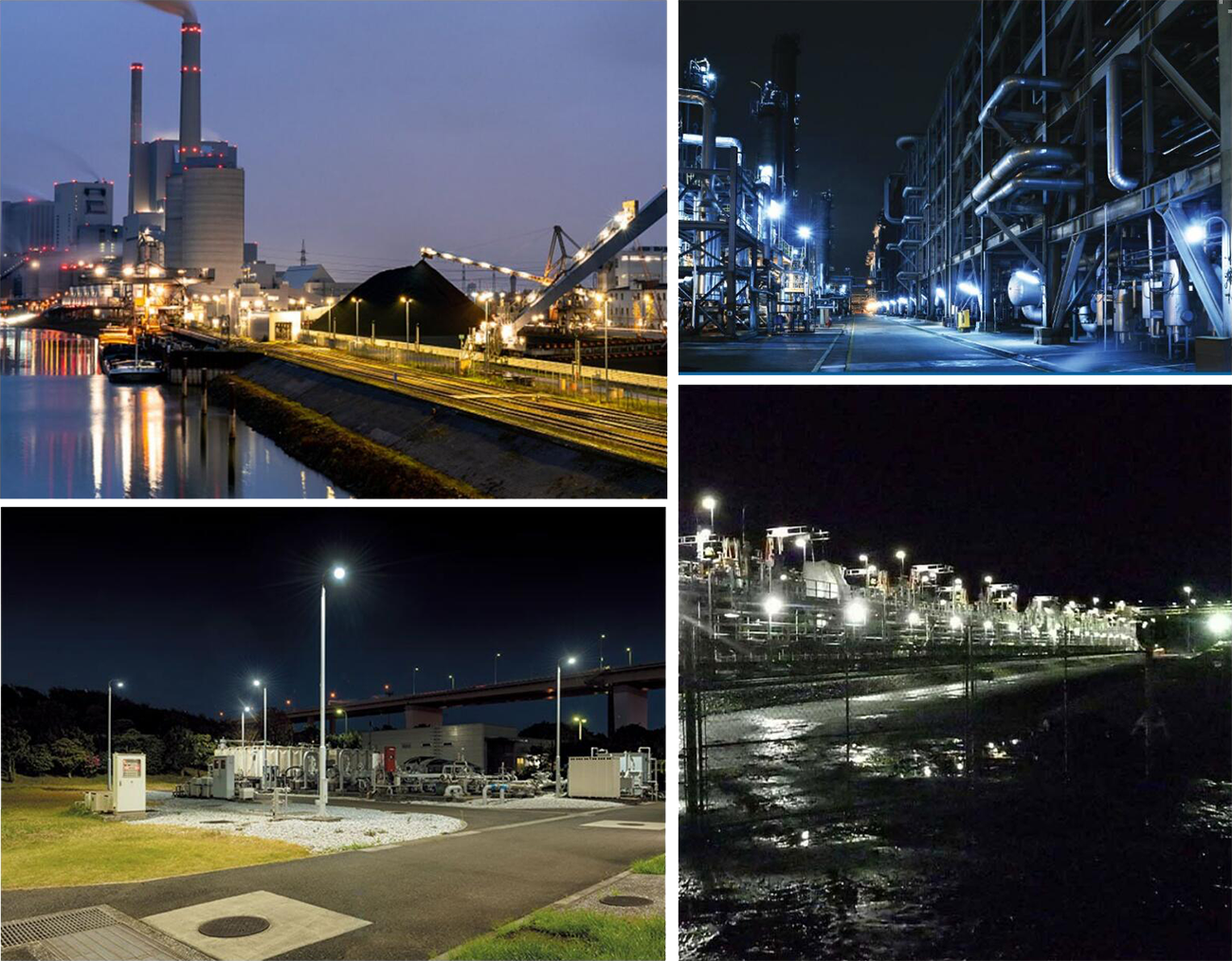

1. Safe and reliable, can be used in explosion-proof gas zone 2 and dust zone 21;
2. The optical lens is designed with multiple angles to meet the use of different scenes, with uniform illumination and soft light, which meets the design requirements of explosion-proof light aging;
3. High efficiency light source, low energy saving and long service life;
4. Strong seismic resistance, through the 3G vibration test, the lamp parts are not easy to fall off, and the use is safe and reliable;
5. Wind resistance,through the 12-level typhoon wind test, the mechani- cal structure of the lamp is firmly connected, not easy to bend and deform, and the installation is safe and reliable;

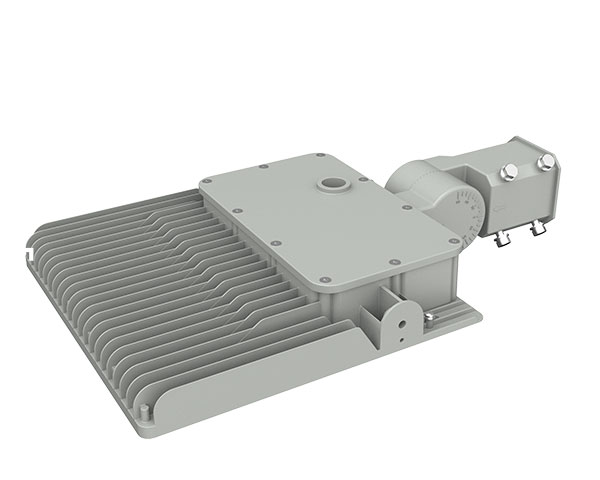

6. Design a heat dissipation air guide groove with air diversion structure to ensure the service life of LED light source;

7. Adopt IIC explosion-proof structure design and IP66 protection level sealing design, with excellent explosion-proof,waterproof, dustproof and anti-corrosion functions;
8. High power factor, high utilization rate of power grid, two-stage PFC circuit, no flicker;
9.It has DC1-10V dimming interface, which can be matched with dimming intelligent lighting system to achieve brightness adjustment, secondary energy saving, and waste reduction;

Model No.		HL102-120W	HL102-240W		HL102-480W
Power		30W-120W	130W-240W		260W-480W

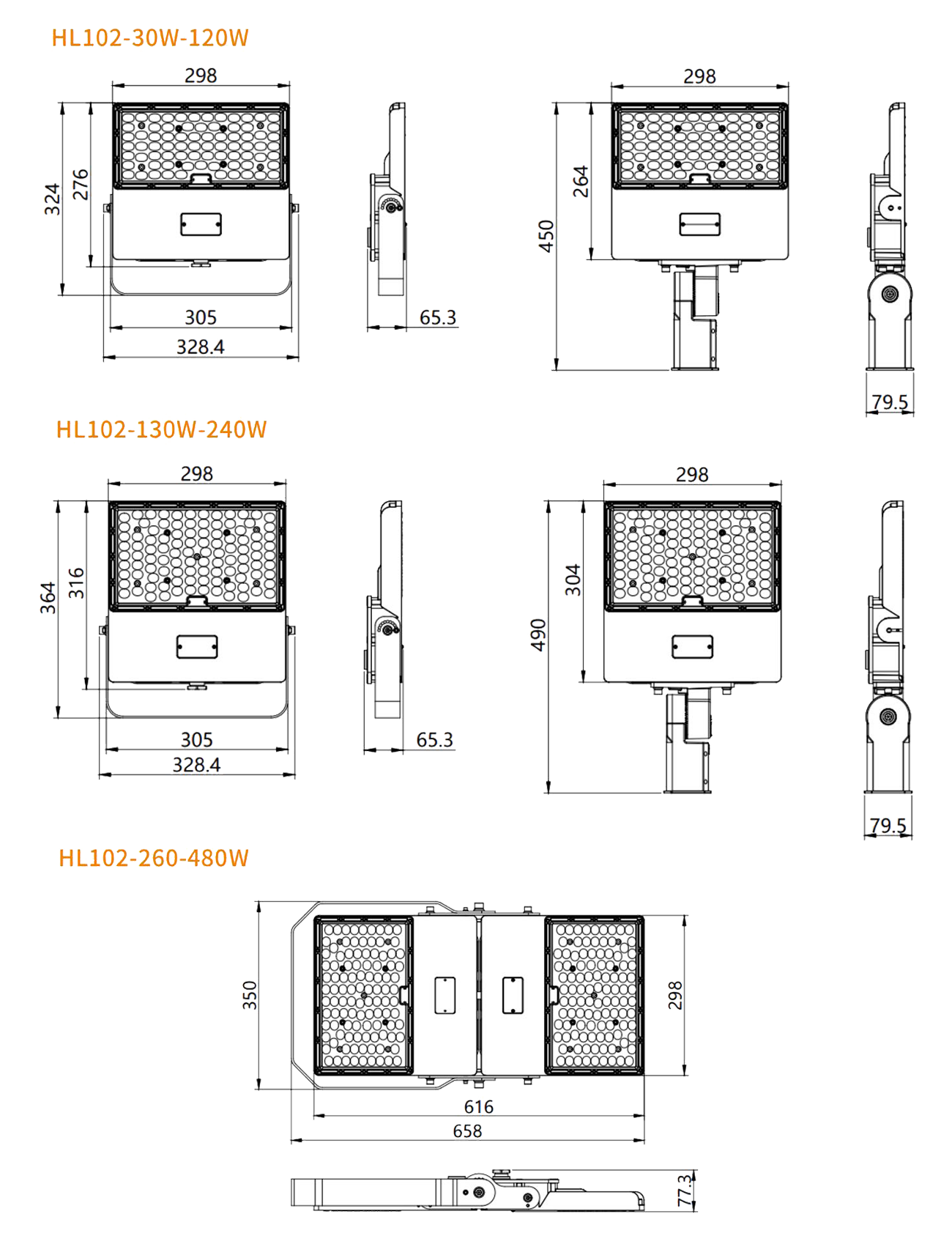

Product Dimension	Handle	328.432465.3MM	328.436465.3MM		65835077.3MM
Product Dimension	Pole	29845079.5MM	29849079.5MM		null
Efficiency		150±10lm/W
Luminous Flux(±10%)		4200~19200LM	18200-38400LM		36400-76800LM
CCT		3000K;4000K;5000K;5700K;6500K
Ingress Protection		IP66,IK10
CRI		Ra>70

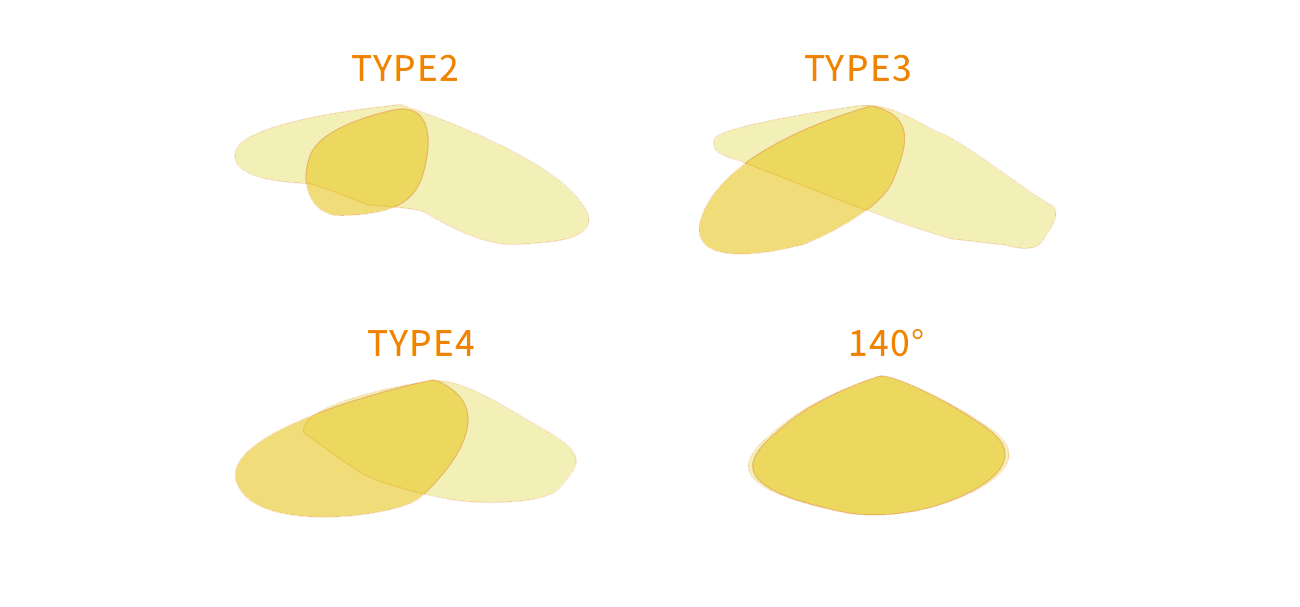

Beam Angle		TYPE2/ TYPE3/ TYPE4/ 140°
Driver Brand		TOMCARLINE
Input Voltage		AC120-277V
Power Factor		>0.9
Frequency		47-63Hz
Driver Type		Constant Current(CC)
Luminaire Net Weight		3.4kg	4kg		9.2kg
Packing Information		1PCS/CTN	1PCS/CTN		1PCS/CTN
Gross Weight		4.0kg	4.6kg		10.4kg
Export Carton Size		38.235.014.4CM			7342.215.4CM
Cable entry diameter		∅8 - ∅10mm, ∅11 - ∅14mm
Cable entry thread		M25×1.5
Material	Housing	ADC12
Material	Optics	PC
Fixture Color		White aluminum

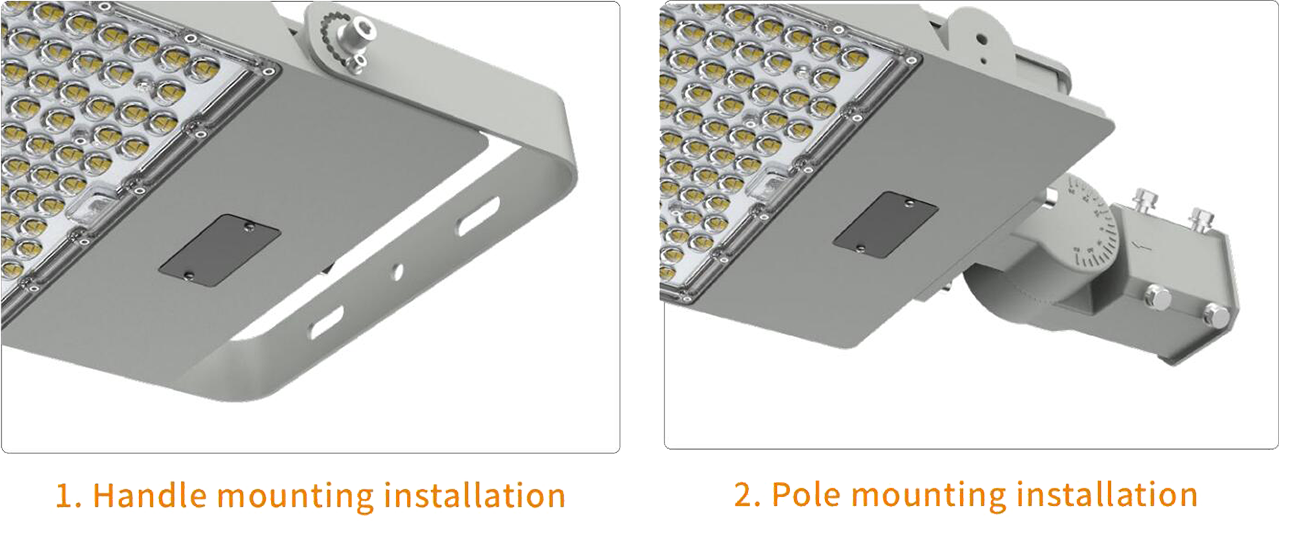

Installation		Handle mounting / pole mounting
Operating temperature range		-35~+40℃		-35~+60℃
Life Time		50 000h
Warranty		5 Years
Dimmable		Non-dimmable
Optional accessories		1-10V dimmable
Certifications		Ex nR IIC T6 Gc (30W-120W) Ex tb IIIC T80 Db (30W-120W)		Ex nR IIC T4 Gc (30W-120W) Ex tb IIIC T130 Db (30W-120W)
Certifications		Ex nR IIC T5 Gc (130W-480W) Ex tb IIIC T95 Db (130W-480W)		Ex nR IIC T4 Gc (130W-480W) Ex tb IIIC T130 Db (130W-480W)
