1. Safe and reliable, it can be used in explosion-proof gas zone 2 and dust zone 21;
2. The optical lens is designed with multiple angles to meet the needs of different scenes. The illumination is uniform and the light is soft, meeting the requirements of explosion-proof light aging design;
3. Using high-efficiency light source, energy-saving, low consumption and long life;
4. Strong vibration resistance, passed 3G vibration test, lamp parts are not easy to fall off, safe and reliable to use;
5. Strong wind resistance, passed the level 12 typhoon wind test, the mechanical structure of the lamp is firmly connected, not easy to bend and deform, and the installation is safe and reliable;
6. Design heat dissipation ducts with air guide structures to ensure the service life of the LED light source;
7. It adopts IIC level explosion-proof structural design and IP66 protection level sealing design, and has excellent explosion-proof, waterproof, dust-proof and anti-corrosion functions;
8. High power factor, high grid utilization, dual-stage PFC circuit, flicker-free;
9. Built-in radar sensor to achieve efficient and energy-saving lighting;
10. It has a DC1-10V dimming interface and can be used with a dimming intelligent lighting system to achieve brightness adjustment, secondary energy saving and waste reduction.
11. It has complete explosion-proof certificates and has domestic, European, international and North American explosion-proof certifications.
Inquire Now
|
Model No.
|
HL182-60W
|
HL182-120W
|
HL182-120W
(Motion sensor)
|
HL182-240W
|
HL182-240W
(Motion sensor) |
|
|---|---|---|---|---|---|---|
|
Power
|
30W-60W
|
70W-120W
|
70W-120W
|
130W-240W
|
130W-240W
|
|
|
Product Dimension
|
φ218*187.2mm
|
φ260*188.7mm
|
φ260*194.7mm
|
φ328*191.7mm
|
φ328*197.7mm
|
|
|
Explosion-proof criteria
|
Ex nR IIC T6/T4 Gc (30W-120W)
Ex tb IIIC T80 /130 Db (30W-120W)
|
Ex nR IIC T5/4 Gc (130W-240W)
Ex tb IIIC T95 /T130 Db (130W-240W)
|
||||
| Efficiency |
140±10lm/W
|
|||||
|
Luminous Flux
|
4200-8400lm
|
9800-16800lm
|
9800-16800lm
|
18200-33600lm
|
18200-33600lm
|
|
|
CCT
|
3000K;4000K;5000K;5700K;6500K
|
|||||
|
Ingress Protection
|
IP66 & IK10
|
|||||
|
Anti-vibration Grade
|
3G
|
|||||
|
Wind resistance
|
LV.12
|
|||||
|
CRI
|
Ra>70
|
|||||
|

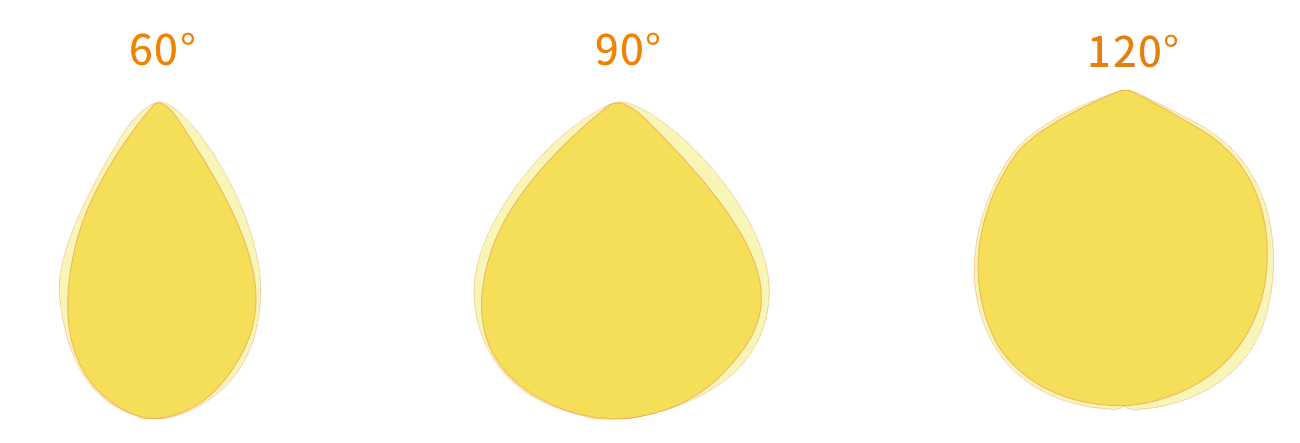

Beam Angle
|
60° 90° 120°
|
|||||
|
Driver Brand
|
TOMCARLINE
|
|||||
|
Input Voltage
|
AC100-277V
|
|||||
|
Power Factor
|
>0.9
|
|||||
|
Frequency
|
47-63Hz
|
|||||
|
Driver Type
|
Constant Current
|
|||||
|
Luminaire Net Weight
|
1.7kg
|
2.4kg
|
2.4kg
|
3.3kg
|
3.3kg
|
|
|
Packing Information
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
|
|
Export Carton Size
|
31.2*31.2*25.4CM
|
31.2*31.2*25.4CM
|
31.2*31.2*25.4CM
|
38.0*38.0*20.4CM
|
38.0*38.0*20.4CM
|
|
|
Gross Weight
|
2.9kg
|
3.6kg
|
3.6kg
|
4.6kg
|
4.6kg
|
|
|
Cable gland
|
φ8-φ10mm, φ11-φ14mm
|
|||||
|
Cable lead-in thread
|
M25×1.5
|
|||||
|
Operating temperature range
|
-35℃ +40℃ /+60℃
|
|||||
|

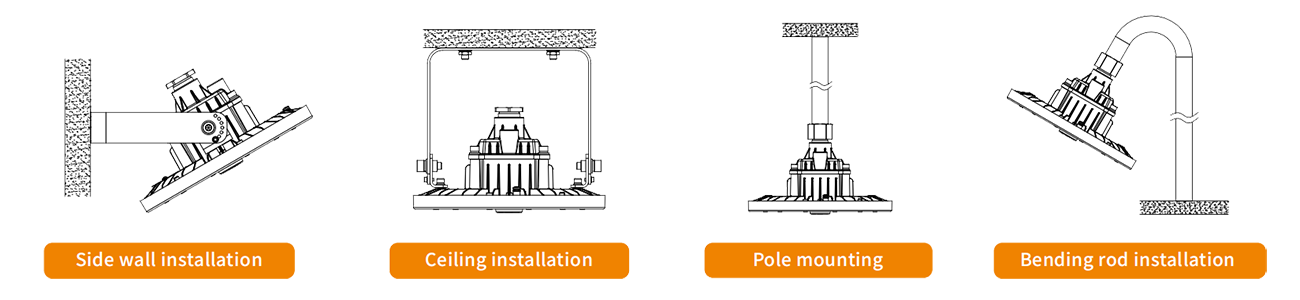

Mounting Option
|
Side wall installation / Ceiling installation / Pole mounting / Bending rod installation
|
|||||
|
Material
|
Housing
|
ADC12
|
||||
|
Optics
|
PC
|
|||||
|
Fixture Color
|
White aluminium
|
|||||
|
Light Source Life
|
50 000H
|
|||||
|
Warranty
|
5 Years
|
|||||
|
Optional Accessories
|
1-10V dimmable/ Build-in motion sensor
|
|||||
