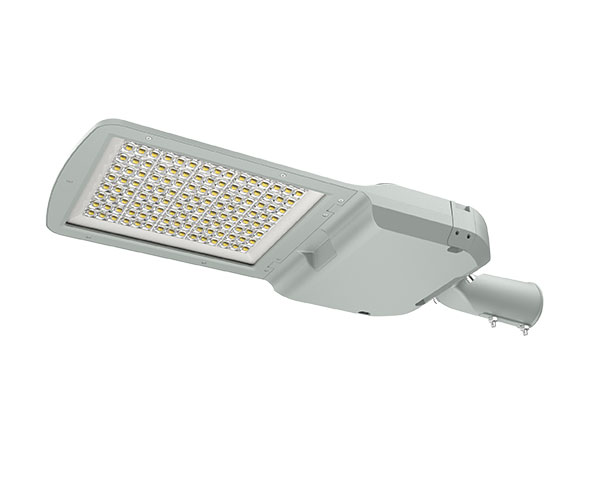

Shine a Light in Every Corner!
Shine a Light in Every Corner!
High light efficiency up to 160lm/W
Full range covering 20W-240W
No wires are being exposed to the sun and rain
Elegant design with smooth housing
IP66 protection grade
Maintenance flap for quick access to the driver compartment
Inquire Now
| Model No. |
SLE620-50W
|
SLE620-75W
|
SLE620-100W
|
SLE620-150W
|
SLE620-200W
|
SLE620-240W
|
|
|
Power
|
50W
|
75W
|
100W
|
150W | 200W | 240W | |
|

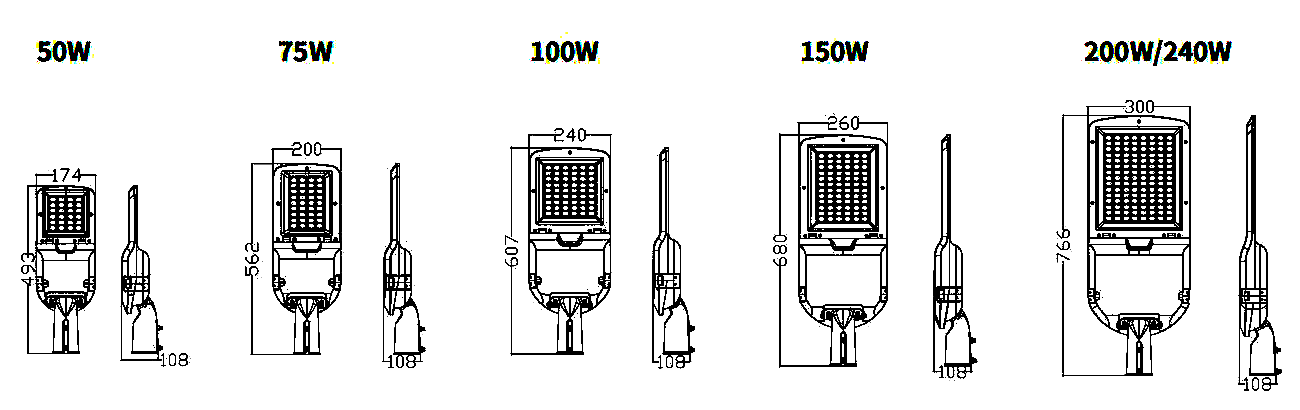

Product Dimension
|
493*174*108mm
|
562*200*108mm
|
607*240*108mm
|
680*260*108mm
|
766*300*108mm
|
766*300*108mm
|
|
| Efficiency |
160±10lm/W
|
||||||
| Luminous Flux |
8000±500lm
|
12000±750lm
|
16000±1000lm
|
24000±1500lm
|
32000±2000lm
|
38400±2400lm
|
|
| CCT |
3000K;4000K;5000K;5700K;6500K
|
||||||
|
Protection grade
|
IP66 & IK08
|
||||||
|
Color Rendering Index
|
Ra>70
|
||||||
|

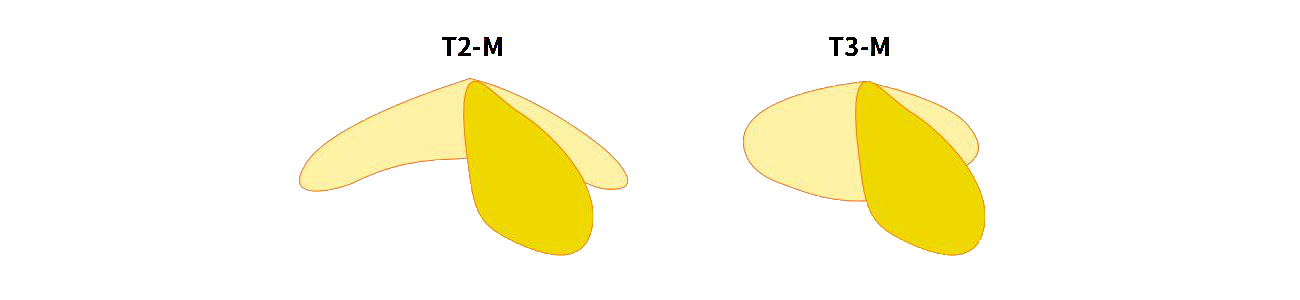

Beam Angle
|
T2-M/ T3-M
|
||||||
| Driver Brand |
MOSO / SOSEN
|
||||||
| Input Voltage |
AC100V-277V
|
||||||
| Power Factor | 0.95 | ||||||
|
Frequency
|
50/60HZ
|
||||||
| Driver Type |
Constant Current
|
||||||
| Luminaire Net Weight |
2.67KG
|
3.12KG
|
4.28KC
|
4.56KG
|
6.36KG
|
6.36KG
|
|
| Packing Information |
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
1PCS/ CTN
|
|
| Export Carton Size |
51.3*19.9*16.3CM
|
58.2*22.5*16.4CM
|
62.6*26.5*16.4CM
|
70*28.5*16.4CM
|
78.5*32.5*16.4CM
|
78.5*32.5*16.4CM
|
|
| Gross Weight |
3.1KG
|
3.7KG
|
4.9KG
|
5.3KG
|
7.2KG
|
7.2KG
|
|
| Material | Housing |
Aluminum Alloy
|
|||||
| Optics | PC Lens | ||||||
| Finish | Powder coating | ||||||
| Fixture Color |
Silvery grey
|
||||||

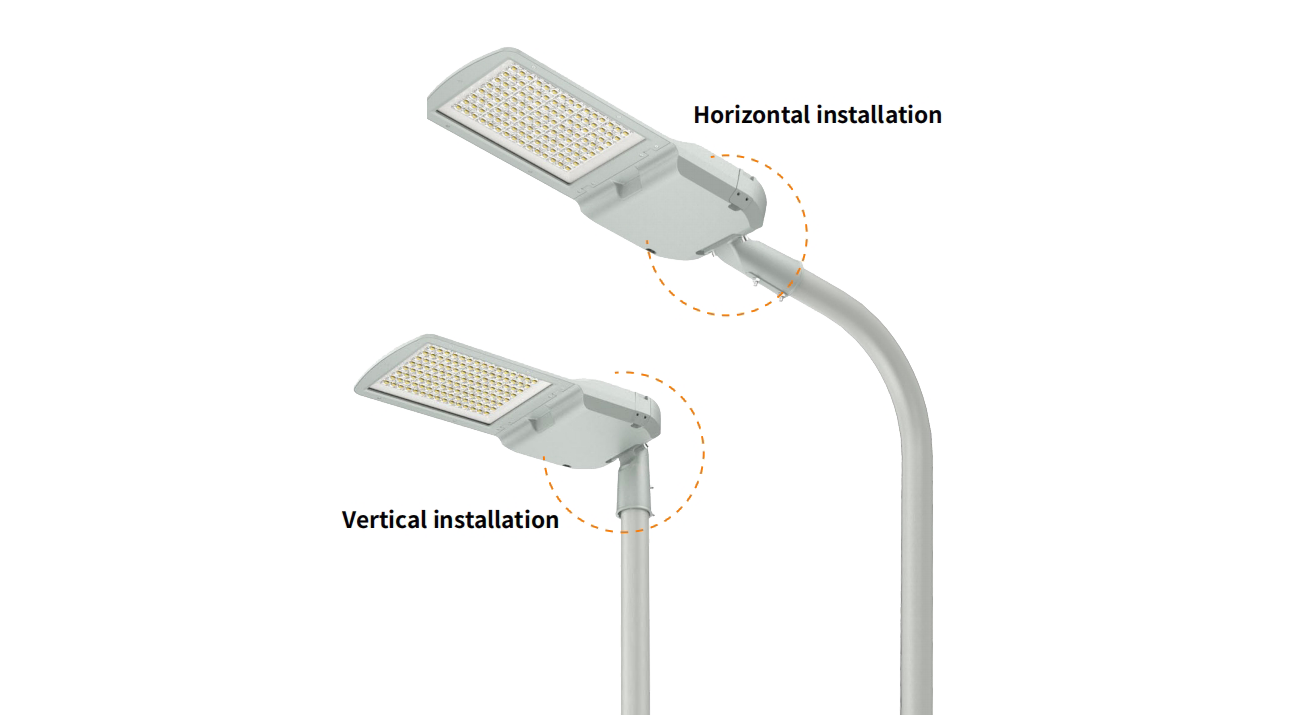

| Mounting Option |
Vertical/ Horizontal Installation
|
||||||
|
Storage temperature range
|
-40℃~+75℃ | ||||||
|
Storage humidity range
|
85% max.
|
||||||
|
Operating temperature range
|
-30℃~+50℃ | ||||||
|
Operating humidity range
|
85% max.
|
||||||
| Life Time | 50.000 hours | ||||||
| Warranty | 5 Years | ||||||
| Optional Accessories |
0/1-10V dimmable
|
||||||
|
Slip-Fitter for 42mm/ 50mm/ 60mm/ 76mm poles
|
|||||||
|
Circuit breaker
|
|||||||
|

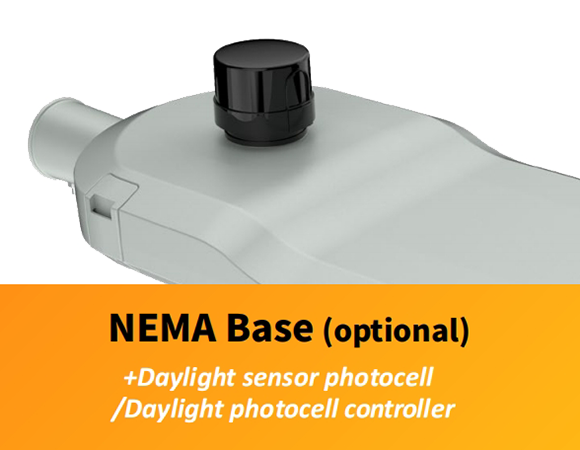

3pin, 5pin, 7pin NEMA base
|
|||||||
|
Shorting cap socket for NEMA base
|
|||||||
|
Daylight sensor photocell/ Daylight photocell controller
|
|||||||
|

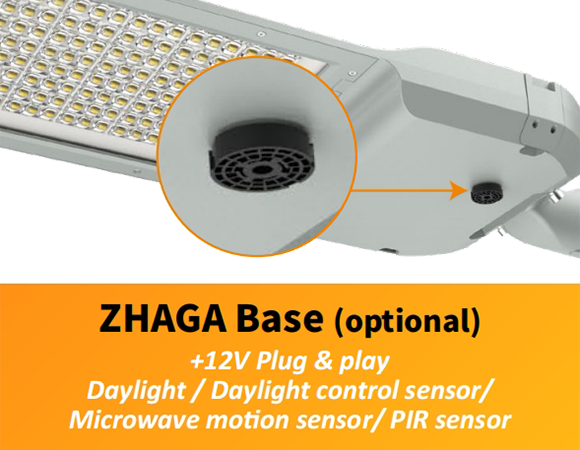

ZHAGA base with 12V plug& play Daylight/ Daylight control sensor/ Microwave motion sensor/ PIR sensor
|
|||||||
|
10KV/ 20KV SPD
|
|||||||
0/1-10V dimmable
NEMA base( 3 pin/5 pin/7pin)/Shorting Cap socket
ZHAGA base
Plug & play 12V Daylight/ Daylight control sensor
Plug & play 12V Microwave motion sensor
Plug & play 12V PIR sensor
10KV/ 20 KV SPD
Daylight sensor photocell/Daylight photocontroller
Circuit breaker
