Shine a Light in Every Corner!
Shine a Light in Every Corner!
High efficiency up to 200lm/W
Lightweight design, save freight
Larger PCB board, excellent heat dissipation
Various installation methods, flexible and convenient
IP66 protection
Can be used in -40℃~+50℃ environment
5 Years warranty
Inquire Now
| Model No. | HB39-C-60W | HB39-C-100W | HB39-C-150W | HB39-C-200W | |
|---|---|---|---|---|---|
| Power | 60W | 100W | 150W | 200W | |

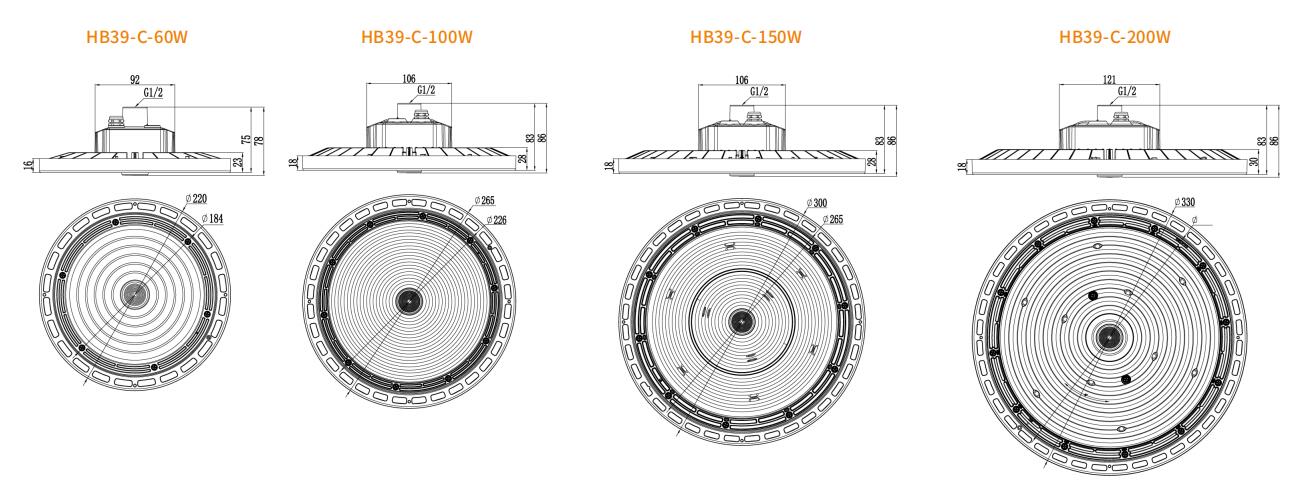

| Product Dimension | φ220*78(mm) | φ265*86(mm) | φ300*86(mm) | φ330*86(mm) | |
| Efficiency | 155±10%lm/W (Ra>80) | ||||
| Luminous Flux (±10%) | 9300±10%lm | 15500±10%lm | 23200±10%lm | 31000±10%lm | |
| Efficiency PLUS | 180±10%lm/W (Ra>80) | ||||
| Luminous Flux (±10%) | 10800±10%lm | 18000±10%lm | 27000±10%lm | 36000±10%lm | |
| Efficiency PLUS+ | 200±10%lm/W (Ra>70) | ||||
| Luminous Flux (±10%) | 12000±10%lm | 20000±10%lm | 30000±10%lm | 40000±10%lm | |

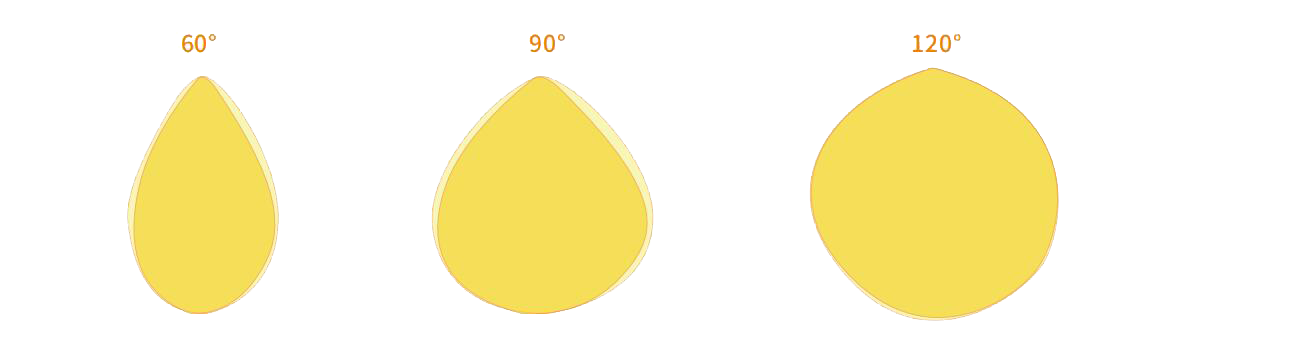

| Beam Angle | 60°/ 90°/ 120° | 60°/ 90° | |||
| CCT | 3000K;4000K;5000K;5700K;6500K | ||||
| Ingress Protection | IP66 | ||||
| Color Rendering Index | Ra>70/80 | ||||
| Driver Brand | TOMCARLINE | ||||
| Input Voltage | AC120-277V | AC200-240V | AC200-240V | AC200-240V | |
| Power Factor | 0.95 | ||||
| Frequency | 47-63HZ | ||||
| Driver Type | Constant Current (CC) | ||||
| Luminaire Net Weight | 1.2kg | 1.9kg | 2.3kg | 2.8kg | |
| Packing Information | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | |
| Export Carton Size | 28*27*30CM | 33*28*35CM | 37*28*39CM | 40*28*42CM | |
| Gross Weight | 3.3kg | 4.8kg | 5.8kg | 6.8kg | |
| Material | Housing | Aluminum Alloy | |||
| Optics | PC lens | ||||
| Finish | Powder Coating | ||||
| Fixture Color | Black | ||||

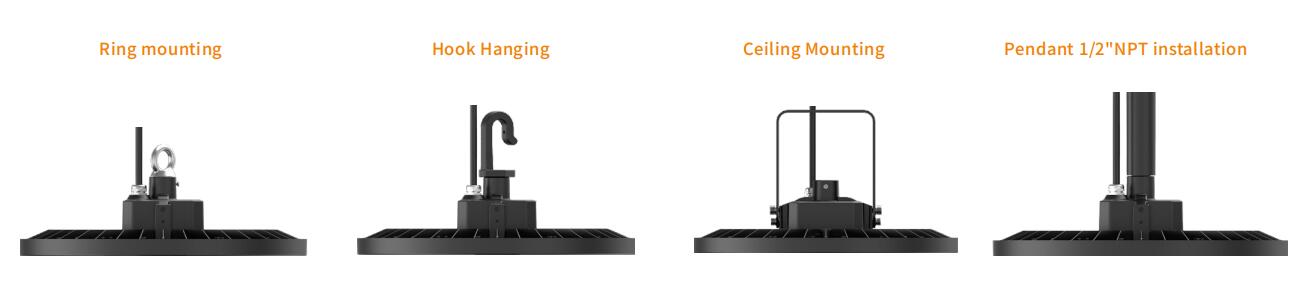

| Mounting Option | Ring mounting/ Hook Hanging/ Ceiling Mounting/ Pendant 1/2"NPT installation | ||||
| Storage temperature range | -30~+70℃ | ||||
| Storage humidity range | 85% max. | ||||
| Operating temperature range | -40℃~+50℃ | ||||
| Operating humidity range | 85% max. | ||||
| Life Time | 50.000 hours | ||||
| Warranty | 5 Years | ||||
| Dimmable | 1-10V dimmable | ||||
| Optional Accessories | 0-10V dimmable | ||||
| AC120-277V | |||||
| Hook Hanging | |||||
| ±45° Adjustable brackets | |||||
| PC reflector | |||||
| Aluminum reflector | |||||
| Safety rope (0.5m length) | |||||
Aluminum reflector
PC reflector
Hook Hanging
±45° Adjustable brackets
Safety rope (0.5m length)
