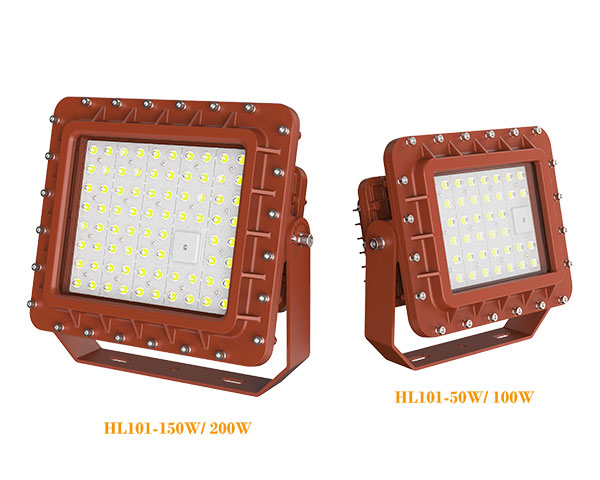

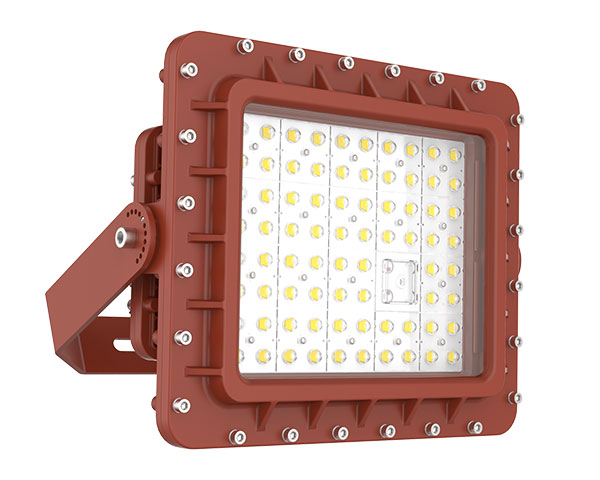

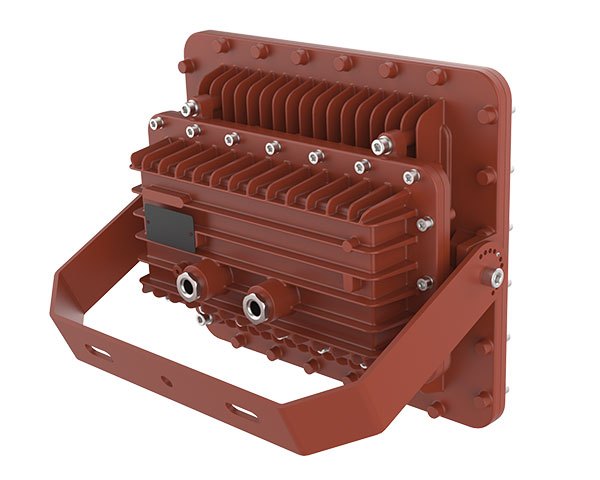

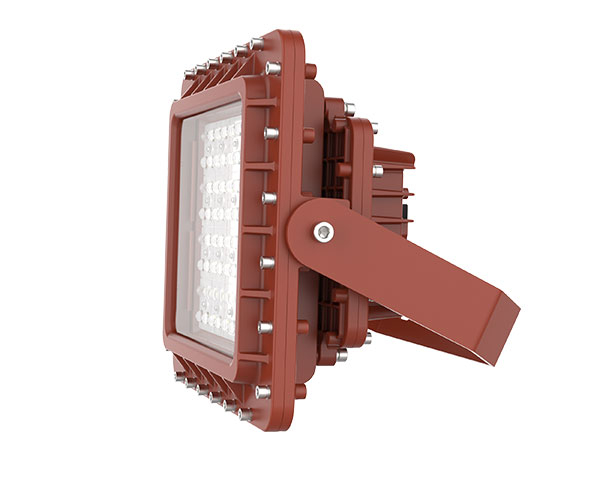

HL101 Explosion-proof & Hazardous Location LED Lights


1.Eye-catching color, eye-catching warning.

2.High impact resistance glass > 4J, shell > 7J.

3.Handle 0-360 °available easy positioning the adjustment angle.

Inquire Now

Key Features

  • Eye-catching color, eye-catching warning.
  • High impact resistance glass > 4J, shell > 7J.
  • Handle 0-360 °available easy positioning the adjustment angle.

Certifications

  • HL101 Explosion-proof & Hazardous Location LED Lights

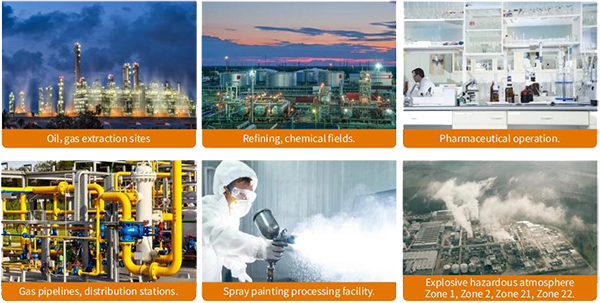

Applications

HL101 Explosion-proof & Hazardous Location LED Lights

Specifications

Model No.
HL101-50W
HL101-100W
HL101-150W
HL101-200W
Product Dimension
330*265*190(mm)
385*317*190(mm)
Efficiency
140±10lm/W
Luminous Flux (±10%)
7000±500lm
14000±1000lm
21000±1500lm
28000±2000lm
CCT
3000K;4000K;5000K;5700K
Ingress Protection
IP66
IK Rating
IK10
Wind resistance
Class 17 (56.1~61.2 m/s)
Color Rendering Index
Ra>70
Beam Angle
30° 60° 90°
Driver Brand
TOMCARLINE
Input Voltage
AC100-277V / 277-480V
Power Factor
>0.9
Frequency
47-63HZ
Driver Type
Constant Current (CC)
Luminaire Net Weight
12kg
12.3kg
15kg
15.5kg
Packing Information
1PCS/CTN
1PCS/CTN
1PCS/CTN
1PCS/CTN
Export Carton Size
43*41*27(cm)
43*41*27(cm)
48*45*27(cm)
48*45*27(cm)
Gross Weight
13.1kg
13.4kg
16.4kg
16.9kg
Material
Housing
ADC12
Optics
Tempered Glass+Lens
Finish
Powder Coating
Fixture Color
Red
Mounting Option
Bracket type / Pole type
Ambient Temperature
-30~+50℃
Life Time
50.000 hours
Warranty
5 Years
Dimmable
1-10V dimmable

Photometry data(Note: Standard product CCT 4000K (Neutral white))

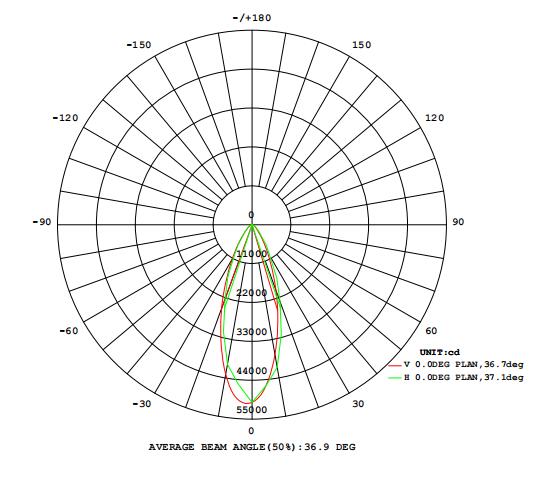

HL101-30°
Power
Luminous Efficiency
Luminous Flux
Wattage
50W
146.88lm/W
7248.88lm
49W
100W
143.03lm/W
14121.7lm
99W
150W
148.24lm/W
22272.9lm
150W
200W
140.73lm/W
28280.4lm
201W
HL101 Explosion-proof & Hazardous Location LED Lights
HL101-60°
Power
Luminous Efficiency
Luminous Flux
Wattage
50W
148.47lm/W
7312.92lm
49W
100W
145.6lm/W
14378.2lm
99W
150W
150.43lm/W
22591.3lm
150W
200W
143.03lm/W
28751.5lm
201W
HL101 Explosion-proof & Hazardous Location LED Lights

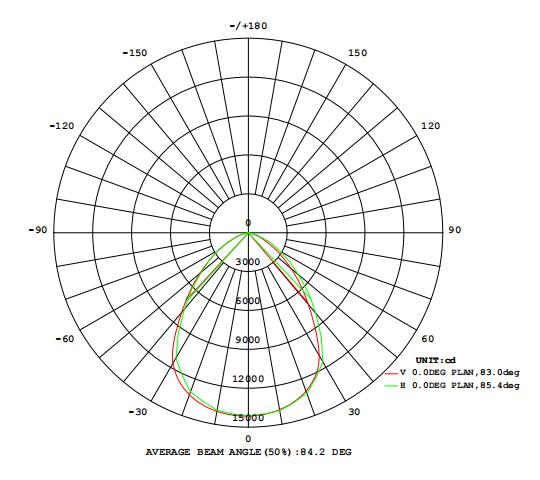

HL101-90°
Power
Luminous Efficiency
Luminous Flux
Wattage
50W
140.23lm/W
6904.85lm
49W
100W
133.25lm/W
13199.5lm
99W
150W
144.38lm/W
21696.6lm
150W
200W
135.54lm/W
27214.5lm
201W
HL101 Explosion-proof & Hazardous Location LED Lights

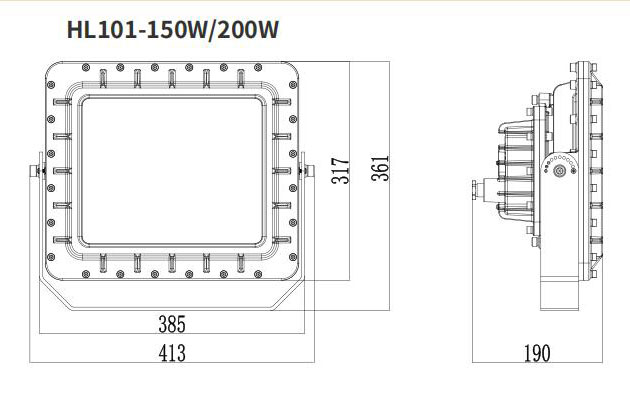

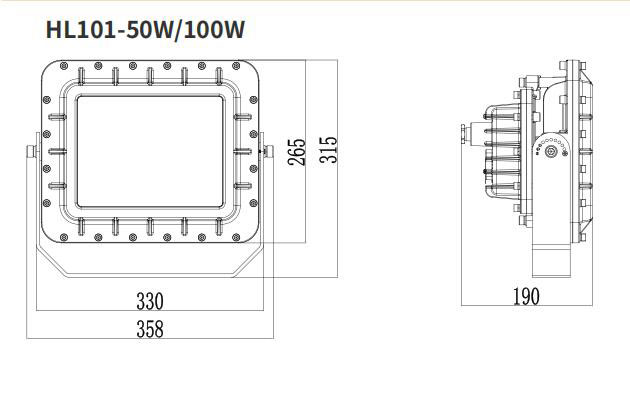

Dimensions(All dimensions in mm)

HL101 Explosion-proof & Hazardous Location LED Lights HL101 Explosion-proof & Hazardous Location LED Lights

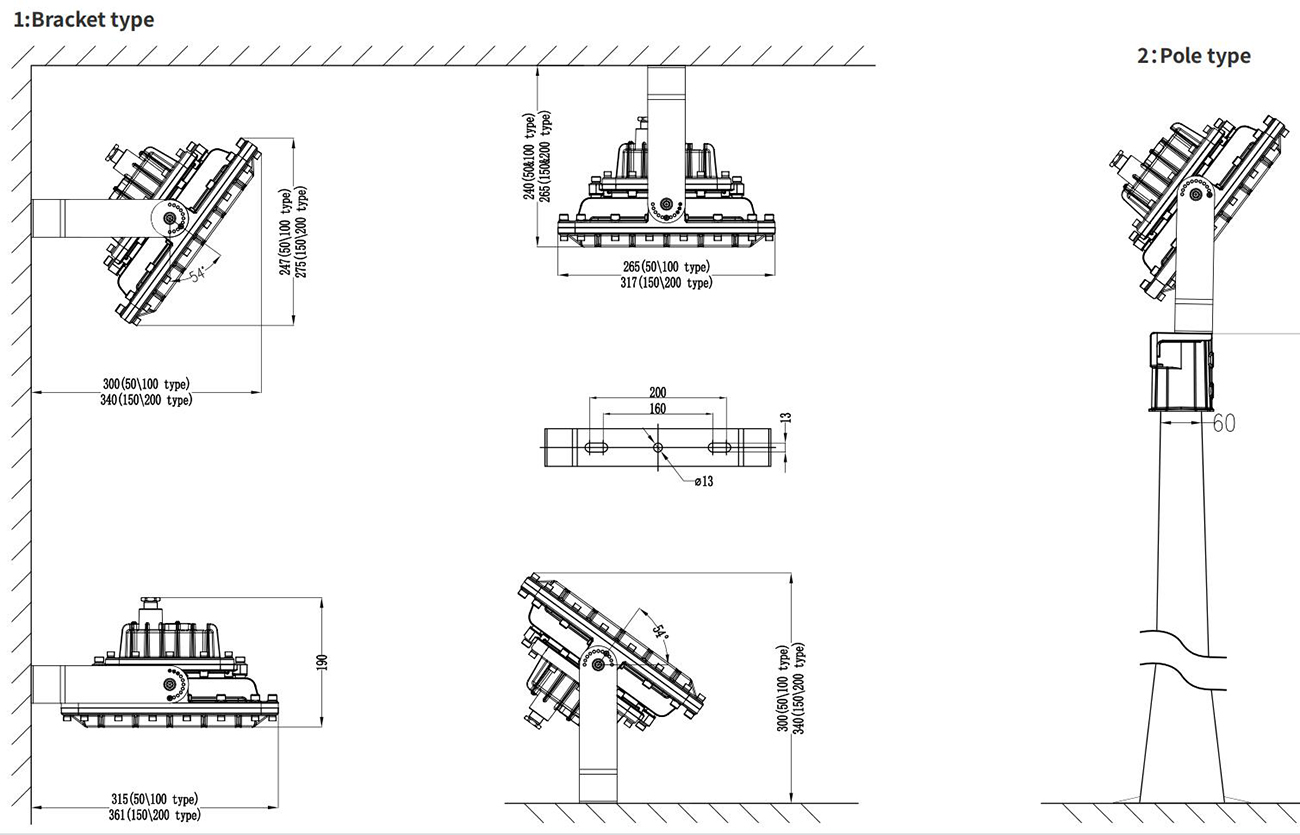

Mounting types(All dimensions in mm)

HL101 Explosion-proof & Hazardous Location LED Lights
