1.Extremely energy efficient - up to 140 lm/w.
2.High Luminous flux - up to 33.600 lm.
3.Excellent heat dissipation and modern design.
4.Slim and compact profile for maximum wind resistance.
5.Durable and long-lasting power driver (flicker-free for models above 50W).
6.Circuit interrupter for maintenance access.
7.Adjustable installation angle（vertically or horizontally ）.
8.IP66 for all weather conditions.
9.5 years warranty.
Inquire Now

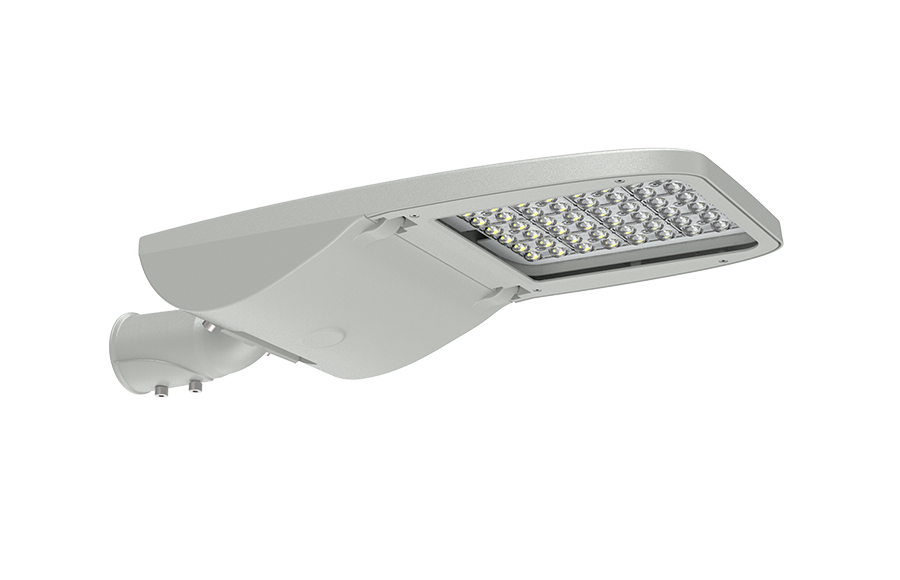

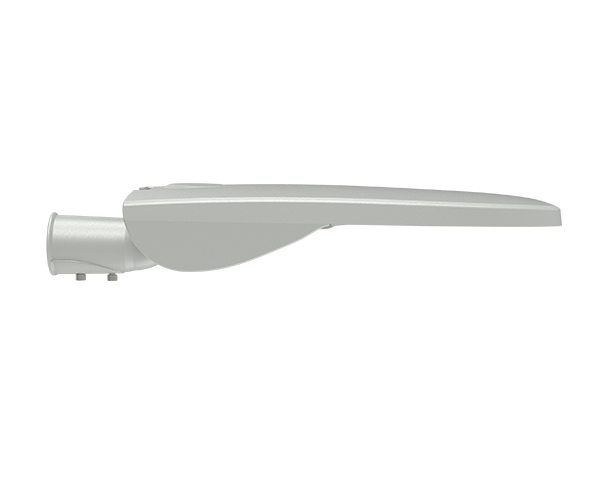

LED street lights are playing an increasingly important role in urban development. T68B NERO Pro Street light is FYTLED's newest street lamp that offers excellent value for money. Modern appearance design, convenient and easy installa- tion, various optical angles, IP66 high grade pro- tection, and power range from 30W to 240W makes this modern product a perfect choice for various areas of application and different city roads devel- opment. High efficiency 140lm/W helps to save electricity costs for the city.
Daylight sensor and motion sensor available
3pin, 5pin, 7pin NEMA base
Corrosion-resistant coating for seaside application
Class II luminaire

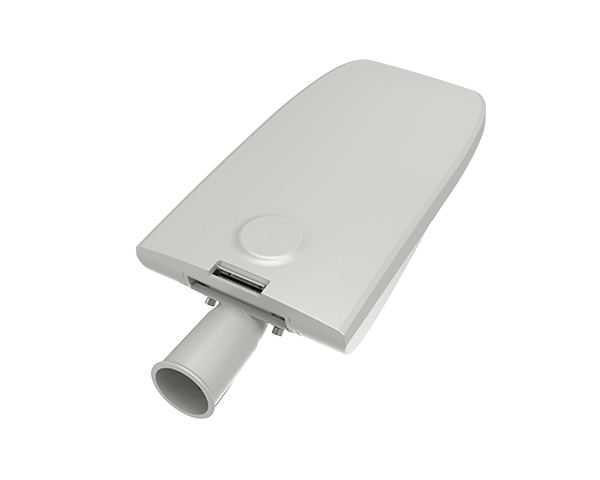

Electrical disconnector
Optional 10KV or 20KV Surge Protection
CRI 80 Ra available upon request
Optional slip fitters for poles: 60-42mm, 76-60mm
-European Market: ENEC, TUV, GS, CB, CE, RoHS
-Australian Market: SAA, C-Tick, RCM

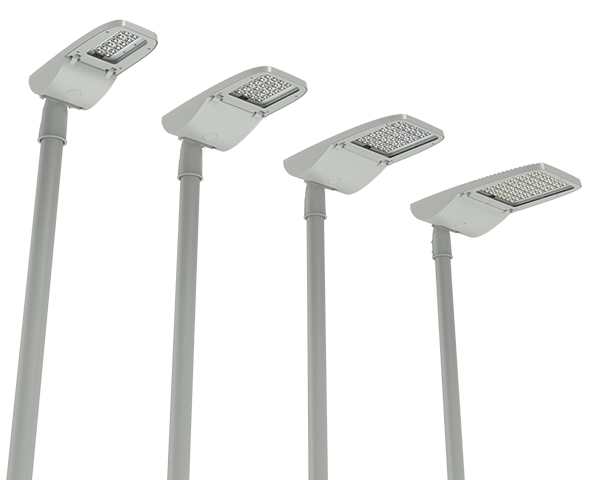

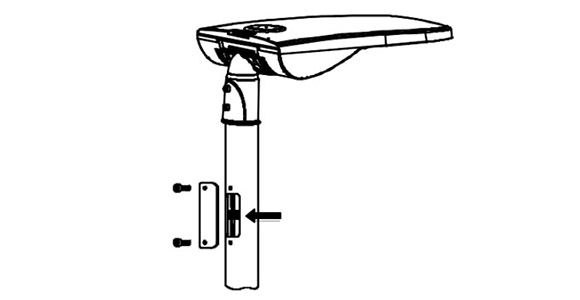

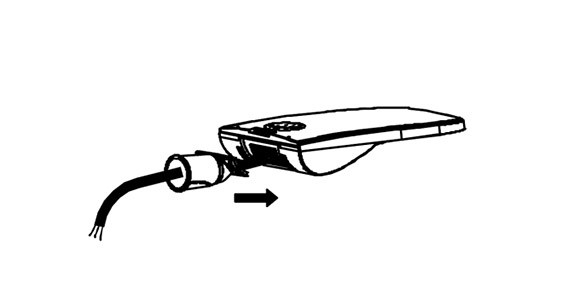

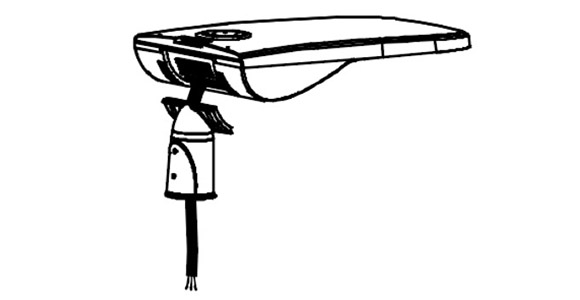

1. Install the slip-fitter vertically on the fixture .

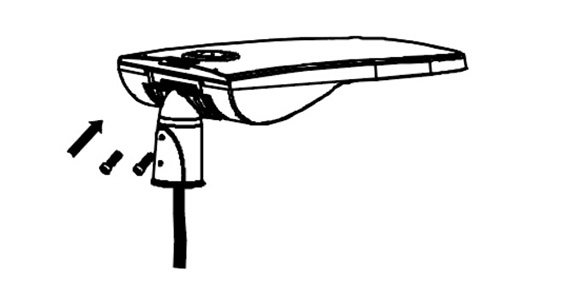

2. Secure the slip-fitter on the fixture with two M8 hexagon screws.

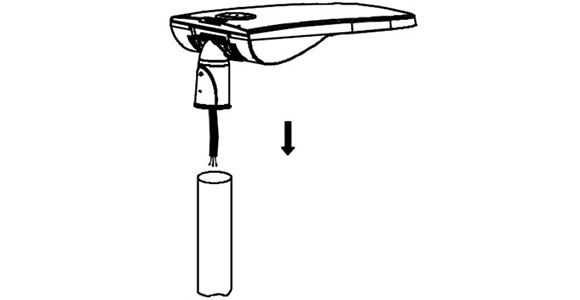

3. Mount the fixture on the pole.

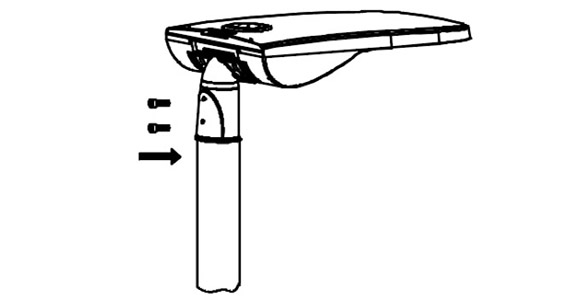

4. Secure the slip-fitter on the fixture by tightening the two screws.

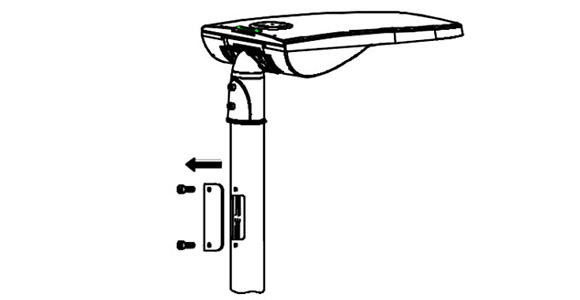

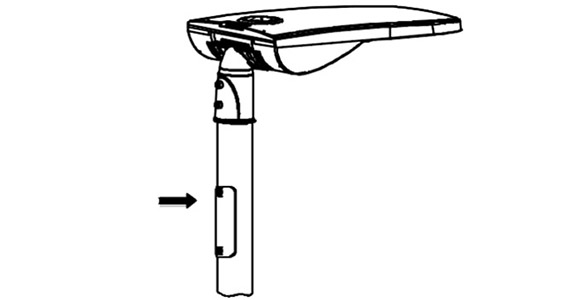

5. Open the maintenance flap of the pole .
6. Connect the input wire of the fixture with the power line.
7. Closed the maintenance flap.

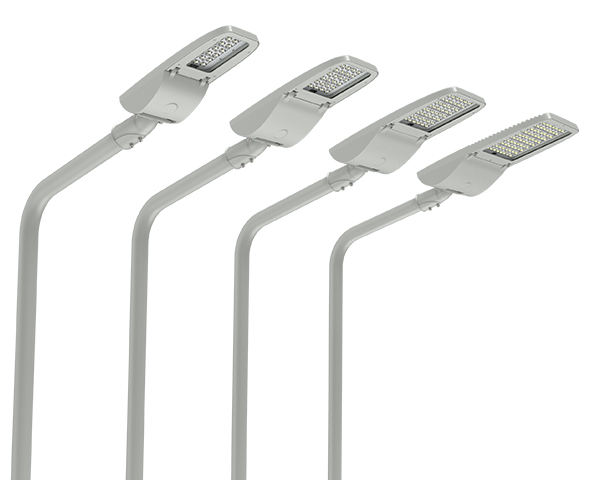

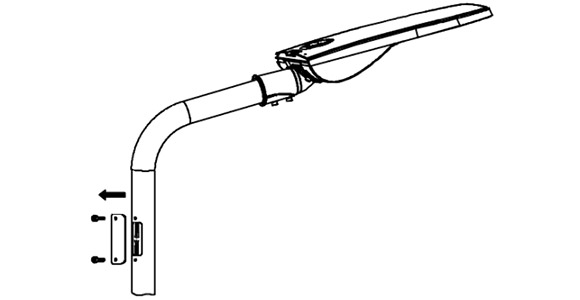

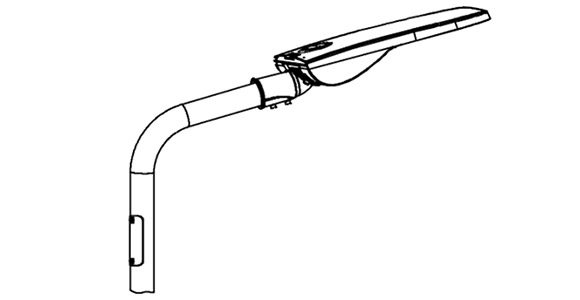

1. Install the slip-fitter horizontally on the fixture .

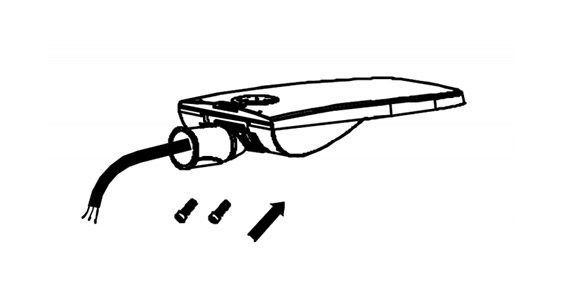

2. Secure the slip-fitter on the fixture with two M8 hexagon screws.

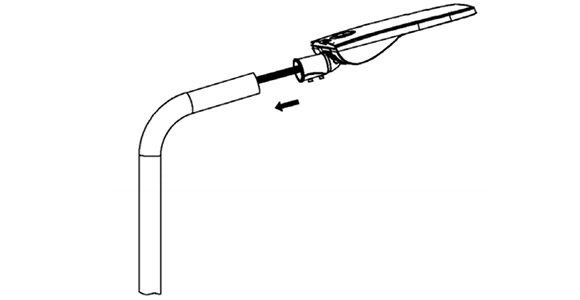

3. Mount the fixture on the pole.

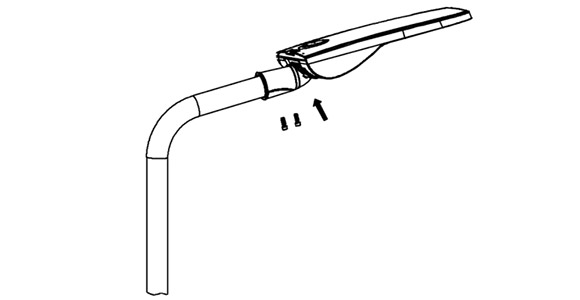

4. Secure the slip-fitter on the fixture by tightening the two screws.

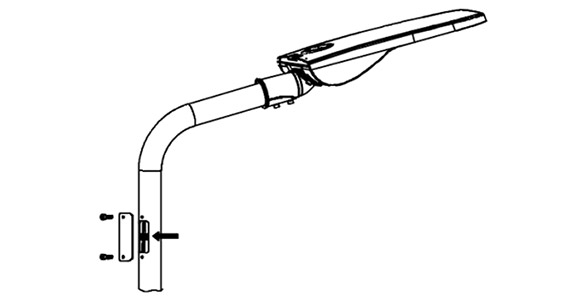

5. Open the maintenance flap of the pole .
6. Connect the input wire of the fixture with the power line.
7.Closed the maintenance flap.
Residential roads and streets
Parks and parking lots
Loading areas and sporting venues
| Standard lumen (150~160lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T68B-30W | 30W |
AC100~277V 50~60Hz |
140±10 | 4200±300 |
T2-S T3-M |
12 PCS 5W EMC 5050 |
>70 |
| T68B-40W | 40W | 140±10 | 5600±400 |
12 PCS 5W EMC 5050 |
|||
| T68B-50W | 50W | 140±10 | 7000±500 |
12 PCS 5W EMC 5050 |
|||
| T68B-60W | 60W | 140±10 | 8400±600 |
24 PCS 5W EMC 5050 |
|||
| T68B-80W | 80W | 140±10 | 11200±800 |
24 PCS 5W EMC 5050 |
|||
| T68B-100W | 100W | 140±10 | 14000±1000 |
36 PCS 5W EMC 5050 |
|||
| T68B-120W | 120W | 140±10 | 16800±1200 |
48 PCS 5W EMC 5050 |
|||
| T68B-150W | 150W | 140±10 | 21000±1500 |
48 PCS 5W EMC 5050 |
|||
| T68B-180W | 180W | 140±10 | 25200±1800 |
72 PCS 5W EMC 5050 |
|||
| T68B-240W | 240W | 140±10 | 33600±2400 |
72 PCS 5W EMC 5050 |
|||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >70 | ||
| Efficiency in % | >92% | Color rendering index Ra | <5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <28 | ||

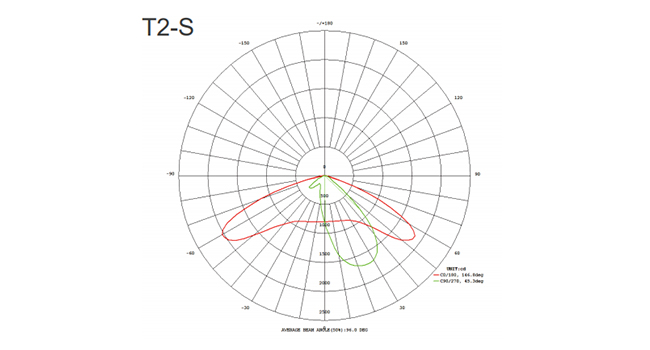

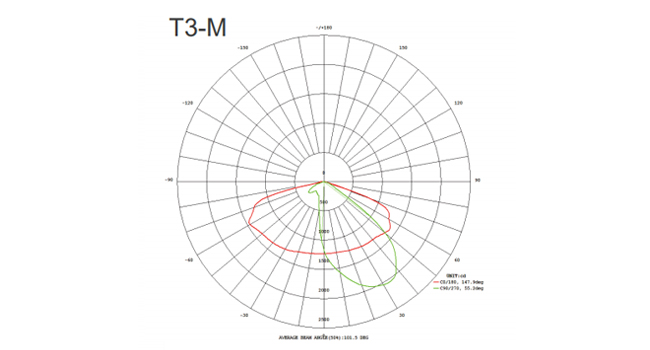

| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | T2-S T3-M | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP66 | Heatsink temperature | 20~+69℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates |
European market: TUV, GS, CB, D Mark, CE
Australian market: SAA, CTick,RMC
|
||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | |||
|---|---|---|---|---|
| Rated nominal Lifetime | 5 Years | Base/Socket | 42 60 76 | |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable, DALI dimmable | |
| Lumen maintenance at e.o.l. | 70% | |||
