Shine a Light in Every Corner!
Shine a Light in Every Corner!
-Extremely energy efficient - up to real 150 lm/w
-Very high Luminous flux - up to 28.000 lm
-Newest generation of Refond 1w EMC3030 chips
-Improved heat dissipation performance
-Perfectly suitable for industrial use due to IP65
-Long lifetime due to high quality LED chips and drivers
-No UV or IR and completely mercury free
-10 years or 5 years warranty
Inquire Now

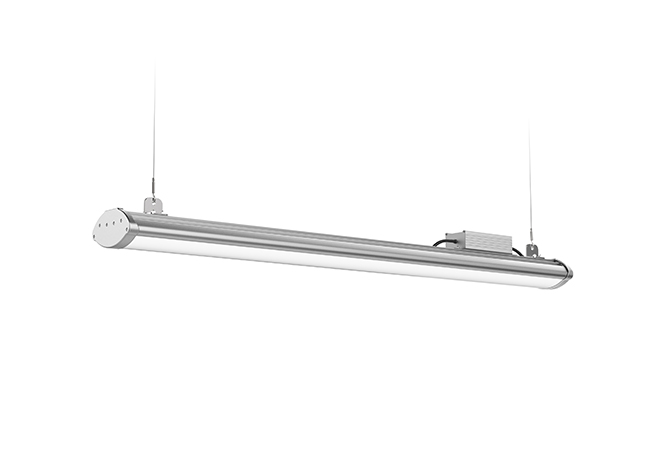

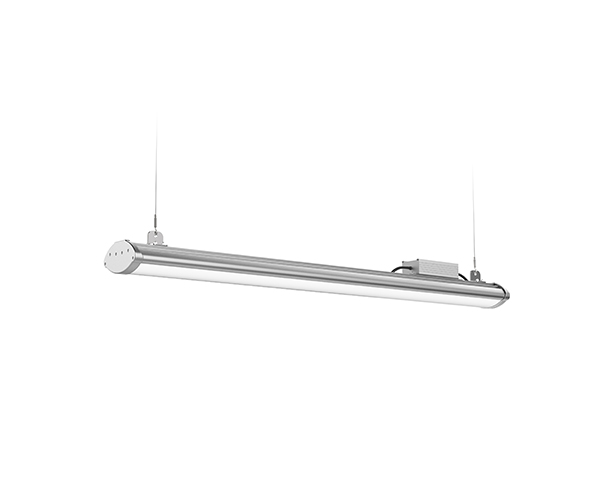

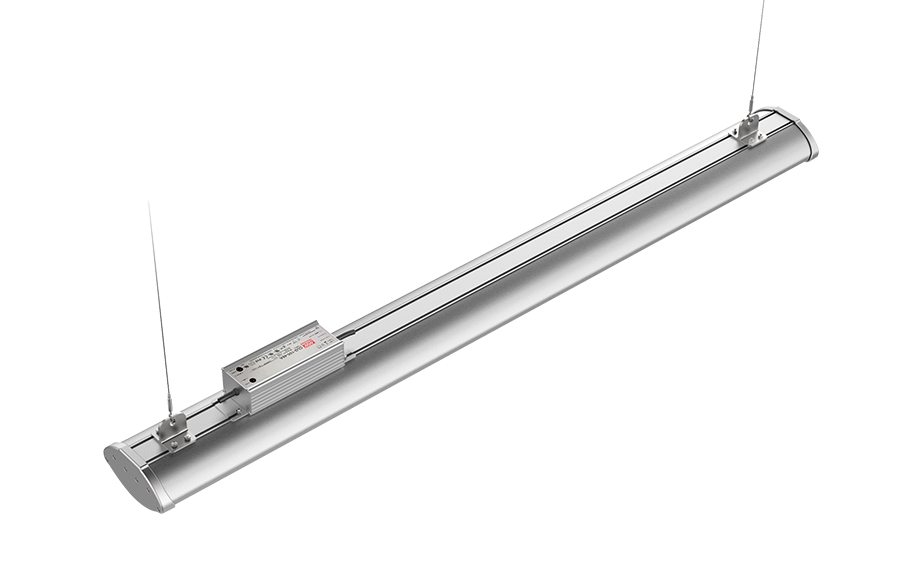

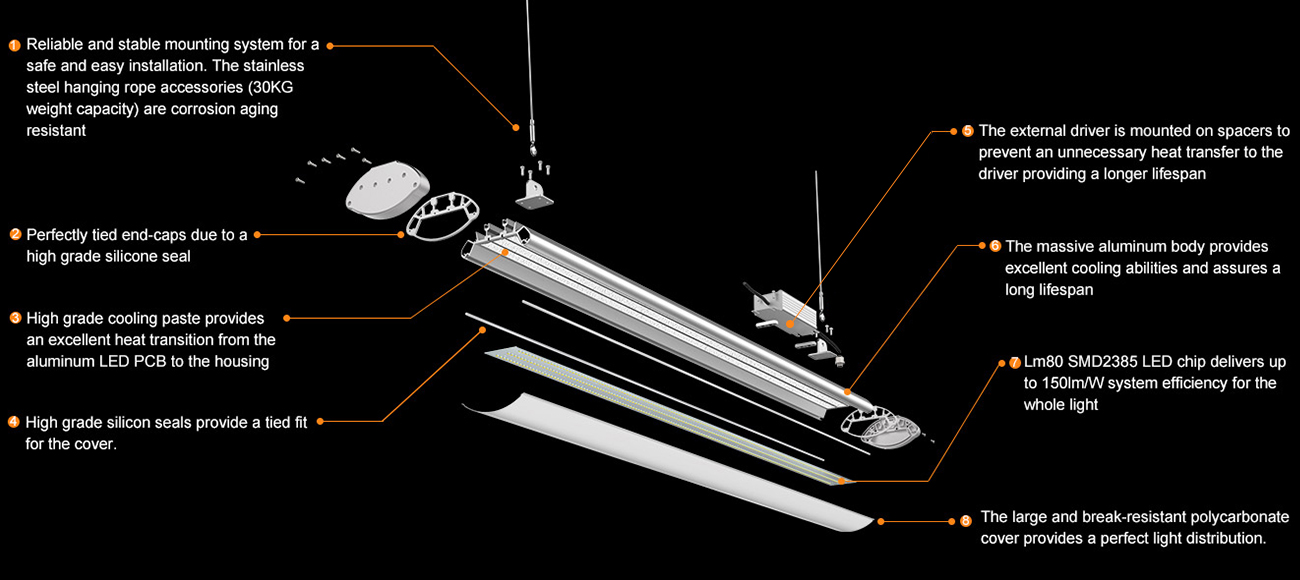

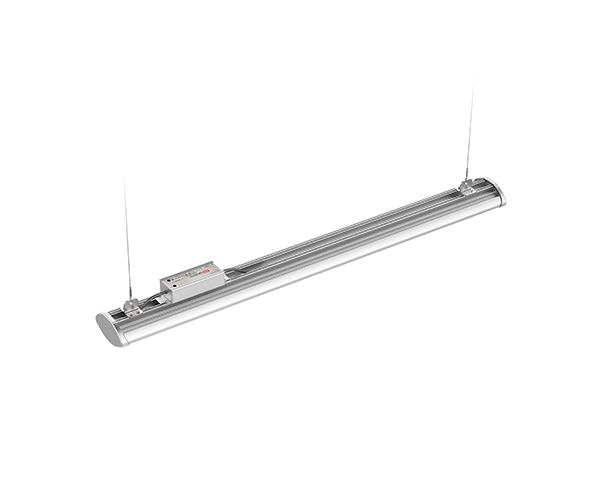

This new version of the T10 comes with some improvements. The housing was specially designed to provide a much larger surface area for heat dissipation. Compared to the previous model it now has almost twice the cooling power while maintaining the same weight and shape. The new generation of 1w EMC3030 LED chips provide an immense light output and maximum efficiency. This extremely robust industrial light is available with two driver choices: The proven and extremely stable TOMCARLINE drivers and the well-known MEANWELL ELG driver series. Both versions can be used in all areas where an IP grade up to IP65 is needed. Thanks to the large IK10 rated polycarbonate the illumines distribution is perfectly homogeneous.
-Optional Mean well driver available
-CRI 80 Ra available upon request
-1-10V dimmable and DALI available
-Microwave motion sensor available
-Optional emergency power supply
-Zigbee is available
-American market: UL, cUL, DLC, FCC
-European market: TUV, ENEC, CB, CE(EMC,LVD), RoHS, D-Mark
-Australian market: SAA, RCM

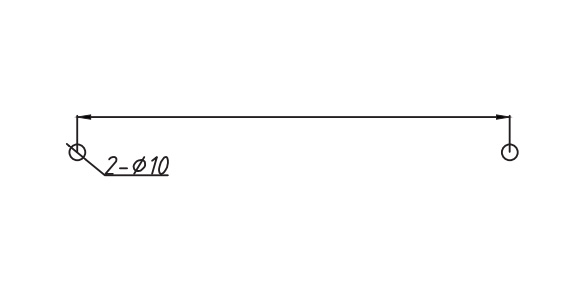

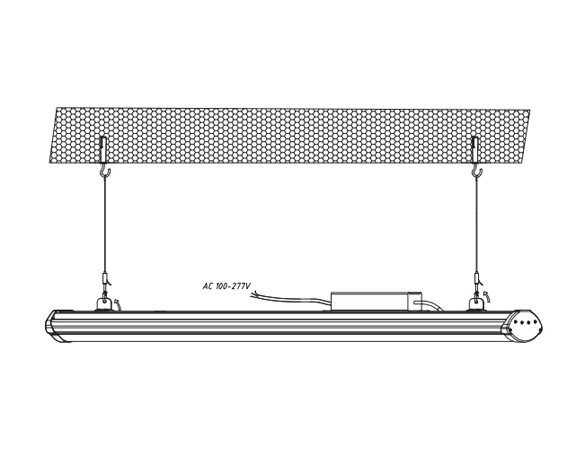

1. Drill two hole with diameter 10mm in the ceiling or wall.

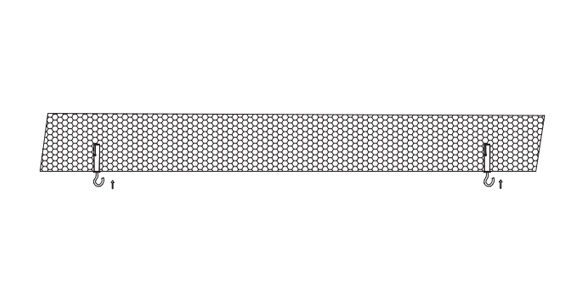

2. Fix the M8 explosion screws in the hole.

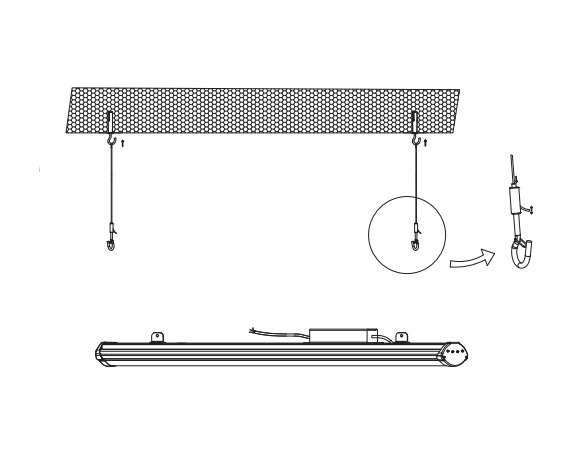

3. Hang the rope on explosion screw.In the end of the rope,the length of rope can be adjusted.
4. Connect the fixture to the rope and then connect to the AC power 100-277.

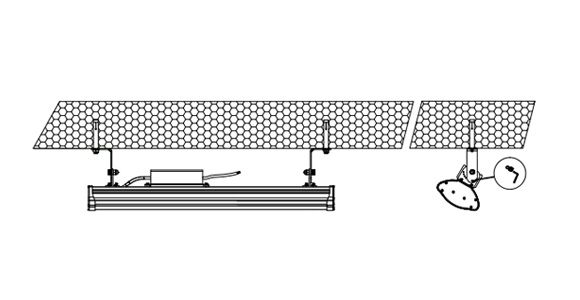

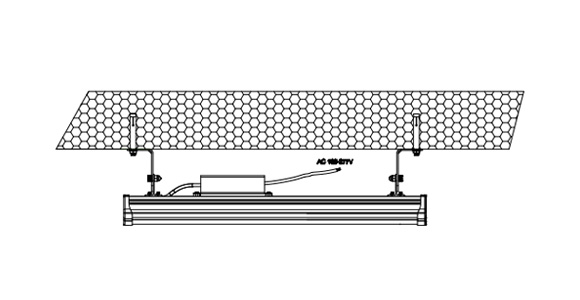

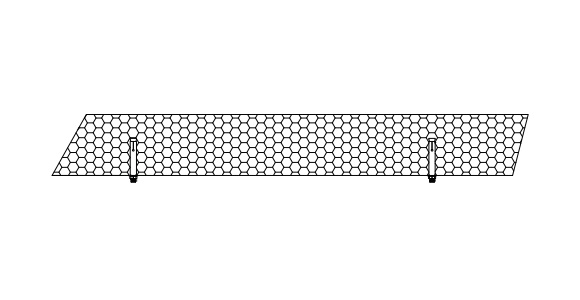

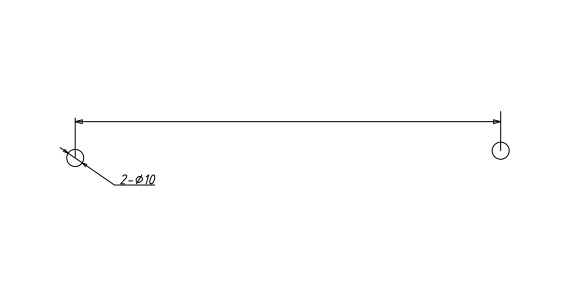

1. Drill two φ10mm holes on the ceiling according to the length of the luminaries.
2. Fix the M8 expansion screw on the ceiling.

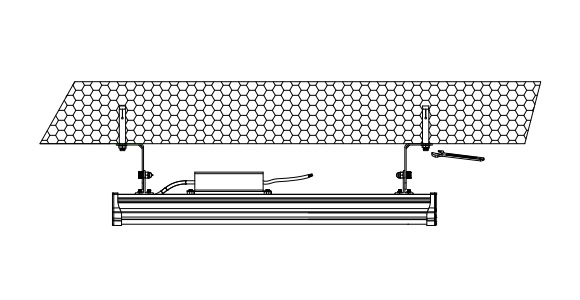

3. Put the hanging accessories on the expansion screw and tighten them with a wrench.
4. Use the M3 screw to fix the desired angle and then tighten the nut with a wrench.
5. Connect to power supply AC 100-277V.
Factories and warehouses;High rooms and halls;Exhibition & showrooms;Suitable for outdoor use
Warehouse
Supermarket
Factories
Sports
Sports
| Standard lumen(120-130lm/w) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal Wattages(W) | Nominal Voltage | Rated luminous efficacy(lm/w) | Nominal luminous flux(lumen) | Beam Angle | LED Quantity | CRI |
| T10B-60W | 60 |
AC100-277V 50-60Hz |
120+/-5 | 7200+/-300 | 120° | 84*1w EMC3030 | >70Ra |
| T10B-100W | 100 | 120+/-5 | 12000+/-600 | 147*1w EMC3030 | |||
| T10B-120W | 120 | 120+/-5 | 14200+/-600 | 189*1w EMC3030 | |||
| T10B-150W | 150 | 120+/-5 | 17500+/-750 | 189*1w EMC3030 | |||
| T10B-180W | 180 | 120+/-5 | 22000+/-900 | 252*1w EMC3030 | |||
| T10B-200W | 200 | 120+/-5 | 24000+/-1000 | 252*1w EMC3030 | |||
| Lemen Plus(140lm-150lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal Wattages(W) | Nominal Voltage | Rated luminous efficacy(lm/w) | Nominal luminous flux(lumen) | Beam Angle | LED Quantity | CRI |
| T10B-60W | 60 |
AC100-277V 50-60Hz |
145+/-5 | 8700+/-300 | 120° | 147*1w EMC3030 | >70Ra |
| T10B-100W | 100 | 145+/-5 | 14500+/-500 | 189*1w EMC3030 | |||
| T10B-120W | 120 | 145+/-5 | 17000+/-600 | 252*1w EMC3030 | |||
| T10B-150W | 150 | 145+/-5 | 22000+/-900 | 252*1w EMC3030 | |||
| T10B-180W | 180 | 145+/-5 | 26000+/-900 | 336*1w EMC3030 | |||
| T10B-200W | 200 | 145+/-5 | 29500+/-1200 | 336*1w EMC3030 | |||
| Electrical datas | Photometrical data | ||||||
|---|---|---|---|---|---|---|---|
| Operating frequency | 47-63Hz | Available light colors | Warm white:Natural white;daylight white | ||||
| Type of current | AC 100-277V | Availabel color tempetatures | 3000K;4000K;5000K;6000K | ||||
| Power factor λ | >0.9 | Color rendering index Ra | >70.>80 Optional | ||||
| Efficiency in % | >92% | Standard deviation of color matching | <5 | ||||
| Start time(0.2s/0.5s/… | 0.1S | UGR(Unified Glare Rating) | <27 | ||||
| Warm -up time to 60%(1.5s/2s/…) | 0.5S | Available beam angles | 120° | ||||
| Standards Certification | Temperatures operating conditions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | -20~+69℃ | ||||||
| Tested dielectric strength | 3.75KV AC | Ambient temperature | -30~+50℃ | ||||||
| Safety features features | Open circuit protection, | Storage temperature | -40~+80℃ | ||||||
| Short circuit protection | |||||||||
| Over voltage protection | |||||||||
| Certificates | American market:UL,DLC Premium.CUL | ||||||||
| European market:TUV,GS.CB.CE.D-Mark | |||||||||
| Australian market:SAA,Ctick,RCM | |||||||||
| Energy efficiency class | A+ A++ | ||||||||
| Lifespan | Feature/Capabities and additional product data | |||||||
|---|---|---|---|---|---|---|---|---|
| Rated nominal life time | 50.000 hours | Base/Socket | Directly wired | |||||
| Switching cycles | 100.000 times | Dimmable | 1-10v dimmable,DALI dimmable | |||||
| Lumen maintenanceate.o.l. | 70% | |||||||
| Packing Information | |||||||||
|---|---|---|---|---|---|---|---|---|---|

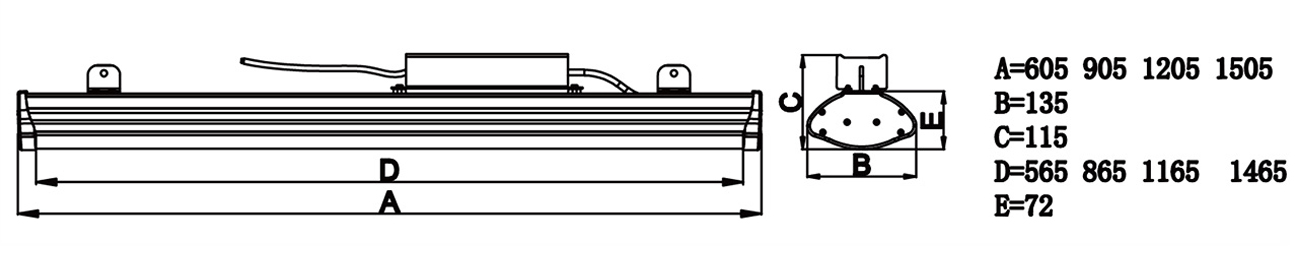

| Model | Dimension(mm) | CTN SIZE(cm) | QYT/CTN | Net Weight/pcs(kg) | Gross Weight/CTN(KG) | ||||
| T10C-60W | 605*135*72 | 66*28*18 | 2PCS | 3.7 | 8.8 | ||||
| T10C-100W | 605*135*72 | 66*28*18 | 2PCS | 4.0 | 9.6 | ||||
| T10C-120W/150w | 905*135*72 | 96*28*18 | 2PCS | 5.0 | 12 | ||||
| T10C-180W/200w | 1205*135*72 | 126*28*18 | 2PCS | 6.0 | 14.8 | ||||
