1. Highly energy efficient - up to 130 lm/w
2. High Luminous flux - up to 14.300 lm
3. IP69K and IK10 protection grade
4. Quick and easy installation
5. No UV or IR and completely mercury free
6. 5 Years warranty
Inquire Now

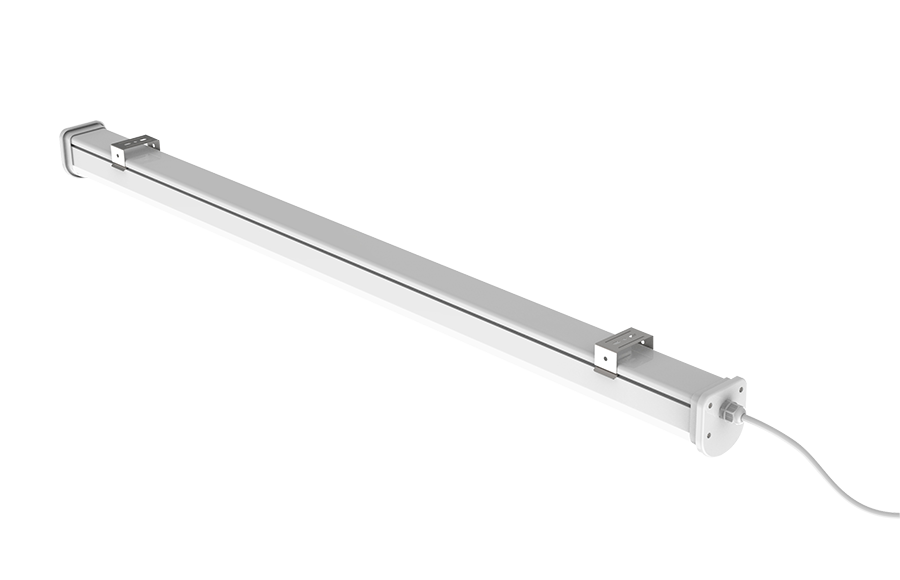

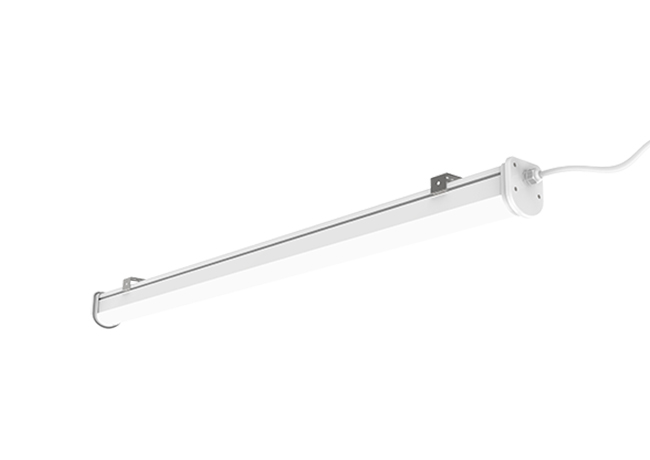

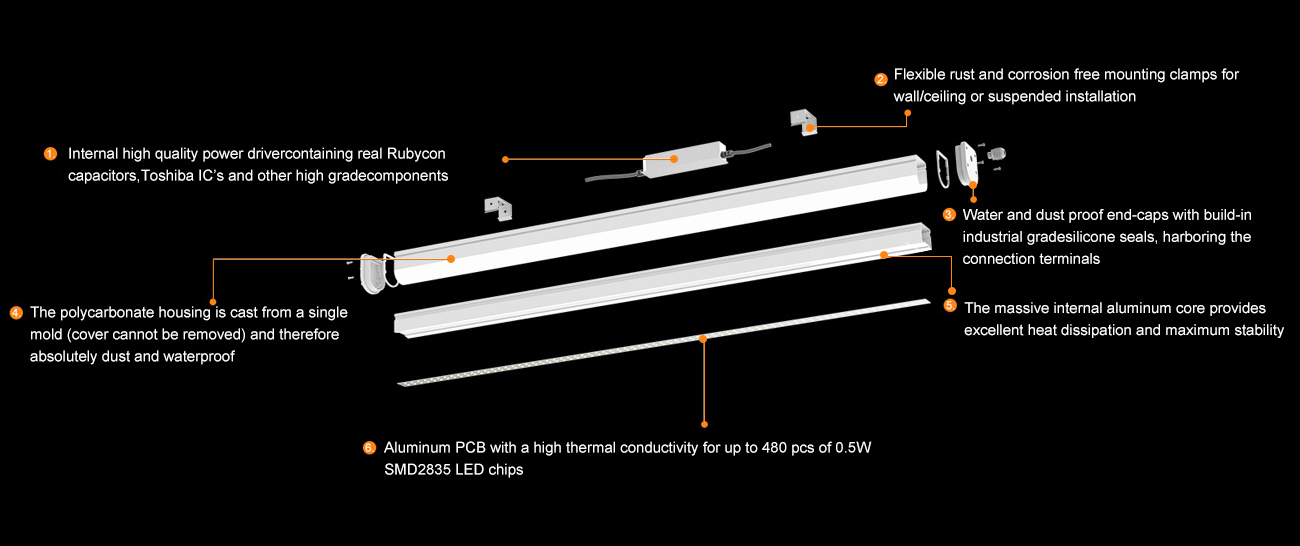

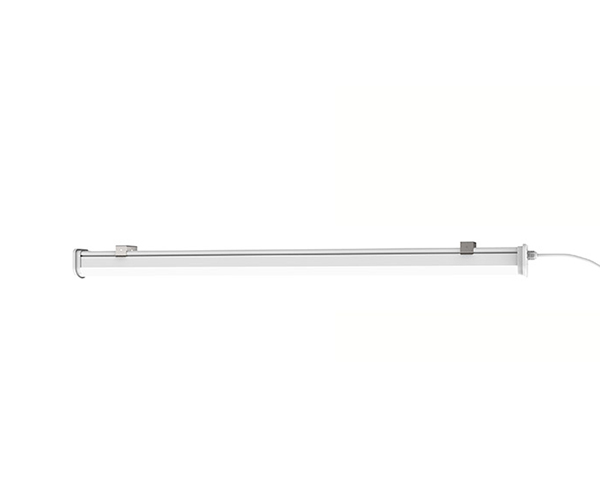

The T56 is a highly durable and robust Tri-Proof light designed forproduction areas, parking facilities and any other area of application where harsh conditions have to be countered. Its polycarbonate housing is cast from a single mold and therefor absolutely dust and waterproof. Removable end caps harbor the connection terminals and allow for a quick and easy installation. A massive internal alumi-num core provides stability and assures good thermal conditions for up to 480 pcs of 0.5W SMD2835 chips as well as the internal isolated power driver. This modern and efficient Tri-Proof light is available in several wattages starting from 20W up to 110W.
- 1-10V dimmable and DALI dimmable
- CRI 90 Ra available upon request
- Microwave motion sensor available
-European market: ENEC, TUV, CE, RoHS, CB
-North American market: UL, cUL, DLC Premium
-Australia market: SAA, RCM
Parking Facilities, corridors and hallways;Warehouses and storage rooms;Factories and production areas
Cold storage
Parking lot
Food processing
Car washing
| Basic Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T56-20W06 | 20W |
AC100~277V 50~60Hz |
135±5 | 2700±100 | 120° |
120 PCS 0.5W 2835 |
>80Ra |
| T56-30W06 | 30W | 130±5 | 3900±150 |
120 PCS 0.5W 2835 |
|||
| T56-40W12 | 40W | 135±5 | 5400±200 |
240 PCS 0.5W 2835 |
|||
| T56-60W12 | 60W | 130±5 | 7800±300 |
240 PCS 0.5W 2835 |
|||
| T56-60W15 | 60W | 135±5 | 8100±300 |
336 PCS 0.5W 2835 |
|||
| T56-75W15 | 75W | 130±5 | 9700±400 |
336 PCS 0.5W 2835 |
|||
| T56-80W24 | 80W | 135±5 | 10800±400 |
480 PCS 0.5W 2835 |
|||
| T56-110W24 | 110W | 130±5 | 14300±500 |
480 PCS 0.5W 2835 |
|||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >80 | ||
| Efficiency in % | >92% | Standard deviation of color matching | <5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <23 | ||
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 120° | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP69K | Heatsink temperature | -20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates |
ENEC, TUV, CE, RoHS, CB,UL, cUL,DLC Premium, SAA, RCM |
||
| Energy efficiency class | A+ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50.000 hours | Base/Socket | Directly wired |
| Switching cycles | 100.000 times | Dimmable | 1-10V dimmable，DALI dimmable |
| Lumen maintenance at e.o.l. | 80% | ||
| Energy effic iency class | L80/B10 | ||
| Product Weight & Package Information | |||||
|---|---|---|---|---|---|

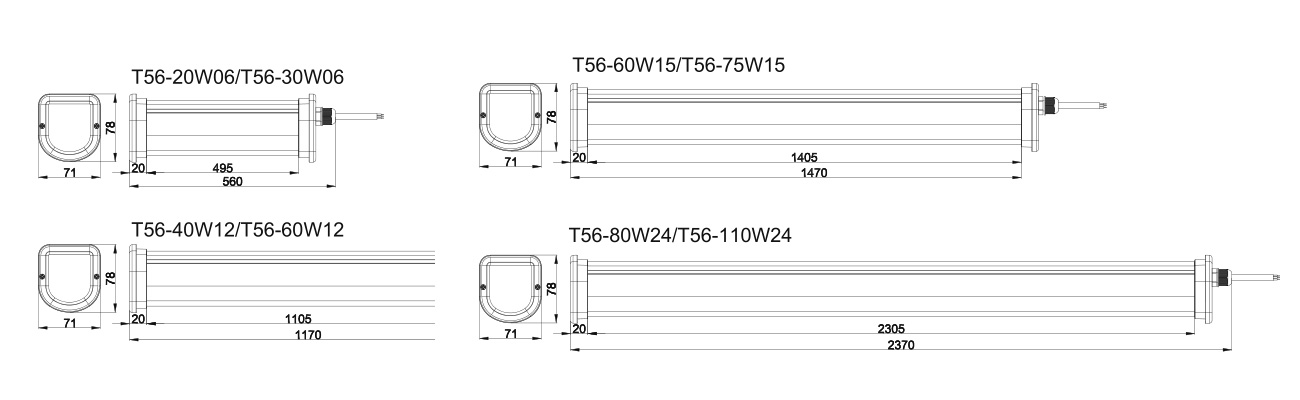

| Model | Dimension（MM) | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T56-20W06/T56-30W06 | 560*72*78 | 72*35*22 | 6PCS | 0.9 | 8.5 |
| T56-40W12/T56-60W12 | 1170*72*78 | 132*35*22 | 6PCS | 2 | 15.5 |
| T56-60W15/T56-75W15 | 1470*72*78 | 162*35*22 | 6PCS | 2.4 | 17.5 |
| T56-80W24/T56-110W24 | 2370*72*78 | 252*24*22 | 4PCS | 3.8 | 19.5 |
