1. Highly energy efficient - up to 130 lm/w
2. High Luminous flux - up to 7800 lm

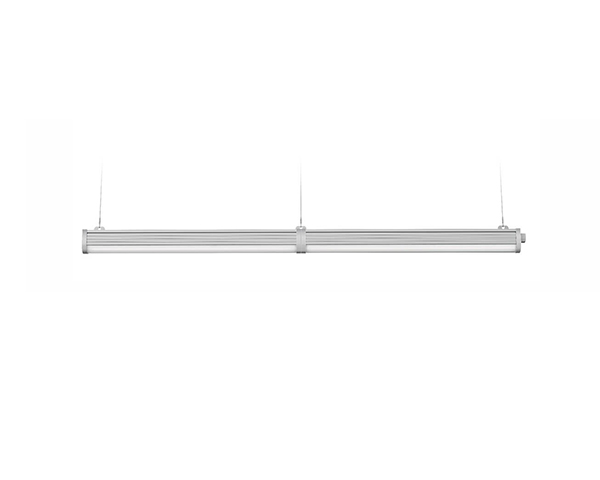

3. Single use or continuous-run installation
4. No gaps or seams between the fixtures
5. Quick and easy installation
6. 5 Years warranty
Inquire Now

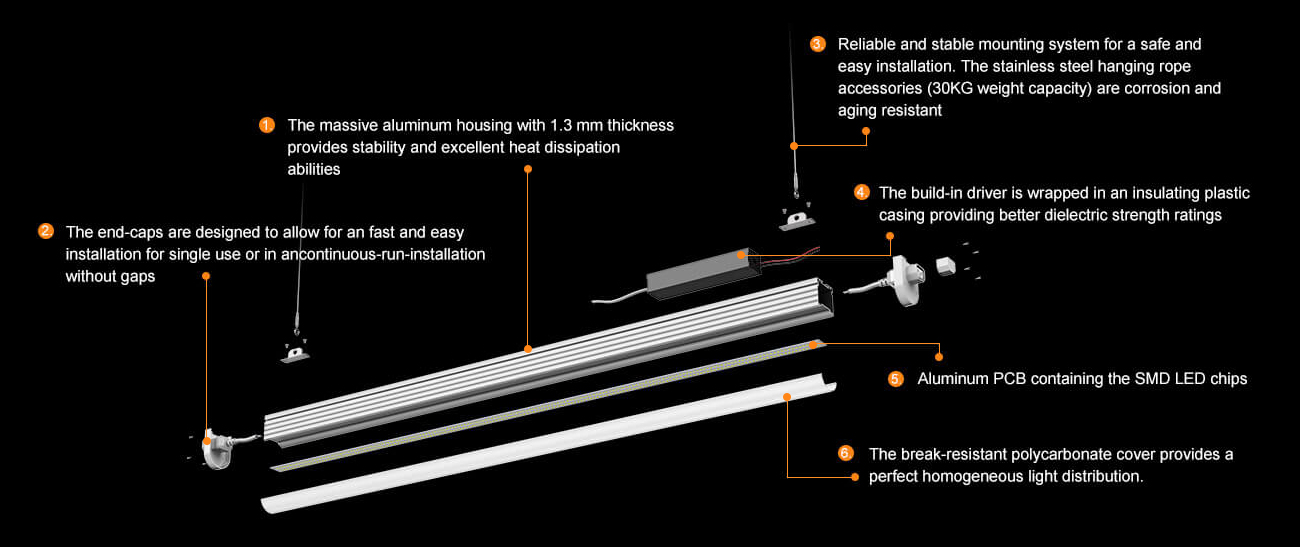

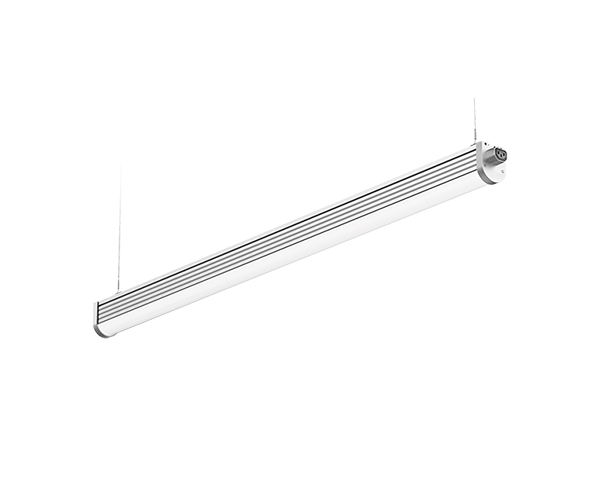

Our T201 Easy-Connect LED linear light is a perfect solution for retail and industrial lower ceiling applications. It was designed to provide a continuous line of light, without gaps or dark spots, throughout halls and supermarkets. Its easy connect system allows for a quick and simple installation and saves significant labor and equipment expenses. Up to 100 feet of fixtures can be connected on one power drop. The Easy-Connect is available with 110lm/w and 130lm/w efficiency delivering up to 7800 lumen. Its massive aluminum housing and high grade components assure a long lifespan and low maintenance.
-Optional Mean well driver available
-CRI 90 Ra available upon request
-Optional emergency power supply
-American market: UL, cUL, DLC
-European market: CE(EMC,LVD), RoHS
Retail
Distribution & warehouse
Manufacturing assembly
Education
| Standard lumen (110lm~120lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T201-40W12 | 40 |
AC100~277V 50~60Hz |
110±5 | 4400±200 | 120° | 216pcs 0.2W SMD2835 | >80Ra |
| T201-60W12 | 60 | 110±5 | 6600±300 | 336pcs 0.2W SMD2835 | |||
| T201-60W15 | 60 | 110±5 | 6600±300 |
336pcs 0.2W SMD2835 |
|||
| Lumen Plus (130lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T201-60W12 | 60 |
AC100~277V 50~60Hz |
130±5 | 7800±300 | 120° |
336pcs 0.5W SMD2835 |
>80Ra |
| T201-60W15 | 60 | 130±5 | 7800±300 |
336pcs 0.5W SMD2835 |
|||
| Electrical datas | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >80 |
| Efficiency in % | >92% | Standard deviation of color matching | <3 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <25 |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 120° |
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP54 | Heatsink temperature | -20~+69℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -40~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates |
American market: UL, DLC Premium, cUL European market: CE,(EMC,LVD,RoHS) Australian market: SAA, CTick,RCM |
||
| Energy efficiency class | A++ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50,000hours | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | / |
| Lumen maintenance at e.o.l. | 80% | ||

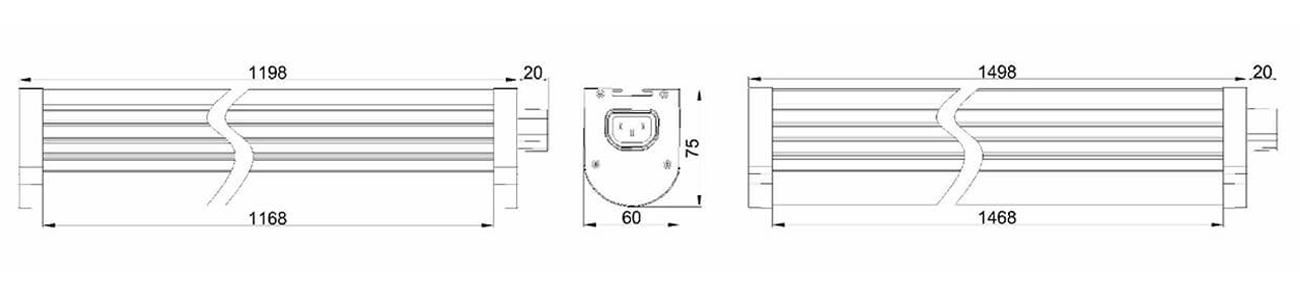

| Product Weight & Package Information | |||||
|---|---|---|---|---|---|
| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(g) | Gross Weight /CTN(kg) |
| T201-40W12 | 40 | 135*28*17 | 6PCS | 2.2 | 20 |
| T201-60W12 | 60 | 135*28*17 | 6PCS | 2.2 | 20 |
| T201-60W15 | 60 | 165*28*17 | 6PCS | 3 | 24 |
