Shine a Light in Every Corner!
Shine a Light in Every Corner!
1. Highly energy efficient - up to 130 lm/w
2. High Luminous flux - up to 78000 lm
3. Available up to 600W
4. Installation heights up to 30 meters
5. D-Mark tested for the use in paper production, wood processing etc
6. 5 Years warranty
Inquire Now

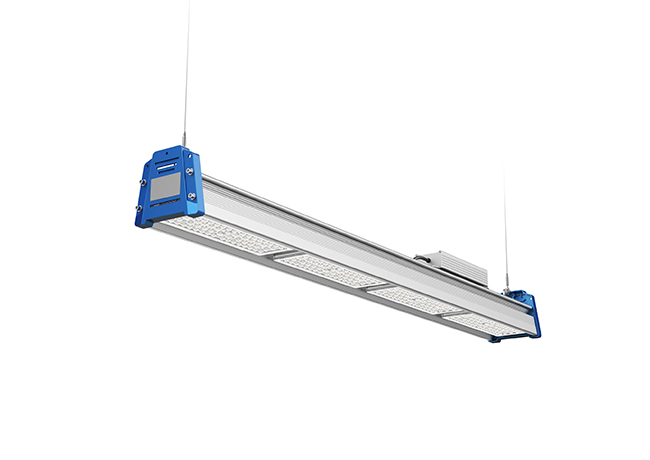

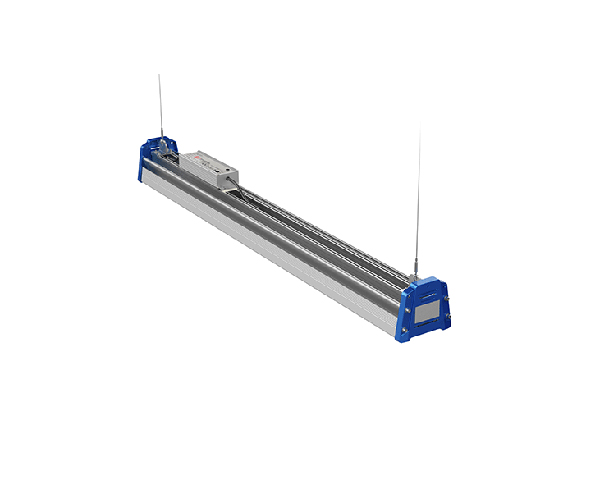

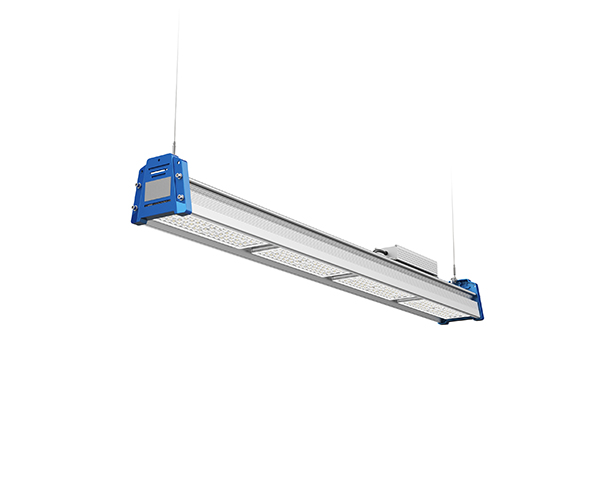

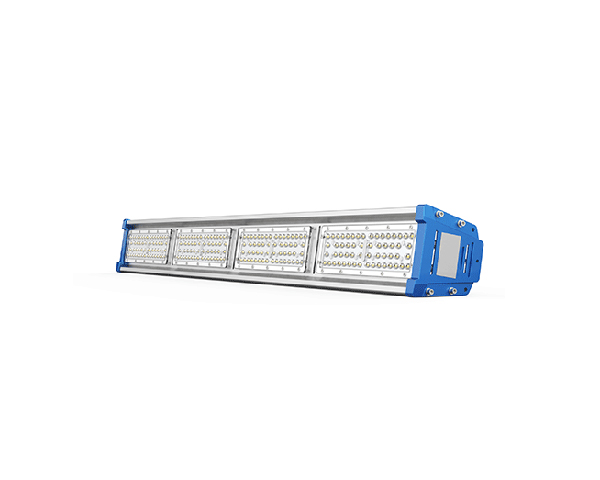

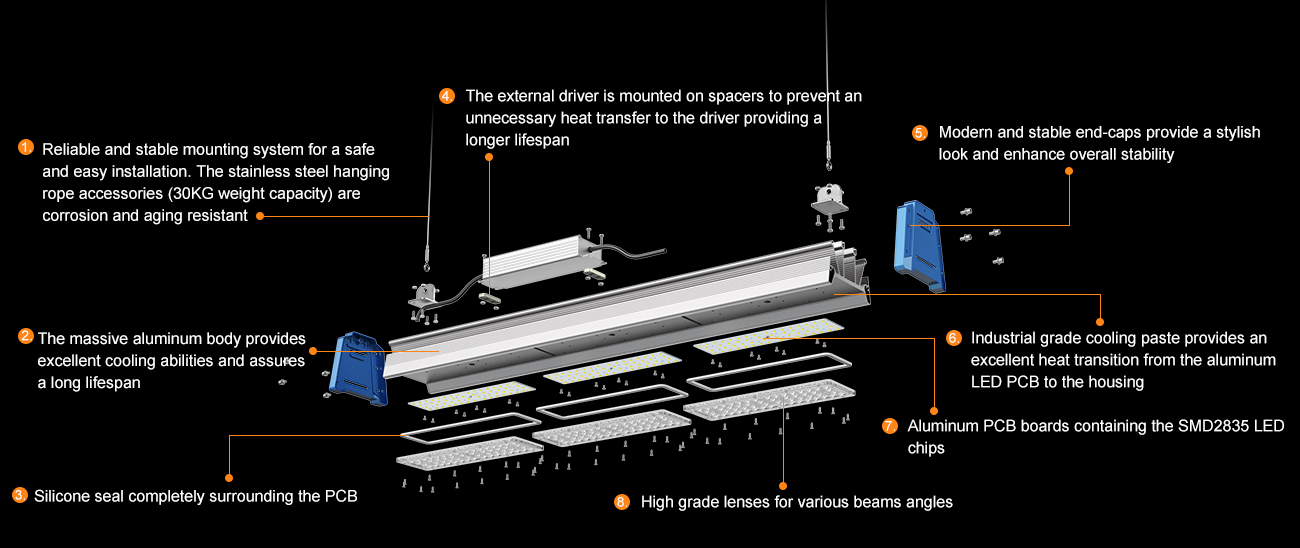

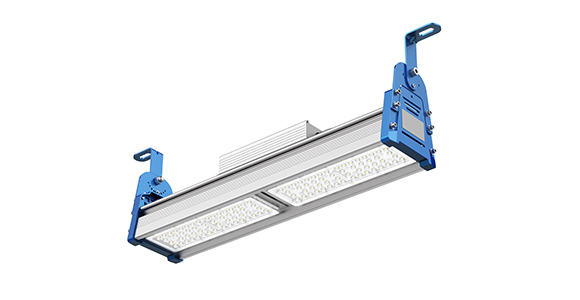

FYT’s Magicline, T31B, is a powerful and energy-efficient LED light fixture available from 100W to 600W. It was design for tall halls, high warehouses, loading areas and freight yards. Various lenses for different beam angels enable this linear high bay to be efficiently used in heights up to 30m. It’s weatherproof aluminum alloy housing and the high quality polycarbonate lenses make it dust tight as well as water and impact resistant for use in harsh environments. This extremely robust light can be flexibly configured for use in a very wide application range. Suspended or surface mounted it will provide a perfectly homogeneous light distribution.

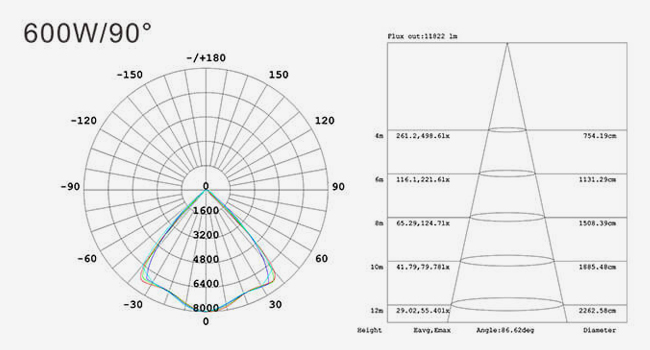

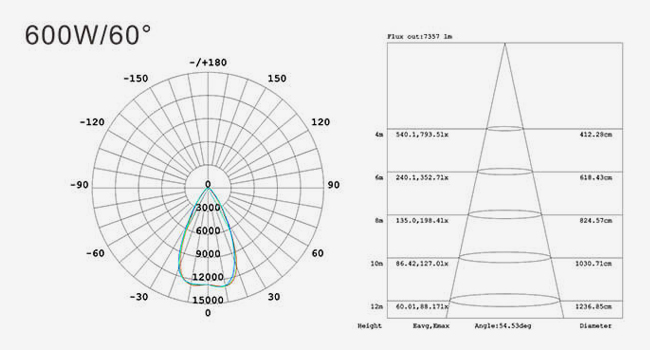

-Various beam angle options: 30°,60 °,90 °,30 °x70°,60 °x90°
-Optional Mean well driver available
-1-10V dimmable and DALI available
-Microwave motion sensor available
-Optional emergency power supply
-Zigbee is available
-American market: UL, cUL, DLC, FCC
-European market: TUV, ENEC, CB, CE(EMC,LVD), RoHS
-Australian market: SAA

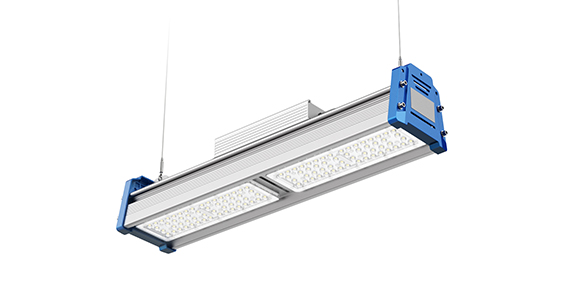

Suspended installation
Ceiling mounted installation
Factories and warehouses;Loading areas and freight yards;Exhibition & showrooms
Warehouse
Factories
| Basic Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T31B-100W | 100 |
AC100~277V 50~60Hz |
130±5 | 13000±500 |
30°/60°/ 90°/30*70°/60*90° |
112pcs 3030 | >70Ra |
| T31B-120W | 120 | 130±5 | 15000±600 | 112pcs 3030 | |||
| T31B-150W | 150 | 130±5 | 19500±750 | 168pcs 3030 | |||
| T31B-180W | 180 | 130±5 | 23400±900 | 168pcs 3030 | |||
| T31B-200W | 200 | 130±5 | 26000±1000 | 224pcs 3030 | |||
| T31B-240W | 240 | 130±5 | 31000±1200 | 224pcs 3030 | |||
| T31B-300W | 300 | 130±5 | 39000±1500 | 336pcs 3030 | |||
| T31B-400W | 400 | 130±5 | 52000±2000 | 448pcs 3030 | |||
| T31B-600W | 600 | 130±5 | 78000±3000 | 672pcs 3030 | |||
| Electrical data | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >70 |
| Efficiency in % | >92% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 30°/60°/90°/30*70° |
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | -20~+68℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -40~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates |
American market: UL, DLC Premium, cUL European market: TUV, GS, CB, CE, D-Mark Australian market: SAA, CTick,RCM |
||
| Energy efficiency class | A++ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50,000hours | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable, DALI dimmable, |
| Lumen maintenance at e.o.l. | 80% | ||

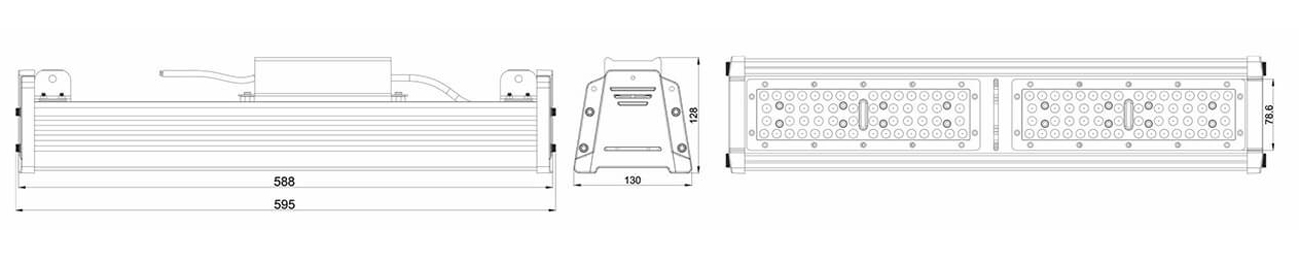

| Product Weight & Package Information | |||||
|---|---|---|---|---|---|
| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(g) | Gross Weight /CTN(kg) |
| T31B-100W/120W | 600*130*130 | 65*31*18 | 2PCS | 4 | 9.6 |
| T31B-150W/180W | 890*130*130 | 94*31*18 | 2PCS | 5.5 | 12.8 |
| T31B-200W/240W | 1180*130*130 | 123*31*18 | 2PCS | 7 | 16.5 |
| T31B-300W | 890*270*135 | 94*31*18 | 1PCS | 11.3 | 13.5 |
| T31B-400W | 1180*270*135 | 123*31*18 | 1PCS | 14.3 | 16.8 |
| T31B-600W | 1180*405*135 | 123*45*18 | 1PCS | 21.8 | 24.8 |
