1.As high as 150lm/w, 150,000lm maximum
2.Easy installation and lower labor cost
3.High level of lighting quality, flicker free
4.Multiple light distributions including 15° narrow beam angle
5.The angle of each module can be adjustable
6.Each module can be replaced to minimize maintenance costs
7.Both integrated version and remote version
Inquire Now

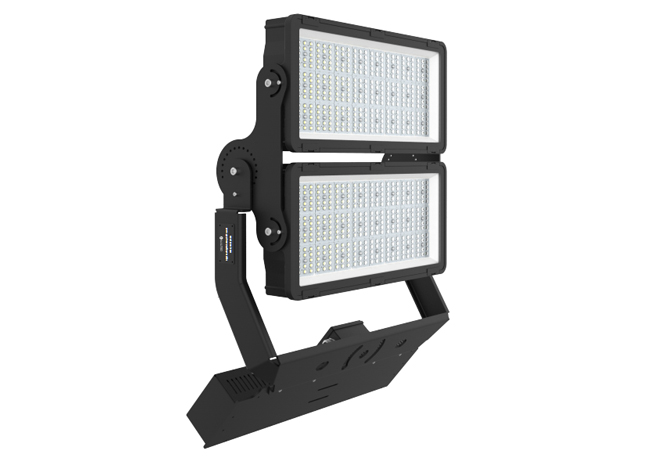

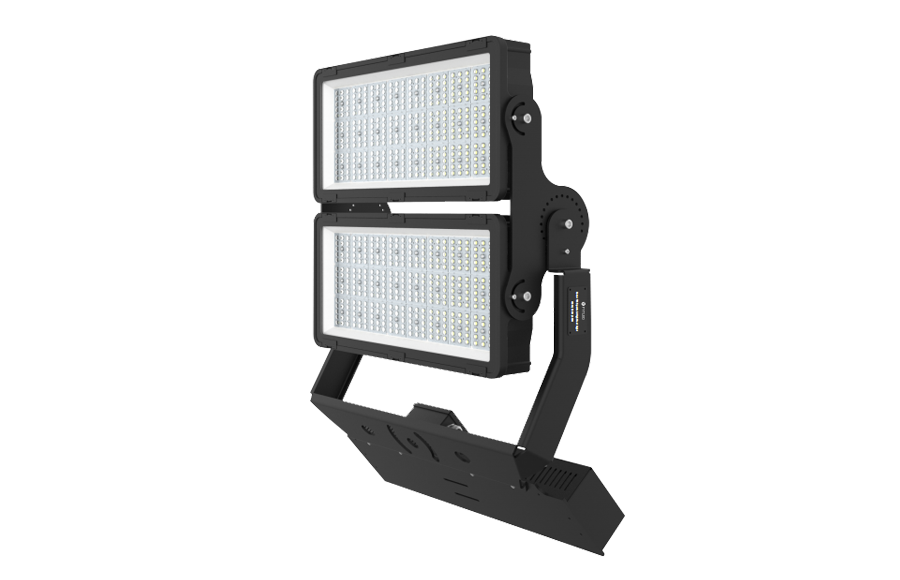

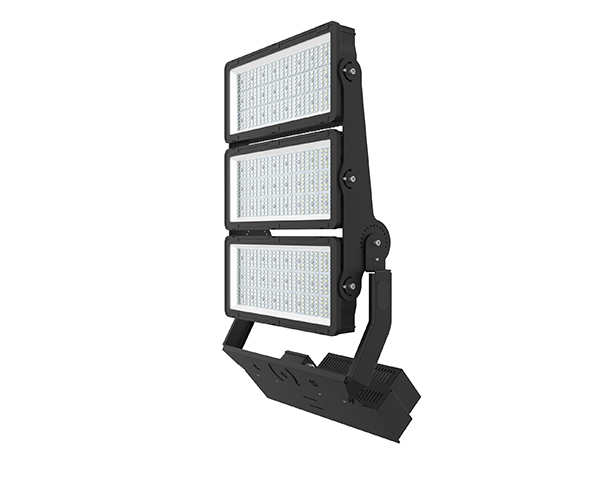

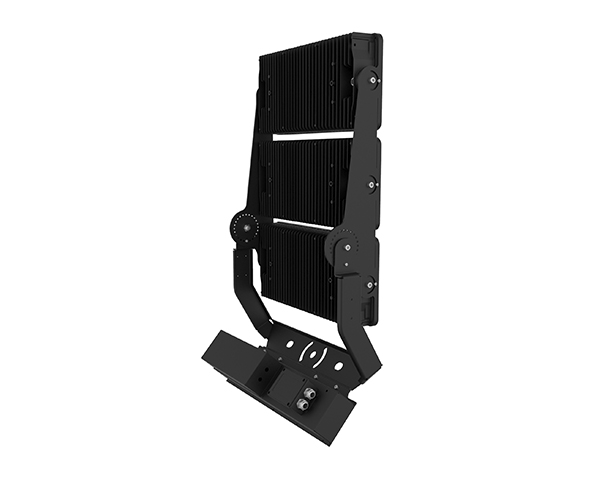

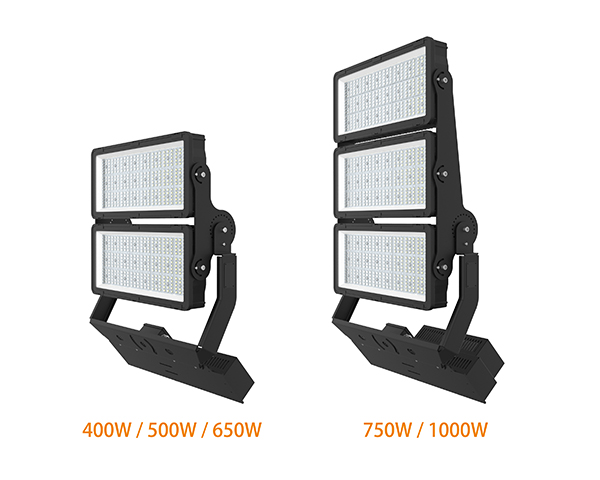

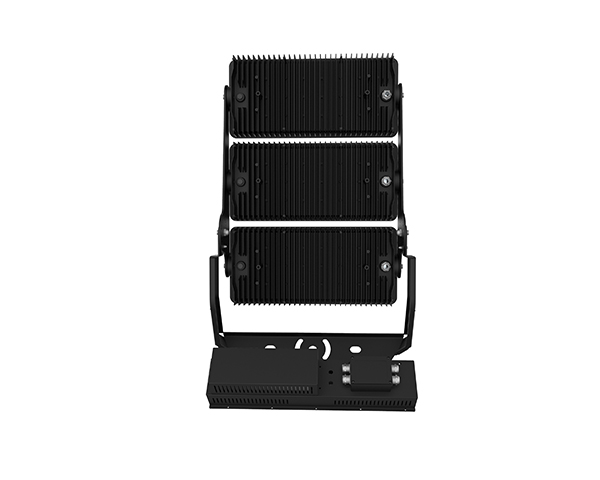

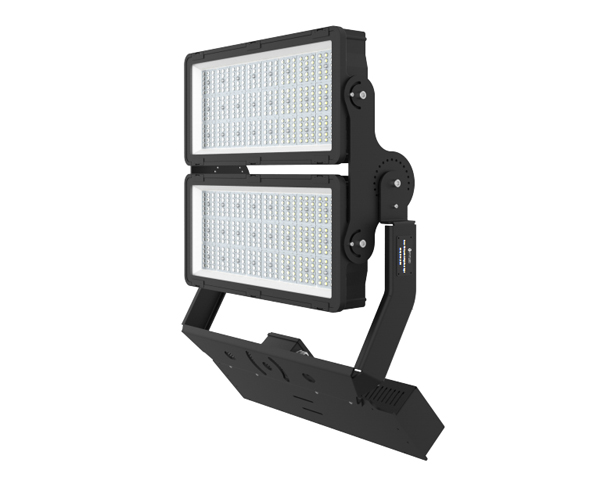

The Honor T35 Sports & Flood light is an innovative solution which is designed exclusively for sports and multifunctional lighting applications; Honor T35 Sports & High mast light offers 150lm/w high efficient light, effective thermal management, and long lifetime. The Honor T35 range includes 400W / 500W / 650W (two LED light modules) and 750W / 1000W (three LED light modules) with various beam angle options. Both integrated version and remote version can help customer to save installation cost.
-Various beam angle options
-Salty Spray 1,000hrs
-SPD protection
-1-10V dimmable and DALI driver
CE, RoHS, UL pending, DLC pending

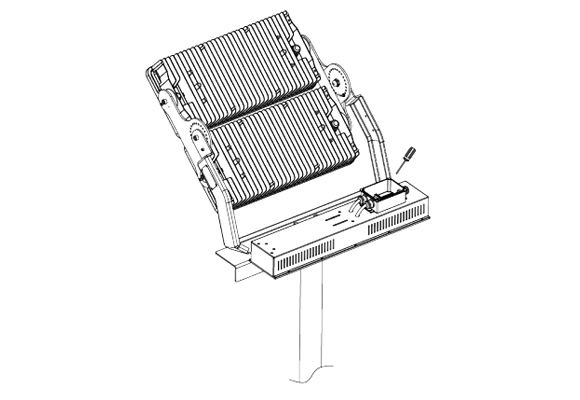

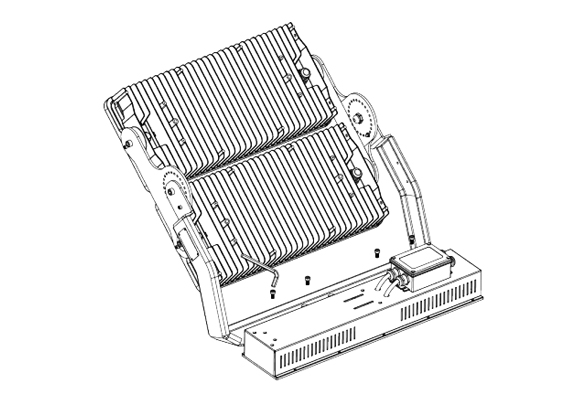

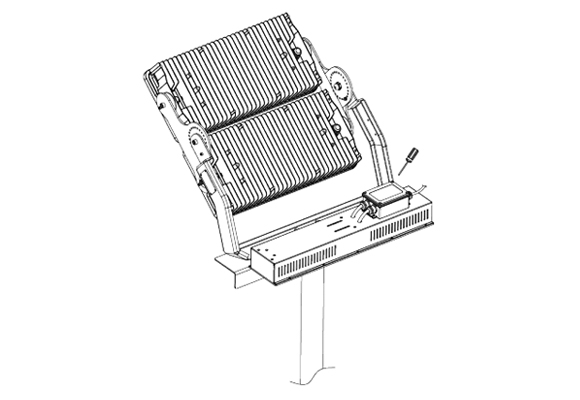

1. Fix the junction box to the mounting bracket by 4pcs 8*12MM screws.

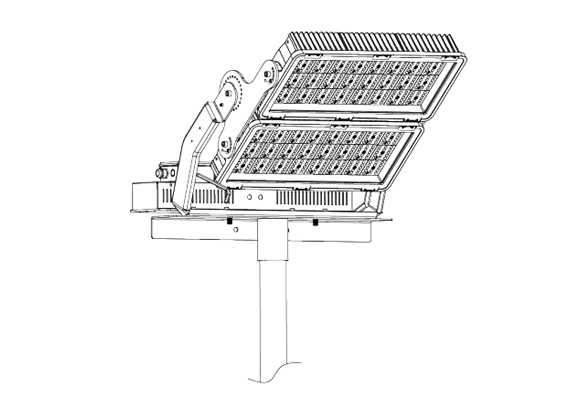

2. Install the lamp to the pole.
3. Open the junction box by screw driver.
4. Connect the power line to the lamp.
5. Lock up the junction box.

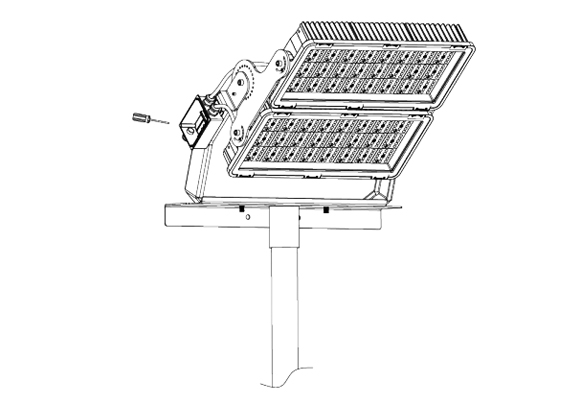

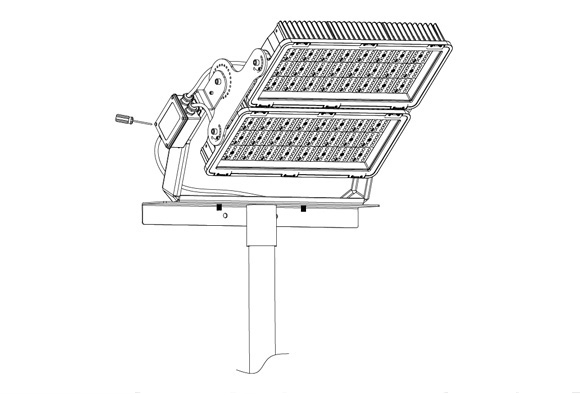

1. Fix the junction box to the mounting bracket.

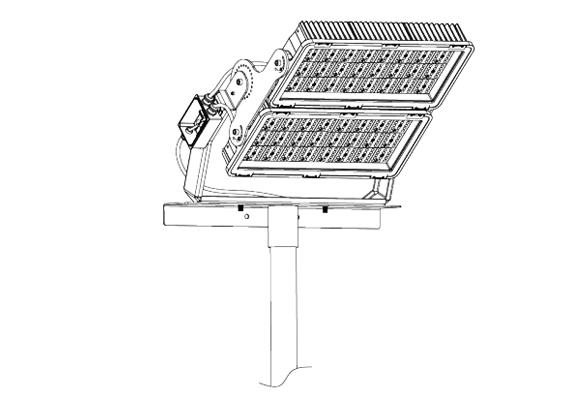

2. Install the lamp to the pole.

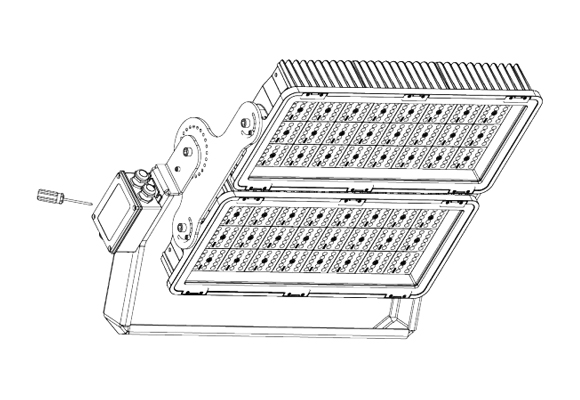

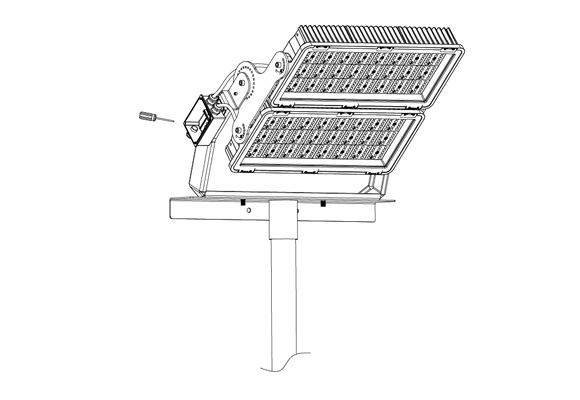

3. Open the junction box by screw driver.
4. Connect the power line to the lamp.
5. Lock up the junction box.
Highways and parking lots;Loading areas and freight yards;Ports and airports;Sporting venues;Industrial plants & power plants
Airport
Ports
Parking lots
Stadium
| Standard lumen (150Lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T35-400W | 400W |
AC100~277V 50~60Hz |
150±10 | 60000±4000 |
30°、60°、
90°、130°、
90*120°、
40*130°、
TYPE2、3、4
|
768 PCS
EMC 3030
|
>70 |
| T35-500W | 500W | 150±10 | 75000±5000 |
768 PCS
EMC 3030
|
|||
| T35-650W | 650W | 150±10 | 97500±6500 |
768 PCS
EMC 3030
|
|||
| T35-750W | 750W | 150±10 | 112500±7500 |
1152 PCS
EMC 3030
|
|||
| T35-1000W | 1000W | 150±10 | 150000±10000 |
1152 PCS
EMC 3030
|
|||
| 15° (140LM/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T35-400W | 400W |
AC100~277V 50~60Hz |
140±10 | 56000±4000 | 15° |
192 PCS
SMD 5050
|
>70 |
| T35-500W | 500W | 140±10 | 70000±5000 |
192 PCS
SMD 5050
|
|||
| T35-650W | 650W | 140±10 | 91000±6500 |
192 PCS
SMD 5050
|
|||
| T35-750W | 750W | 140±10 | 91000±6500 |
288 PCS
SMD 5050
|
|||
| T35-1000W | 1000W | 140±10 | 140000±10000 |
288 PCS
SMD 5050
|
|||
| Electrical data | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white; natural white; daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K; 4000K; 5000K; 6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >70 |
| Efficiency in % | >92% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles |

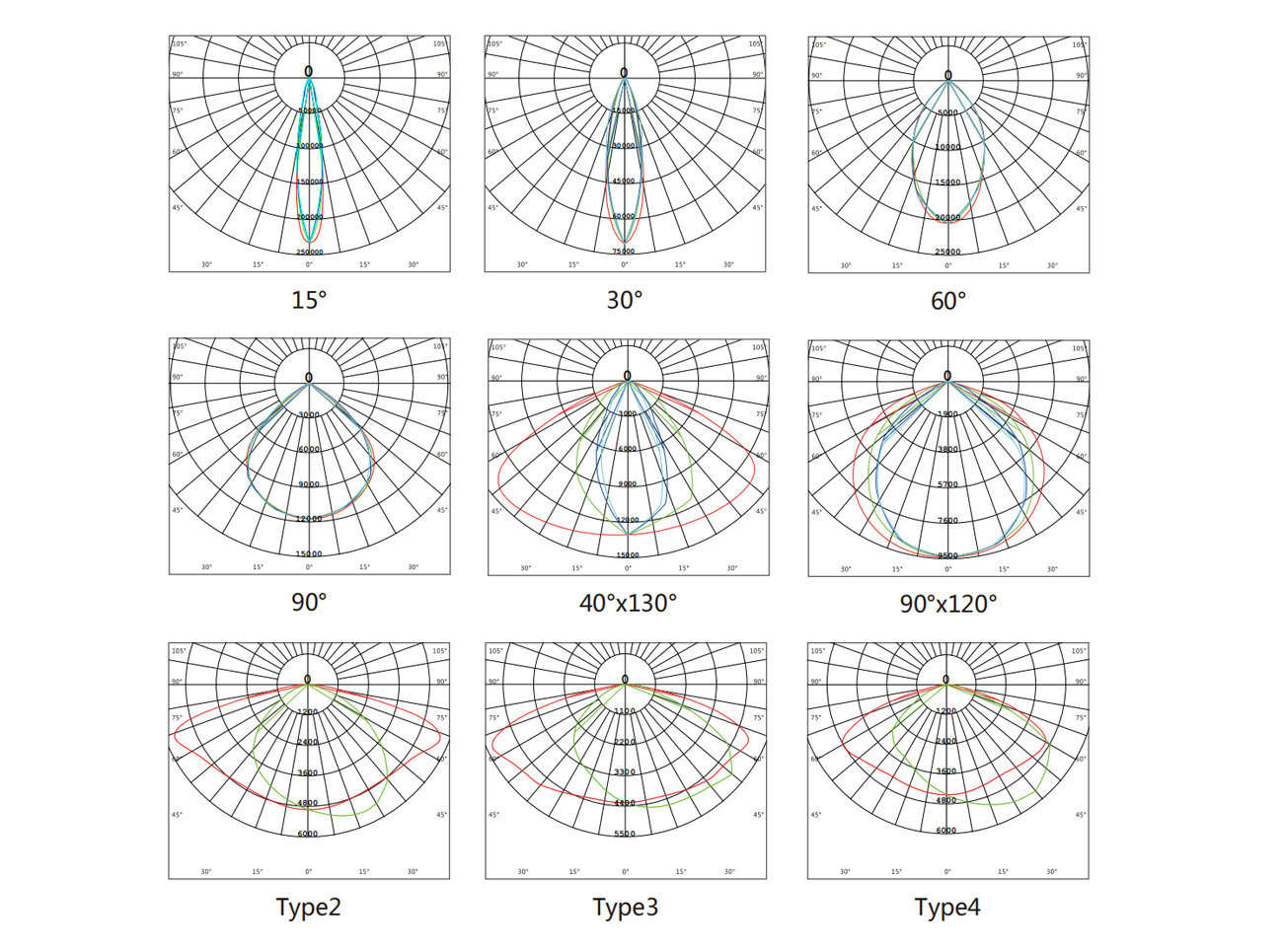

15°、30°、60°、90°、130°、90*120°、
40*130°、TYPE2、TYPE3、TYPE4
|
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 (IP67 optional) | Heatsink temperature | 5~+70℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | CE, RoHS, UL pending, DLC pending | ||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 5 Years | Base/Socket | Directly wired |
| Switching cycles | 100.000 times | Dimmable | 1-10V dimmable, DALI dimmable |
| Lumen maintenance at e.o.l. | 70% | ||
