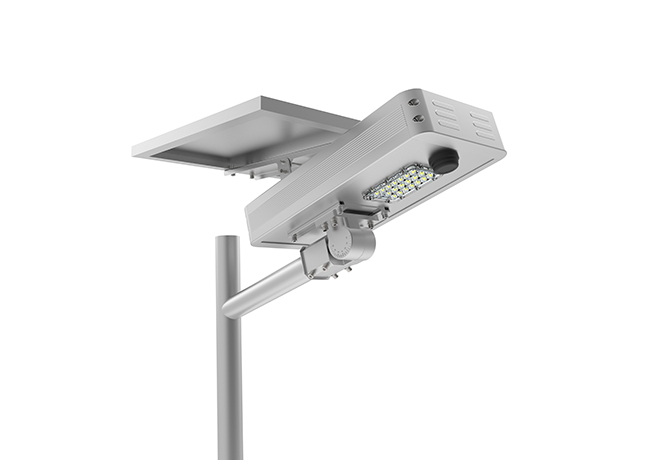

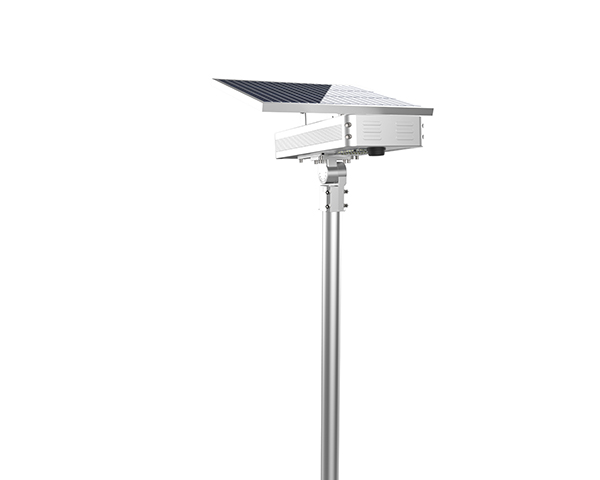

Shine a Light in Every Corner!
Shine a Light in Every Corner!
1.As high as 190lm/W
2.Both vertical and horizontal installation
3.3 years warranty
4.Type2 light distribution
5.Solar panel can be adjustable manually
Inquire Now
CE, RoHS

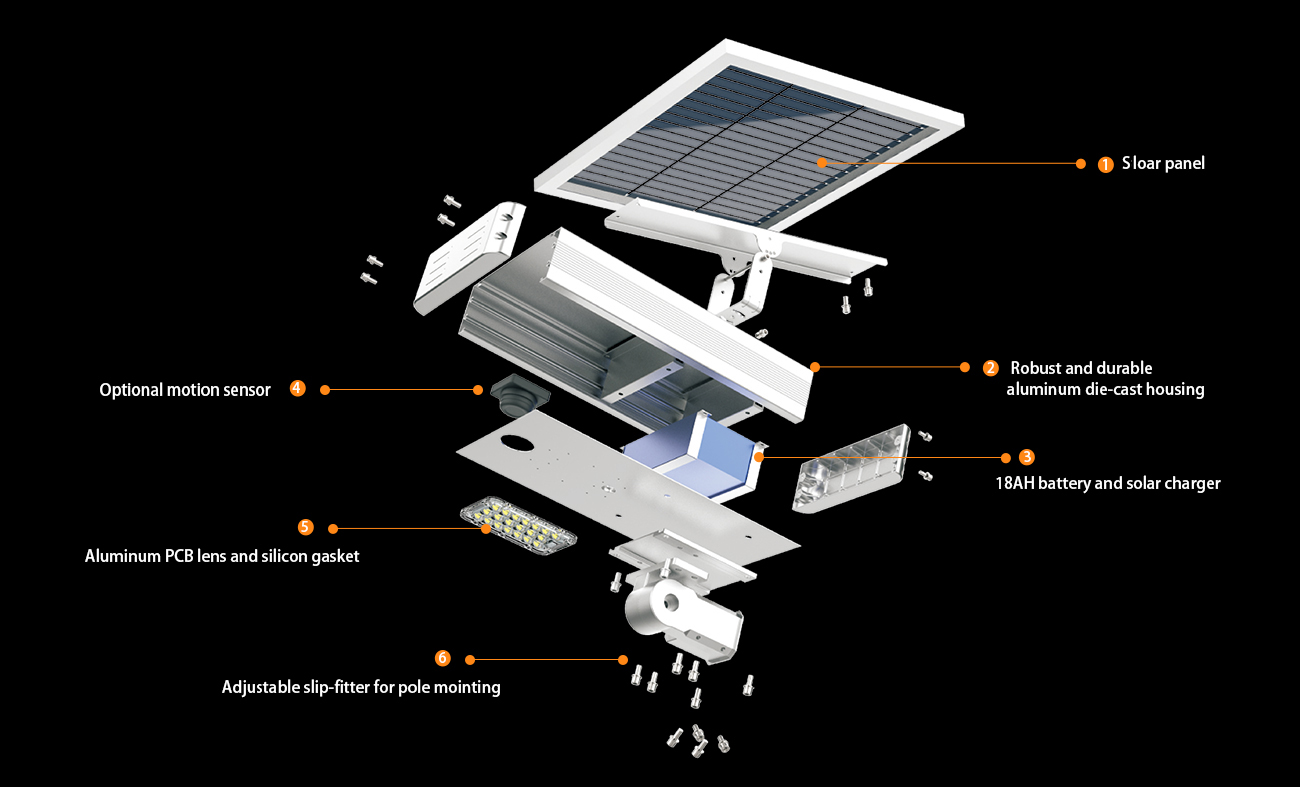

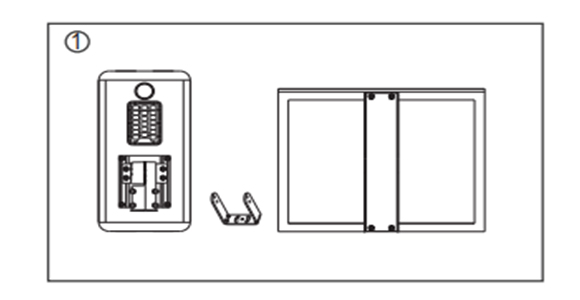

1.Open the package, all parts as below: LED lamp, solar panel, bracket and screws.

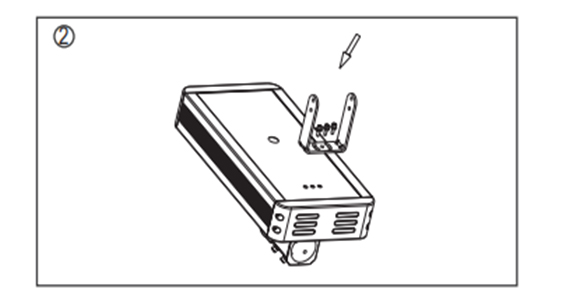

2.Use M6 screws to fix the bracket onto the
fixture.

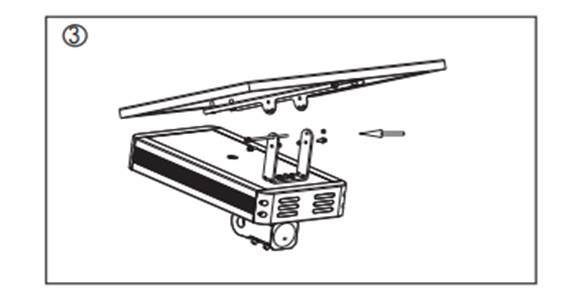

3.Use M6 screws to fix the solar panel onto the bracket and adjust it with a suitable angle .

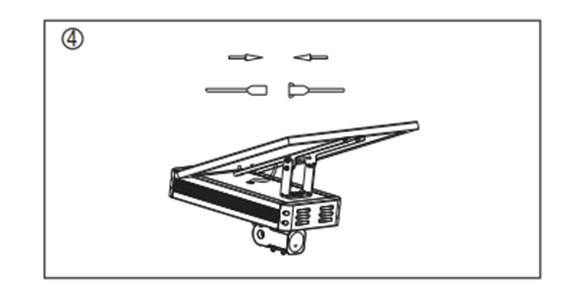

4.Joint the water-proof connecting
cables.

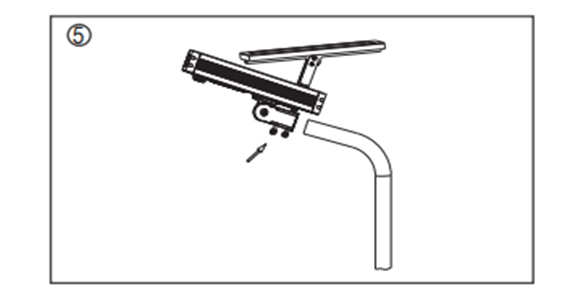

5.Install the LED lamp holder, use M8 screws to fix it tightly.

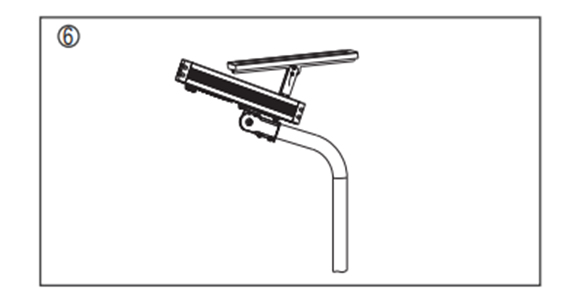

6.Installation finished as is shown.
Residential roads and streets;Parks and parking lots;Loading areas and sporting venues
Roads and streets
Parking lots
| Standard lumen (190lm/W) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | High Efficiency Solar Panel | LiFeP04 battery | Luminous flux | Working time | Installation distance | Mount height | Caliber size | Sensing distance |
| T65C-12 | 30W /mono | 216WH | 2280LM | 5-7day | 20-25m | 4-5m | 60mm | 10-15m |
| T65C-20 | 50W /mono | 288WH | 3800LM | 5-7day | 20-25m | 4-5m | 60mm | 10-15m |
| T65C-25 | 60W /mono | 432WH | 4750LM | 5-7day | 25-30m | 4-5m | 60mm | 10-15m |
| T65C-30 | 80W /mono | 540WH | 5700LM | 5-7day | 25-30m | 5-7m | 60mm | 10-15m |
| T65C-40 | 100W /mono | 648WH | 7600LM | 5-7day | 25-30m | 5-7m | 60mm | 10-15m |
| T65C-50 | 120W /mono | 768WH | 9500LM | 5-7day | 25-30m | 5-7m | 60mm | 10-15m |
| T65C-60 | 150W /mono | 964WH | 10800LM | 5-7day | 25-30m | 5-7m | 60mm | 10-15m |
| Solar Panel | Photometrical data | |||
|---|---|---|---|---|
| Maximum Voltage | 17.56V | Available color temperatures | 3000K;4000K;5000K;6000K | |
| Maximum Current | 1.95A | Color rendering index Ra | >70 | |
| Open Circuit Voltage | 22.5 | Standard deviation of color matching | <5 | |
| Short Circuit Current | 2.15 | UGR (Unified Glare Rating) | <27 | |
| Battery | Temperatures & operating conditions | ||
|---|---|---|---|
| Battery Type | LiFePO_4 battery | Operating temp | 20~+69℃ |
| Operating voltage | 12V | Ambient temperature | -30~+50℃ |
| Charge cycle | 1490 | ||
| Charge Time | 6-8 H | ||
| Expected Shelf Life | 5 years | ||
| Expected Reserve Operation | 2-3days | ||
| Solar Charger | Standards & Certification | ||
|---|---|---|---|
| Charge Controller Type | PWM | Type of protection | IP65 |
| Operating Voltage | > 10.8V | Tested dielectric strength | 3.75KVac |
| Max. Charge/ Load Current | 20A | Fixture Surge Protection | / |
| Night/Day Detection | 5V | Certificates | CE, RoHS |
| Cut-off voltage | < 10.8V | Warranty | 3 years |
| Reconnect level | >12V | ||
| Overvoltage protection | 14V | ||
| Undervoltage protection | 10.8V | ||
| Temperature compensation | -4mV/2V/C | ||
| Packing Information | |||||
|---|---|---|---|---|---|

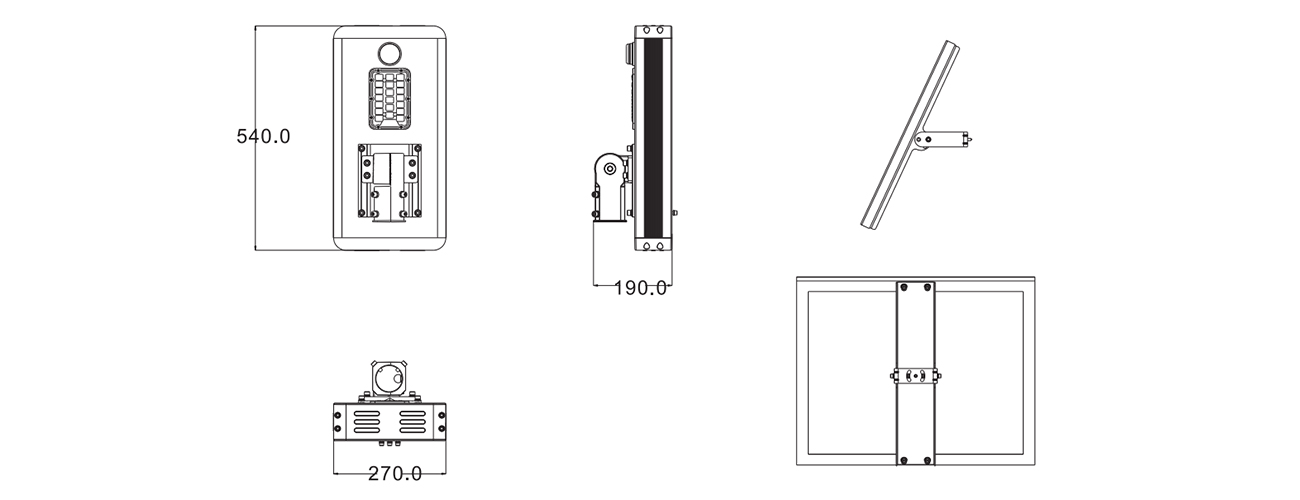

| Model | Dimension(MM) | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T65C-30W | 540*270*190 | 61.5*34.5*25.6 | 1 | 10 | 11 |
| T65C-50W | 540*270*190 | 61.5*34.5*25.6 | 1 | 11.5 | 12.5 |
| T65C-60W | 540*270*190 | 61.5*34.5*25.6 | 1 | 13 | 14.5 |
| T65C-80W | 610*270*190 | 68.5*34.5*25.6 | 1 | 15 | 16.5 |
| T65C-100W | 640*270*190 | 71.5*34.5*25.6 | 1 | 17 | 18.5 |
| T65C-120W | 670*270*190 | 74.5*34.5*25.6 | 1 | 19 | 20.5 |
| T65C-150W | 710*270*190 | 77.5*34.5*25.6 | 1 | 21 | 22.5 |
