Shine a Light in Every Corner!
Shine a Light in Every Corner!
Very energy efficient - up to 180 lm/w
Very high Luminous flux - up to 34.000lm

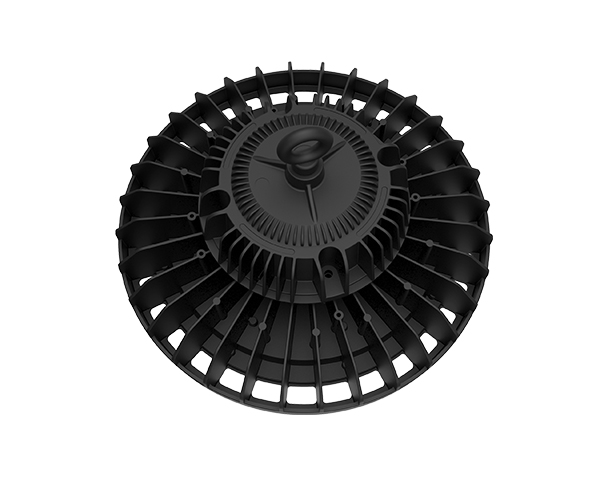

Durable and compact low-profile housing design
IP65 for indoor and outdoor applications
5 years warranty
Inquire Now

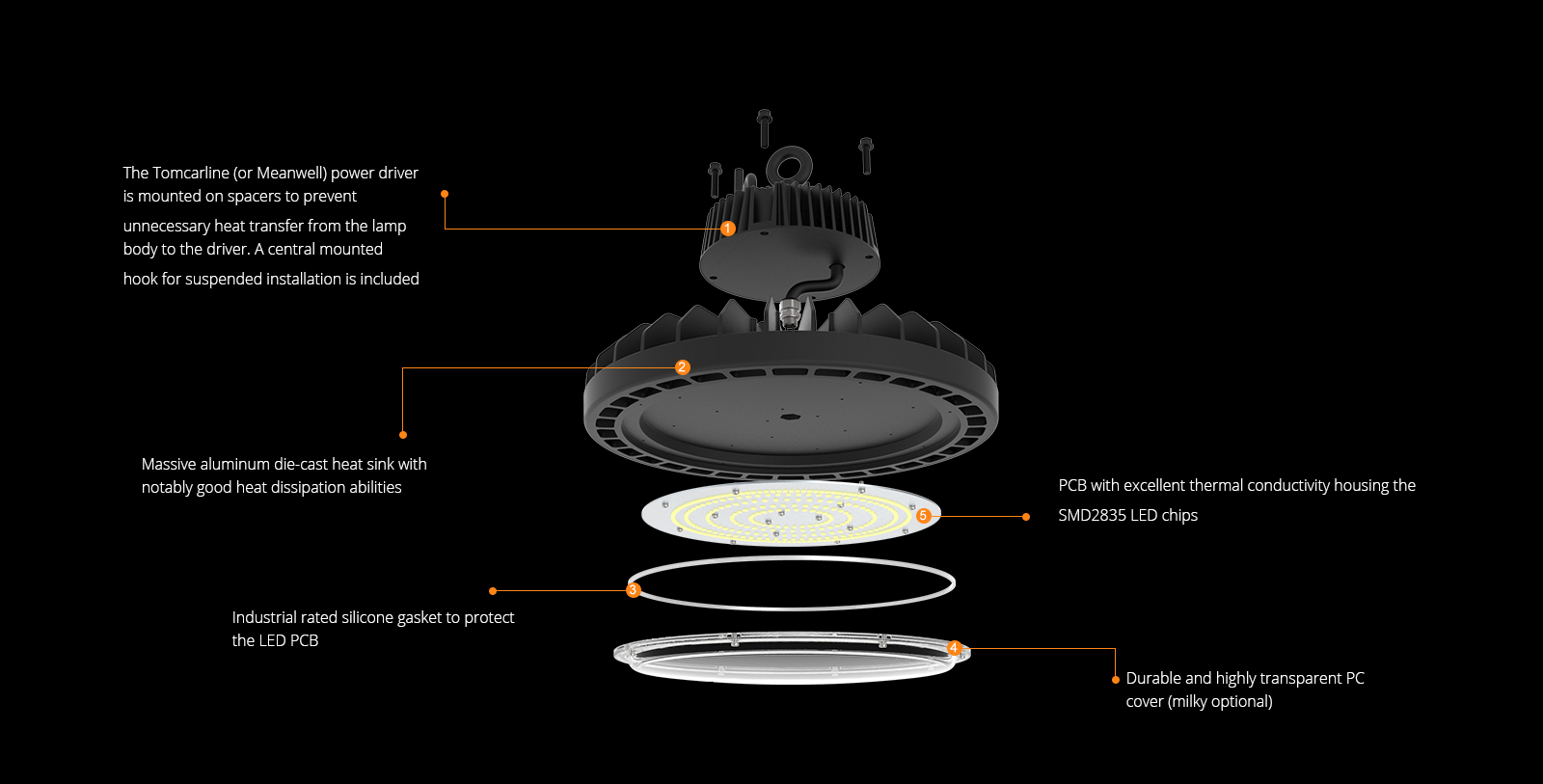

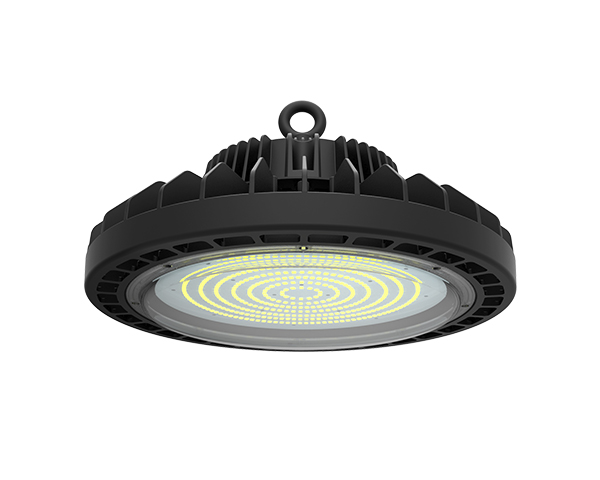

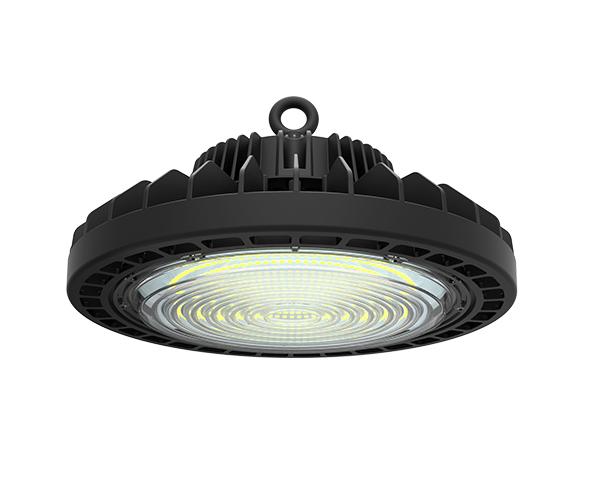

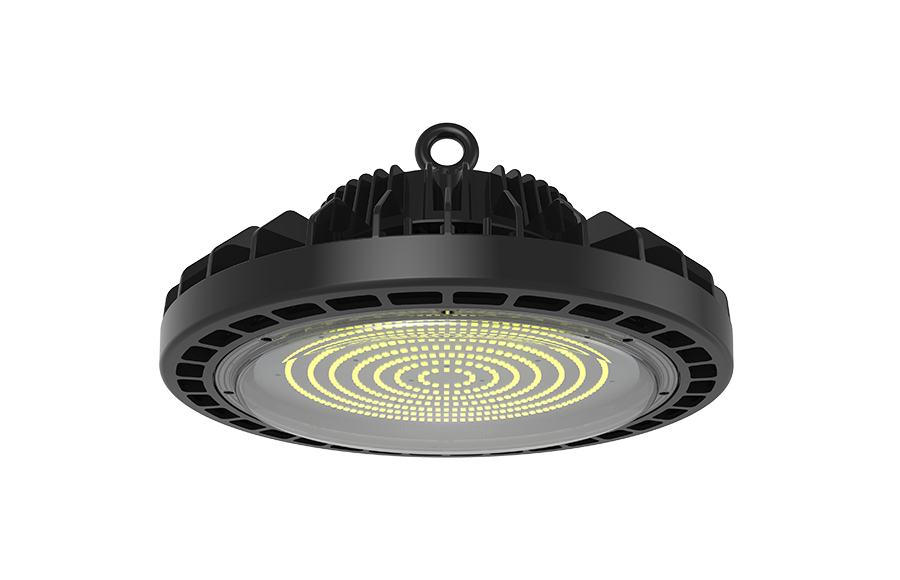

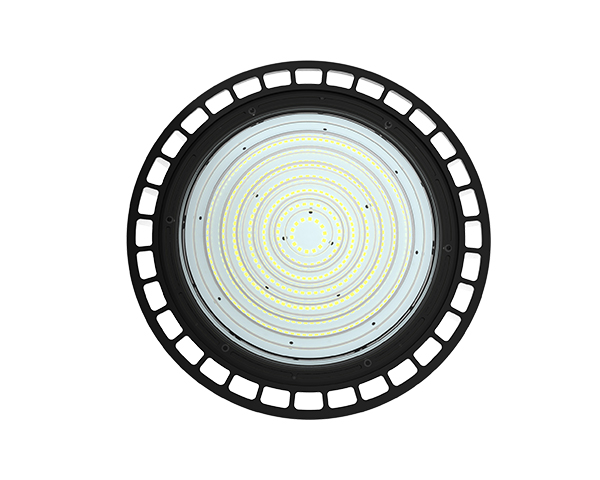

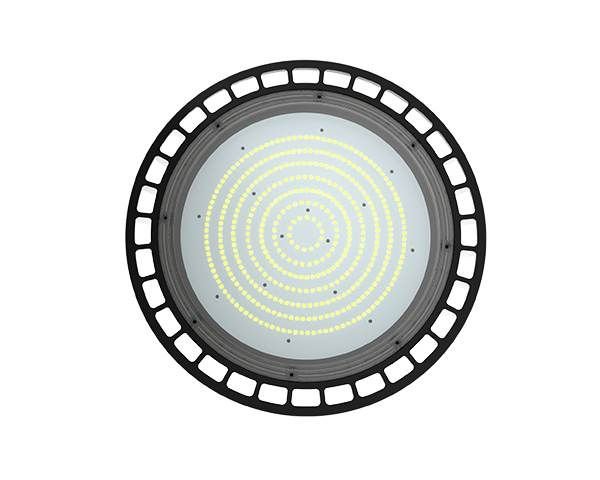

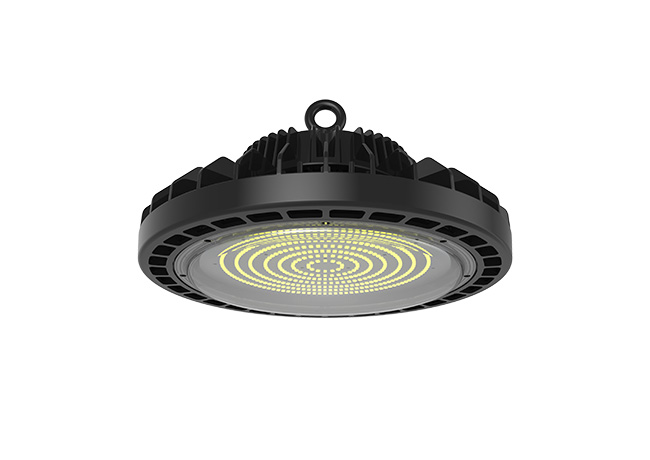

The HB07 HERO Highbay Series are designed for industrial lighting adopting the newest LED lighting technology with 180 lm/w light efficiency. High grade materials and perfect workmanship provide excellent cooling abilities and a long lifespan with 5 year warranty.
-Optional Meanwell ELG driver available
-1-10V or DALI dimmable driver available
-Milky PC cover available upon request
-Microwave motion sensor available
-Zigbee is available
-American market: UL, cUL, DLC
-European market: CE(EMC,LVD), RoHS, TUV
-Australian market: SAA

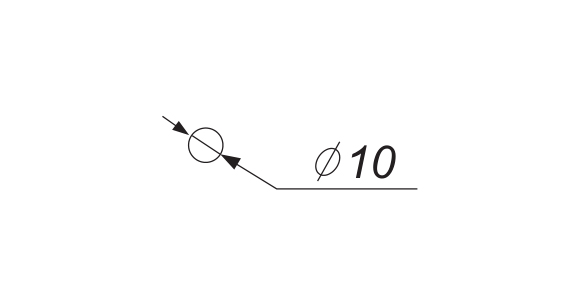

1. Drill a hole in the ceiling

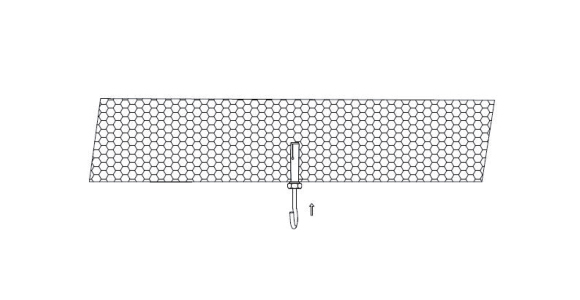

2. Push in the hook

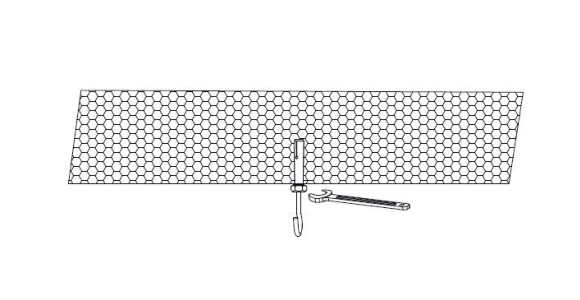

3. Secure the hook by tightening the nut

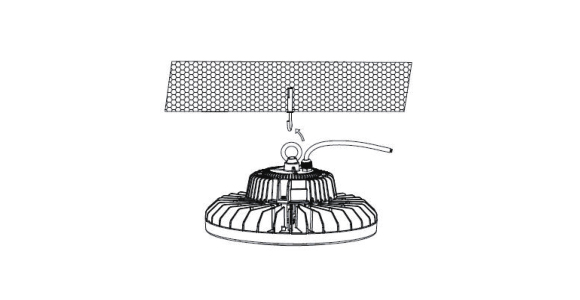

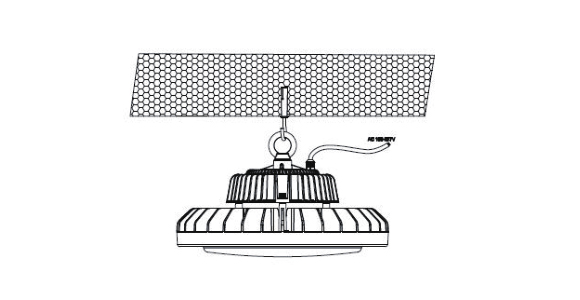

4. Hang the fixture on the hook
5. Connect the fixture to the power line
Warehouses and logistic halls; Production facilities; Exhibition- & showrooms
Warehouse
Hall
Factories
Sport field
| Standard lumen (130lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| HB07-100W | 100W |
AC100~277V 50~60Hz |
130±10 | 13000±1000 | 110° |
176 PCS 1W 2835 |
>80 |
| HB07-150W | 150W | 130±10 | 19500±1500 |
272 PCS 1W 2835 |
|||
| HB07-200W | 200W | 130±10 | 26000±2000 |
368 PCS 1W 2835 |
|||
| Lumen Plus (150lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| HB07-100W | 100W |
AC100~277V 50~60Hz |
150±10 | 15000±1000 | 110° |
252 PCS 1W 2835 |
>70 |
| HB07-150W | 150W | 150±10 | 22500±1500 |
330 PCS 1W 2835 |
|||
| HB07-200W | 200W | 150±10 | 30000±2000 |
440 PCS 1W 2835 |
|||
| Lumen Plus + (180lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| HB07-100W | 100W |
AC100~277V 50~60Hz |
180±10 | 18000±1000 | 110° |
306 PCS 1W 2835 |
>70 |
| HB07-150W | 150W | 180±10 | 27000±1500 |
459 PCS 1W 2835 |
|||
| HB07-200W | 200W | 180±10 | 36000±2000 |
612 PCS 1W 2835 |
|||
| Electrical data | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.95 | Color rendering index Ra | >80 or >70 |
| Efficiency in % | >91% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <30 |
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 60°/90°/110° |
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | 5~+70℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+55℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | UL, cUL, DLC, CE, RoHS, TUV, SAA | ||
| Energy efficiency class | A+ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50,000hours | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable / DALI dimmable |
| Lumen maintenance at e.o.l. | 70% | ||
| Packing Information | |||||
|---|---|---|---|---|---|

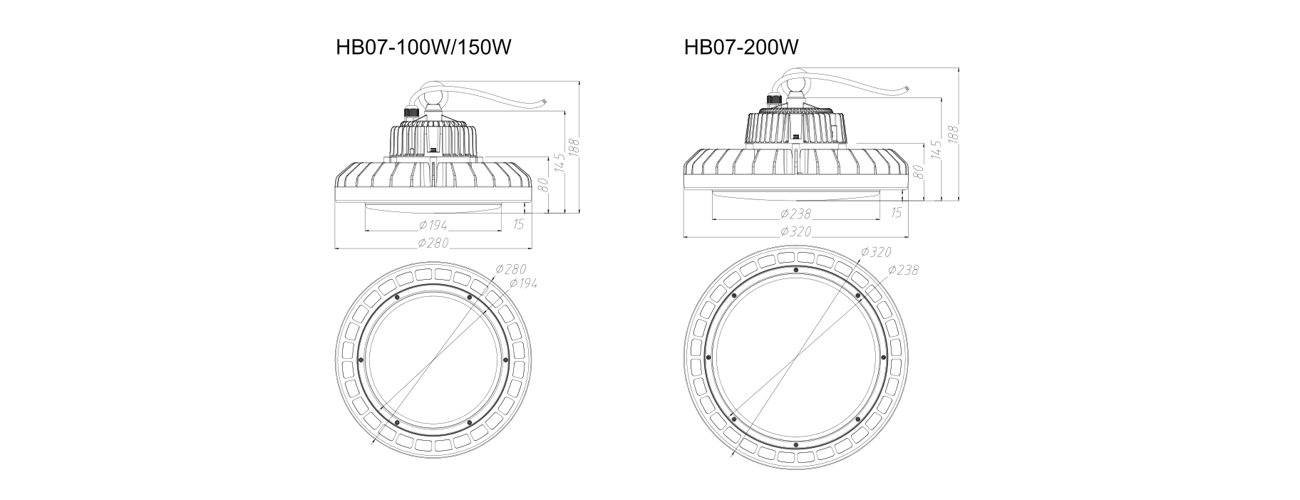

| Model | Dimension | CTN SIZE(mm) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| HB07-100W/150W | Φ280*188 | 36*35*27 | 1PCS | 3.5 | 4.5 |
| HB07-200W | Φ320*188 | 39*36*27 | 1PCS | 4.3 | 5.5 |
