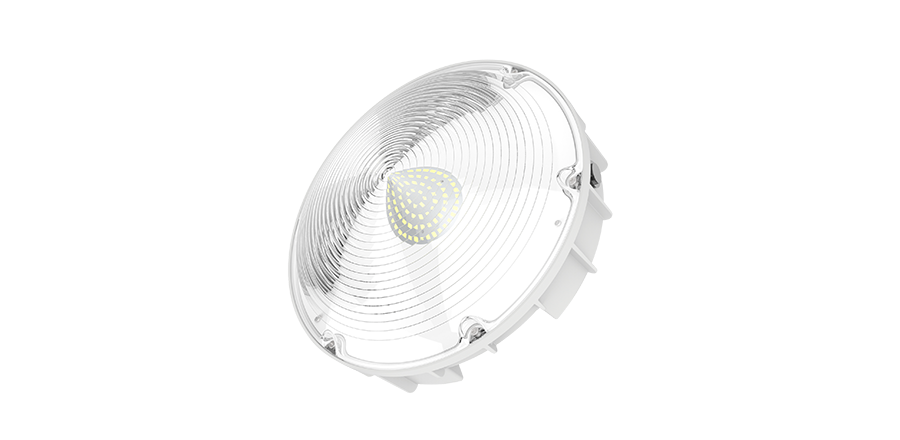

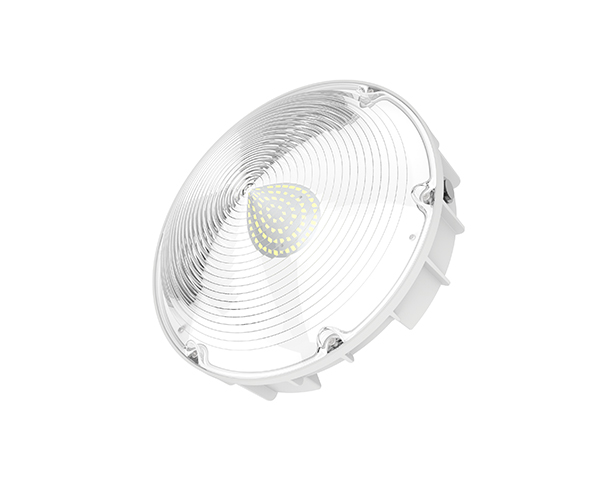

Inpark Garage Canopy Light


High efficiency up to 130lm/w

Precision sealed die-casting housing for indoor and outdoor applications

IP65 for all environmental conditions

Wide 150° degree light distribution

Low glare, precisely designed optical PC lens

Constant current driver efficiency > 90%

Quick to install and easy to use, secure and reliable

3x 18mm (0.7 inch) threaded holes for cables and sensors

No UV or RF interference, No mercury or lead

5 Years warranty

Inquire Now

Description Parameter
  Canoby Inpark Garage Light

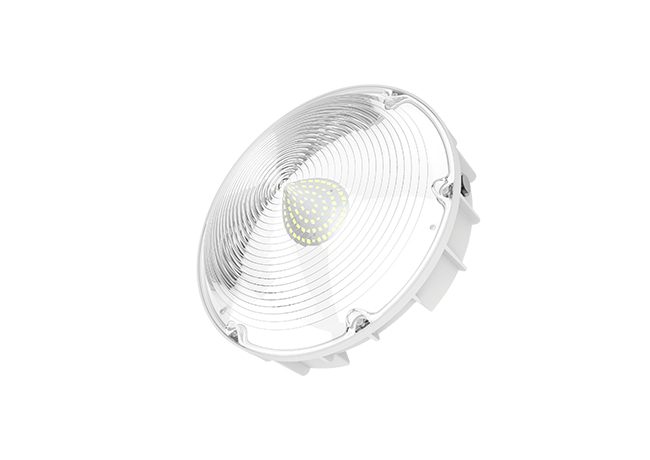

Product Video

The Garage Light INPARK series has an unique round shape made of die-cast aluminium heatsink with a perfect performance for the application that initially was designed, as an indoor parking lots, underground and building parking car places, public areas, corridors, underground passage ways. These low profile fixture feature a highly reliable LED light engine and an impact resistant polycarbonate optical diffuser. Suitable for indoor and outdoor applications due to IP65. This lamp it has a built-in sensor to activate the light only in the right time when it is really needed. Additionally, the low profile design offers an architectural appeal and is ideal for applications with limited space. The flat dome-shaped lens assures a wide 150° degree beam angel for a uniform and homogenous light distribution.

Options

-Microwave motion sensor

-Daylight sensor

Certificates

-American market: UL pending, cUL pending, DLC Premium pending

-European market: CE(EMC,LVD), RoHS

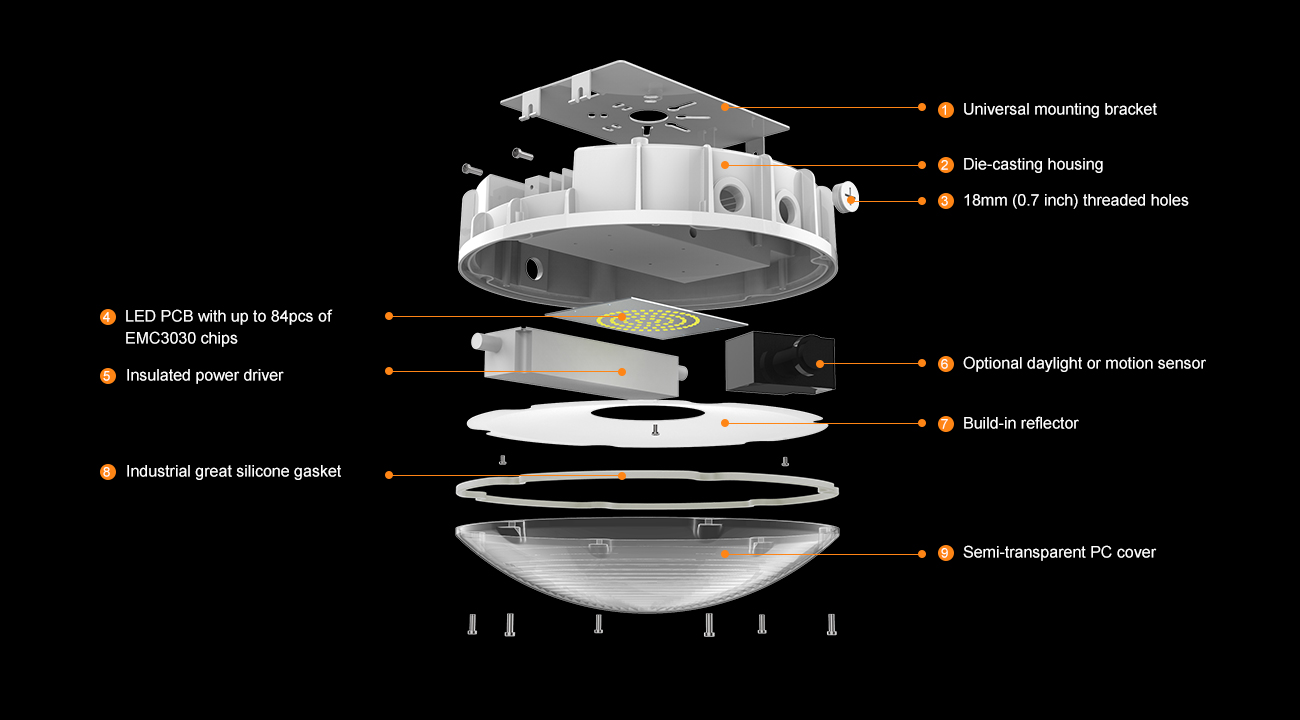

Product Details

Installation

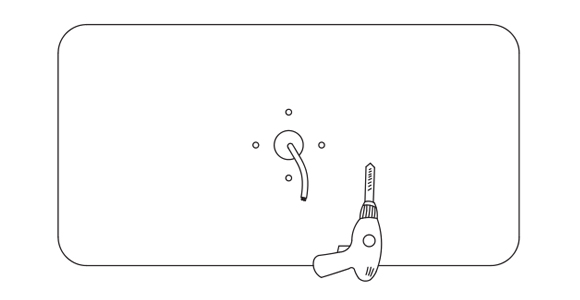

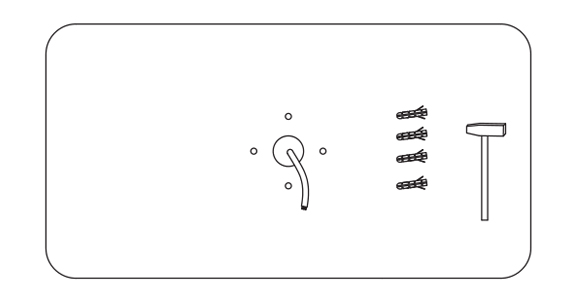

  • 1. Drill 4 holes in the ceiling/wall

  • 2. Put in the dowels

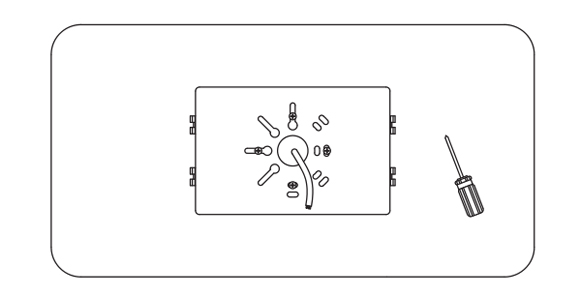

  • 3. Screw on the mounting bracket

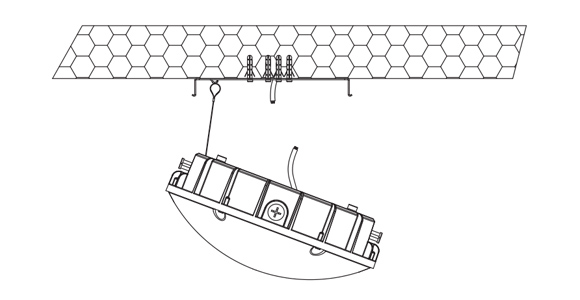

  • 4. Put the light on the bracket and connect the cable

  • 5. Connect the power cable

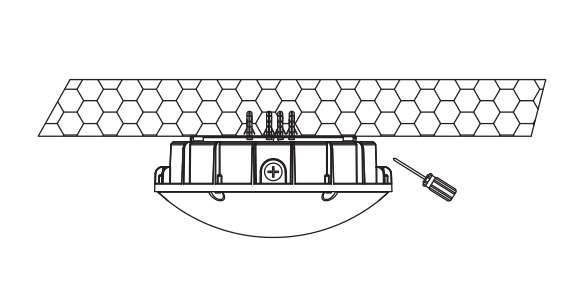

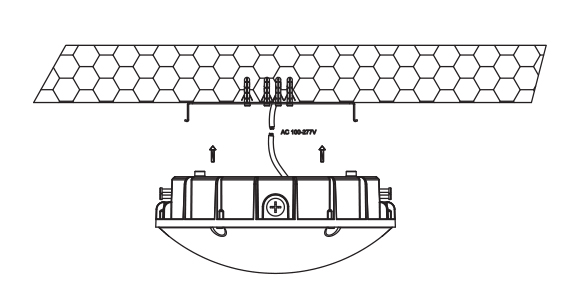

  • 6. Connect the fixture to the mounting bracket

Area of application

Garages and parking lots; Entrance areas and walkways; Stairways & storage areas

  • Cold storage

  • Parking lot

  • Car washing

Standard lumen (130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
CP-40W 40W AC100~277V
50~60Hz
130±10 5200±1000 150° 56 PCS
EMC 3030
>80
CP-60W 60W 130±10 7800±1500 84 PCS
EMC 3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >90% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <23
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 150°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 20~+60℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+50℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates UL, cUL, DLC
Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V Dimmable optional
Lumen maintenance at e.o.l. L80/B10
Packing Information
Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
CP-40W/60W Φ285*121.5 64.5*64.5*28 8PCS 21.6 26

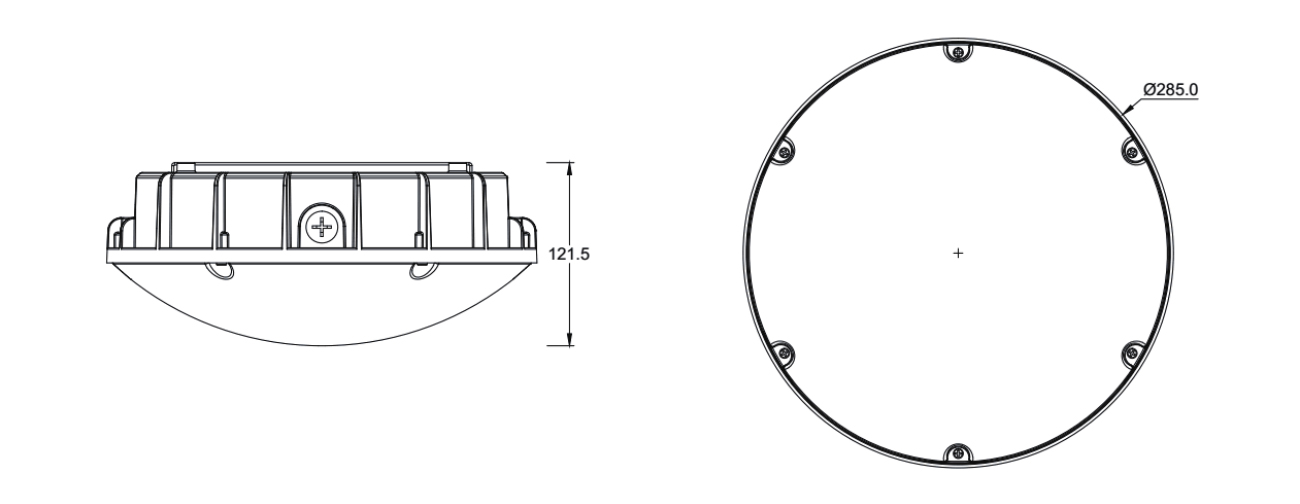

Product Dimension

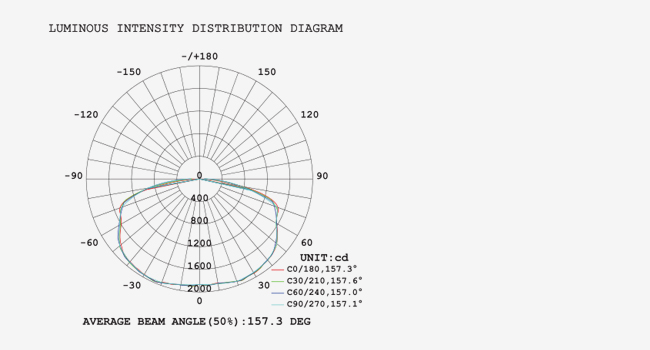

Light Distribution Curve
