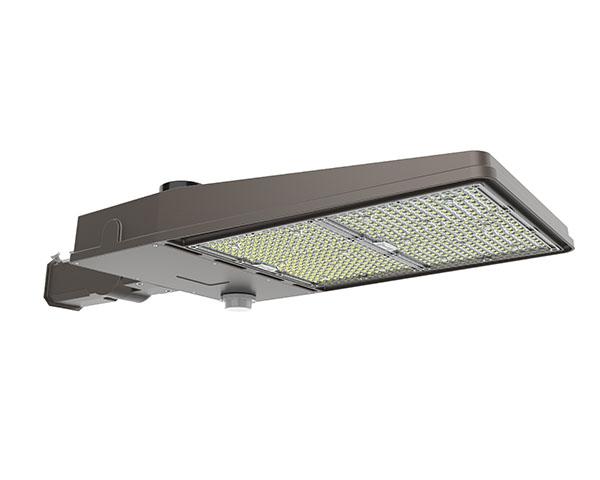

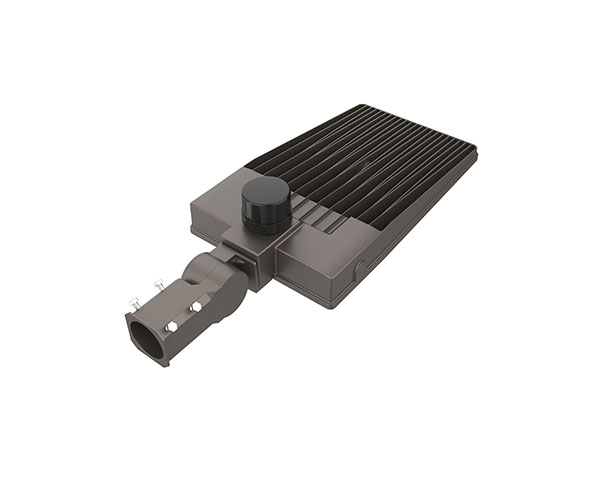

Edison T60D Shoebox light


1.Streamlined modern design

2.Multiple choices for mounting

3.IP66 and 5 years warranty

Inquire Now

Description Parameter

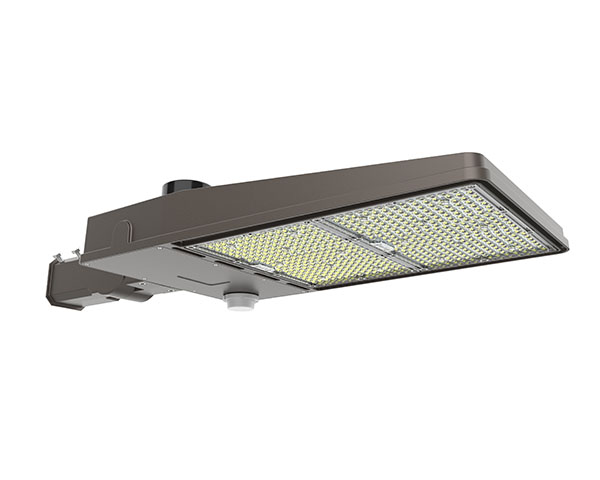

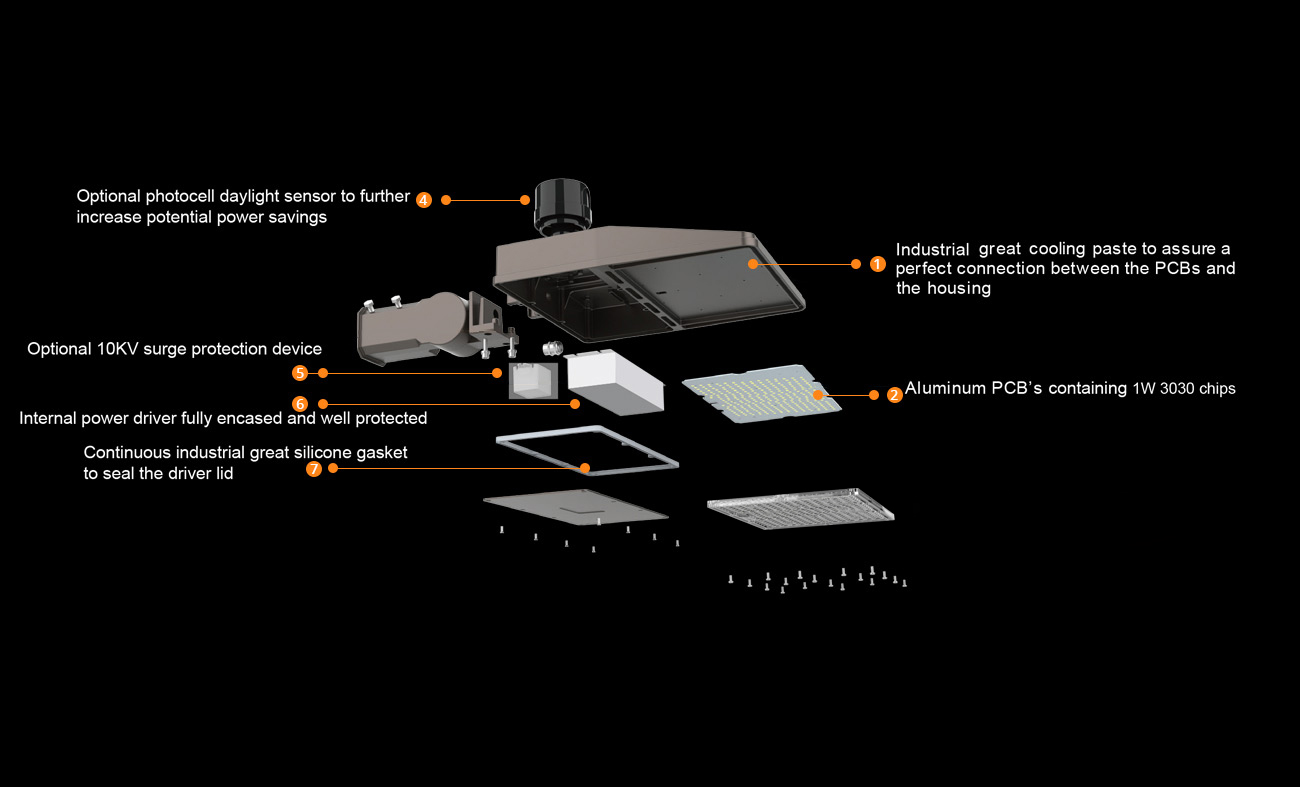

  Shoebox light T60D

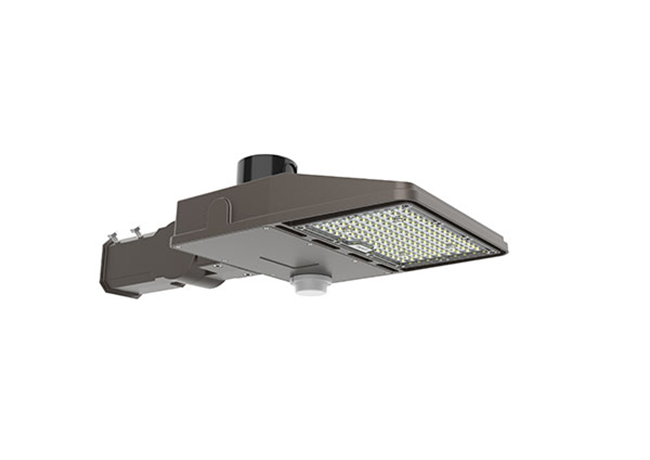

Product Video

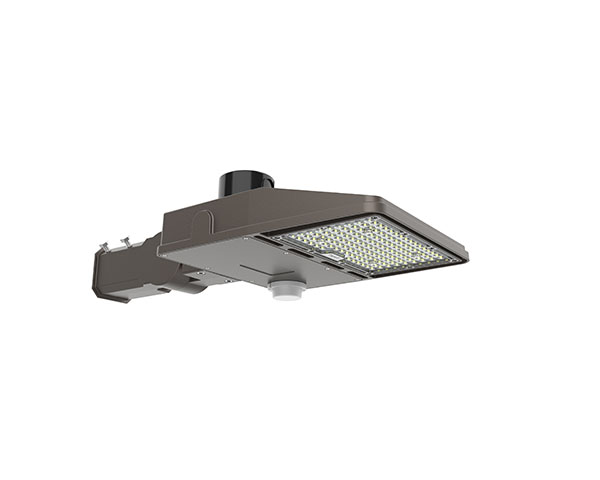

The new Edison fixture (LED Parking Lot lights | Area Lights | Street Lights) is an exceptional mixture of value and performance. The product range has been upgraded to reach very high efficacy up to 160 lm/w and cover lumen packages between 9,000 – 48,000 lumens. The range includes 480V high voltage and various sensor versions, such as photocell and motion sensor for further increasing the energy savings.

Options

1-10V dimmable

Photocell

480V high voltage driver

Certificates

CE, RoHS, UL, DLC

Product Details

Installation Instruction

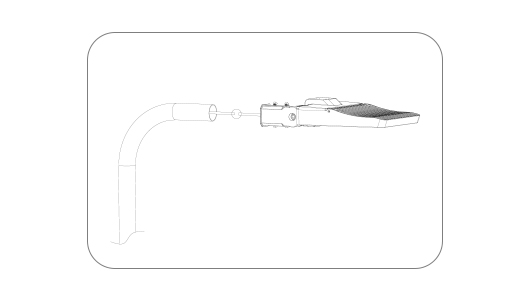

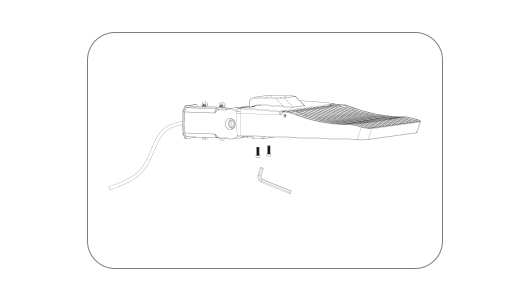

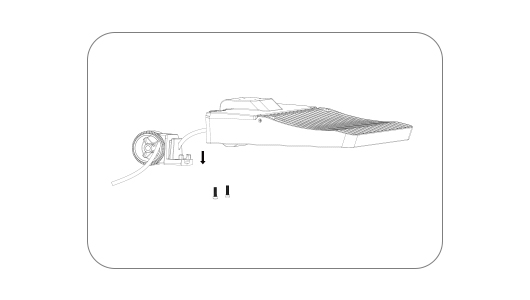

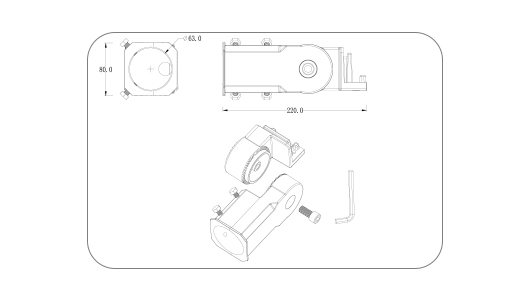

1:Slip fitter mounting

  • 1.Loose the M12 screw from the slip fitter bracket.

  • 2.Bring in the power line through the front part of the slip fitter bracket, then install the bracket part onto the lamp , and tighten the two M6 screws.

  • 3.Pass the lamp input line through the back part of the slip fitter bracket, and then tighten the M12 screws.

  • 4.Connect to power supply AC 100-277V.

  • 5.Install the hole lamp on the pole and tighten four M8 screws.

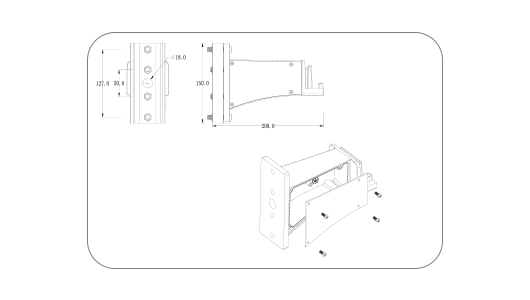

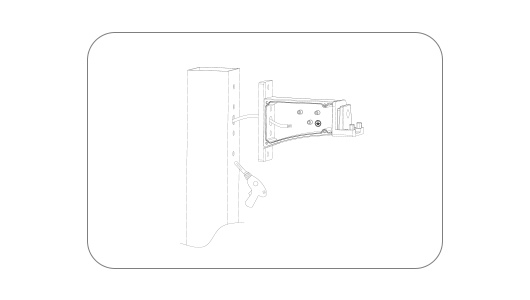

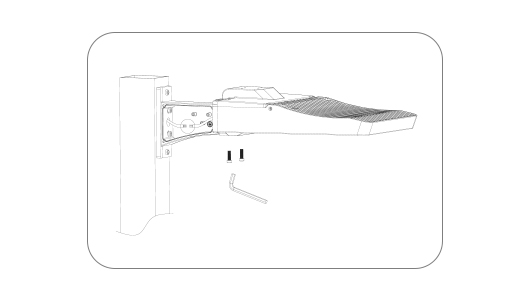

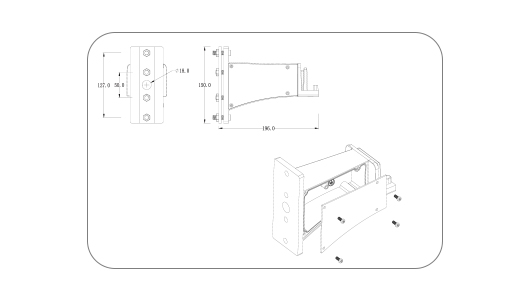

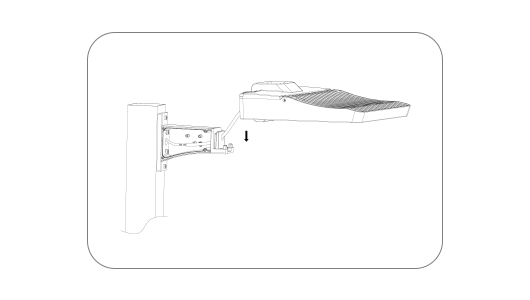

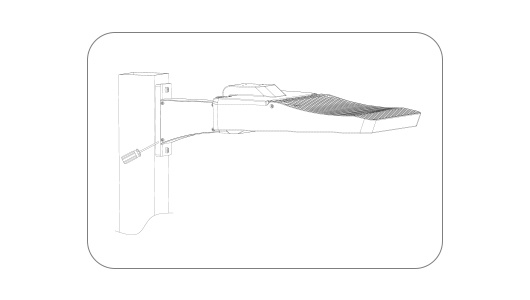

2:Arm mounting for square pole

  • 1.Remove the screws from the square mounting arm and move the cover plate.

  • 2.Drill holes in the square pole corresponding to the holes on the mounting arm, at the position you want to install the fixture, then bring in the electric supply line through the middle hole into the mounting arm.

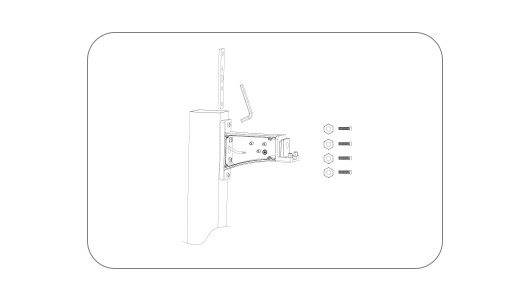

  • 3.Put the bracket reinforcement board in the lamp square pole and fix the bracket on the lamp pole through tightening four M8 screws.

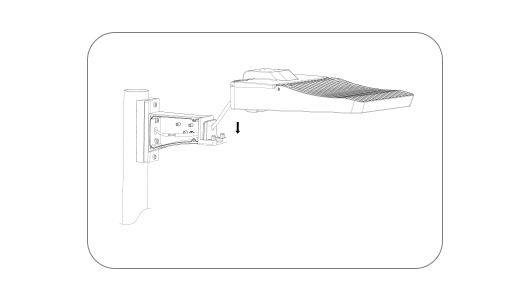

  • 4.Bring in the power line through the hole into the arm and fix the lamp on the mounting arm.

  • 5.Tighten 2 M6 screws and then connect the power supply AC 100-277V.

  • 6.Close the arm cover plate through locking 4 M4 screws.

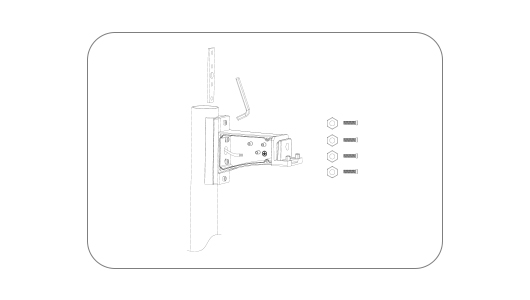

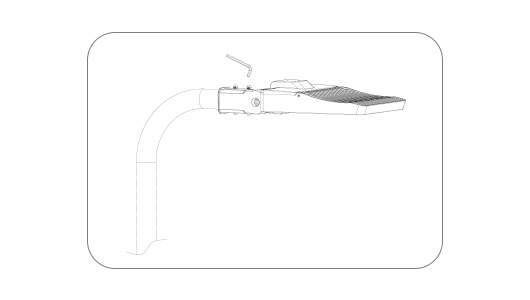

3:Arm mounting for round pole

  • 1.Remove the screws from the square mounting arm and move the cover plate.

  • 2.Drill holes in the square pole corresponding to the holes on the mounting arm, at the position you want to install the fixture, then bring in the electric supply line through the middle hole into the mounting arm.

  • 3.Put the bracket reinforcement board in the lamp square pole and fix the bracket on the lamp pole through tight four M8 screws.

  • 4.Bring in the power line through the hole into the arm and fix the lamp on the mounting arm.

  • 5.Tighten 2 M6 screws and then connect power supply AC 100V-277V.

  • 6.Close the arm cover plate through locking 4 M4 screws.

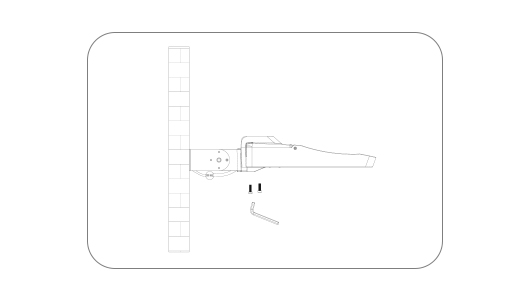

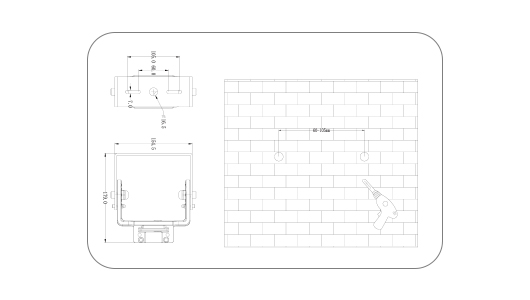

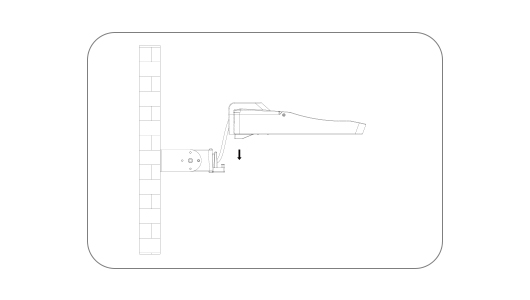

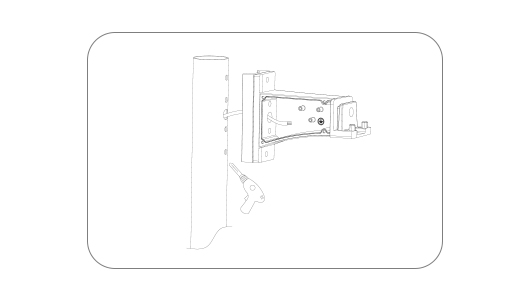

4:Trunnion mounting

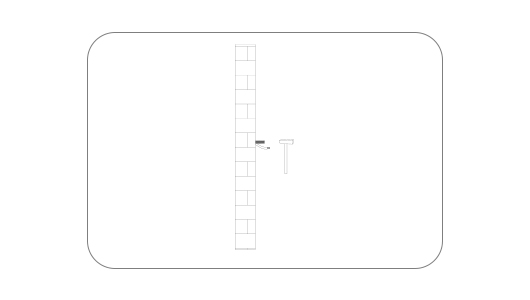

  • 1. Drill two holes in the wall corresponding to the holes in the mounting bracket, at the position you want to install the fixture.

  • 2. Install expansion screws.

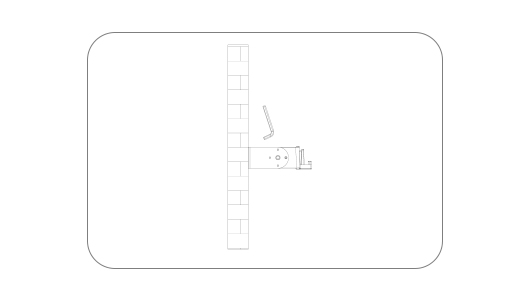

  • 3.Fix the bracket tightly on the installation parts in the wall.

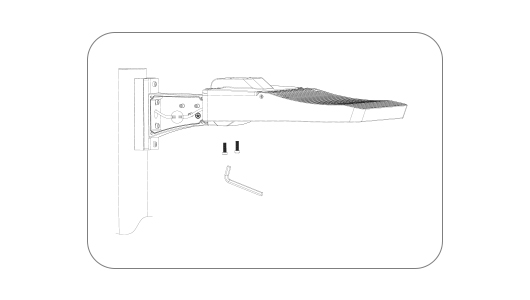

  • 4.Connect the power line and fix lamp on the bracket.

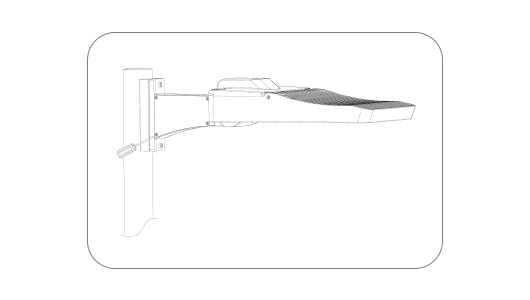

  • 5.Lock two M6 screws tightly and connect the power supply AC 100-277V.

Area of application

Parking lots and streets;Outdoor basketball court and tennis court;Badminton court and football field;The school playground and stadium;Walkways and building grounds;

  • Roads and streets

  • Parking lots


Standard lumen (140 lm/W)
Model Nominal wattages (W) Input Voltage Rated luminous (W) (lm/w) Nominal luminous flux (lumen) CRI
T60D-60W-X-Y 60W AC100~277V 140±10 8400±600 >70
T60D-60W-X-YH 60W AC277~480V 140±10 8400±600
T60D-100W-X-Y 100W AC100~277V 130±5 13000±500
T60D-100W-X-YH 100W AC277~480V 130±5 13000±500
T60D-150W-X-Y 150W AC100~277V 130±5 19500±750
T60D-150W-X-YH 150W AC277~480V 130±5 19500±750
T60D-200W-X-Y 200W AC100~277V 130±5 26000±1000
T60D-200W-X-YH 200W AC277~480V 130±5 26000±1000
T60D-300W-X-Y 300W AC100~277V 130±5 39000±1500
T60D-300W-X-YH 300W AC277~480V 130±5 39000±1500
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white
Type of current AC100-277V Available color temperatures 4000K;5000K
Power factor λ >0.95 Color rendering index Ra >70
Efficiency in % >91% Standard deviation of color matching < 5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S
Standards & Certification Temperatures & operating conditions
Type of protection IP66 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection; short circuit protection ; overvoltage protection Storage temperature -40~+80℃
Certificates CE, RoHS, UL, DLC
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50.000 hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension(MM) CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight/CTN(kg)
T60D-60W 530.5*260*66 44.0*35.5*13.5 1PCS 3.8 4.3
T60D-100W 530.5*260*66 44.0*35.5*13.5 1PCS 4 4.5
T60D-150W 580.5*310*66 48.5*40.5*13.5 1PCS 5.8 6.4
T60D-200W 580.5*310*66 48.5*40.5*13.5 1PCS 6.1 6.8
T60D-240W 766.5*330*76 67.5*42.5*14.0 1PCS 7.7 8.5
T60D-300W 766.5*330*76 67.5*42.5*14.0 1PCS 8.5 9.3

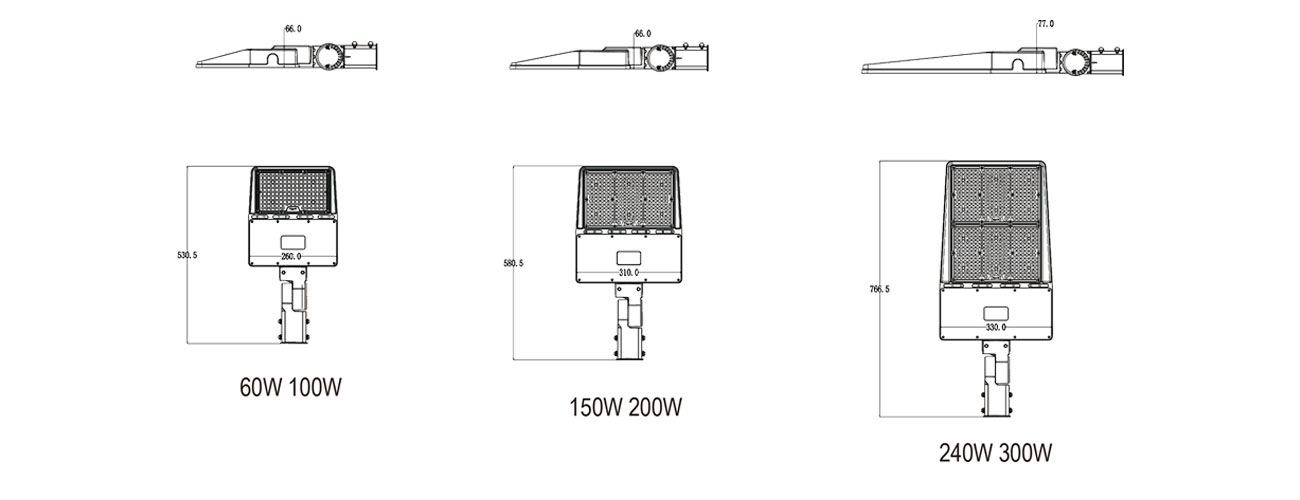

Product Dimension
