Starline T31D Starline High Bay


1.Highly energy efficient - up to 160 lm/w

2.High Luminous flux - up to 42000 lm

3.IP65 and IK10 protection

4.Installation heights up to 30 meters!

5.5 Years warranty

Inquire Now

Description Parameter
  T31D Starline High Bay

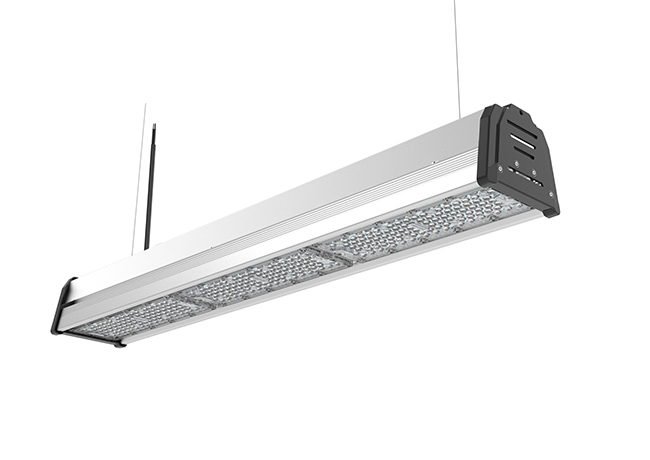

Product Video

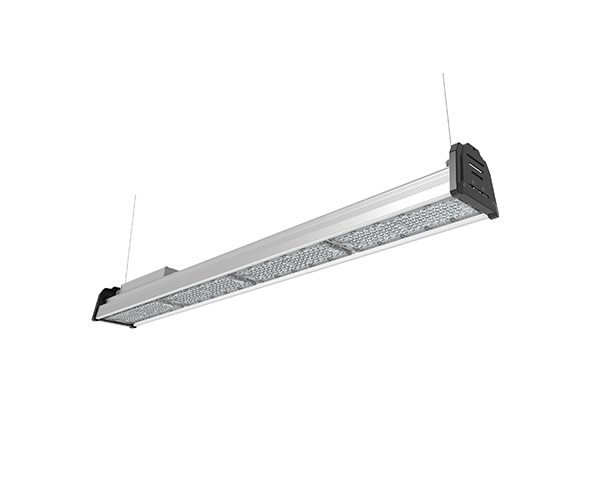

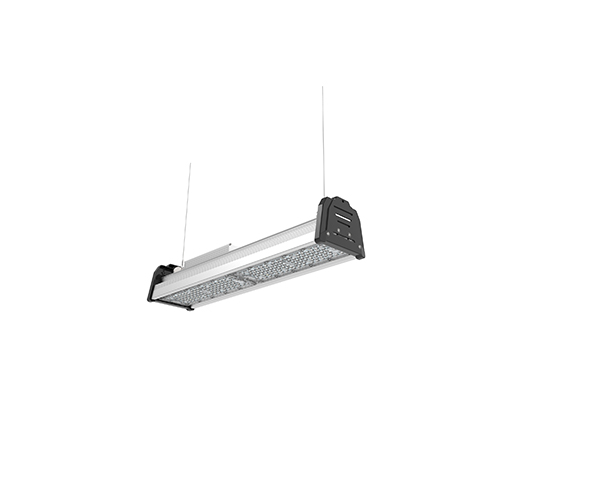

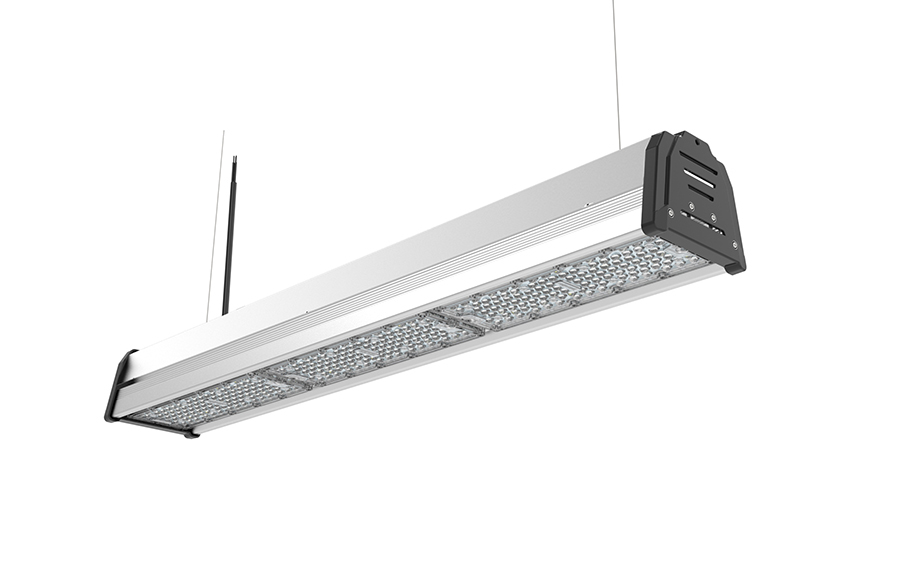

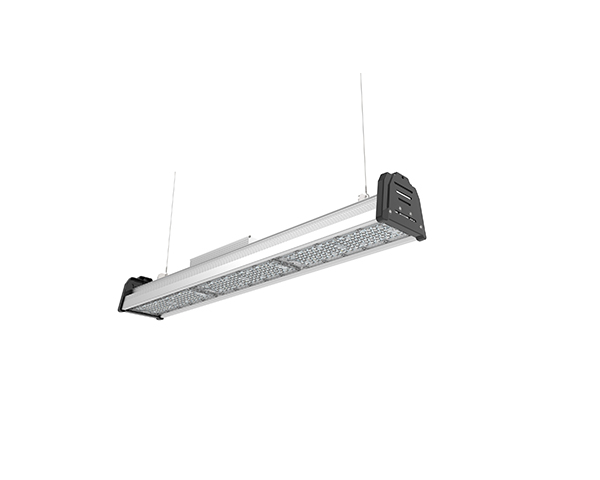

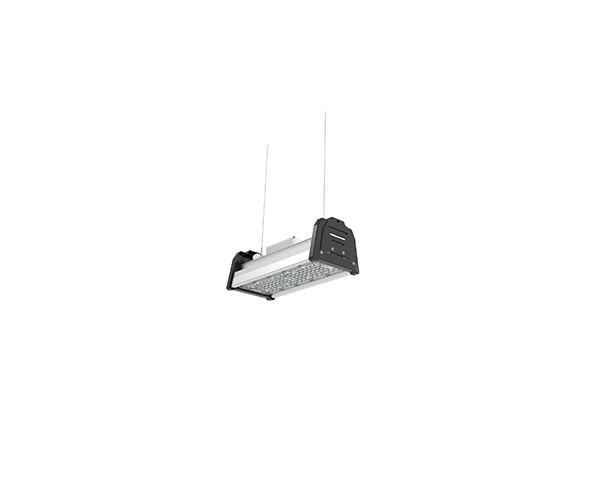

The T31D Starline High Bay is a powerful and energy-efficient LED light fixture available from 80W to 300W. It was designed for tall halls, high warehous-es, loading areas and freight yards. Various lenses for different beam angles enable this linear high bay to be efficiently used in heights up to 30m. Its weatherproof aluminum alloy housing and the high quality polycar-bonate lenses make it dust tight as well as water and impact resistant for use in harsh environments. This extremely robust light can be flexibly configured for use in a very wide application range. suspended or surface mounted installation will provide a perfectly homogeneous light distribution.

Options

Various beam angle options: 30°,60 °,90 °,30 °x70°,40°x130°Optional

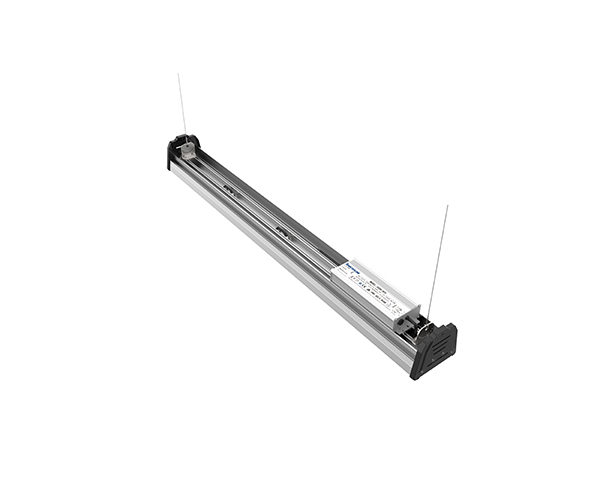

Optional Mean well driver available

1-10V dimmable and DALI available

Microwave motion and PIR sensor available

Optional emergency power supply

Zigbee is available

Certificates

CE,RoHS

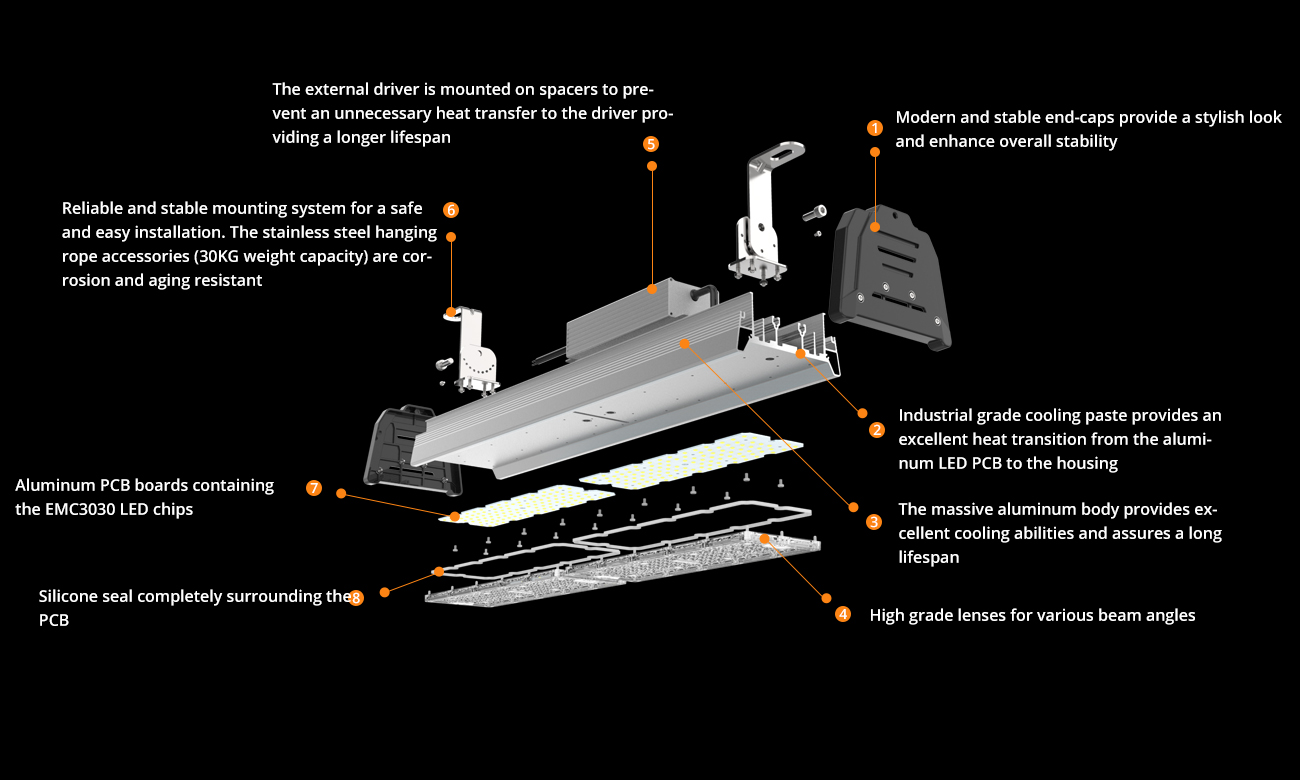

Product Details

Installation Instructions for suspended use

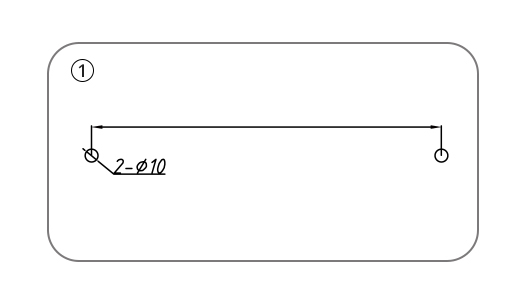

  • 1.Adjust the spacing between the holes according to your installation situation

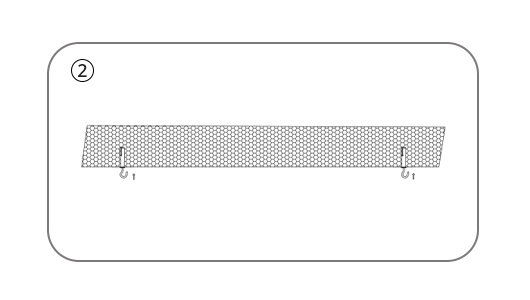

  • 2. Fix the expansions screws in the holes you prepared

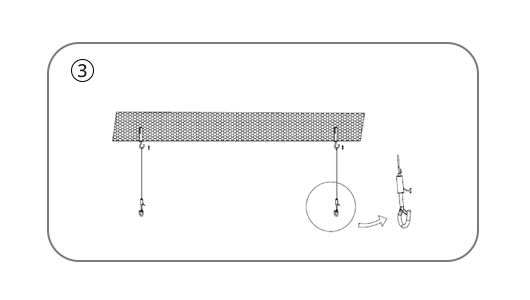

  • 3. Adjusting the length of ropes

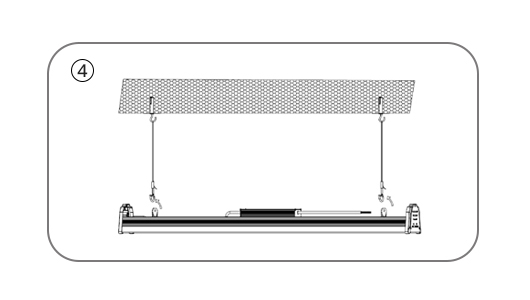

  • 4. Connect the fixture to the rope and make sure the safety

  • 5. Connect the power

Installation Instructions for Surface mounting

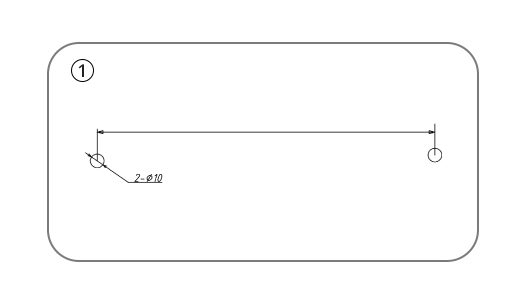

  • 1. Adjust the spacing between the holes according to your installation situation

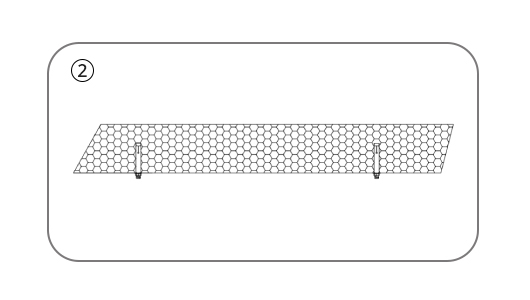

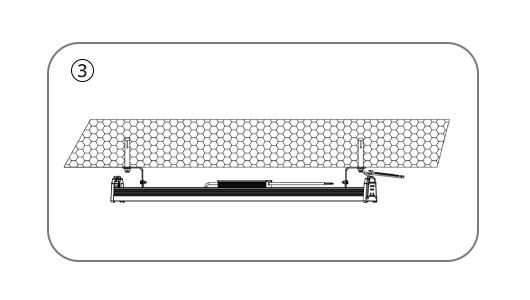

  • 2. Fix the bolds in the holes you prepared

  • 3. Screw the fixture to the ceiling

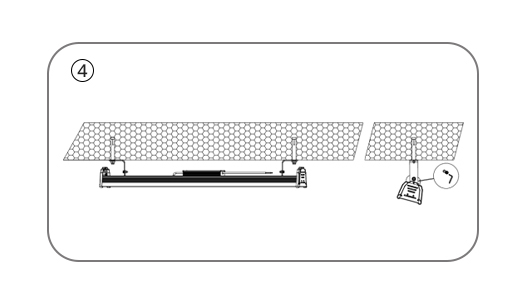

  • 4. Adjusting it to the suitable beam angle, and then tighten the screw

  • 5. Connect the power

Area of application

Factories and warehouses;High rooms and halls;Exhibition & showrooms

  • Warehouse

  • Supermarket

  • Factories

  • Sports


Standard lumen (140lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T31D-80W01 80W AC100~277V
50~60Hz
140±10 11200±800 30°\60°\90°\
30*70°\40*130°
112 PCS
EMC 3030
>70
T31D-120W02 120W 145±10 17400±1200 224 PCS
EMC 3030
T31D-150W02 150W 140±10 21000±1500 224 PCS
EMC 3030
T31D-200W03 200W 145±10 29000±2000 336 PCS
EMC 3030
T31D-240W03 240W 140±10 33600±2400 336 PCS
EMC 3030
T31D-300W04 300W 140±10 42000±3000 448 PCS
EMC 3030
Lumen Plus (160lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T31D-80W02 80W AC100~277V
50~60Hz
165±5 13200±400 30°\60°\90°\
30*70°\40*130°
224 PCS
EMC 3030
>70
T18-100W04 150W 160±5 24000±750 336 PCS
EMC 3030
Electrical datas Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;
daylight white
Type of current AC100-277V\100-350V\277-480V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >90% Standard deviation of color
matching
<5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 30°/60°/90°/30*70°/40*130°
Standards & Certification   Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection;
Short circuit protection;
Overvoltage protection.
Storage temperature -40~+80℃
Certificates CE,RoHS
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5 Years Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable,DALI dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension(MM) CTN SIZE(CM) QT Y/ CT N Net Weight/pcs(kg) Gross Weight /CTN(kg)
T31D-80W01 320*145*116 37*34*17 2PCS 2.6 6.8
T31D-80W02/
120W02/150W02
620*145*116 67*34*17 2PCS 4.2 10.2
T31D-150W03/
200W03/240W03
920*145*116 97*34*17 2PCS 5.8 14.5
T31D-300W04 1220*145*116 127*34*17 2PCS 7.8 19.5

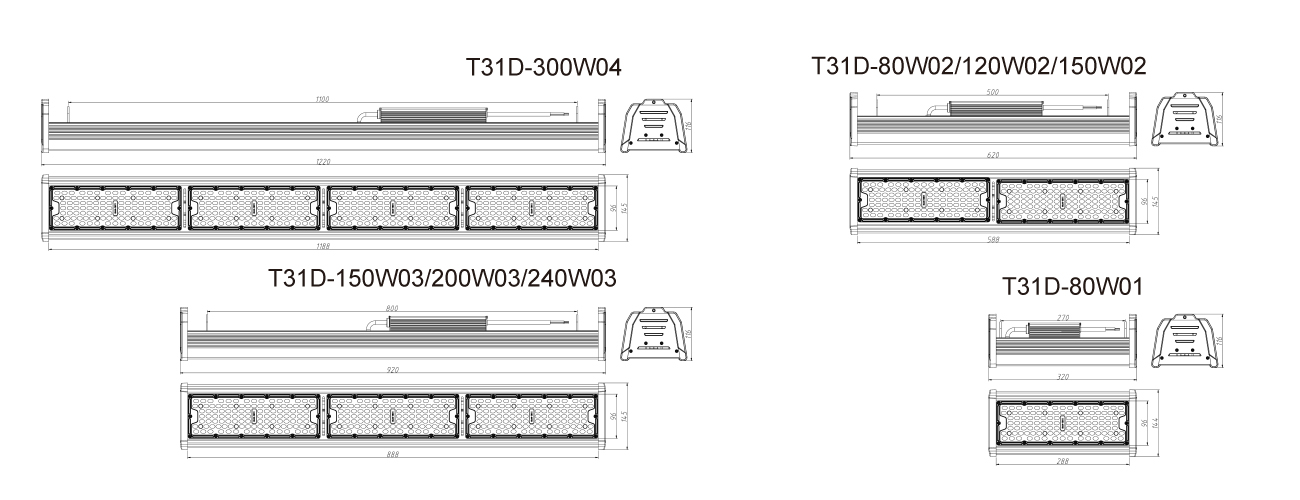

Product Dimension
