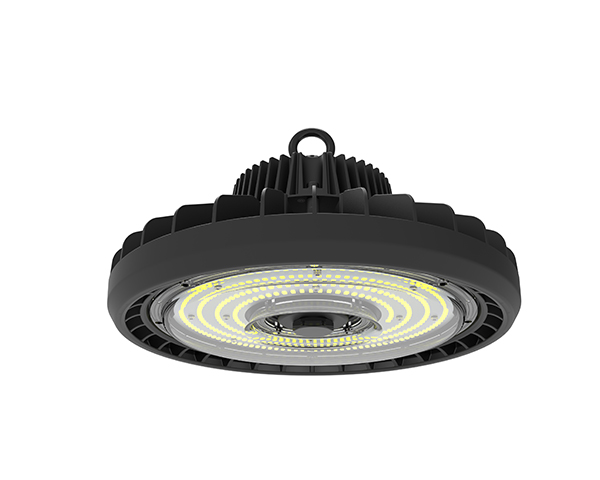

Future HB09 HighBay Light


1.Smart plug & play system without wiring for build-in sensor

2.Save SKU

3.Both motion sensor and PIR sensor optional

4.High Efficiency up to 170lm/W

5.5 years warranty

Inquire Now

Description Parameter

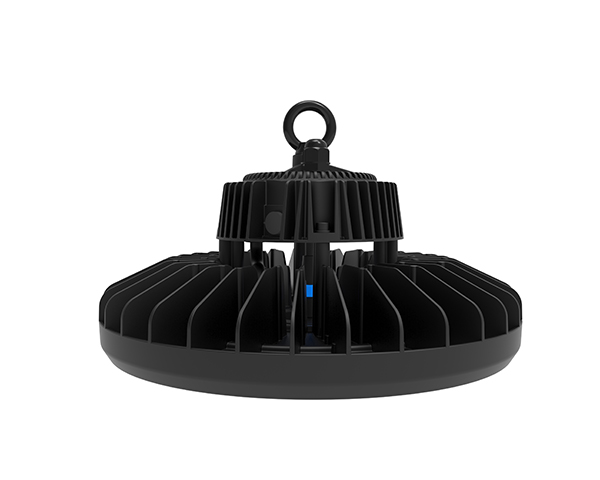

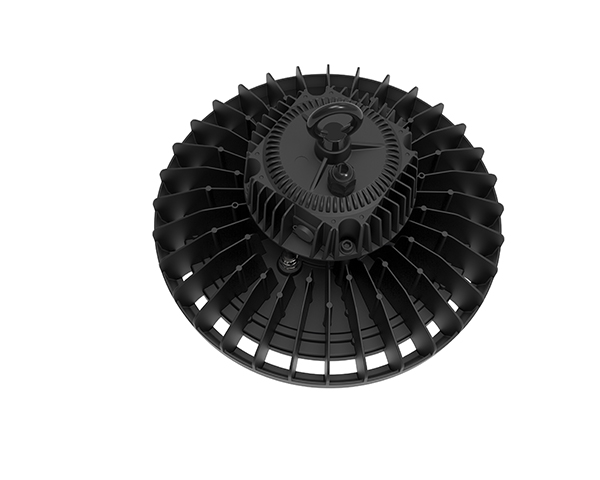

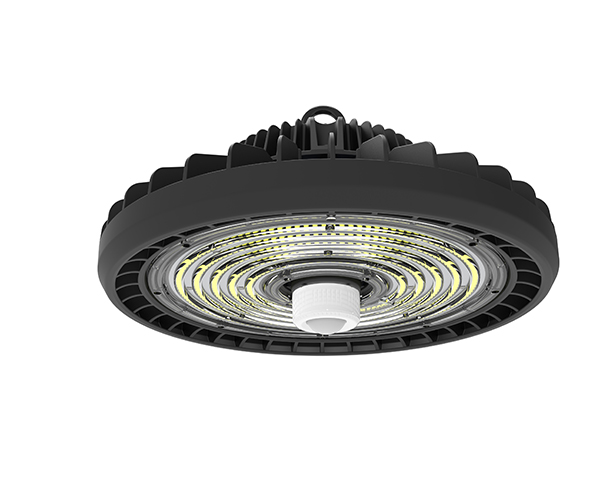

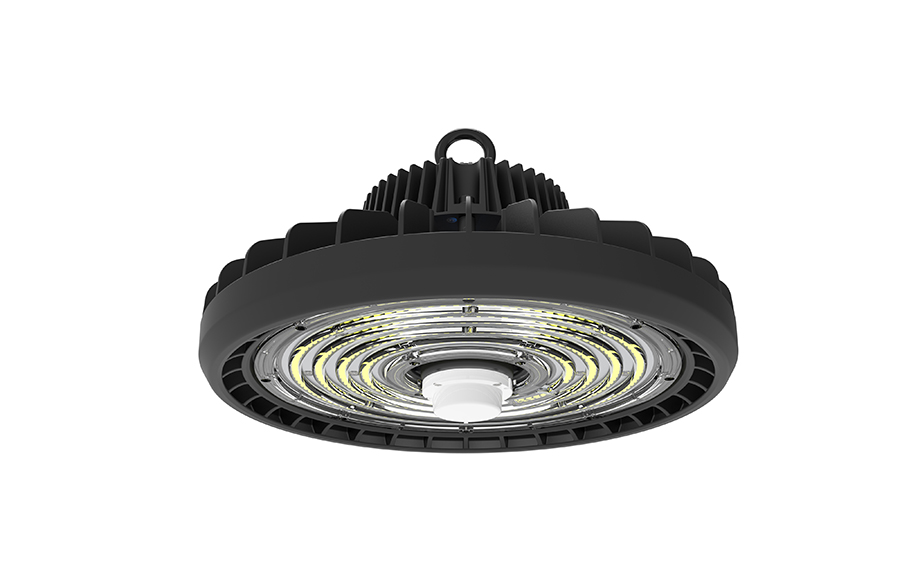

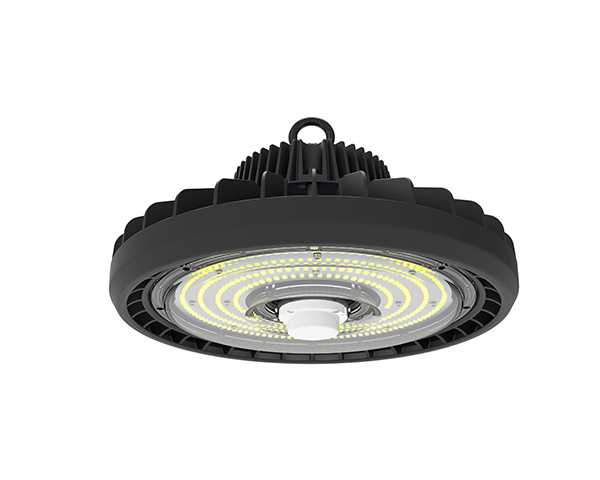

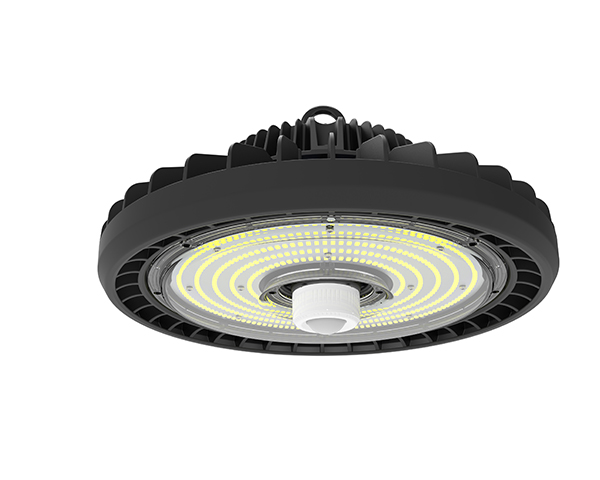

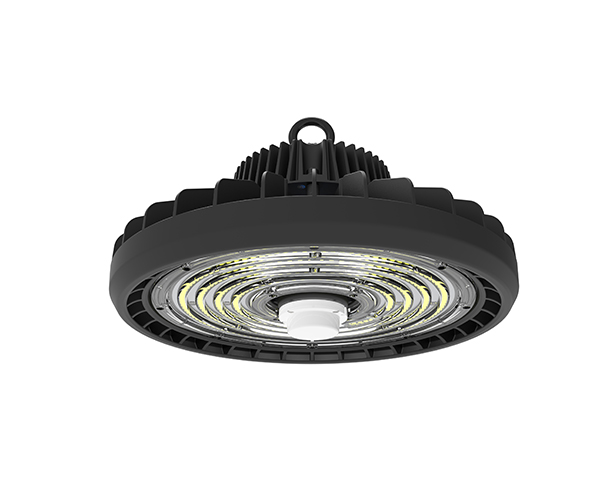

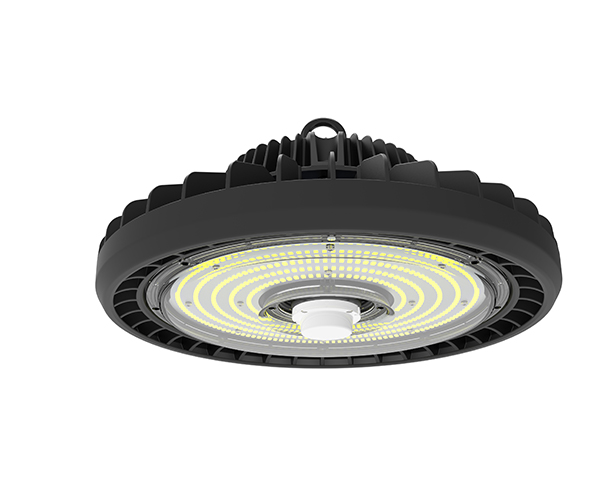

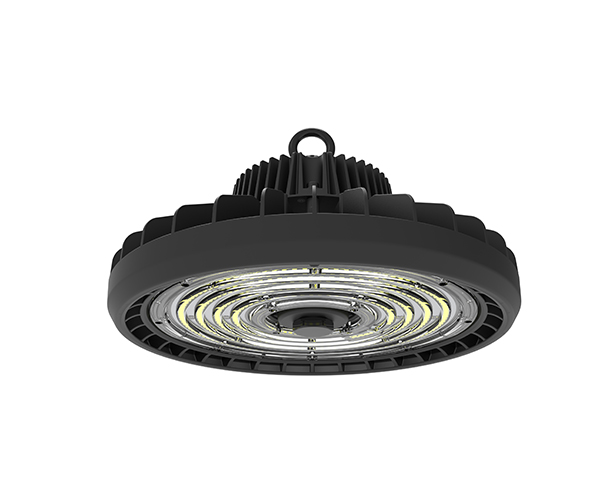

  Future HB09 HighBay Light

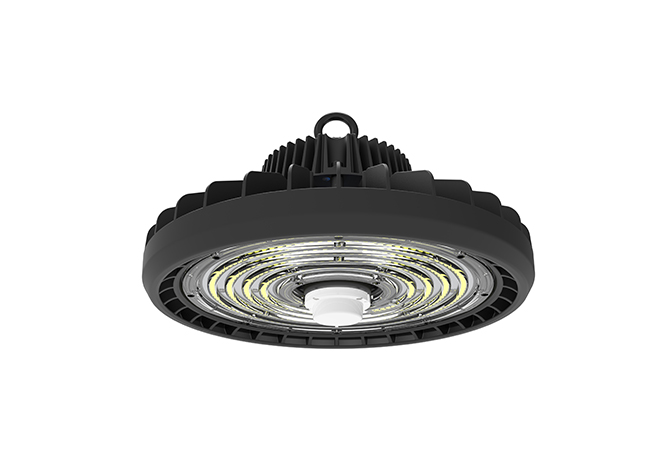

Product Video

The new generation Highbay Future HB09 integrates state-of-the-art LED lighting with a smart plug & play system for build-in sensor without wiring, which enables you to save SKU and fewer inventories. With high efficiency output 170lm/w, it can reach 40800 lumen at most, and helps to maximum your energy saving in a simple way. Both motion sensor and PIR sensor can be provided, and the same type of remote controller can work with both motion and PIR sensor. Easy to install, easy for your inventory plan, and easy to use, Future HB09 highbay is a smart way to light up your business.

Options

-1-10V dimmable, Dali dimmable

-PC lens 90° & PC cover 120°

-PC reflector

Certificates

-American market: UL, DLC Premium, cUL

-European market: TUV,CE (EMC, LVD, RoHS)

-Australian market: SAA, C-Tick, RCM

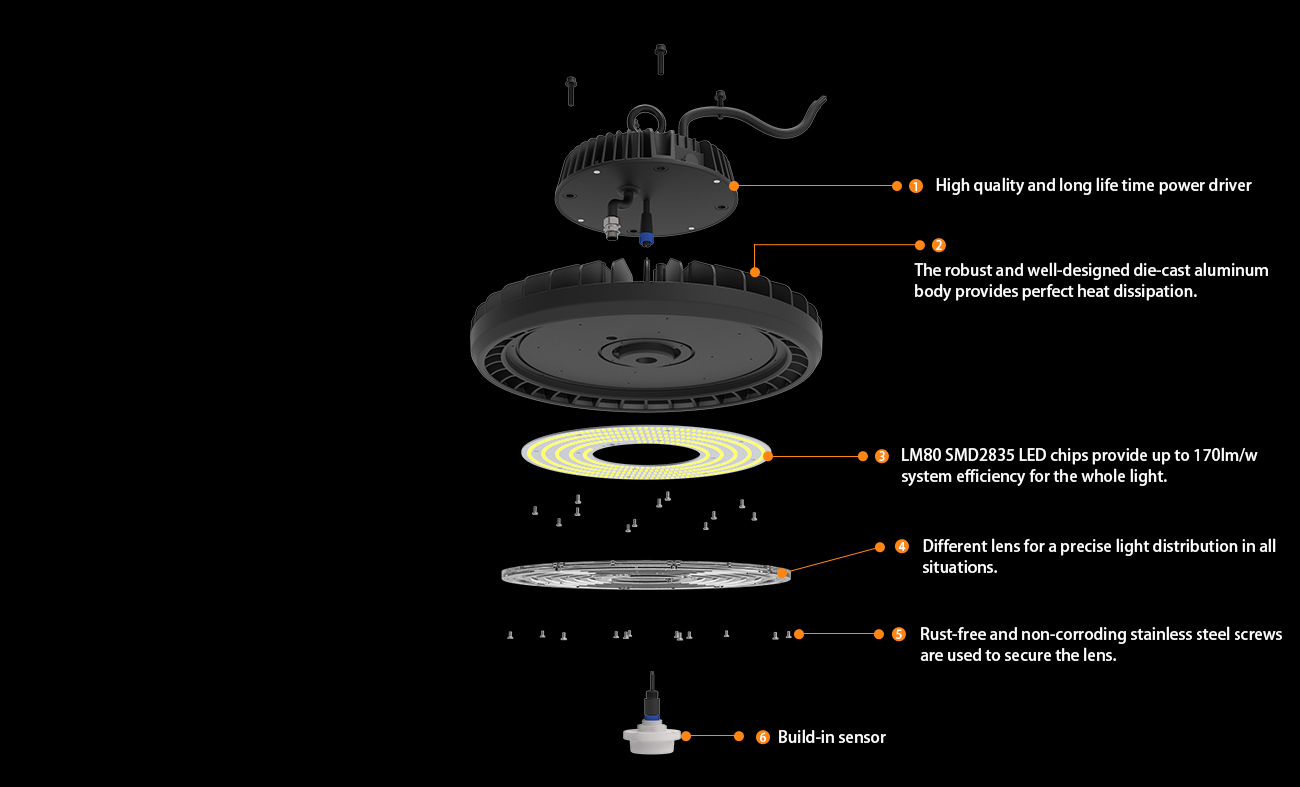

Product Details

Installation

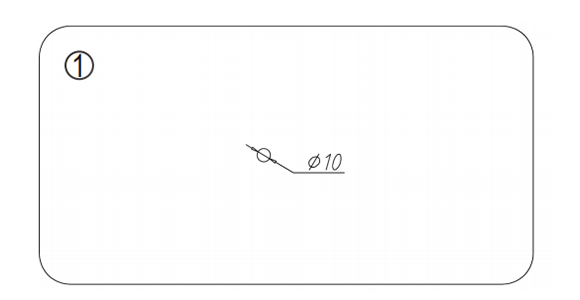

  • 1. Drill a hole in the ceiling

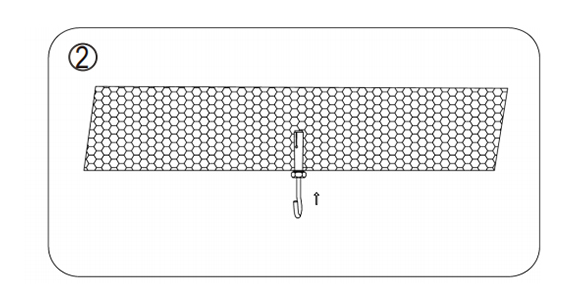

  • 2. Push in the hook

  • 3.Secure the hook by tightening the nut

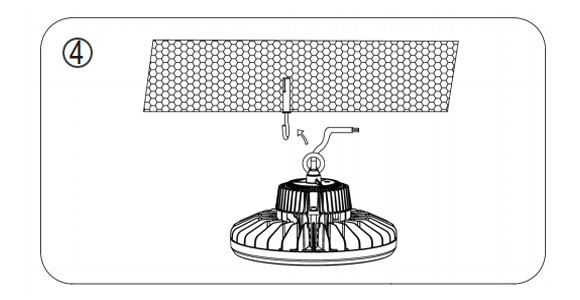

  • 4. Hang the fixture on the hook

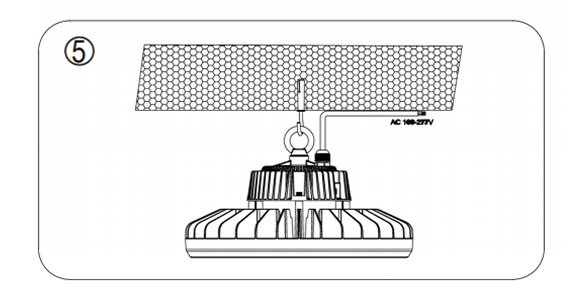

  • 5. Connect the fixture to the power line

Area of application

Warehouses and logistic halls ;Production facilities;Indoor sport hall

  • Warehouse

  • Hall

  • Factories

  • Sport field


Standard lumen (140lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB09-100W 100W AC100~277V
50~60Hz
140±10 14000±1000 90°/120° 168 PCS
1W 3030
>70
HB09-150W 150W 140±10 21000±1500 168 PCS
1W 3030
HB09-200W 200W 140±10 28000±2000 252 PCS
1W 3030
Lumen Plus (170lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB09-100W 100W AC100~277V
50~60Hz
170±10 17000±1000 90°/120° 210 PCS
1W 2835
>70
HB09-150W 150W 170±10 25500±1500 315 PCS
1W 2835
HB09-200W 200W 170±10 34000±2000 405 PCS
1W 2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.95 Color rendering index Ra  >70
Efficiency in % >91% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 90°/120°

Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV,CE (EMC, LVD, RoHS)
Australian market: SAA, C-Tick, RCM

Energy efficiency class A+&A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
HB09-100W/150W Φ380*188 37*37*23 1PCS 3.8 4.8
HB09-200W Φ360*188 41*41*23 1PCS 5.3 6.5

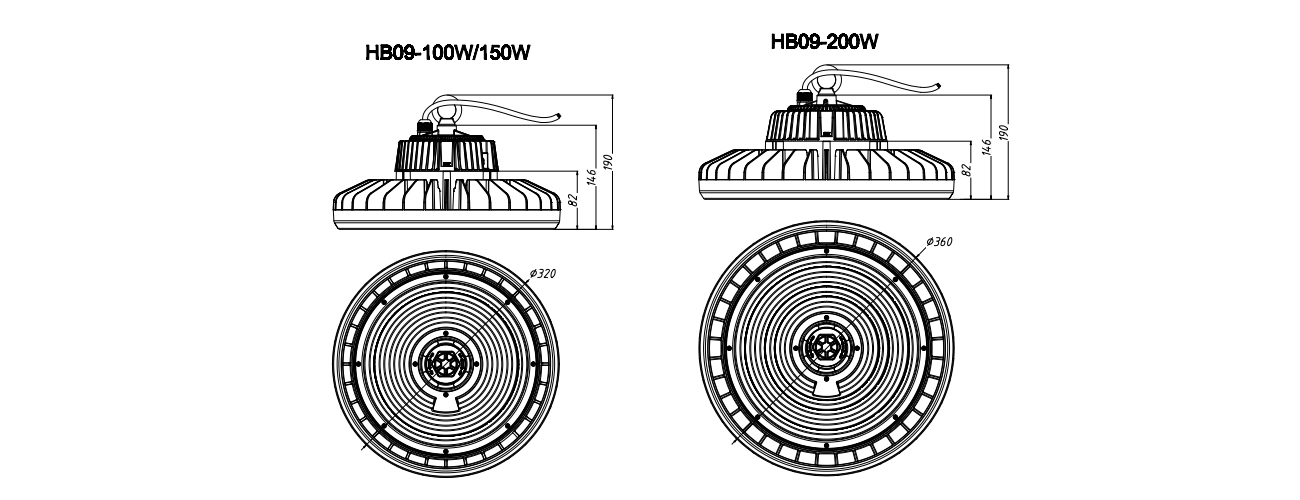

Product Dimension

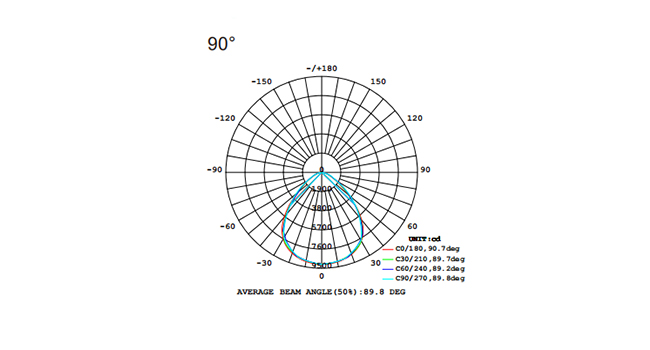

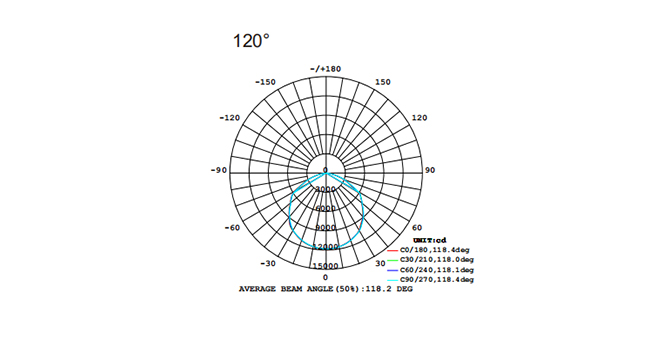

Light Distribution Curve
