Shine a Light in Every Corner!
Shine a Light in Every Corner!
1.Slim and compact design for maximum wind resistance

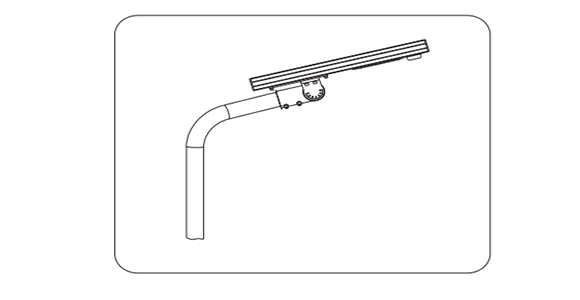

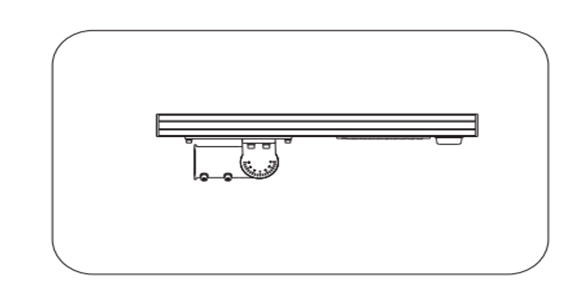

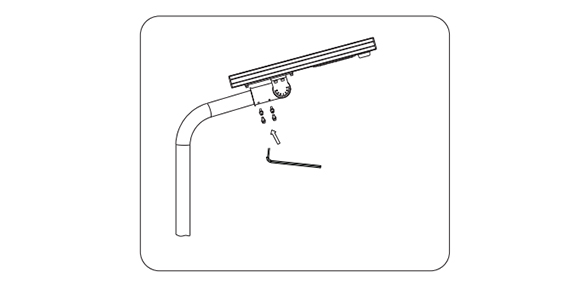

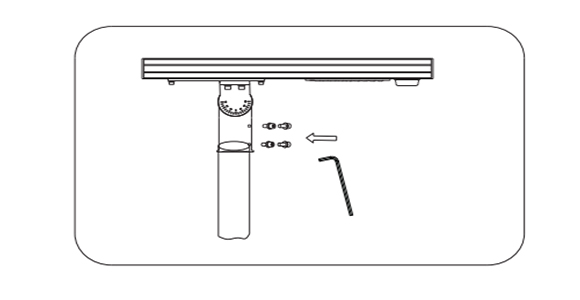

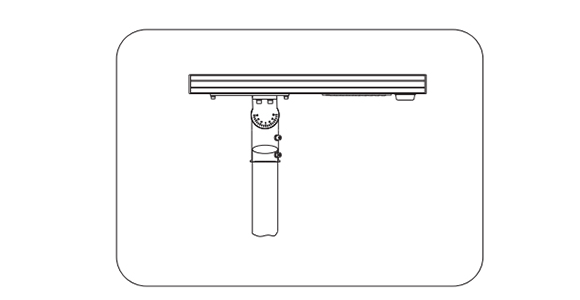

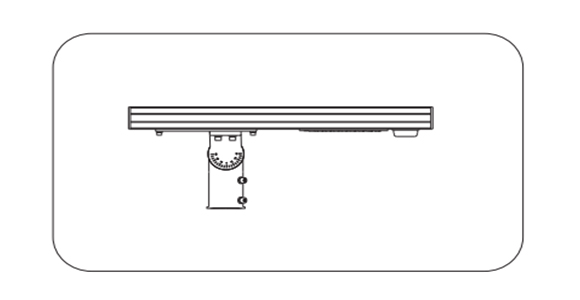

2.Widely adjustable installation angel
3.No wires are being exposed to the sun and rain
4.IP65 for all weather conditions
5.As high as 190lm/W
6.IP65 for all weather conditions
7.LiFePCM Battery for longer lifetime
8.Over discharge protection, overcharge protection and fully automatic operation.
9.3 years warranty
Inquire Now

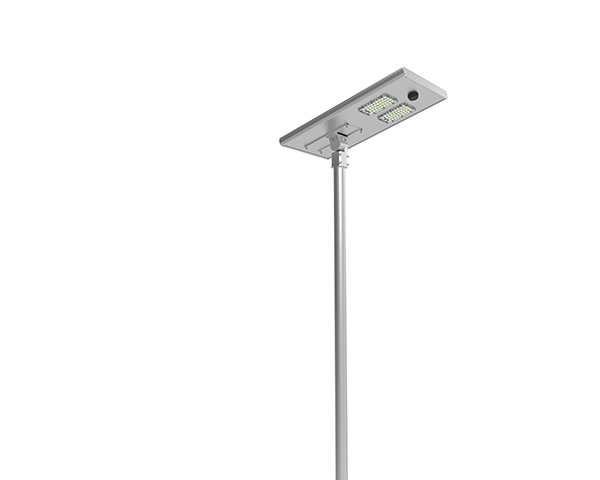

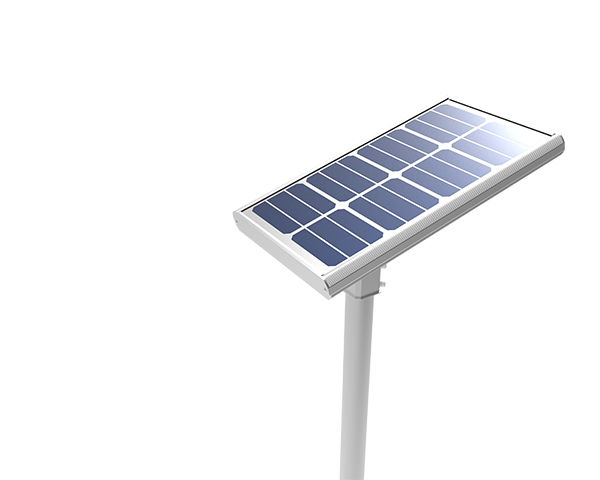

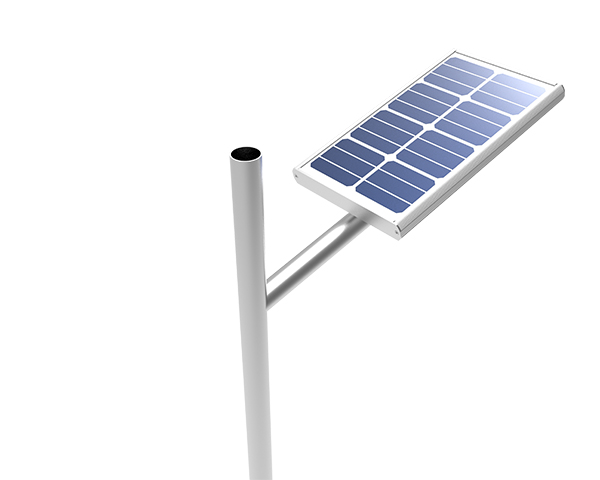

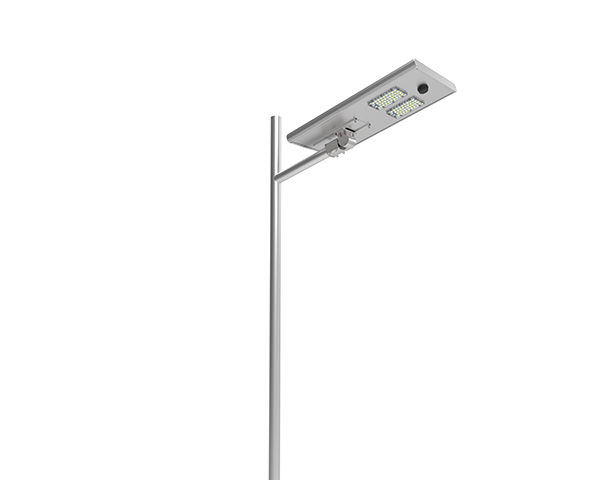

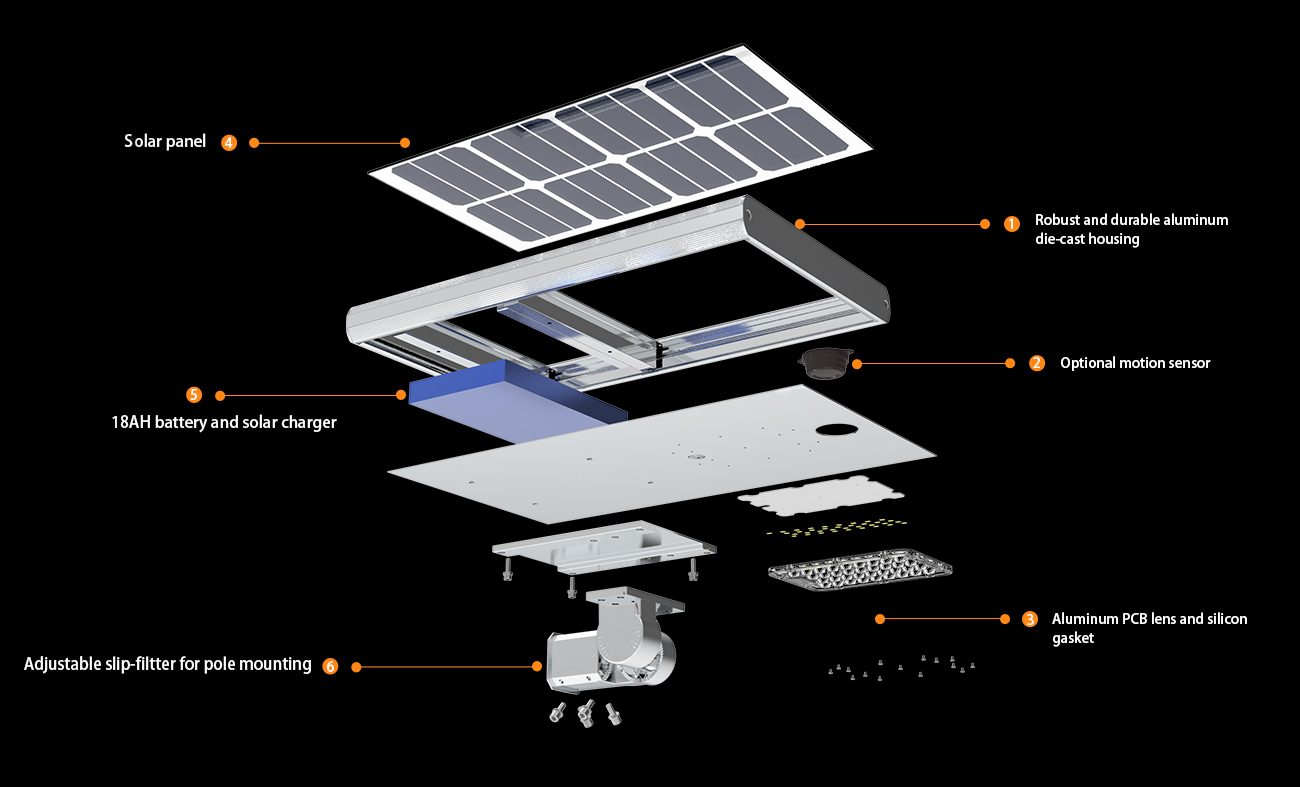

It goes without saying that application for our Slim Line Solar Street Lights are almost endless. For Parks and parking lots it is a useful as for suburban walkways and other outdoor areas. Especially where trenching and installing underground wiring is not an option our solar light can be an economically feasible lower cost option. Its slim design and its IP65 rating make it ideal for harsh and windy environments. Thanks to a large 18AH battery and a sizable solar panel even a few rainy days are not a problem for this solar fixture. Its integrated charger is designed to protect the battery from complete discharge and over charge for an expected shelf life of 5 years.
-Microwave motion sensor or PIR sensor
CE, RoHS
Road and street;Parks and parking lots;Security lighting
Roads and streets
Parking lots
| Standard lumen (190lm/W) | ||
|---|---|---|
| Model No | T65B-30W | T65B-60W |

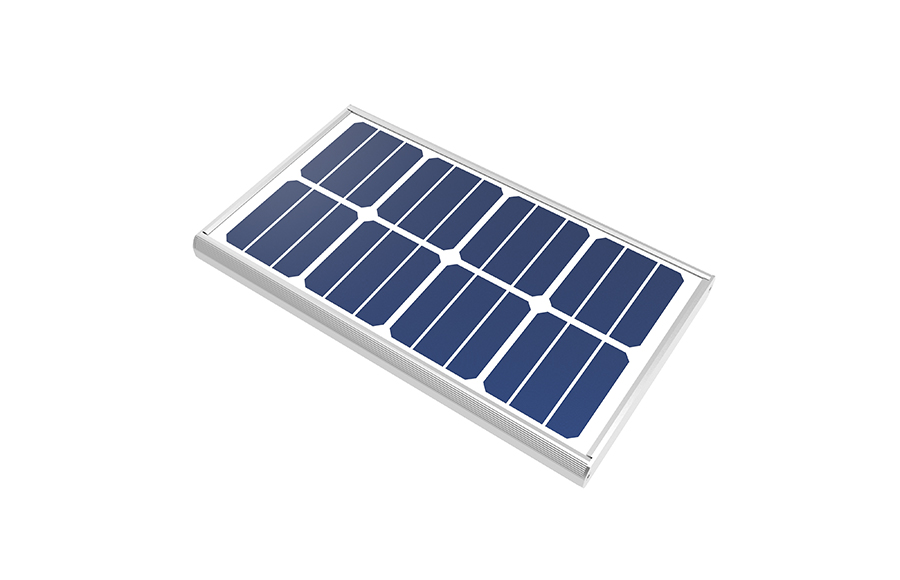

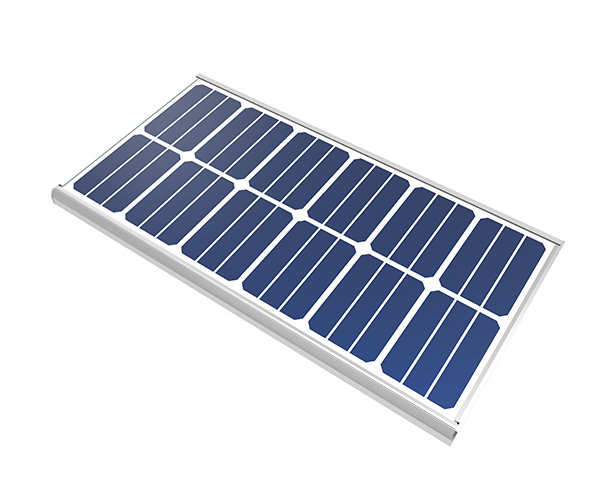

| SOLAR PANEL POWER | 30W mono | 60W mono |

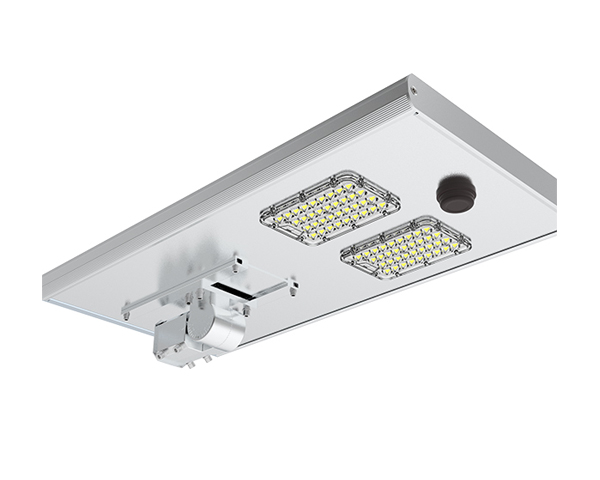

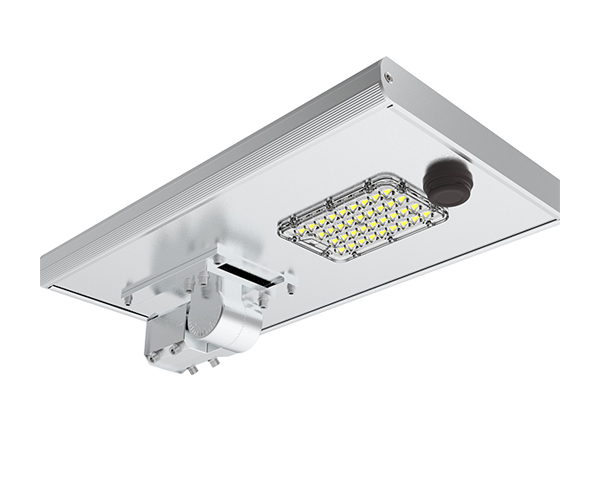

| LED LIGHT POWER | 12W | 25W |
| LiFePO4 BATTERY | 230WH | 460WH |
| LUMINOUS FLUX | 2280LM | 4750LM |
| WORKING TIME | 5-7days | 5-7days |
| INSTALLATION DISTANCE | 20-25M | 20-25M |
| MOUNT HEIGHT | 4-5M | 4-5M |
| CALIBER SIZE | 60MM | 60MM |
| REMOTE CONTROL DISTANCE | 10-15M | 10-15M |

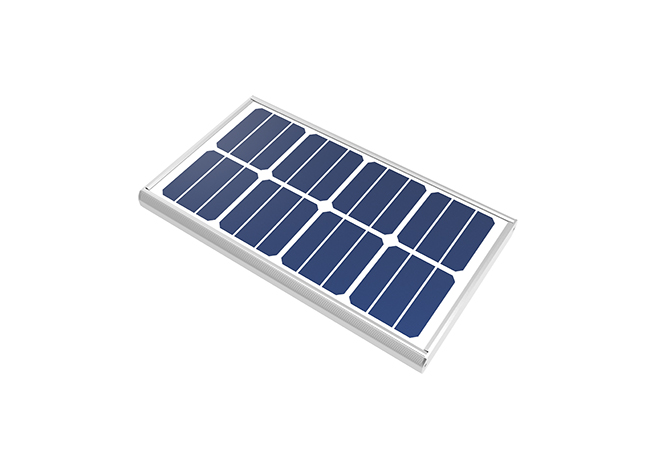

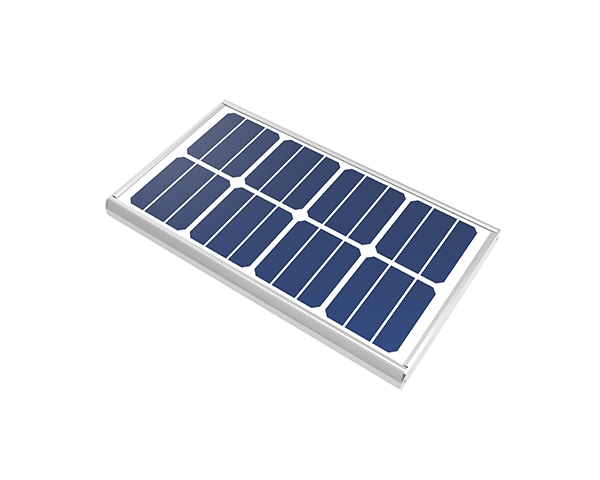

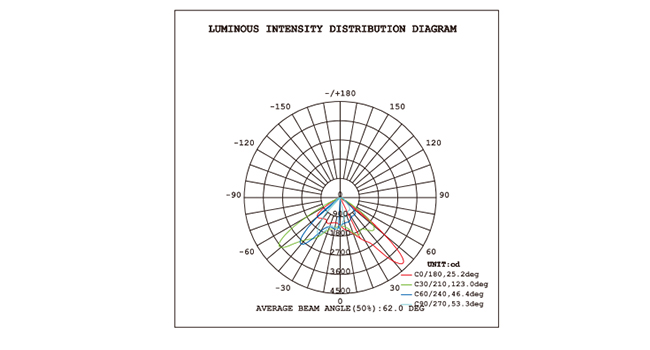

| Solar Panel | Photometrical data | ||||
|---|---|---|---|---|---|
| Rating Power | 30W/60W | Available light colors | warm white;natural white;daylight white | ||
| Maximum Voltage | 17.56V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Maximum Current | 1.95A | Color rendering index Ra | >70 | ||
| Open Circuit Voltage | 22.5 | Standard deviation of color matching | <5 | ||
| Short Circuit Current | 2.15 | UGR (Unified Glare Rating) | <27 | ||
| Panel Size | 64*34CM/46*83CM | Available beam angles | 70*140 | ||
| Battery | Temperatures & operating conditions | ||
|---|---|---|---|
| Battery Type | LiFePO_4 battery | Operating temp | 20~+69℃ |
| Operating voltage | 12V | Ambient temperature | -30~+50℃ |
| Capacity | 18AH/36AH | Storage temperature | -40~+80℃ |
| Dimensions | 21.5x20x3.2cm/21.5x40x3.2cm | ||
| Charge cycle | 1490 | ||
| Charge Time | 6-8 H | ||
| Expected Shelf Life | 5 years | ||
| Expected Reserve Operation | 5-7days | ||
| Solar Charger | Standards & Certification | ||
|---|---|---|---|
| Charge Controller Type | PWM | Type of protection | IP65 |
| Operating Voltage | > 10.8V | Tested dielectric strength | 3.75KVac |
| Max. Charge/ Load Current | 20A | Fixture Surge Protection | / |
| Night/Day Detection | 5V | Certificates | CE, RoHS |
| Cut-off voltage | < 10.8V | Warranty | 3 years |
| Reconnect level | >12V | ||
| Overvoltage protection | 14V | ||
| Undervoltage protection | 10.8V | ||
| Temperature compensation | -4mV/2V/C | ||
| Packing Information | |||||
|---|---|---|---|---|---|

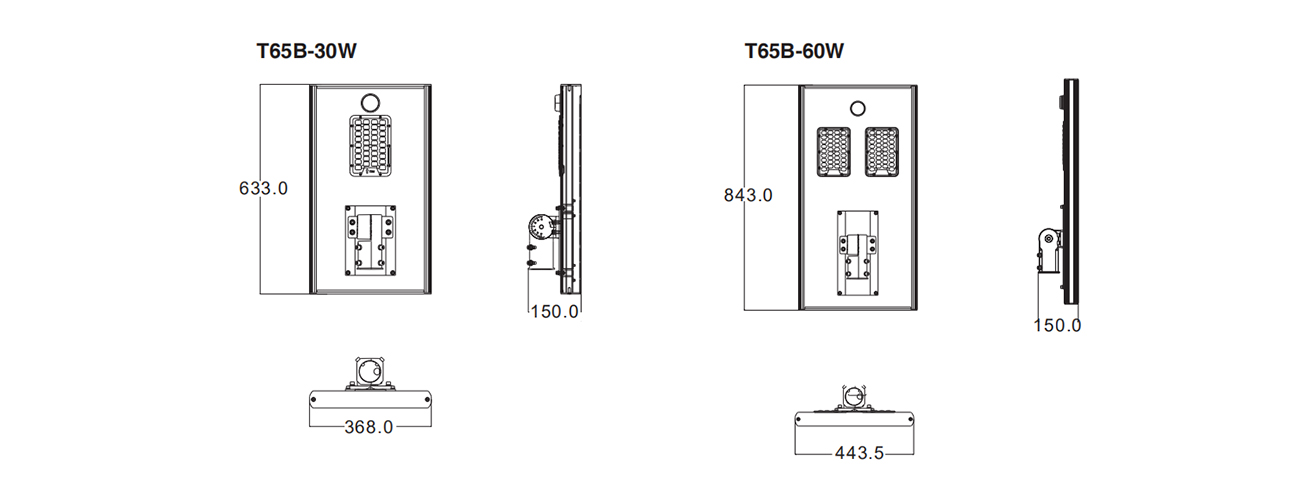

| Model | Dimension(MM) | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T65B-30W | 633*367*150 | 70*43*19 | 1 | 9 | 10 |
| T65B-60W | 843*443*150 | 90*50*19 | 1 | 18 | 19 |
