Shine a Light in Every Corner!
Shine a Light in Every Corner!
1.Highly energy efficient - up to 130lm/w
2.Both standalone and continuous mounting are available
3.Slim design, ideal for space-constrained industrial applications
4.IP67 or IP65 for both indoor and outdoor use
5.5 years warranty.
Inquire Now

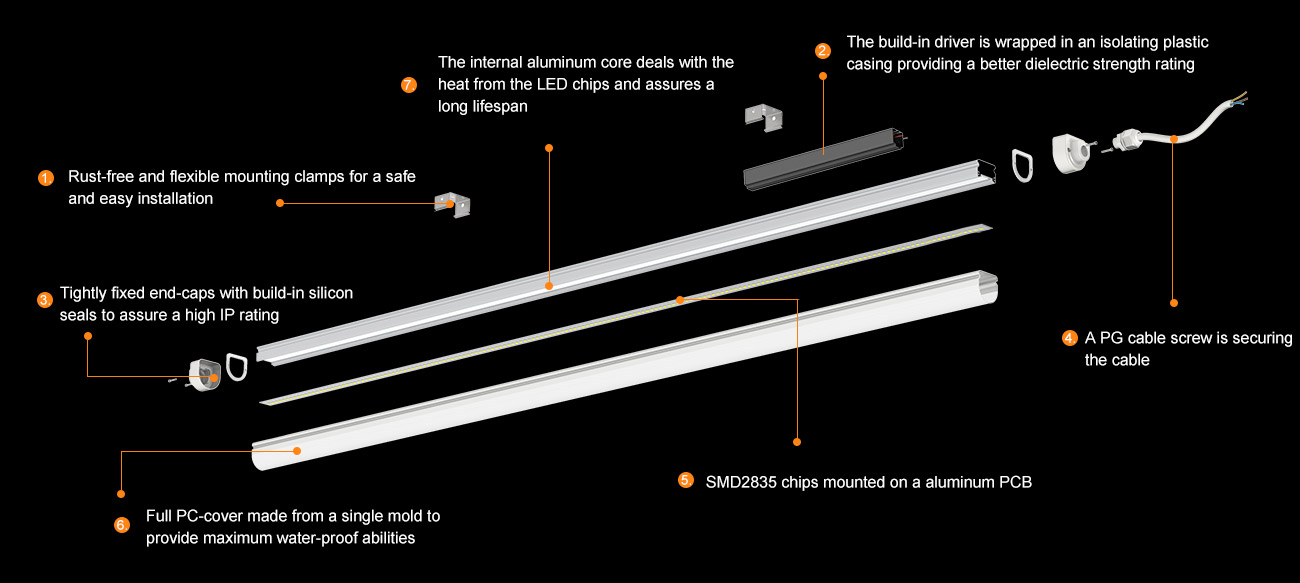

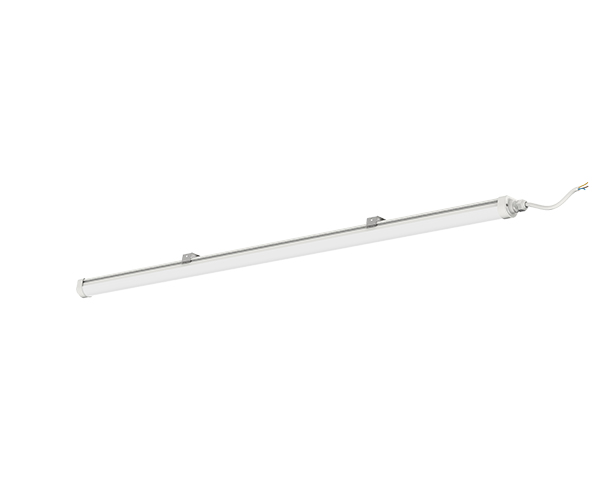

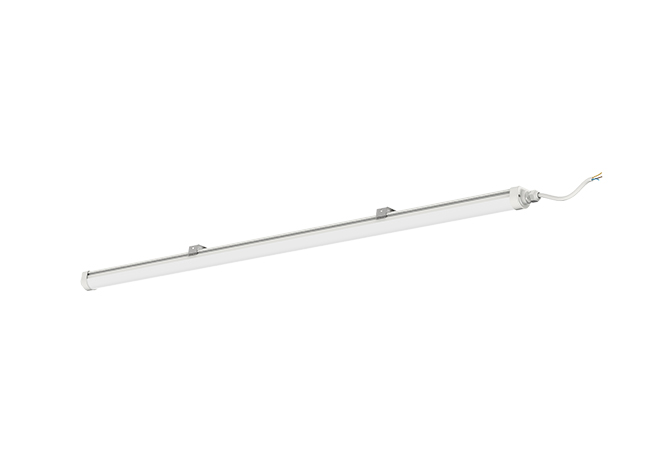

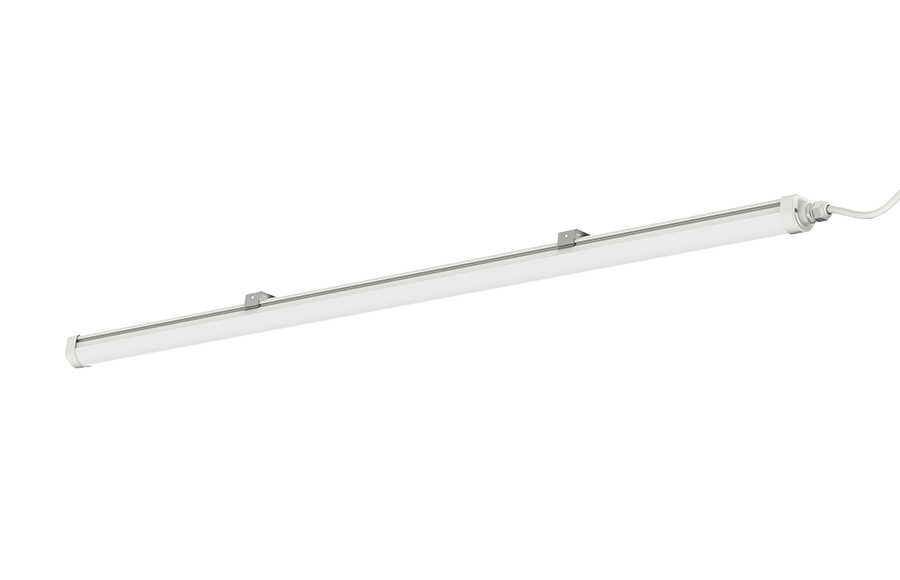

The E-Slim T54 Tri-Proof light is the optimal solution for areas with harsh environmental conditions. Its main housing is made from a single mold and its end-caps are tightly fixed which allows for optimal water and dust resistance. The connection cable is secured by a water tight PG cable screw. Its highly efficient SMD2835 chips and the high transparent PC cover provide a very homogeneous light distribution. Its uniquely rugged and low-profile design is ideal for space-constrained industrial applications requiring a durable and energy-efficient solution.
-CRI90 available upon request
-European market: CE(EMC,LVD), RoHS
1. Drill holes in the ceiling/wall.

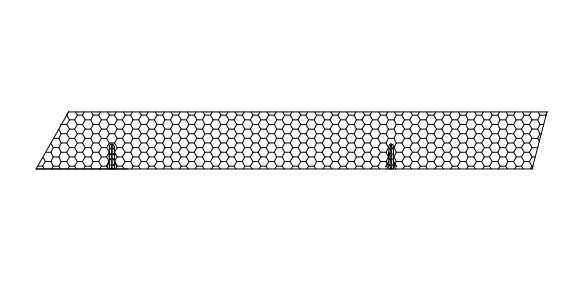

2. Put in dowels.

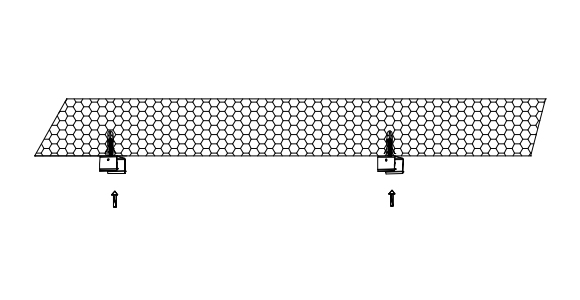

3. Screw on the mounting clamps.

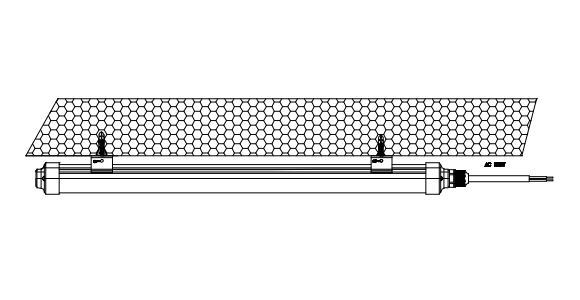

4. Install the light on the clamps.
5. Secure the clamps and connect the power cable.

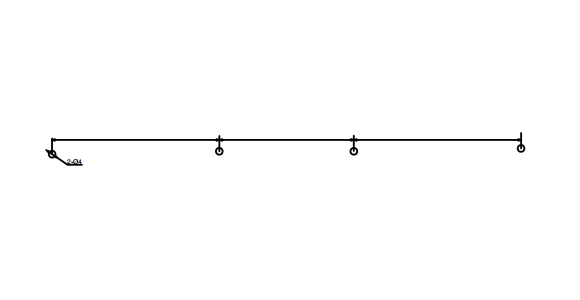

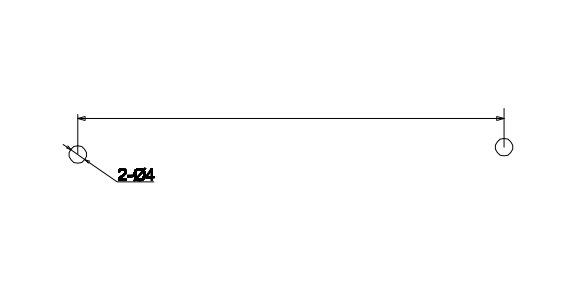

1. Drill holes in the ceiling/wall.

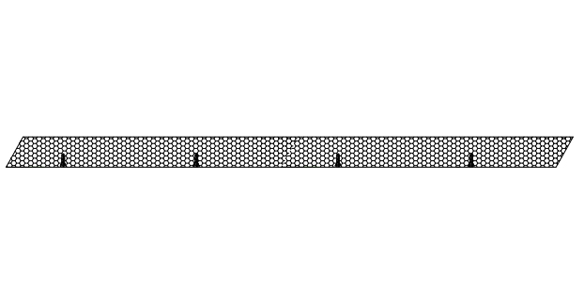

2. Put in dowels.

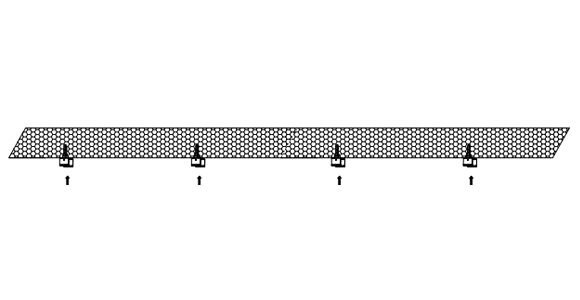

3. Screw on the mounting clamp.

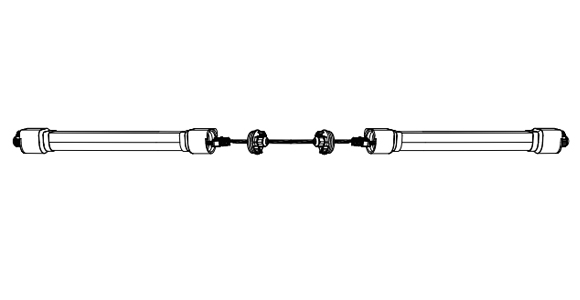

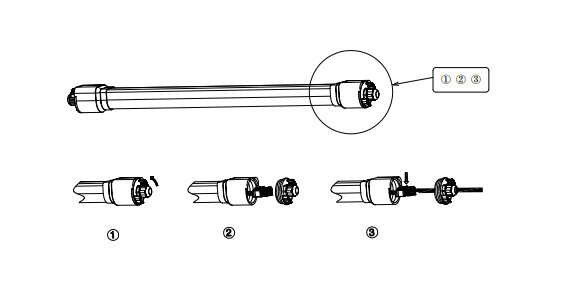

4. Open the covers on both sides.
5. Connect the power cables.

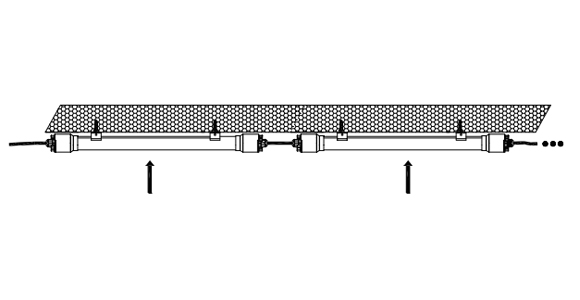

6. Install the light on the clamps.

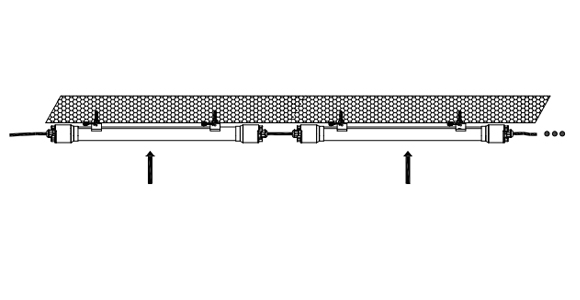

7. Secure the clamps.

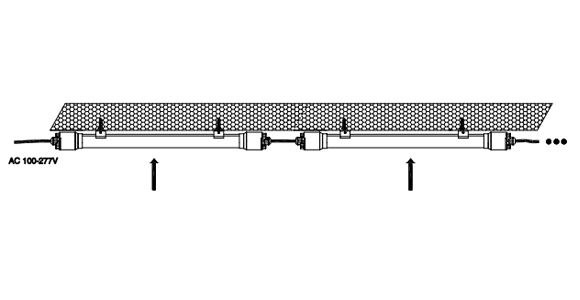

8. Secure the clamps and connect the power cable.
Corridors/hallways, Storage areas, Stairways, Parking lots, Gas stations, Car wash/auto body operations，Other applications subject to harsh, wet, or otherwise challenging conditions
Cold storage
Parking lot
Food processing
Car washing
| Standard lumen (130lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T54-20W12 | 20 |
AC100~277V 50~60Hz |
130±10 | 2600±200 | 120° | 125PCS SMD 2835 | >80Ra |
| T54-30W12 | 30 | 130±10 | 3900±300 | 125PCS SMD 2835 | |||
| T54-30W15 | 30 | 130±10 | 3900±300 | 168PCS SMD 2835 | |||
| T54-40W15 | 40 | 130±10 | 4800±200 | 168PCS SMD 2835 | |||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >80 | ||
| Efficiency in % | >92% | Standard deviation of color matching | <3 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 | ||
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 120° | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection |
standalone (IP67)
continuous (IP65)
|
Heatsink temperature | -20~+65℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+40℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | CE RoHS | ||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | |||
|---|---|---|---|---|
| Rated nominal Lifetime | 50.000 hours | Base/Socket | Directly wired | |
| Switching cycles | 100.000 times | Dimmable | / | |
| Lumen maintenance at e.o.l. | 70% | |||
| LED Device Lifetime | ||||
| Packing Information | |||||
|---|---|---|---|---|---|

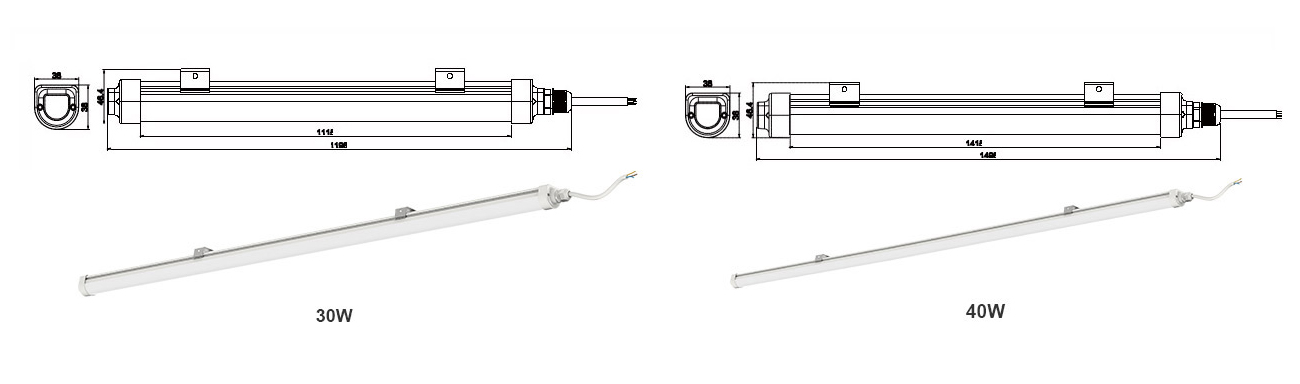

| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T54-20W12/30W12 | 1198*38*38 | 126*25*21 | 20PCS | 0.8 | 22 |
| T54-30W15/40W15 | 1498*38*38 | 156*25*21 | 20PCS | 1.2 | 33 |
