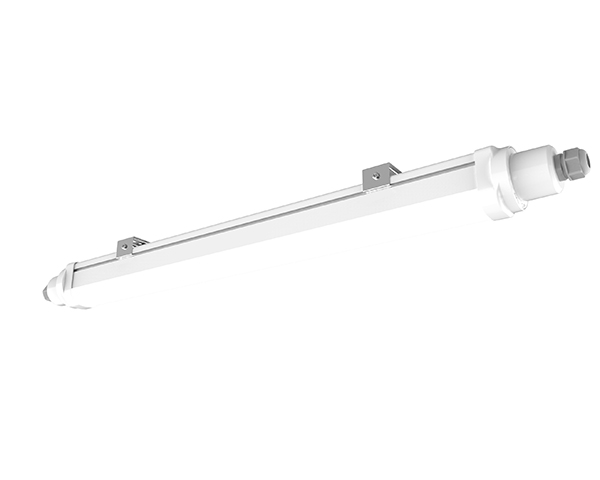

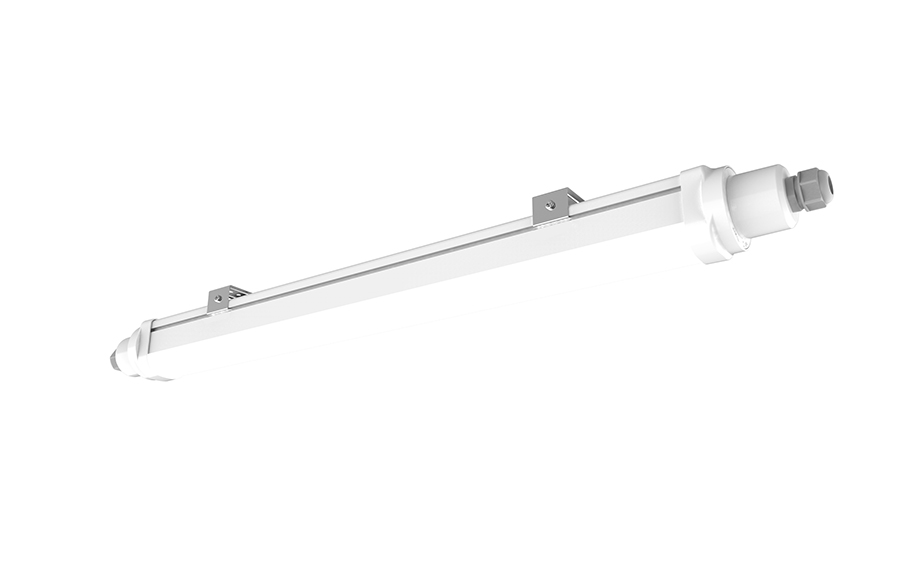

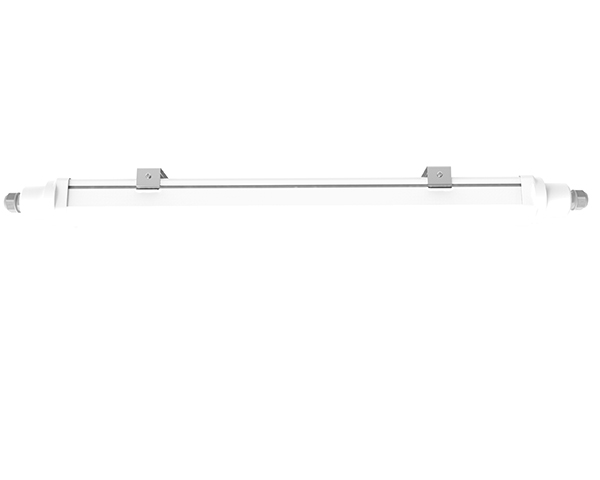

E-Max T55 Tri-proof Light


1.Highly energy efficient - up to 130lm/w.

2.Both standalone and continuous mounting are available.

3.Easy installation to save labor cost.

4.IP65 for both indoor and outdoor use.

5.5 years warranty.

Inquire Now

Description Parameter
  T55Tri-proofLight

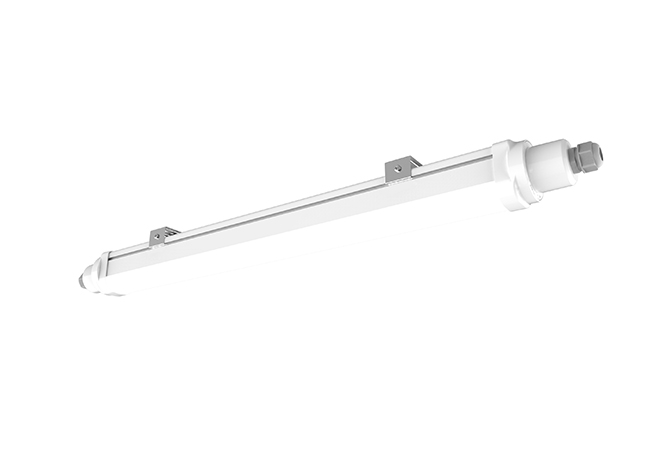

Product Video

E-Max T55 Tri-proof light is a high efficient and reliable LED waterproof luminaire with a uniform light distribution designed for industrial application with humid and dust protection requirement. Both standalone and continuous mounting are available. The process of continuous installation is so easy and it can be finished within 10 seconds. With PC material housing and diffuser, it is an ideal lighting solution for canopy, food industry, parking garages, car washers..

Options

-CRI90 available upon request

Certificates

-Europeanmarket: CE(EMC,LVD,RoHS)

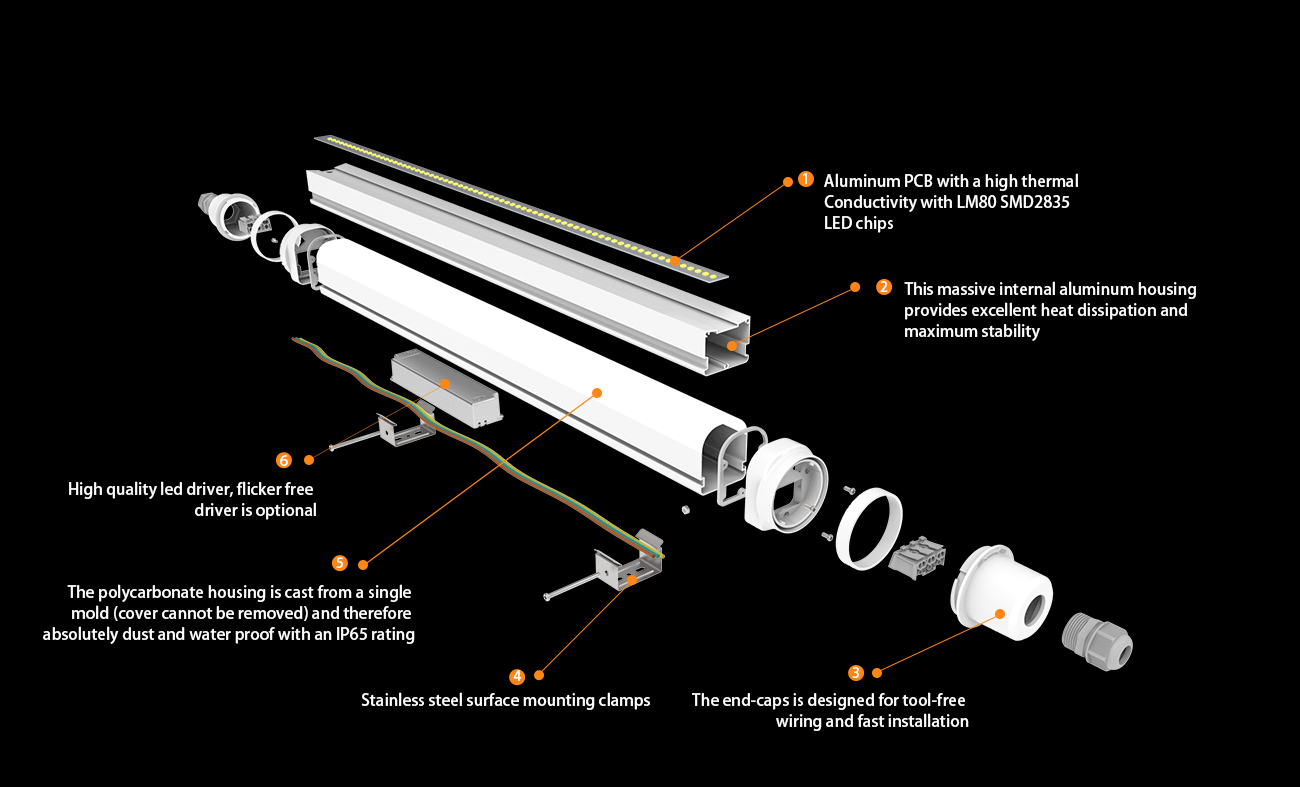

Product Details

Installation Instructions for standalone version

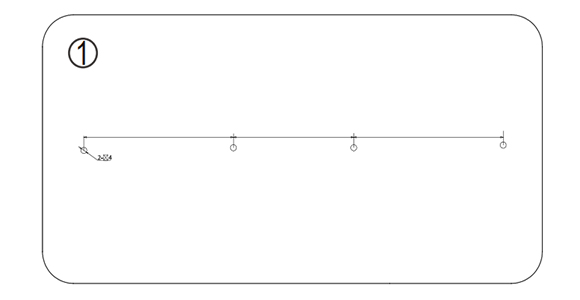

  • 1. Drill holes in the ceiling/wall.

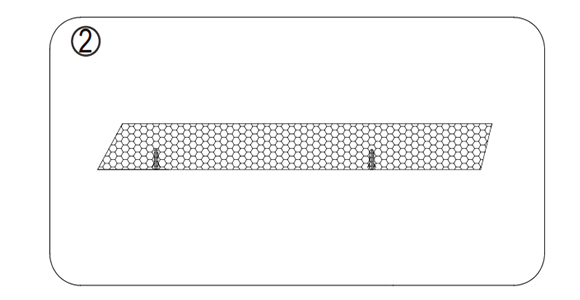

  • 2. Put in dowels.

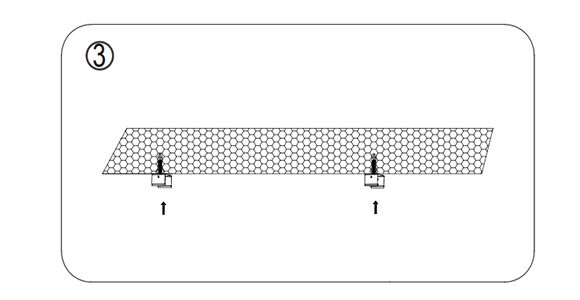

  • 3. Screw on the mounting clamps.

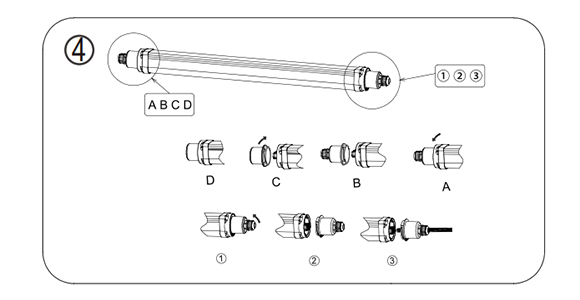

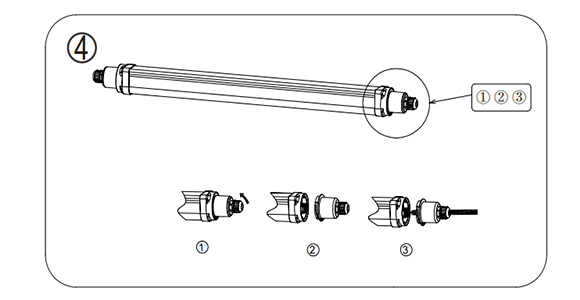

  • 4. Loosen one end cap and connect the power cable (steps ①②③), change the other end cap into imperforate cap (steps ABCD).

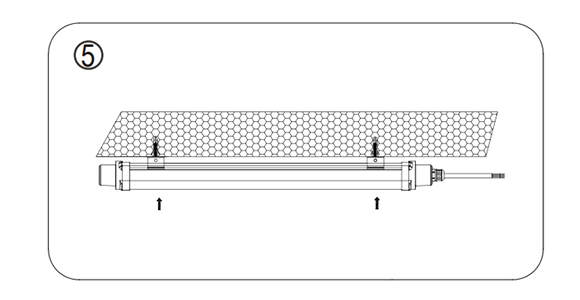

  • 5. Install the fixture on the clamps.

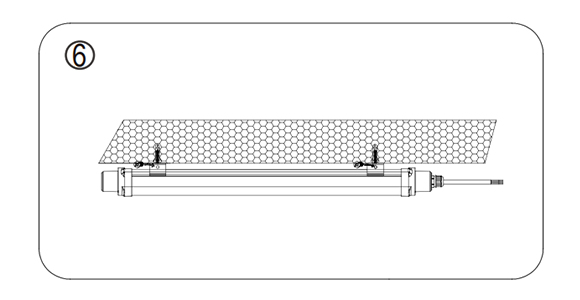

  • 6. Secure the screws on the clamps to prevent the fixture from dropping.

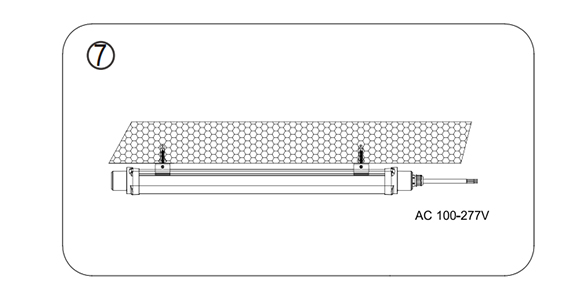

  • 7. Connect the power line AC100-277V.

Surface Mounting Installation instructions for linkable use:

  • 1. Drill holes in the ceiling/wall at the position you want the fixture to be installed.

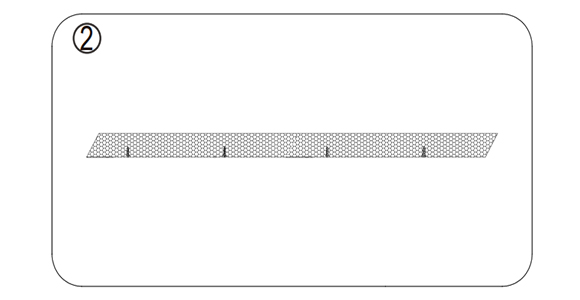

  • 2. Punch the expansion screw into the hole.

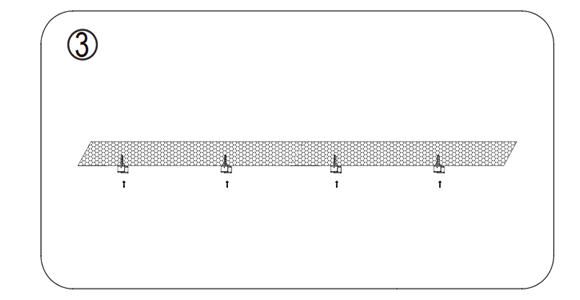

  • 3. Fix the mounting clamps into the hole with screws.

  • 4. Open the end cap of the fixture and connect the power lines.

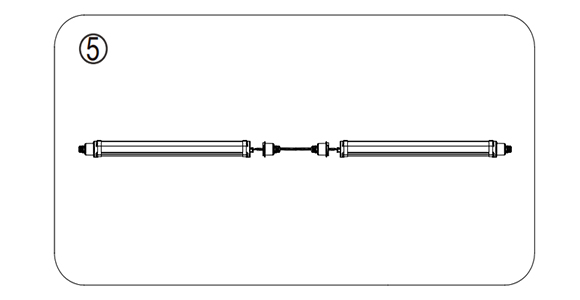

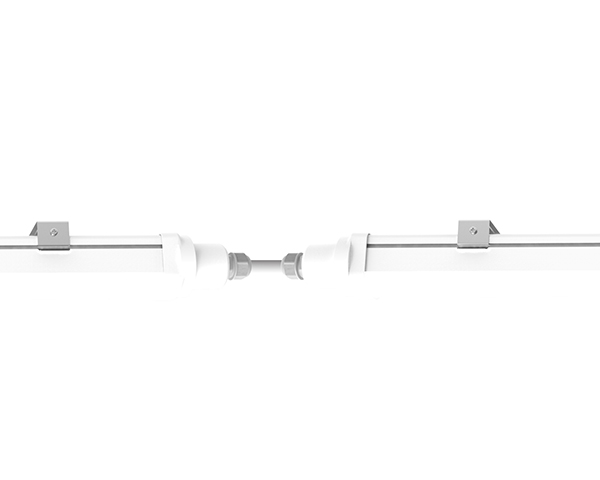

  • 5. Connect the fixture one by one in series.

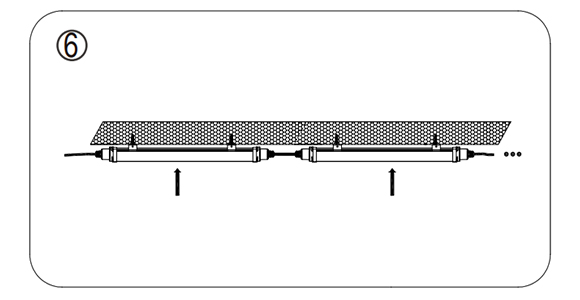

  • 6. Secure the fixture into the mounting clamps tightly.

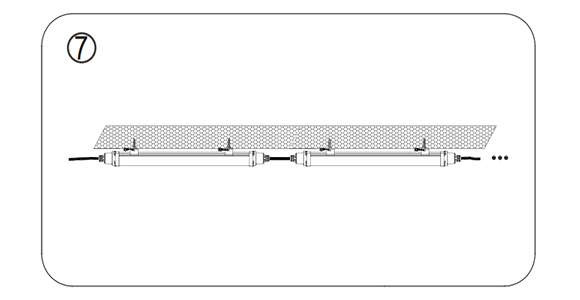

  • 7.Lock the screws of the mounting clamps to prevent the fixture from falling off.

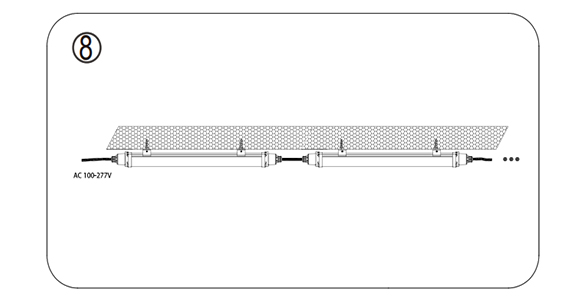

  • 8. Turn on the power.

Area of application

Corridors/hallways, Storage areas, Stairways, Parking lots, Gas stations, Car wash/auto body operations,Other applications subject to harsh, wet, or otherwise challenging conditions

  • Cold storage

  • Parking lot

  • Food processing

  • Car washing


Basic Specifications
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T55-30W12 30W AC100~277V
50~60Hz
135±10 4050±300 120° 126PCS SMD2835  >80Ra
T55-40W12 40W 130±10 5200±400 126PCS  SMD2835
T55-50W12 50W 135±10 6750±500 171PCS  SMD2835
T55-60W12 60W 130±10 7800±600 171PCS  SMD2835
T55-60W15 60W 130±10 7800±600 171PCS  SMD2835
T55-80W24 80W 135±10 10800±800 252PCS SMD2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <25
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 120°
Standards & Certification   Temperatures & operating conditions
Type of protection
IP65
Heatsink temperature 20~+69℃
Tested dielectric strength  3.75KVac Ambient temperature -30~+40℃
Safety features  Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+50℃
Certificates CE RoHS
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5Years Base/Socket Directly wired
Switching cycles  100.000 times Dimmable /
Lumen maintenance at e.o.l.  70%
Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T55-30W12 1300*70*70MM 131.5*37.8*16.7 10PCS 1.35 18.5
T55-40W12 1300*70*70MM 131.5*37.8*16.7 10PCS 1.35 18.5
T55-50W12 1300*70*70MM 131.5*37.8*16.7 10PCS 1.35 18.5
T55-60W12 1300*70*70MM 131.5*37.8*16.7 10PCS 1.35 18.5
T55-60W15 1600*70*70MM 161.5*23.2*16.7 6PCS 1.62 13.8
T55-80W24 2490*70*70MM 250.5*16*16.7 4PCS 2.38 14.5

Product Dimension

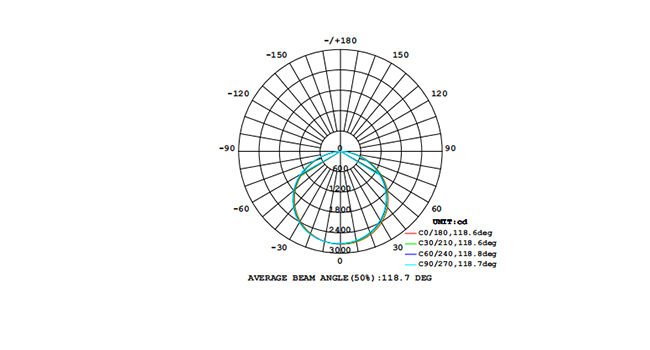

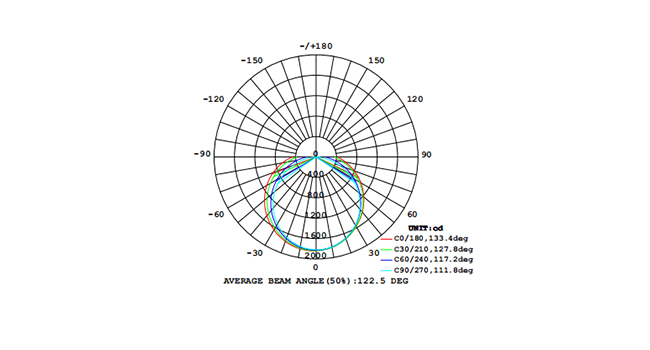

Light Distribution Curve
