1.Very high efficiency 160lm/W
2.Excellent thermal management ensures long system lifetime
3.IP65 and IK10 protection grade
4.Cost effective solution
5.5 years warranty
Inquire Now

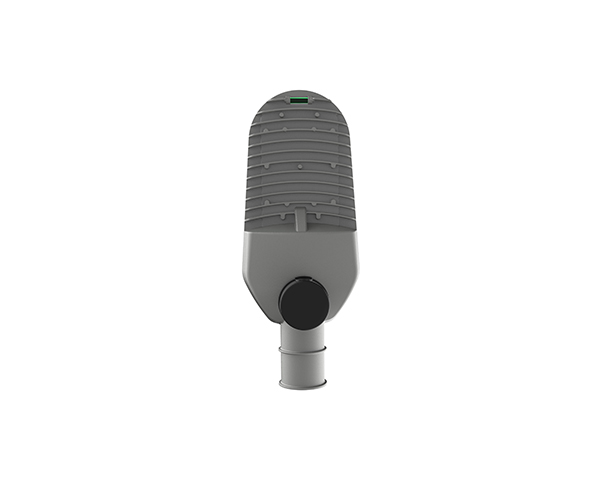

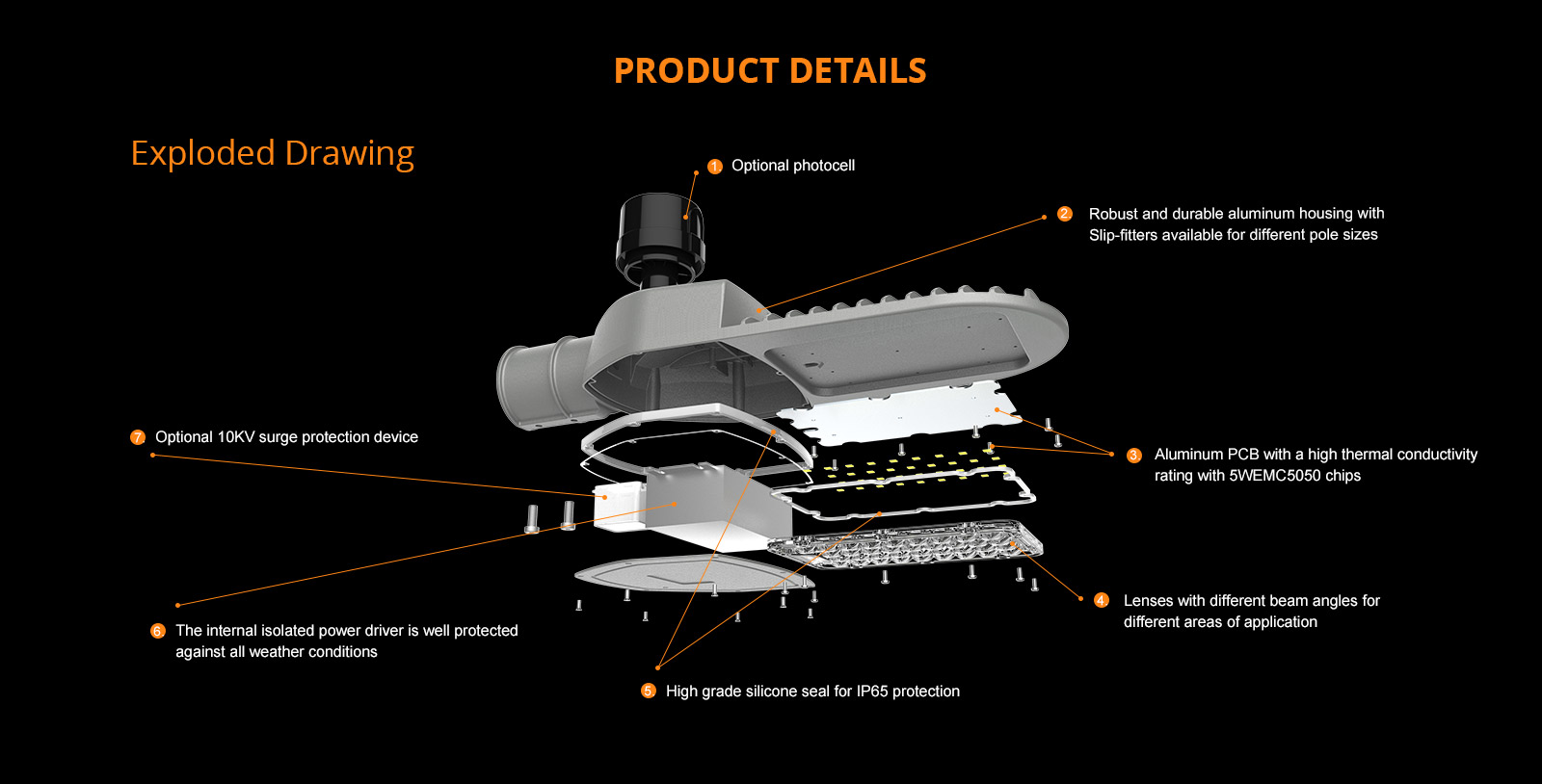

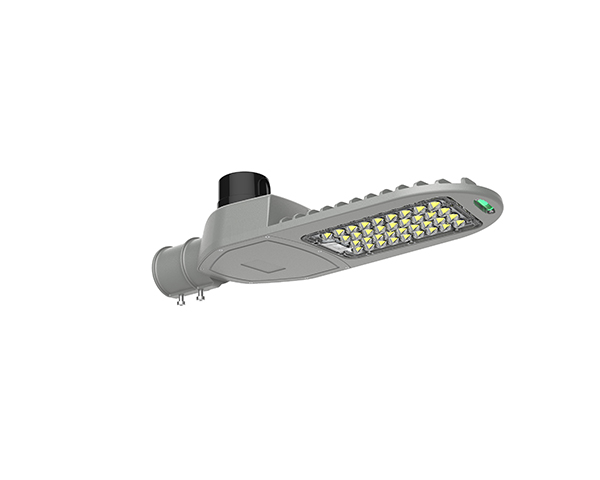

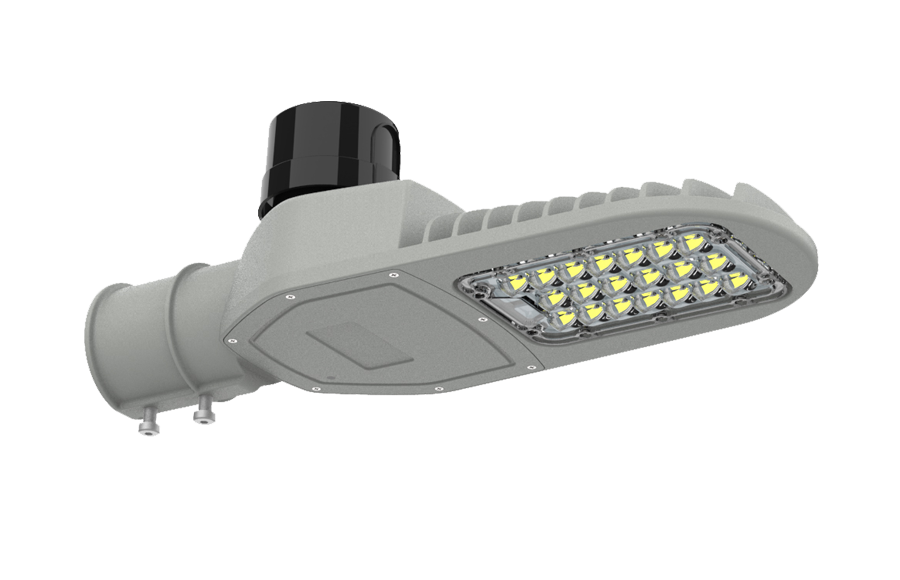

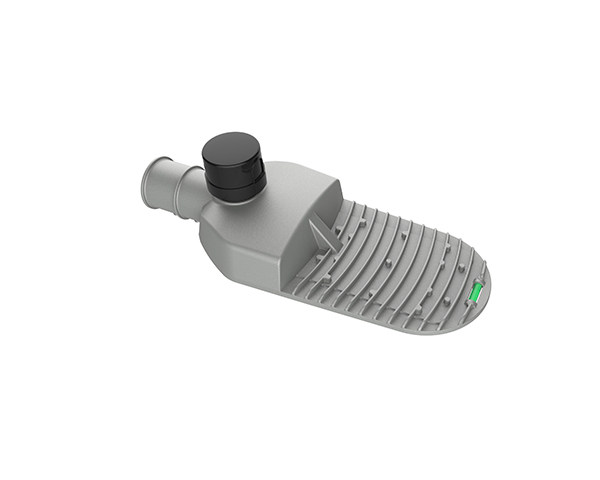

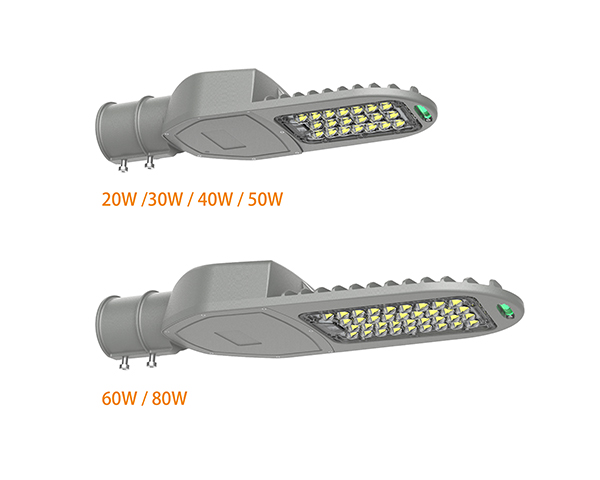

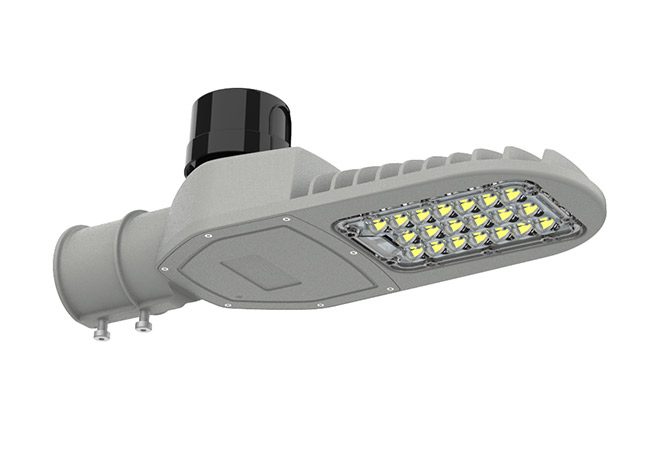

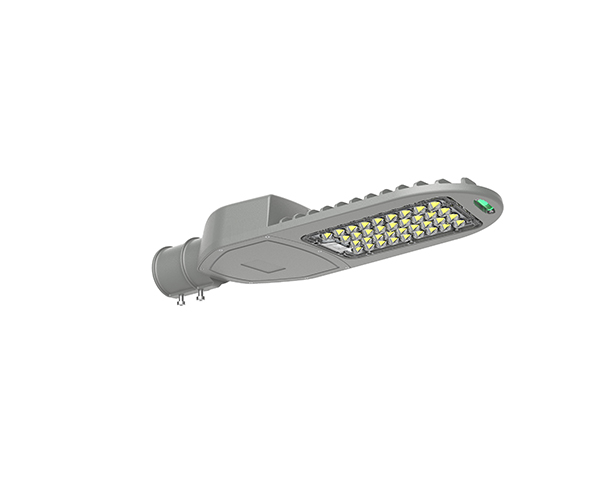

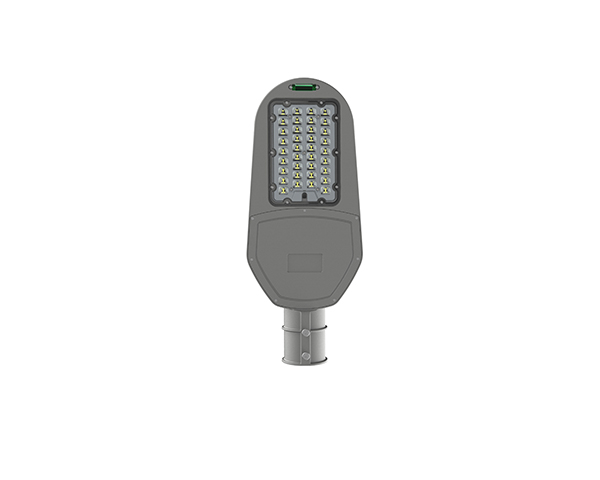

Easyway T63 LED street light offers an affordable LED road lighting solution to the customer for both pedestrian and vehicle road applications. Its die-cast aluminum housing and high quality Tomcarline power driver ensures long lifetime and reliability. It offers 2 housing sizes and beam optics for road and street with 2 or 3 lanes. With 5W EMC 5050 led chips, it reaches 160lm/w for the system efficiency and helps the customer to save more energy.
-10KV surge protection
-1-10V dimmable driver
-Photocell
-European Market: CE, RoHS
Road and street
Roads and streets
Parking lots
| Standard lumen (150~160lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T63-20W | 20W |
AC100~277V 50~60Hz |
165±10 | 3300±200 | TYPE2-S |
20 PCS 5W EMC 5050 |
>70 |
| T63-30W | 30W | 160±10 | 4800±300 |
20 PCS 5W EMC 5050 |
|||
| T63-40W | 40W | 155±10 | 6200±400 |
20 PCS 5W EMC 5050 |
|||
| T63-50W | 50W | 150±10 | 7500±500 |
20 PCS 5W EMC 5050 |
|||
| T63-60W | 60W | 160±10 | 9600±600 | TYPE3-M |
36 PCS 5W EMC 5050 |
||
| T63-80W | 80W | 155±10 | 12400±800 |
36 PCS 5W EMC 5050 |
|||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >70 | ||
| Efficiency in % | >92% | Color rendering index Ra | <5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 | ||
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | TYPE3-M | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | 5~+70℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | CE，ROHS | ||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | |||
|---|---|---|---|---|
| Rated nominal Lifetime | 5 Years | Base/Socket | Directly wired | |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable | |
| Lumen maintenance at e.o.l. | 70% | |||
