Shine a Light in Every Corner!
Shine a Light in Every Corner!
1.High efficiency up to 140lm/w
2.IP65
3.Wide 150° degree light distribution
4.Quick to install and easy to use, secure and reliable
5.5 Years warranty
Inquire Now

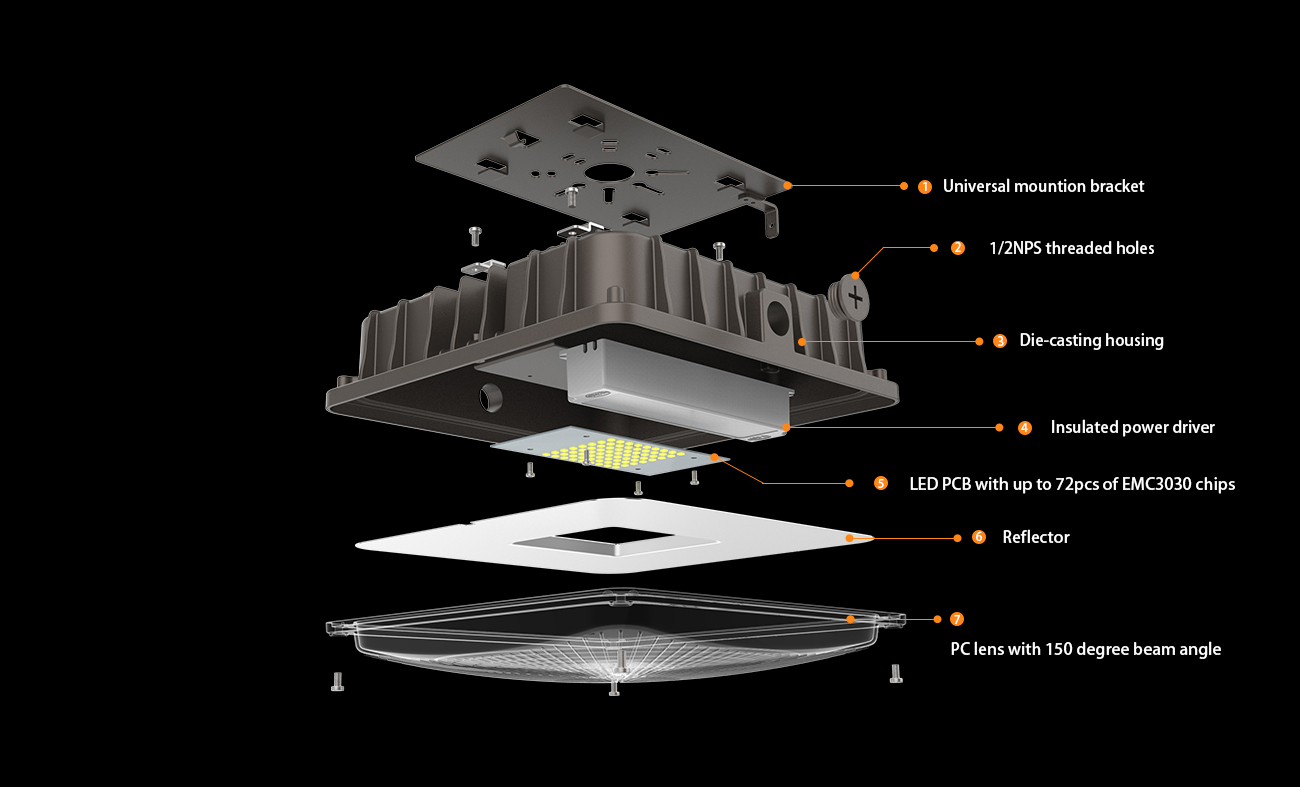

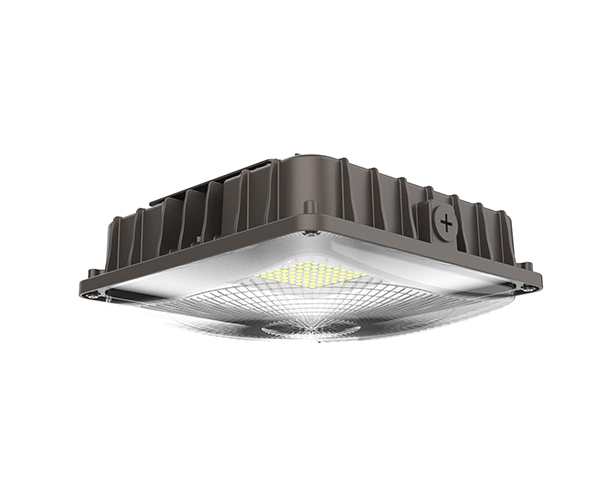

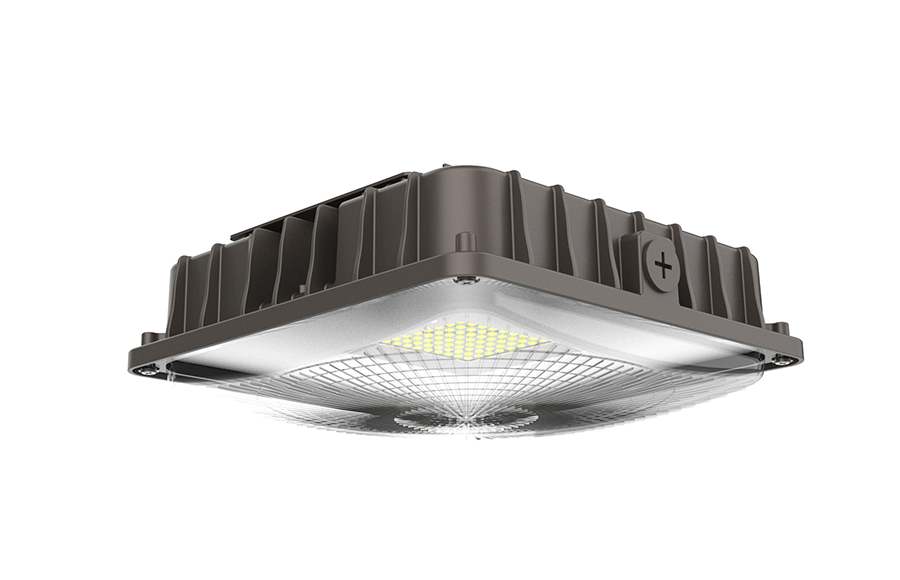

The SPARK parking garage light fixture is designed to meet the lighting needs of parking garages, parking lots and similar facilities while providing substantial cost savings. Its 40W and 60W are replacement options for 225W to 325W of Traditional Lighting Resulting in Up to 80% Savings. The bright, uniform illumination diminishes shadows and improves visibility, helping people feel safer and drivers feel more in control.
-Microwave motion sensor
-Daylight sensor

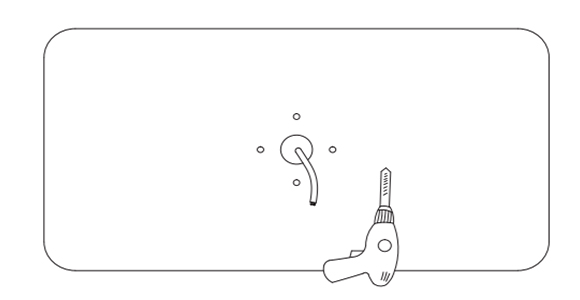

1.Drill 4 holes in the ceiling/wall.

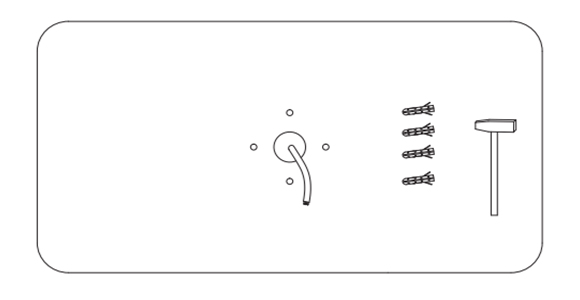

2. Put in the dowels.

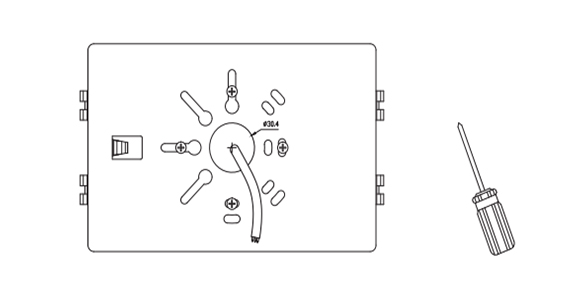

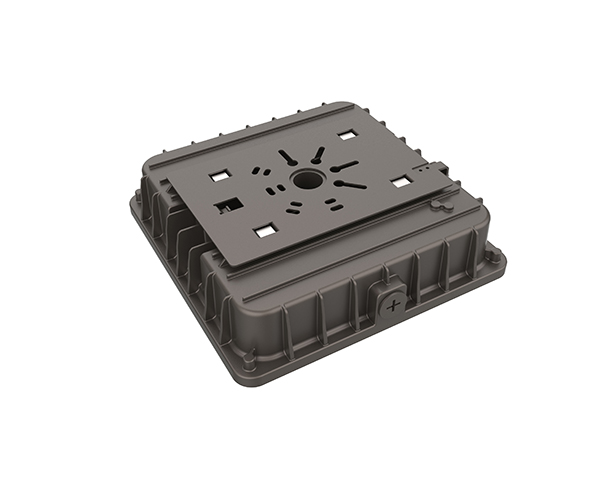

3. Screw on the mounting bracket

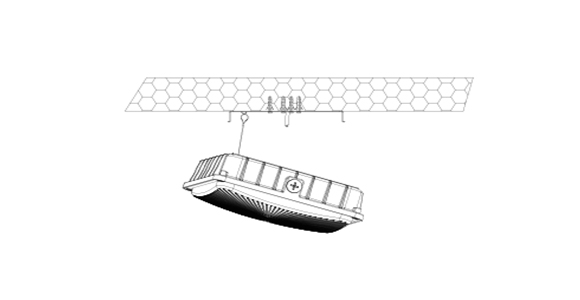

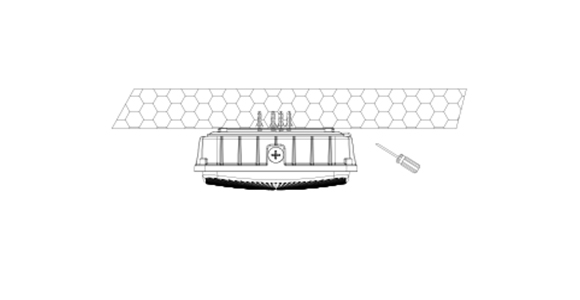

4. Put the light on the bracket and connect the cable
5. Connect the power cable

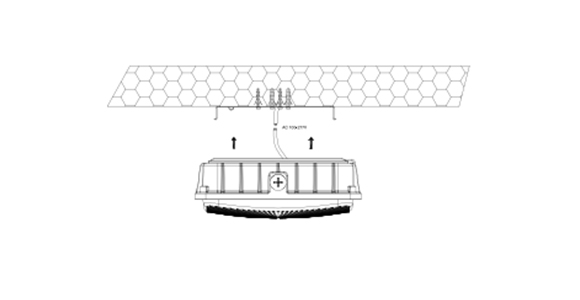

6.Connect the fixture to the mounting bracket
Garages and parking lots; Entrance areas and walkways; Stairways & storage areas
Cold storage
Parking lot
Car washing
| Standard lumen (140 Im/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| CPS-60W | 60W |
AC100~277V 50~60Hz |
130±10 | 7800±800 | 150° |
72 PCS
EMC 3030 |
>80Ra |
| CPS-40W | 40W | 130±10 |
5200±600
|
48PCS EMC 3030 |
|||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >80 | ||
| Efficiency in % | >90% |
Standard deviation of color
matching
|
<5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 | ||
| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 150° | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | 20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates |
North American market: UL, DLC
|
||
| Energy efficiency class | A+ & A++ | ||
| Lifespan | Features/Capabilities and additional product data | |||
|---|---|---|---|---|
| Rated nominal Lifetime | 5 Years | Base/Socket |
Wall mount // G3/4 tube mount
|
|
| Switching cycles | 100,000 times | Dimmable |
1-10V dimmable、DALI dimmable
|
|
| Lumen maintenance at e.o.l. | 70% | |||
| Packing Information | |||||
|---|---|---|---|---|---|

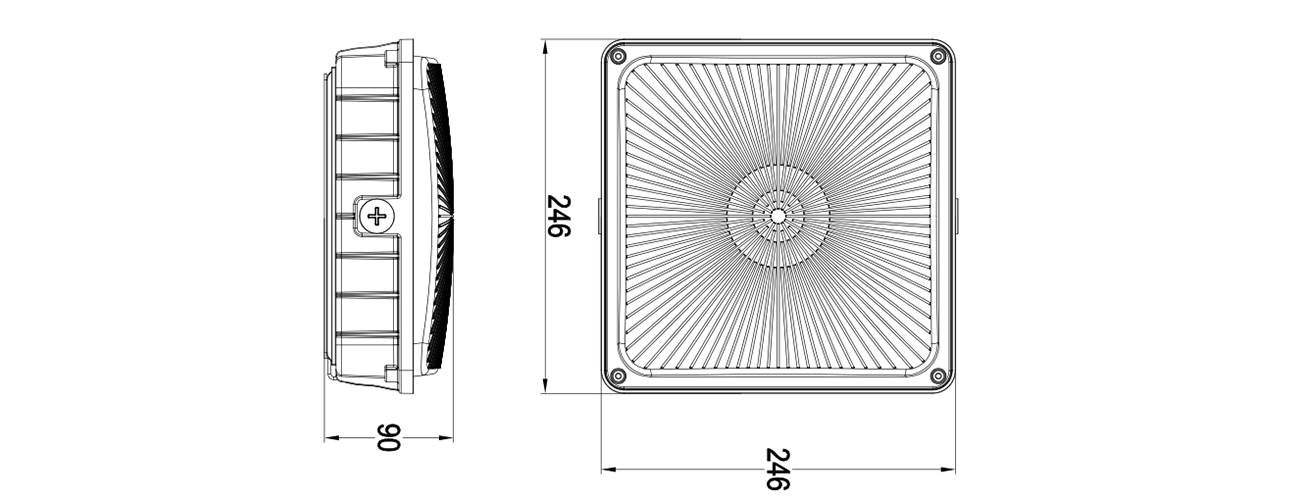

| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| CP-40W |
246*246*90
|
53.5*27.8*27.5
|
4PCS | 1.7 | 12.8 |
| CP-60W |
246*246*90
|
53.5*27.8*27.5
|
4PCS | 1.75 | 13 |
