Shine a Light in Every Corner!
Shine a Light in Every Corner!
1. Extrusive aluminum 6063 housing, outstanding heat dissipation performance
2. Extremely energy efficient - up to 170 lm/w
3. High Luminous flux - up to 54.400 lm
4. Durable and flicker-free power driver
5. IP42 for indoor usage
6. No UV or IR and completely mercury free
7. 5 Years warranty
Inquire Now

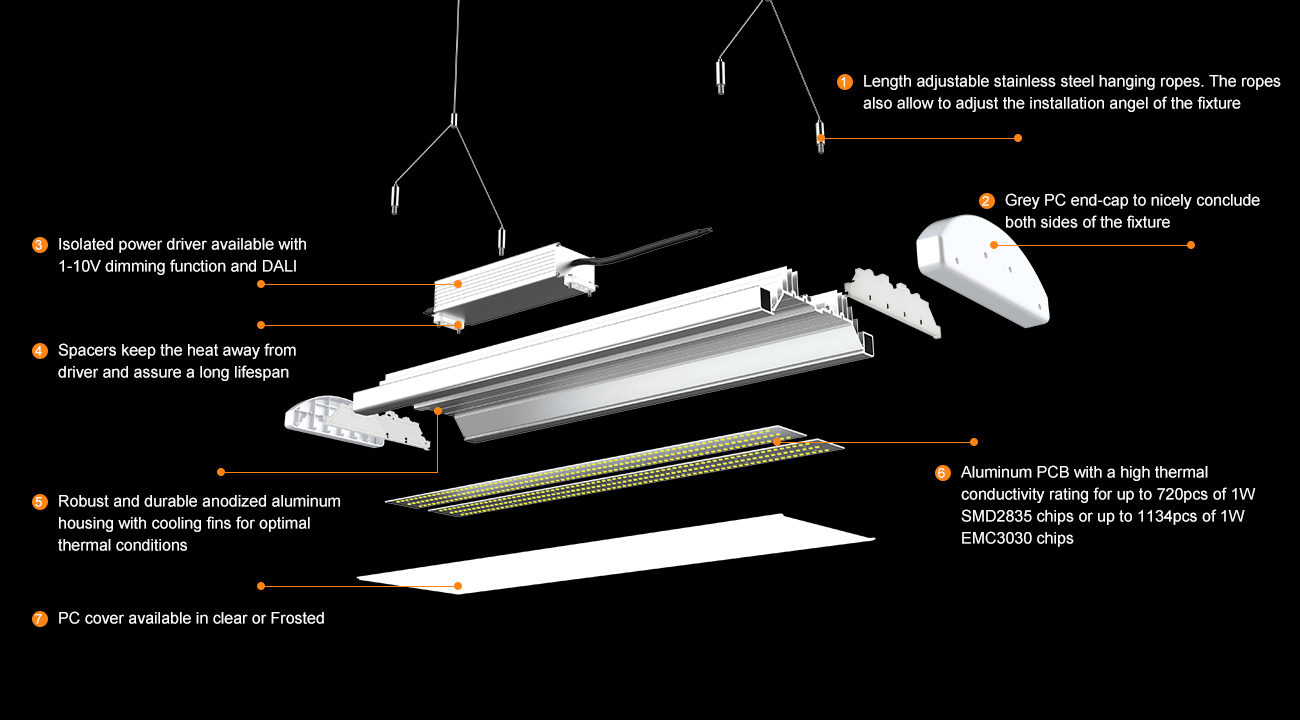

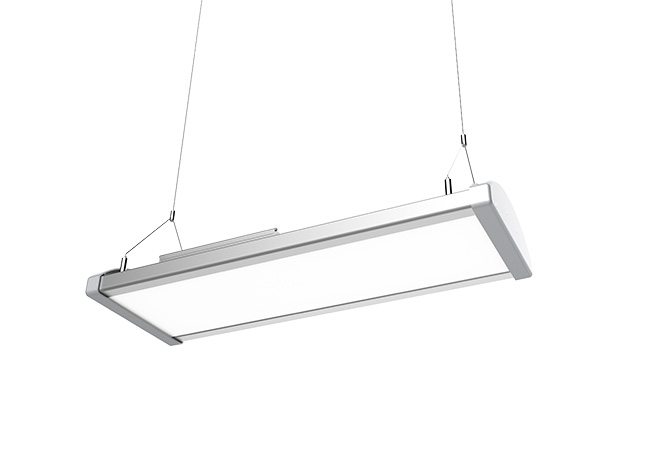

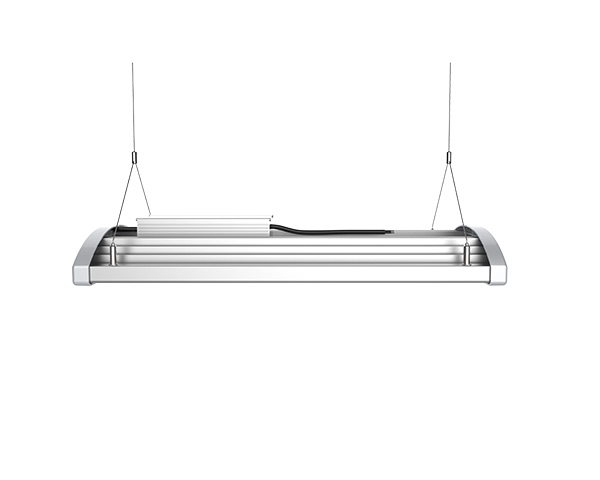

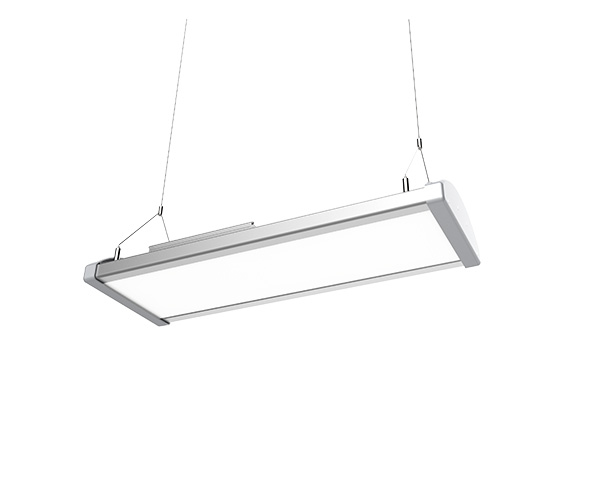

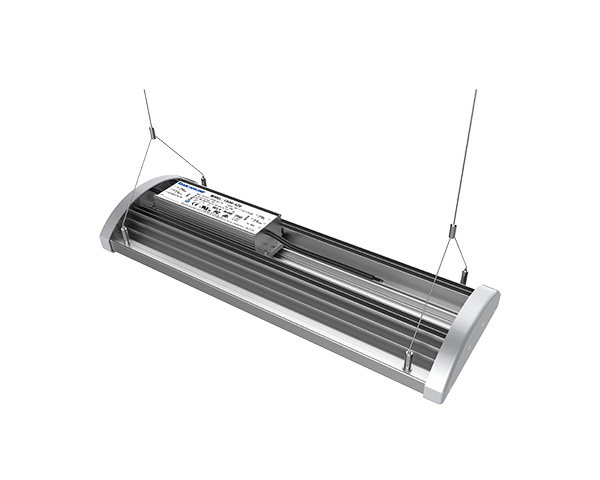

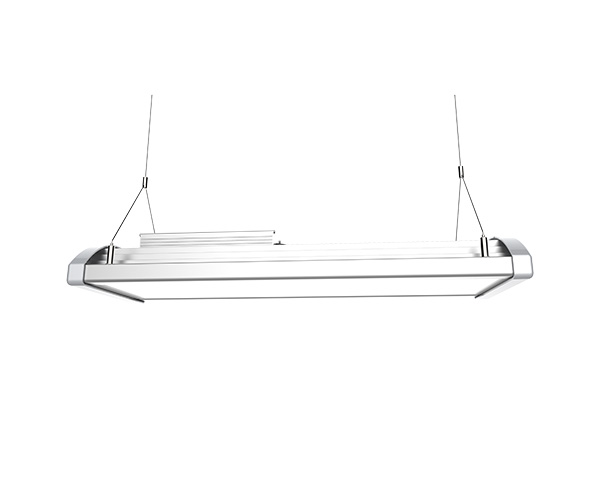

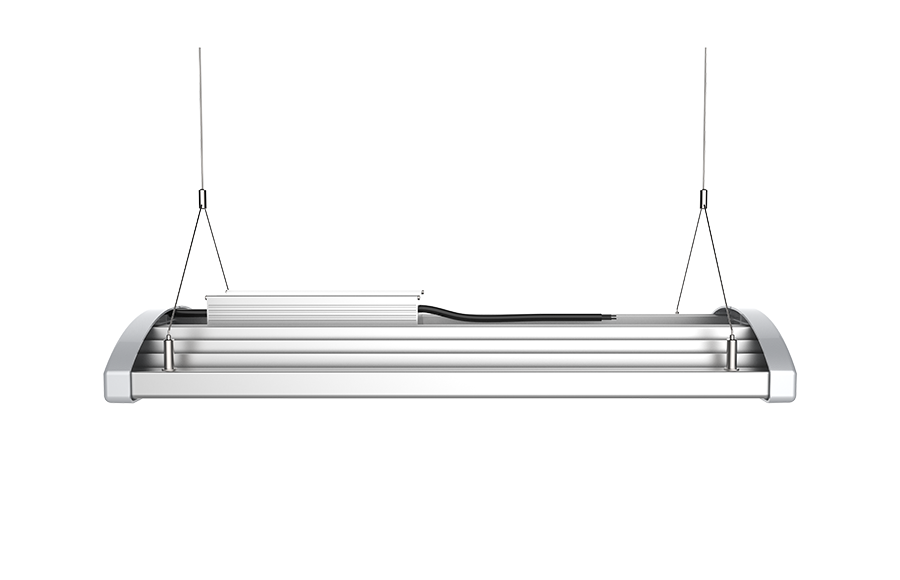

The Skyline LED Linear Highbay T19B is an excellent choice for many industrial areas. Its notably high system efficiency will maximize your rebates for energy companies and government rebate programs. With up to 320W and about 170lm/w (with clear cover) these fixtures can truly enlighten any workspace. The housing is made out of anodized aluminum and therefore very corrosion resistant. While the actual footprint of this fixture is relatively small, its total surface area is notably large because of its many cooling fins, which assure optimal heat dissipation and a long lifespan. With up to 720pcs of 1W SMD2835 chips for the 130lm/w version and up to 1134pcs of 1W EMC3030 chips for the 170lm/w version this fixture shows a very harmonic light distribution and very little light decay over time. Upon request an internal motion sensors can be provided as well as 1-10V dimmable and DALI dimmable.
-1-10V dimmable and DALI dimmable
-Clear and milky cover available
-Microwave motion sensor
-Emergency power supply
-Zigbee control
-European market: CE(EMC,LVD), RoHS

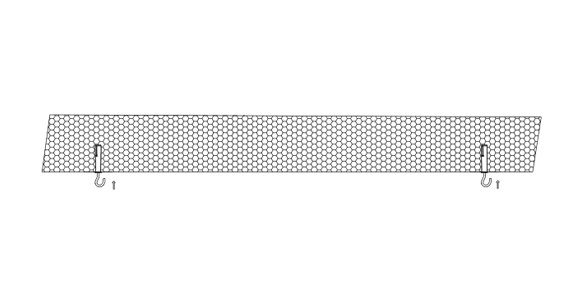

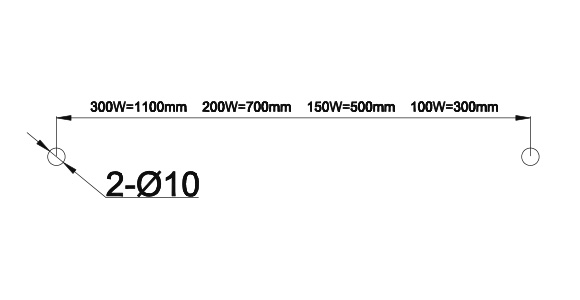

1. Drill a hole in the ceiling
2. Push in the hook
3. Secure the hook by tightening the nut

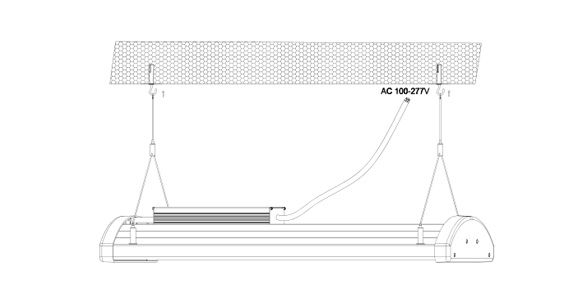

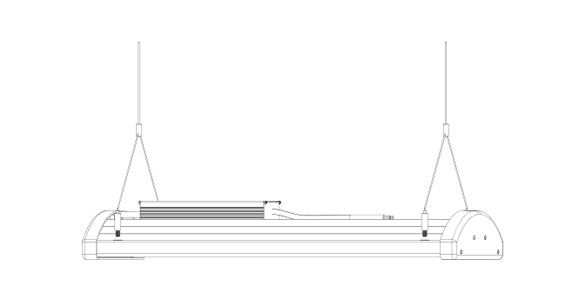

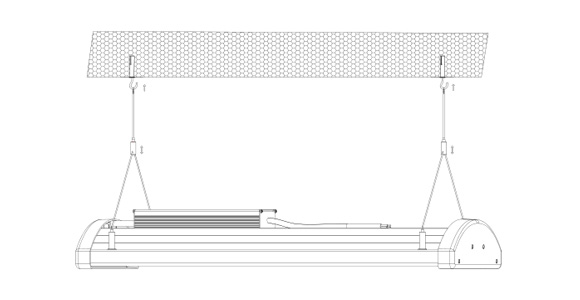

4. Hang the fixture on the hook
5. Connect the fixture to the power line
Factories and warehouses;High rooms and halls;Exhibition & showrooms
Warehouse
Supermarket
Factories
Sports
| Standard lumen (130lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T19B-100W04 | 100W |
AC100~277V 50~60Hz |
130±10 | 13000±1000 | 110° |
240 PCS SMD 2835 |
>80 |
| T19B-150W06 | 150W | 130±10 | 19500±1500 |
360 PCS SMD 2835 |
|||
| T19B-200W08 | 200W | 130±10 | 26000±2000 |
480 PCS SMD 2835 |
|||
| T19B-320W12 | 320W | 130±10 | 41600±3000 |
720 PCS SMD 2835 |
|||
| Lumen Plus (170lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| T19B-100W04 | 100W |
AC100~277V 50~60Hz |
160±10 | 16000±1000 | 110° |
378 PCS EMC 3030 |
>70 |
| T19B-150W06 | 150W | 160±10 | 24000±1500 |
546 PCS EMC 3030 |
|||
| T19B-200W08 | 200W | 160±10 | 32000±2000 |
714 PCS EMC 3030 |
|||
| T19B-320W12 | 320W | 160±10 | 51200±3000 |
1134 PCS EMC 3030 |
|||
| Electrical datas | Photometrical data | ||
|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white |
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K |
| Power factor λ | >0.9 | Color rendering index Ra | >80 |
| Efficiency in % | >90% | Standard deviation of color matching | <5 |
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <27 |

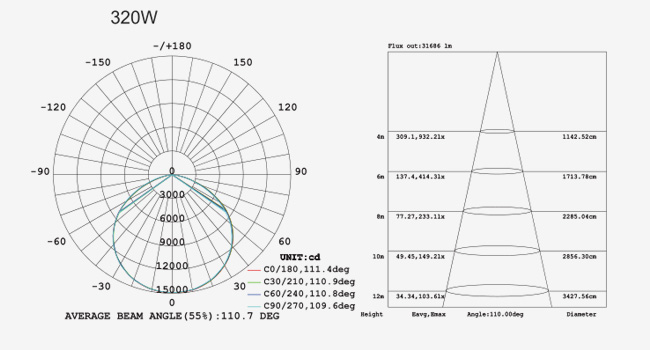

| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 110° |
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP42 | Heatsink temperature | -20~+60℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | CE DLC | ||
| Energy efficiency class | A++ | ||
| Lifespan | Features/Capabilities and additional product data | ||
|---|---|---|---|
| Rated nominal Lifetime | 50,000hours | Base/Socket | Directly wired |
| Switching cycles | 100,000 times | Dimmable | 1-10V dimmable, DALI dimmable, |
| Lumen maintenance at e.o.l. | L80/B10 | ||
| Packing Information | |||||
|---|---|---|---|---|---|

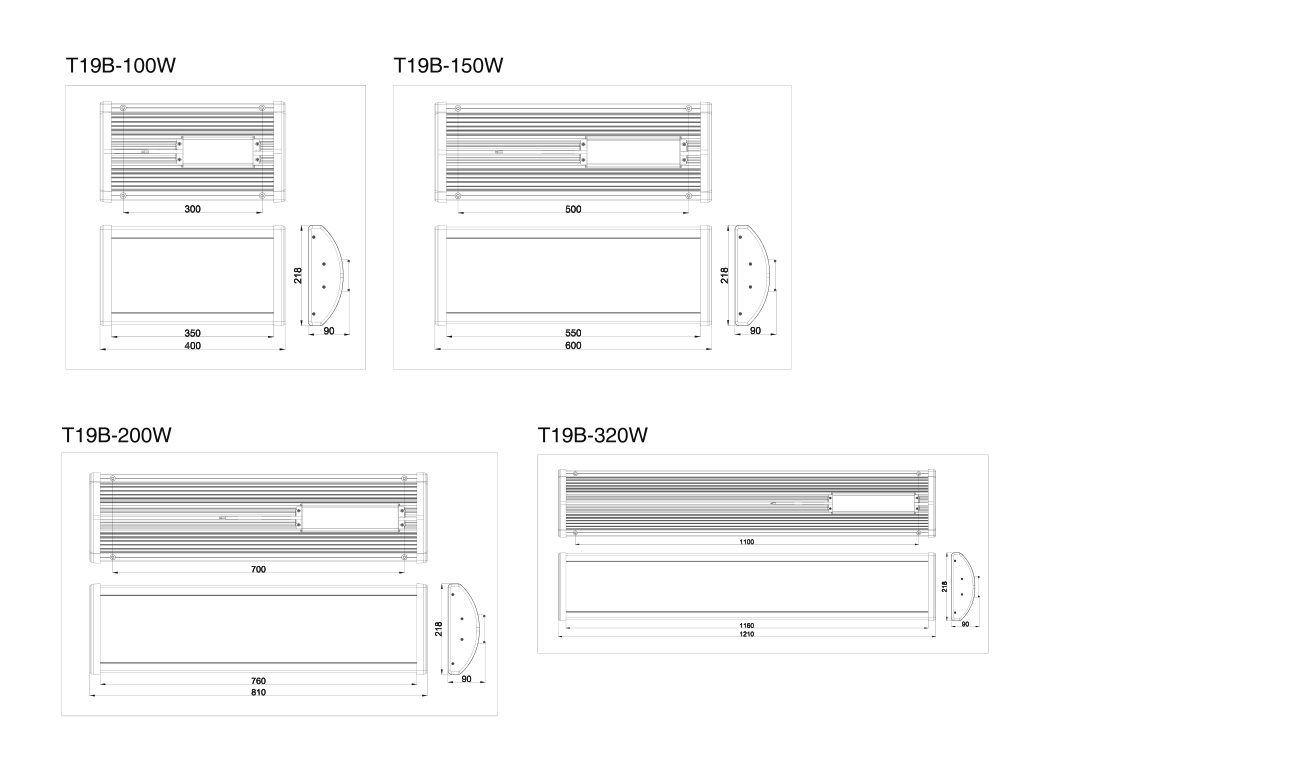

| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| T19B-100W04 | 400*218*90 | 97*26*15 | 2PCS | 3 | 8 |
| T19B-150W06 | 600*218*90 | 127*26*15 | 2PCS | 4 | 10.5 |
| T19B-200W08 | 810*218*90 | 97*26*15 | 1PCS | 5 | 7.5 |
| T19B-320W12 | 1210*218*90 | 127*26*15 | 1PCS | 7.5 | 10 |
