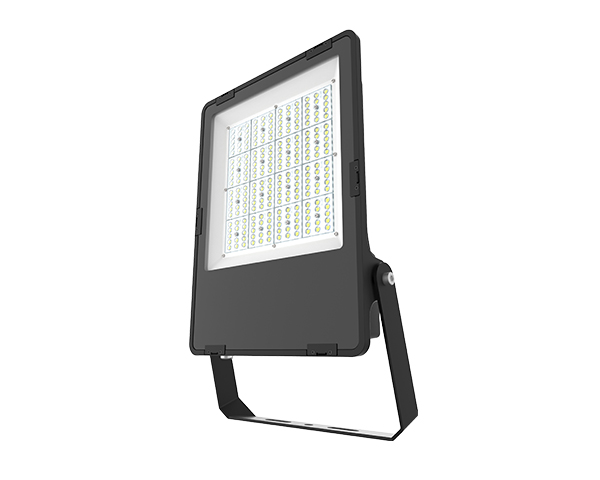

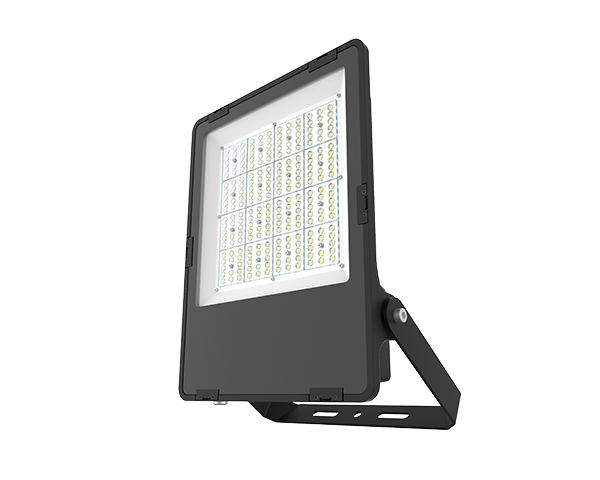

Champion T37 Flood Light


1.Modern and elegant design

2.Up to 180LM/W

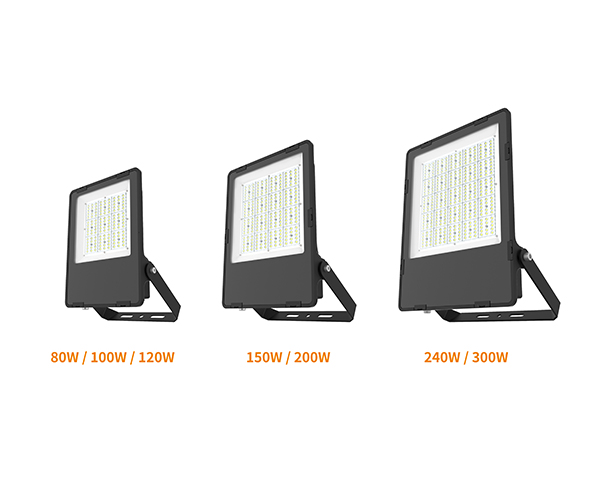

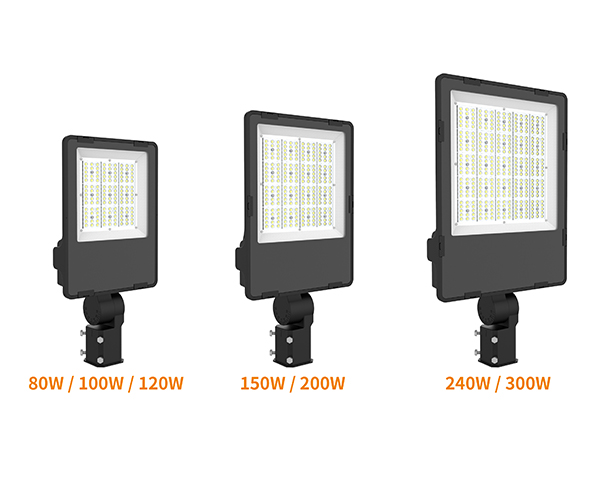

3.From 30W to 300W full range

4.IP67 grade protection

5.Different beam angle for options Asymmetrical light distribution is optional

Inquire Now

Description Parameter

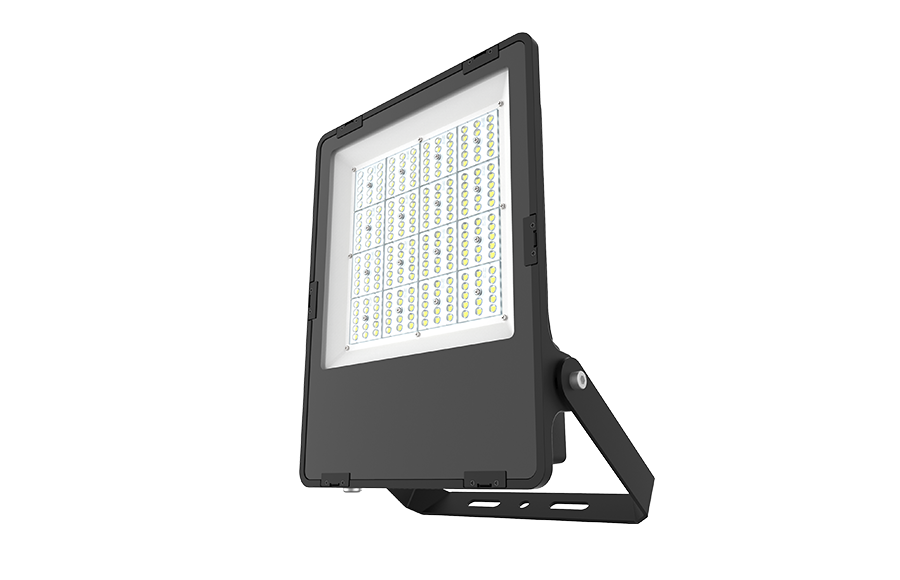

  LED Flood Light T37

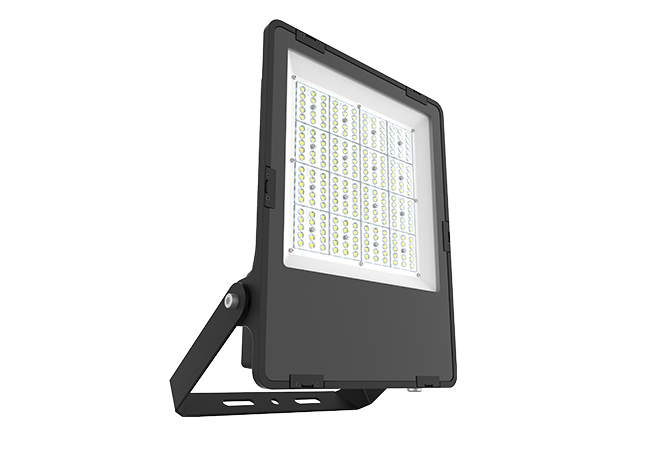

Product Video

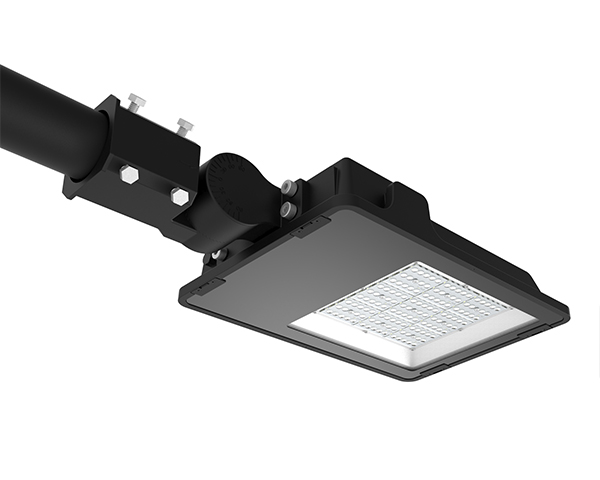

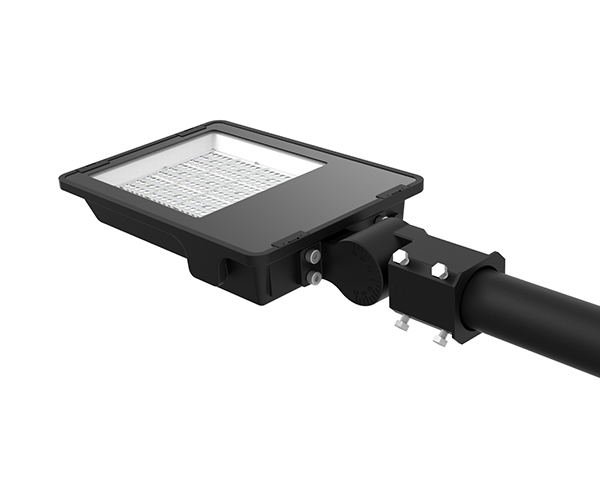

The flood light CHAMPION T37 is a cost-effective solution, with full range of wattage and optional light distribution, T37 is available for multiple applications. Multiple light distribution for different applications even for stadium and billboard. It can also be used as street light with slip fitter mounting accessory.

Options

-1-10V dimmable and DALI driver

-Microwave motion sensor

-SPD protection

Certificates

-European market: TUV CE RoHS

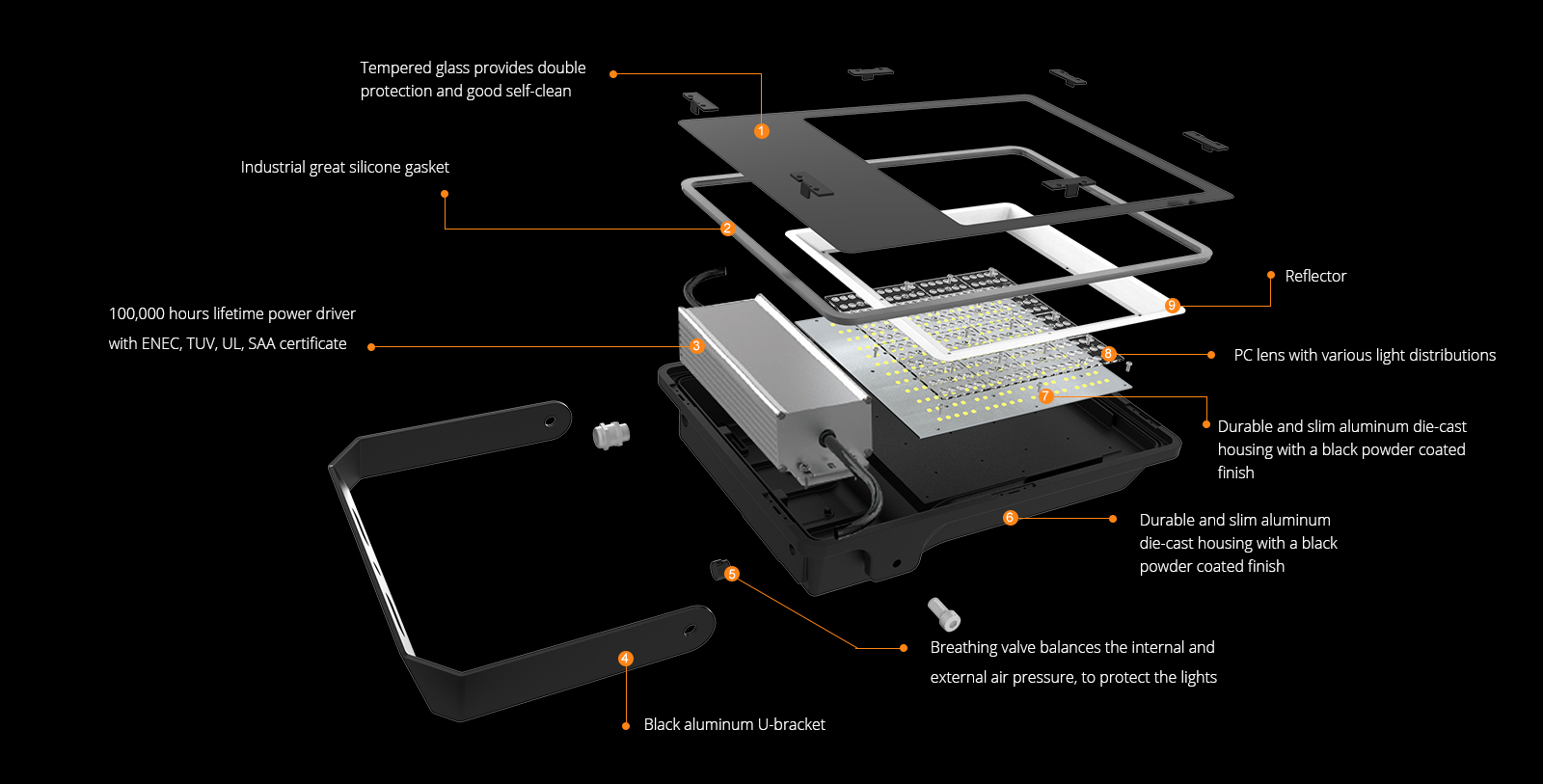

Product Details

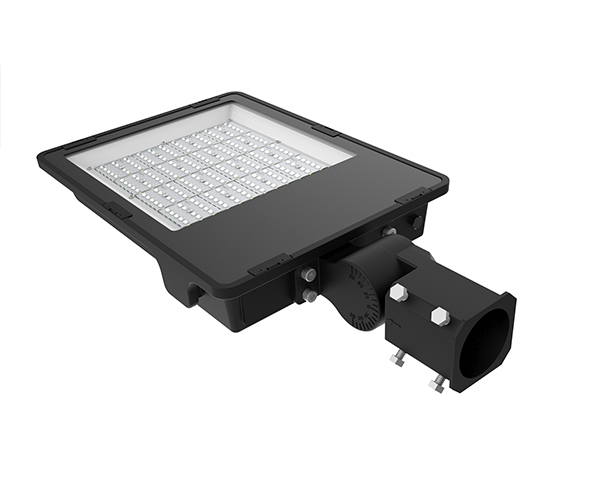

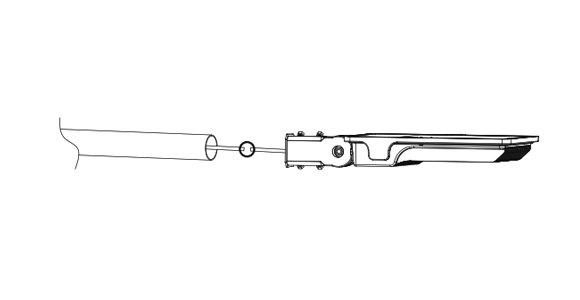

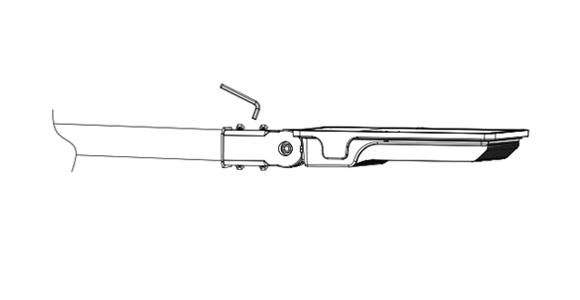

Street light installation Instruction

  • 1. Connect to power supply AC 100-277V.

  • 2. Install the hole lamp on the pole and tighten four M8 screws.

Flood light installation Instruction

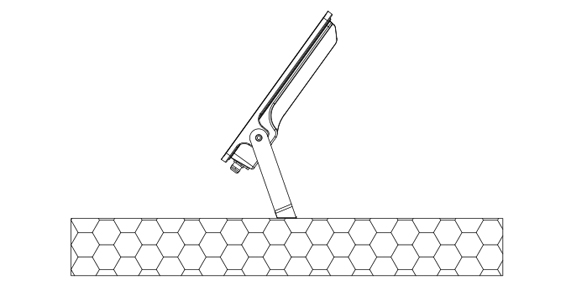

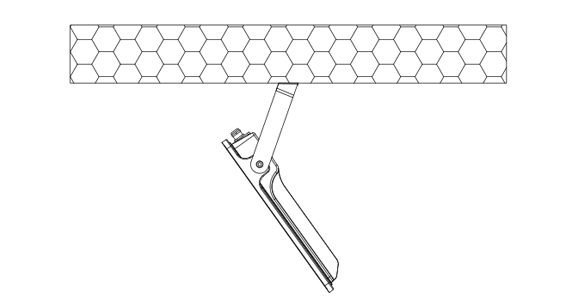

  • 1. Ceiling mounted

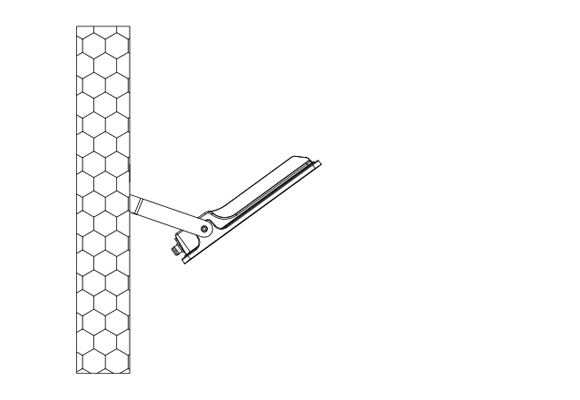

  • 2. Wall mounted

  • 3. Socket mounted

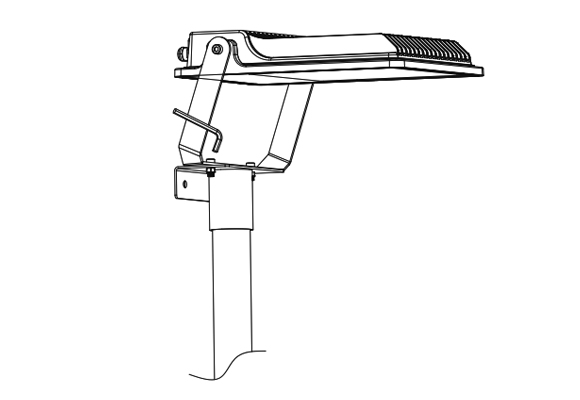

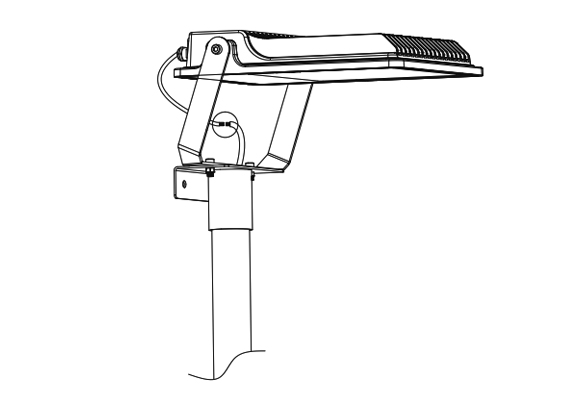

Vertical Installation Instruction

  • 1. Install the hole lamp on the pole and tighten four M8 screws.

  • 2. Connect to power supply AC 100-27.

Area of application

Sports, Parking lots, Billboard illumination, Street lights, Ports and airports, Other outdoors application

  • Sports

  • Parking lots

  • Landscape lighting

  • Billboard illumination


150LM/W
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T37-80W 80W AC100~277V
50~60Hz
150±10 12000±400 120°
175 PCS
SMD 2835
>70 or >80
T37-100W 100W 150±10 15000±1000
225 PCS
SMD 2835
T37-120W 120W 150±10 18000±1200
270 PCS
SMD 2835
T37-150W 150W 150±10 22500±1500
325 PCS
SMD 2835
T37-200W 200W 150±10 30000±2000
440 PCS
SMD 2835
T37-240W 240W 150±10 36000±2400
535 PCS
SMD 2835
T37-300W 300W 150±10 45000±3000
660 PCS
SMD 2835
140LM/W with lens
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T37-80W 80W AC100~277V
50~60Hz
140±10 11200±800
30°、60°、90°、
130°、90*120°、
40*130°、
TYPE2、3、4
126 PCS
EMC 3030
>70 or >80
T37-100W 100W 140±10 14000±1000
126 PCS
EMC 3030
T37-120W 120W 140±10 16800±1200
126 PCS
EMC 3030
T37-150W 150W 140±10 21000±1500
224 PCS
EMC 3030
T37-200W 200W 140±10 28000±2000
224 PCS
EMC 3030
T37-240W 240W 140±10 33600±2400
350 PCS
EMC 3030
T37-300W 300W 140±10 42000±3000
350 PCS
EMC 3030
180LM/W
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T37-80W 80W AC100~277V
50~60Hz
180±10 14400±80 120°
225 PCS
SMD 2835
>70 or >80
T37-100W 100W 180±10 18000±1000
285 PCS
SMD 2835
T37-120W 120W 180±10 21600±1200
360 PCS
SMD 2835
T37-150W 150W 180±10 27000±1500
435 PCS
SMD 2835
T37-200W 200W 180±10 36000±2000
585 PCS
SMD 2835
T37-240W 240W 180±10 43200±2400
675 PCS
SMD 2835
T37-300W 300W 180±10 54000±3000
840 PCS
SMD 2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white; natural white; daylight white
Type of current AC100-277V Available color temperatures 3000K; 4000K; 5000K; 6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles
30°、60°、90°、130°、90*120°、
40*130°、TYPE2、TYPE3、TYPE4
Standards & Certification Temperatures & operating conditions
Type of protection IP67 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates TUV, CE, RoHS
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5 Years Base/Socket Directly wired
Switching cycles 100.000 times Dimmable 1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l. 70%

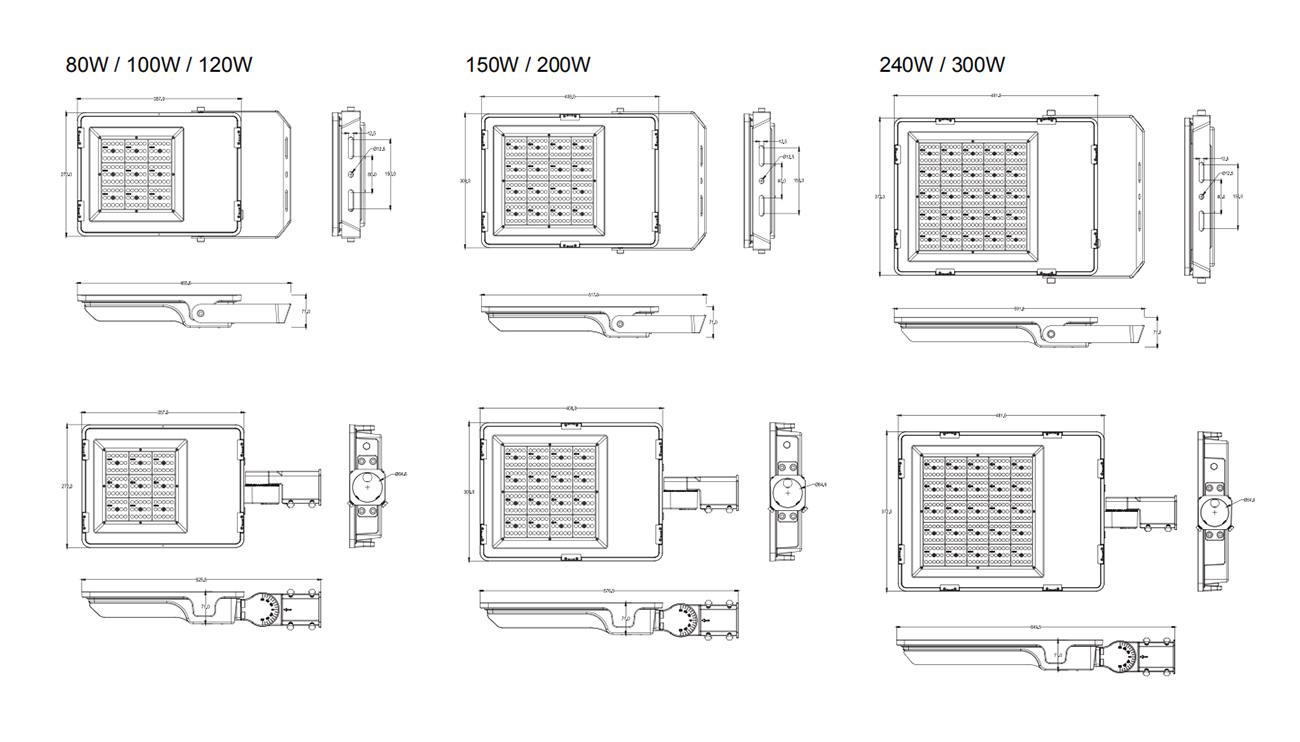

Product Dimension

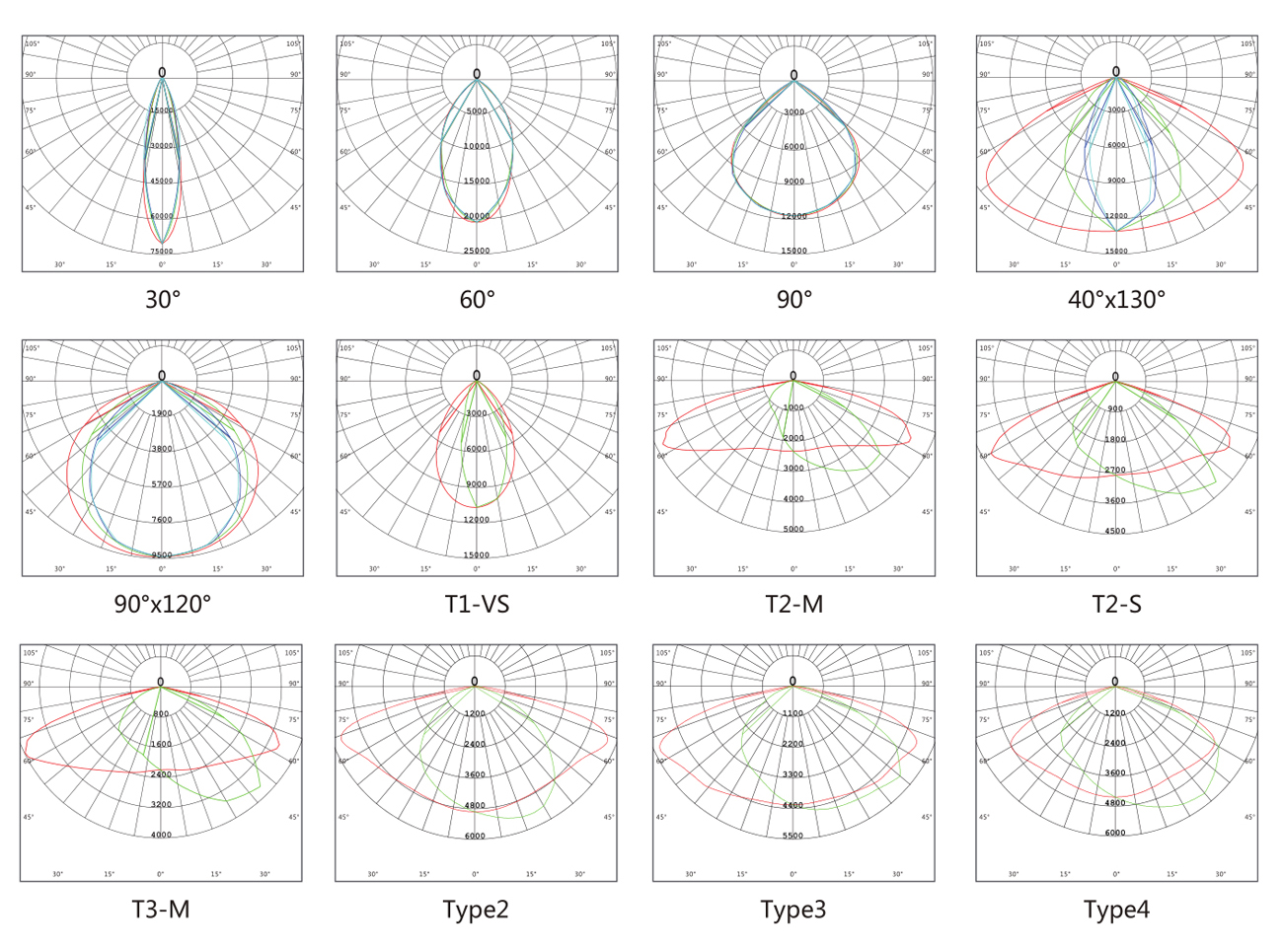

Light Distribution Optional
