Shine a Light in Every Corner!
Shine a Light in Every Corner!
1.Extremely energy efficient - up to 140 lm/w
2.High Luminous flux - up to 39.000 lm
3.Excellent heat dissipation and modern design
4.Massive heat sink with long cooling fins on each LED module
5.Individually adjustable installation angel for each LED module
6.Flicker-free and long-lasting power driver
7.Driver positioned high above the heatsink (keeps all the heat away from the driver)
8.Sealed tempered-glass front for maximum chemical resistance
9.IP65 for all weather conditions
10.5 years warranty
Inquire Now

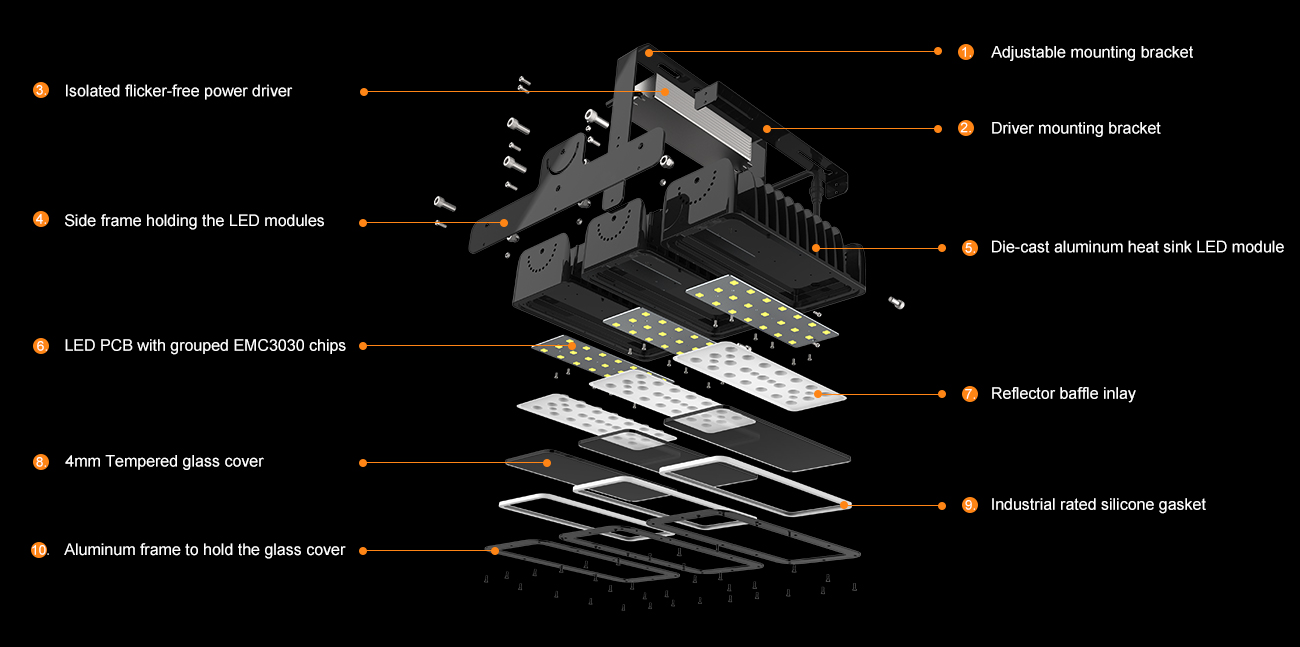

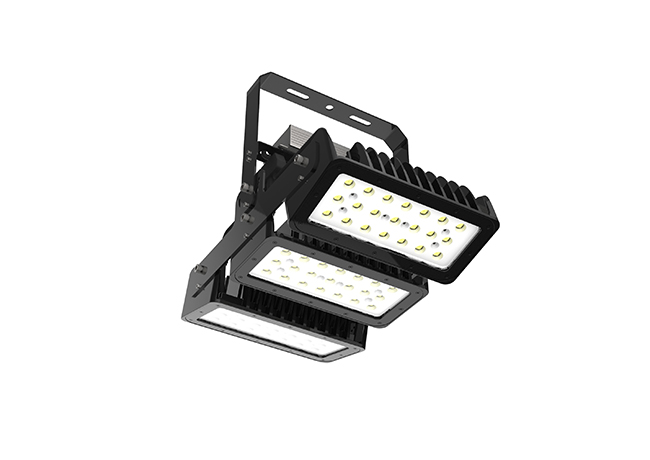

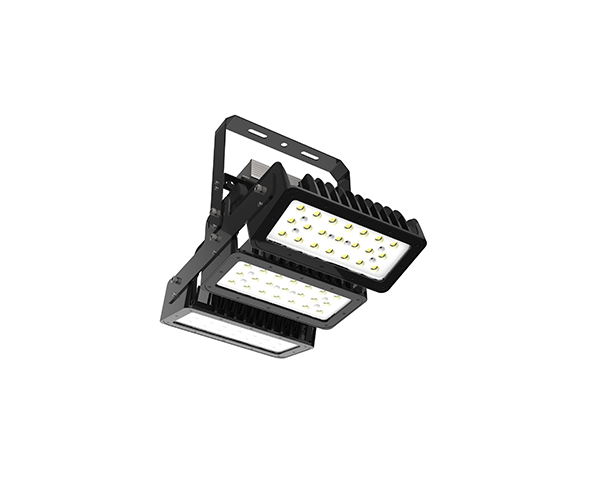

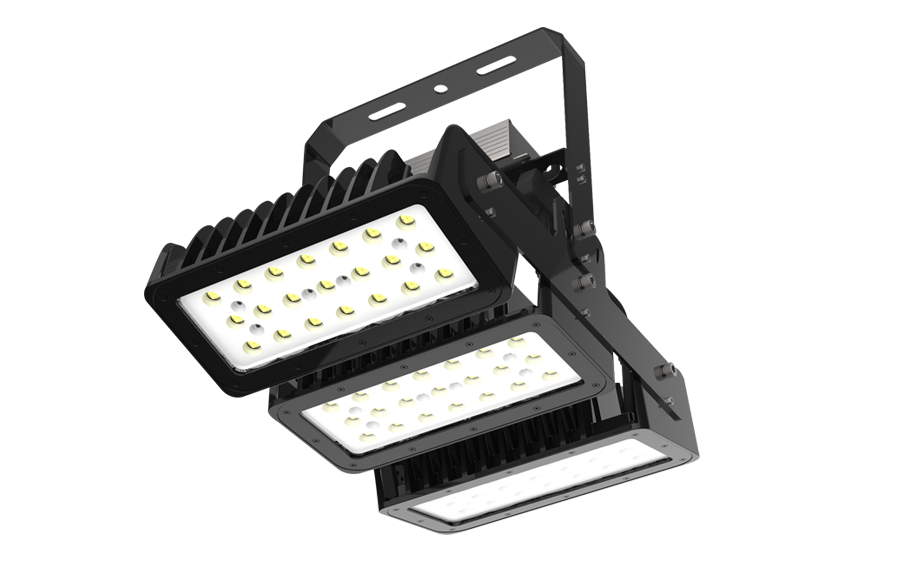

The T34 is a robust and flexible Floodlight for indoor and outdoor applications. Its modular design allows to adjust each module to the desired angel to optimize the light distribution if needed. Each module contains 84 pcs of EMC 3030 chips totaling in 80W with about 140lm/w efficiency. Up to 4 modules can be added for a maximum system power of 300W. The driver is mounted on the mounting bracket at the backside of the fixture. This assures that the driver is in no way influenced by the heat of the fixture which in term assures a reliable and stable operation. The LED chips are protected by 4mm tempered glass, secured by a solid aluminum frame and an industrial rated silicone gasket. This makes this fixture ideal for harsh condition and even areas where chemicals like salt or ammonia are present. Of course we do offer optional CRI80 chips as well as dimmable and DALI dimmable drivers for this series.
-CRI 80 Ra available upon request
-1-10V Dimmable and DALI Dimmable available
-European market: CE(EMC,LVD), RoHS
Factories and warehouses;Barns and riding halls;Exhibition & showrooms
Factories
Warehouse

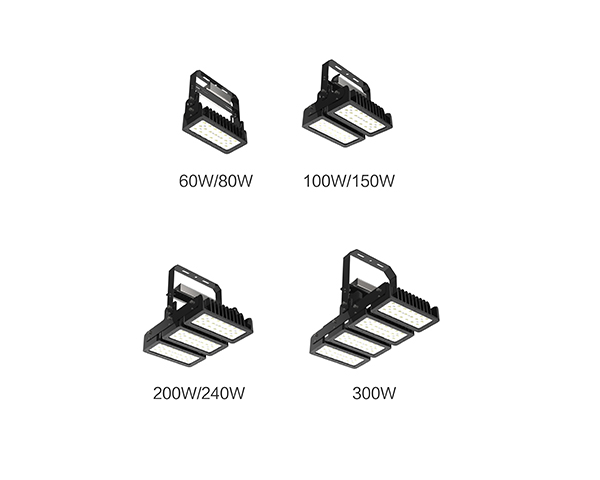

| Standard lumen (140lm/W) | |||||||
|---|---|---|---|---|---|---|---|
| Model | Nominal wattages (W) | Nominal voltage | Rated luminous efficacy (lm/w) | Nominal luminous flux (lumen) | Beam Angle | LED Quantity | CRI |
| 130-T34-60W | 60W |
AC100~277V 50~60Hz |
130±10 | 7800±600 | 110° | 84pcs EMC3030 | >70Ra |
| 130-T34-80W | 80W | 130±10 | 10400±800 | 84pcs EMC3030 | |||
| 280-T34-100W | 100W | 135±10 | 13000±1000 | 168pcs EMC3030 | |||
| 280-T34-150W | 150W | 130±10 | 19500±1500 | 168pcs EMC3030 | |||
| 430-T34-200W | 200W | 130±10 | 26000±2000 | 252pcs EMC3030 | |||
| 430-T34-240W | 240W | 130±10 | 31200±2400 | 252pcs EMC3030 | |||
| 580-T34-300W | 300W | 130±10 | 39000±3000 | 336pcs EMC3030 | |||
| Electrical data | Photometrical data | ||||
|---|---|---|---|---|---|
| Operating frequency | 47-63HZ | Available light colors | warm white;natural white;daylight white | ||
| Type of current | AC100-277V | Available color temperatures | 3000K;4000K;5000K;6000K | ||
| Power factor λ | >0.9 | Color rendering index Ra | >70 | ||
| Efficiency in % | >92% | Standard deviation of color matching | <5 | ||
| Start time (0.2s / 0.5s / … ) | 0.1S | UGR (Unified Glare Rating) | <30 | ||

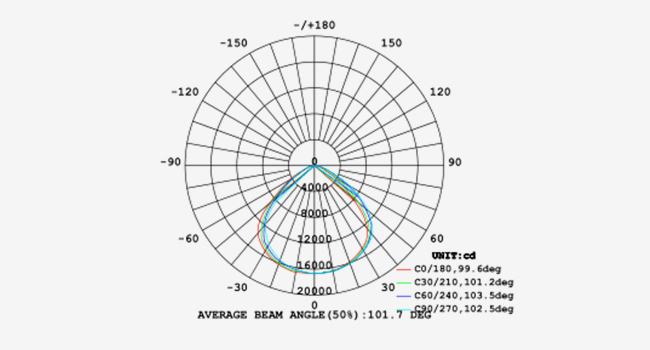

| Warm-up time to 60 % (1.5s / 2s / … ) | 0.5S | Available beam angles | 110° | ||
| Standards & Certification | Temperatures & operating conditions | ||
|---|---|---|---|
| Type of protection | IP65 | Heatsink temperature | 20~+69℃ |
| Tested dielectric strength | 3.75KVac | Ambient temperature | -30~+50℃ |
| Safety features |
Open circuit protection; short circuit protection ; overvoltage protection |
Storage temperature | -40~+80℃ |
| Certificates | European market:CE(EMC,LVD,RoHS) | ||
| Energy efficiency class | A+ | ||
| Lifespan | Features/Capabilities and additional product data | |||
|---|---|---|---|---|
| Rated nominal Lifetime | 50.000 hours | Base/Socket | Directly wired | |
| Switching cycles | 100.000 times | Dimmable | 1-10V dimmable、DALI dimmable | |
| Lumen maintenance at e.o.l. | 80% | |||
| LED Device Lifetime | L80/B10 @ 50.000H | |||
| Packing Information | |||||
|---|---|---|---|---|---|

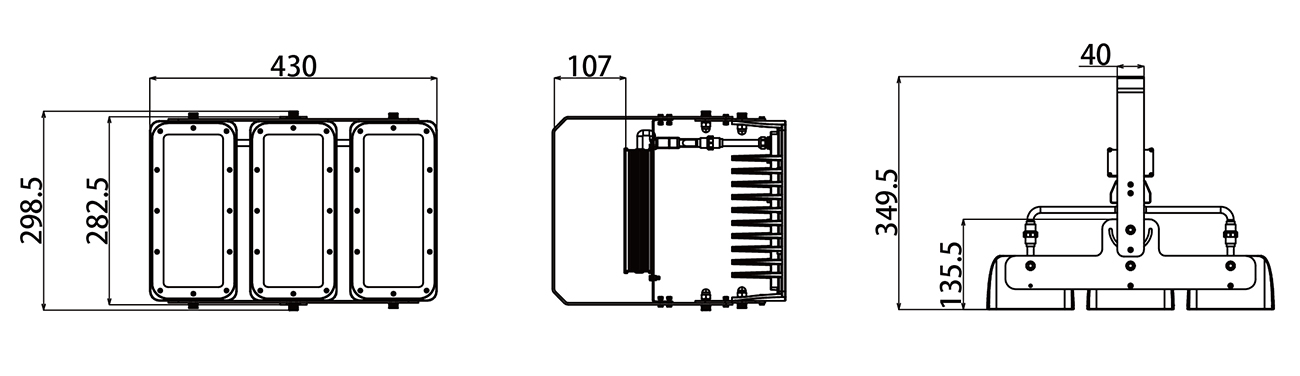

| Model | Dimension | CTN SIZE(CM) | QTY/CTN | Net Weight/pcs(kg) | Gross Weight /CTN(kg) |
| 130-T34-60W | 130*298.5*300MM | 67*28.5*22.5 | 4PCS | 2.98 | 15.32 |
| 130-T34-80W | 130*298.5*300MM | 67*28.5*22.5 | 4PCS | 3.15 | 15.49 |
| 280-T34-100W | 280*298.5*349.5MM | 650*337*22 | 2PCS | 6.58 | 7.63 |
| 280-T34-150W | 280*298.5*349.5MM | 650*337*22 | 2PCS | 6.72 | 7.77 |
| 430-T34-200W | 430*298.5*349.5MM | 480*330*205 | 1PCS | 9.1 | 10.15 |
| 430-T34-240W | 430*298.5*349.5MM | 480*330*205 | 1PCS | 9.7 | 10.85 |
| 580-T34-300W | 580*298.5*429.5MM | 625*330*380 | 1PCS | 13.8 | 15.9 |
