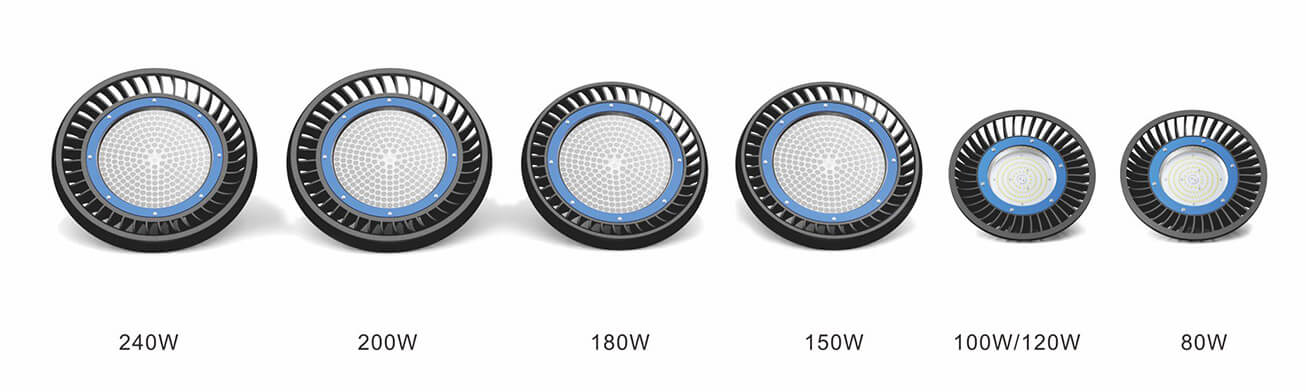

Skybay High Bay

1. Highly energy efficient - up to 160 lm/w

2. High Luminous flux - >up to 35000 lm

3. Perfectly suitable for industrial use due to IP65

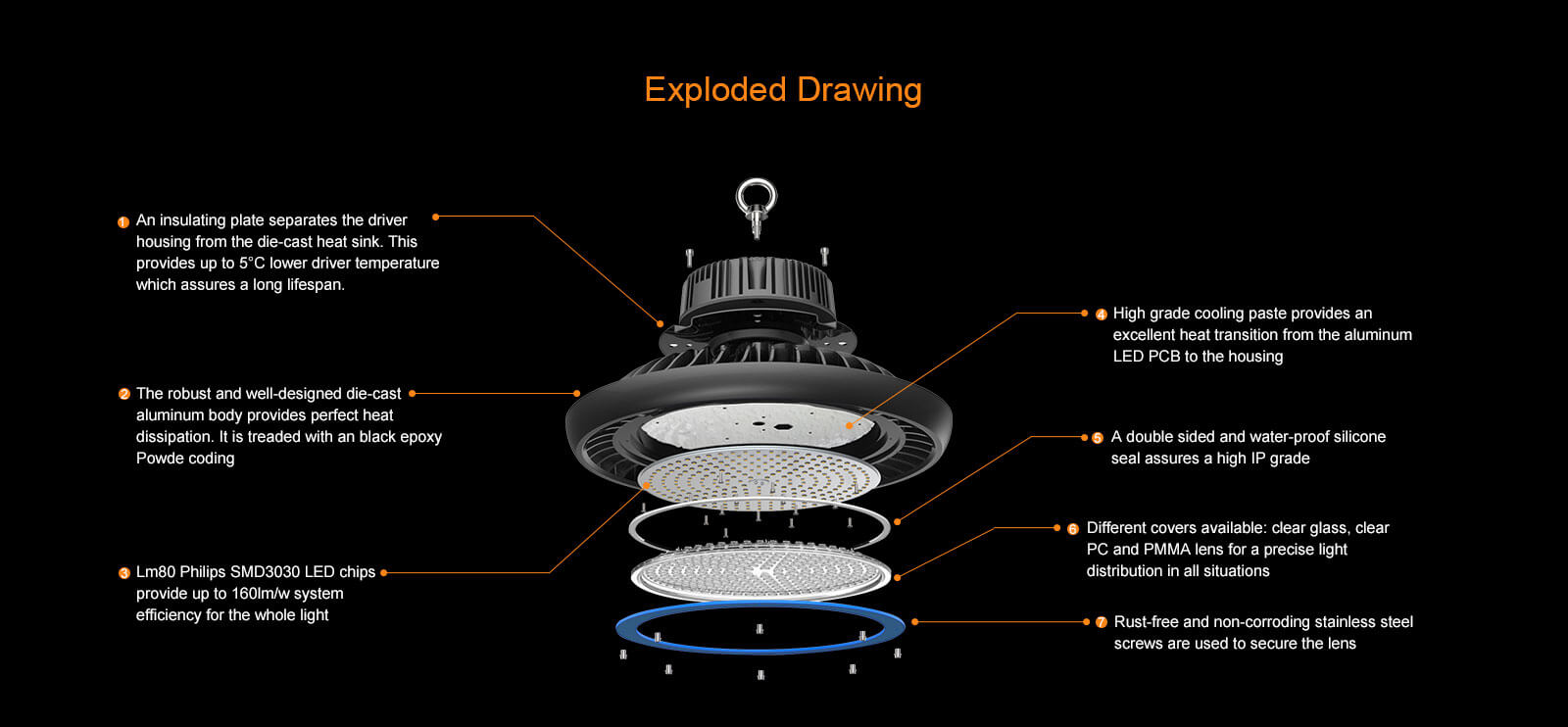

4. Space between driver housing and lamp body to prevent heat accumulation

5. D-Mark tested for the use in paper production, wood processing etc

6. 5 Years warranty

INQUIRY NOW
High Bay & Low Bay-Skybay High Bay

Inquiry Now

Submit

Product Video

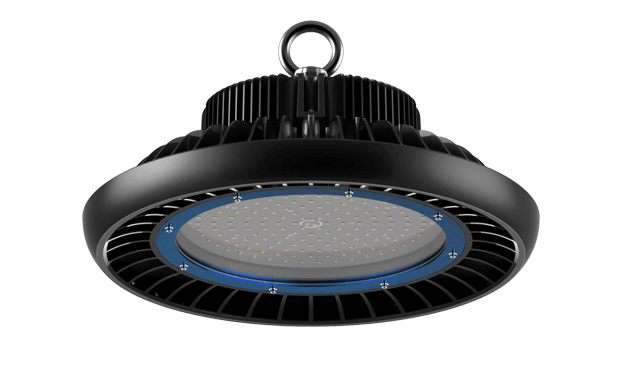

FYT Skybay’s are designed for industrial lighting adopting the newest LED lighting technology, with longer lifespan, lower maintenance cost and higher efficiency. Thanks to several different covers, lenses and reflectors these UFO high bay lights are very well suited for most factories, warehouses, Exhibition halls and showrooms. High grade materials, a heat efficient design and perfect workmanship provide excellent cooling abilities and a long lifespan. With 140lm/w and up to 33600 lumen our Skybays provide a very efficient way to replace all sorts of traditional industrial lamps.

Options

-Optional Mean well driver available

-1-10V dimmable and DALI available

-Philips and Nichia chips available (standard is Philips )

-Different covers available: clear glass, clear PC and PMMA lens

-Additional reflector is available

-Microwave motion sensor available

-Mounting bracket for ceiling or wall installation

-Zigbee is available

Area of application

-Factories and warehouses

-High rooms and halls

-Exhibition- & showrooms

-Barns and riding halls

Certificates

-American market: UL, DLC Premium, cUL

-European market: TUV, GS, CB, CE (EMC, LVD, RoHS), D-Mark

-Australian market: SAA, C-Tick, RCM


High Bay & Low Bay-Skybay High Bay

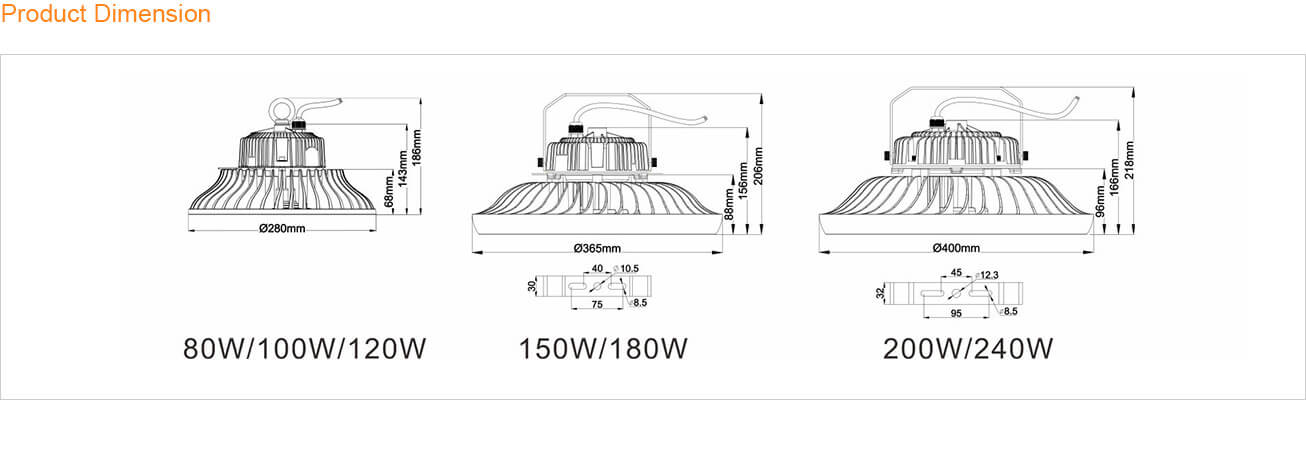

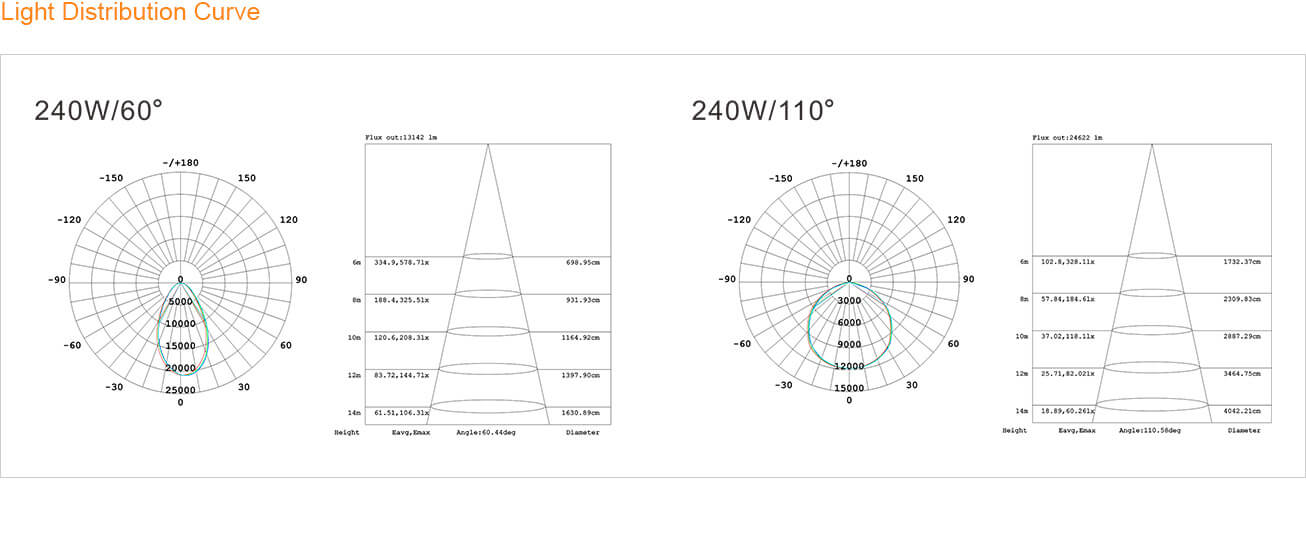

Product Dimension - Skybay High Bay Light Distribution Curve - Skybay High Bay

Specification

Standard lumen (125lm~130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HBR-100W 100 AC100~277V
50~60Hz
125±5 12500±500 110°/60° 110°: 140PCS  SMD3030  >70Ra
HBR-120W 120 125±5 15000±500 110°: 140PCS  SMD3030
HBR-150W 150 125±5 19000lm±750 110°: 196PCS  SMD3030
60°: 252PCS  SMD3030
HBR-180W 180 125±5 22500±900 110°: 196PCS  SMD3030
60°: 252PCS  SMD3030
HBR-200W 200 125±5 25000±1000 110°: 252PCS  SMD3030
60°: 252PCS  SMD3030
HBR-240W 240 125±5 30000±1200 110°: 252PCS  SMD3030
60°: 252PCS  SMD3030
Lumen Plus (140lm~150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HBR-150W lumen plus 150 AC100~277V
50~60Hz
145±5 21000±750 110° 252PCS  SMD3030  >70Ra
HBR-180W lumen plus 180 145±5 25500±900 252PCS  SMD3030
HBR-200W lumen plus 200 145±5 28000±1000 336PCS  SMD3030
HBR-240W lumen plus 240 145±5 33600±1200 336PCS  SMD3030
HBR-150W Super lumen 150 160±5 24000±750 336PCS  SMD3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <25
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 110°/60°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Operating temp -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE,  D-Mark
Australian market: SAA, CTick,RCM

Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable,
Lumen maintenance at e.o.l. 70%
Product Weight & Package Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(g) Gross Weight /CTN(kg)
HBR-100W/120W 340*340*200 34*33*22 1PCS 3.5 4.8
HBR-150W/180W 420*420*240 43*43*23 1PCS 7 8.5
FYT-HBR-200W/240W 460*460*250 47*43*23 1PCS 9 10.8

Specification -Skybay High Bay
