LED Shoebox Light

1.Excellent heat disspation with modern and durable design

2.Easy maintenance

3.No wires being exposed to the sun and rain

4.Highly energy efficient - up to 140lm/w

5.Slim, state-of-the-art, low profile design maximizes wind resistance

6.IP65 rated, suitable for Wet Locations

7.5 Years warranty

INQUIRY NOW
Outdoor Lighting-LED Shoebox Light

Inquiry Now

Submit

Product Video

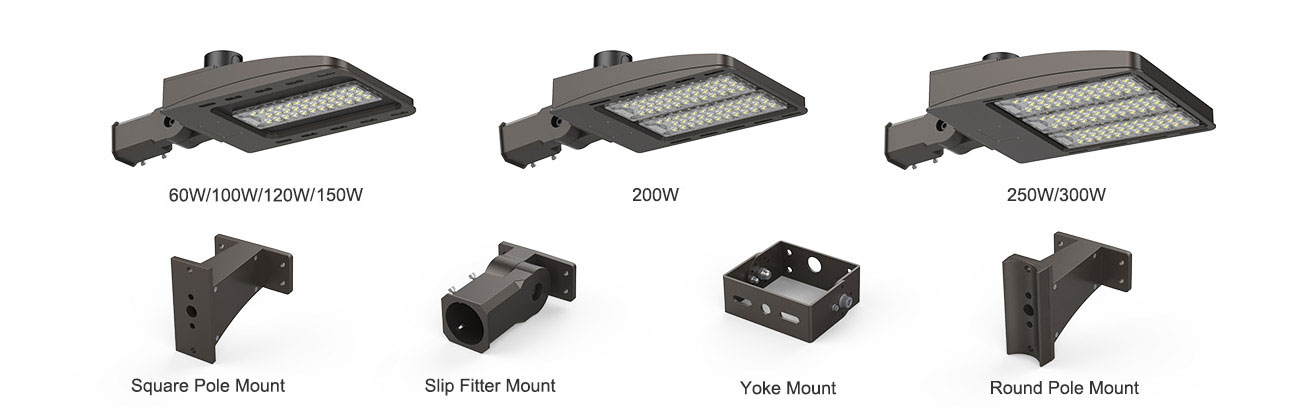

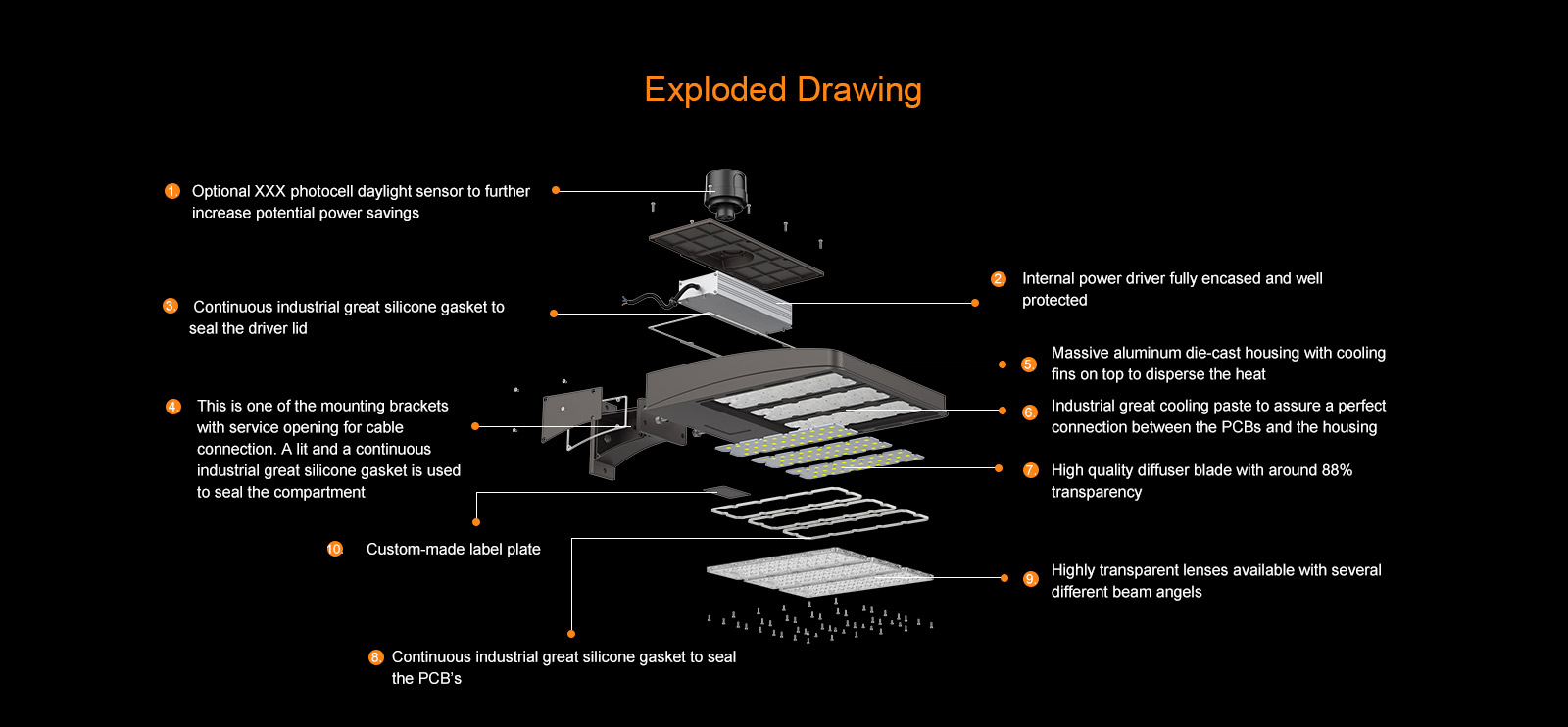

The T60B Streetlight brings a uniform lighting experience to large spaces. It was built for parking lots, downtown areas, neighborhoods, walkways and building grounds. Thanks to a variety of mounting options, available wattages and beam angels it can be configured to fit most requirements. Its new and efficient heat sink design allows for a small and modern housing shape while ensuring excellent heat dissipation. The optional photocell daylight sensor provides a smart way of further increasing the energy savings while assuring that the right level of brightness is given as needed.

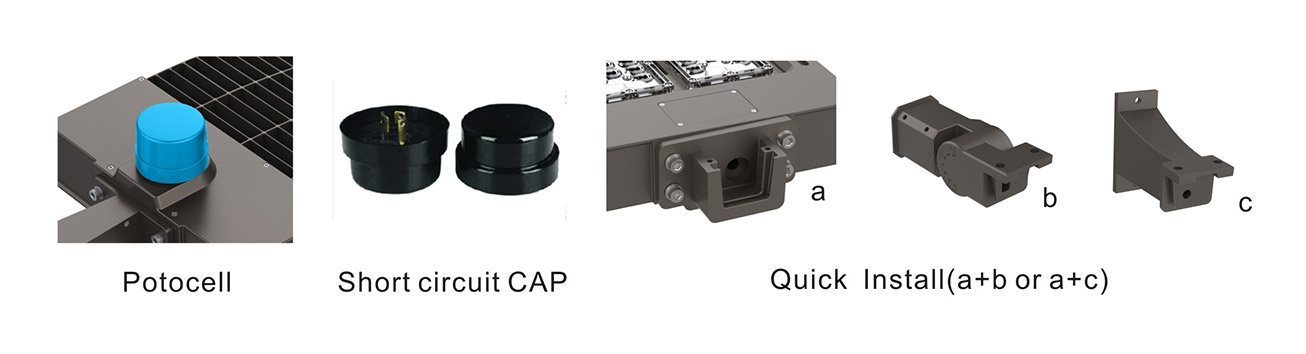

Options

- Several beam angel options

- 1-10V dimmable available

- Photocell sensor available

Area of application

- Parking lots & Streets

- Walkways and building grounds

- Downtown areas and neighborhoods

Certificates

-American market: UL, DLC Premium, cUL

-European market: CE (EMC, LVD, RoHS)

Outdoor Lighting-LED Shoebox Light

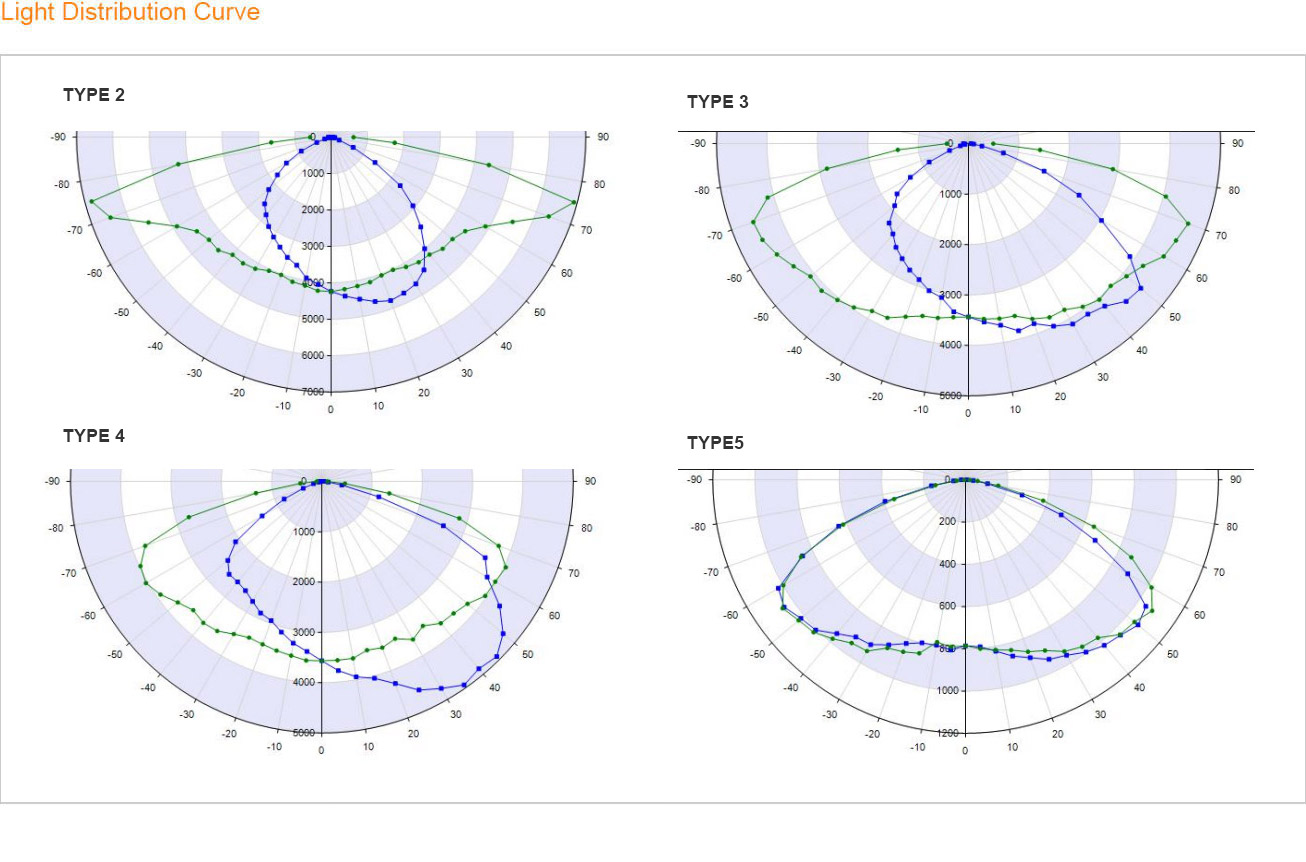

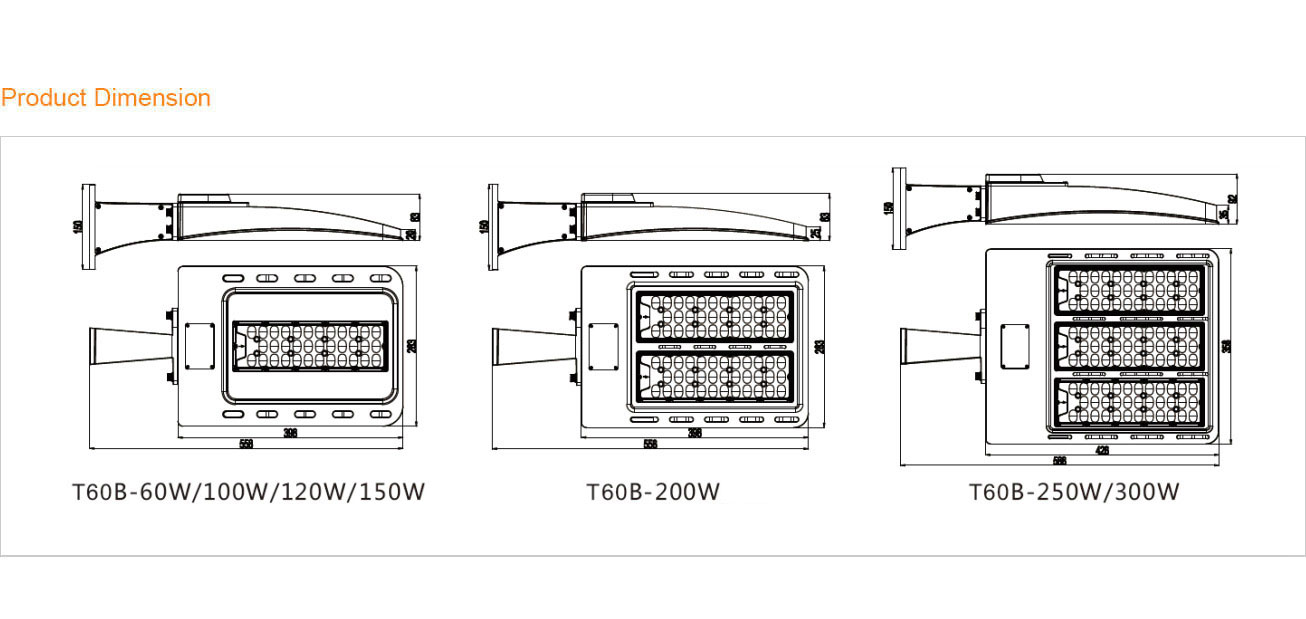

Product Dimension - LED Shoebox Light Light Distribution Curve - LED Shoebox Light

Specification

Standard lumen (120lm~140lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T60B-60W 60 AC100~277V
50~60Hz
140±5 8400±300 Type 2
Type 3
Type 4
Type 5
140PCS EMC 3030 >70Ra
T60B-100W 100 140±5 14000±500 140PCS EMC 3030
T60B-120W 120 140±5 16000±600 140PCS EMC 3030
T60B-150W 150 140±5 20300±700 140PCS EMC 3030
T60B-200W 200 140±5 28000±1000 280PCS EMC 3030
T60B-250W 250 140±5 35000±1200 420PCS EMC 3030
T60B-300W 300 140±5 41000±1500 420PCS EMC 3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles Type 2/Type 3/Type 4/Type 5
Standards Certification Temperatures operating conditions
Type of protection IP65 Operating temp 20~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+40℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, D Mark, CE
Australian market: SAA, CTick,RMC

Energy efficiency class A+ A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5 Years Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T60B-60W/100W/120W/150W 583*283*150 65*35*19 1PCS 5.5 8.6
T60B-200W 583*283*150 65*35*19 1PCS 6.8 9.8
T60B-250W/300W 613*358*150 68*43*19 1PCS 9.6 13.8
Specification -LED Shoebox Light Specification - LED Shoebox Light
