Blue Ghost Linear High Bay

1. Highly energy efficient-up to 145lm/w

2. High Luminous flux - up to 28000 lm

3. Perfectly suitable for industrial use due to IP65

4. High grade materials and perfect workmanship provide excellent cooling abilities

5. D-Mark tested for the use in paper production, wood processing etc

6. 5 Years warranty

INQUIRY NOW
High Bay & Low Bay-Blue Ghost Linear High Bay

Inquiry Now

Submit

Product Video

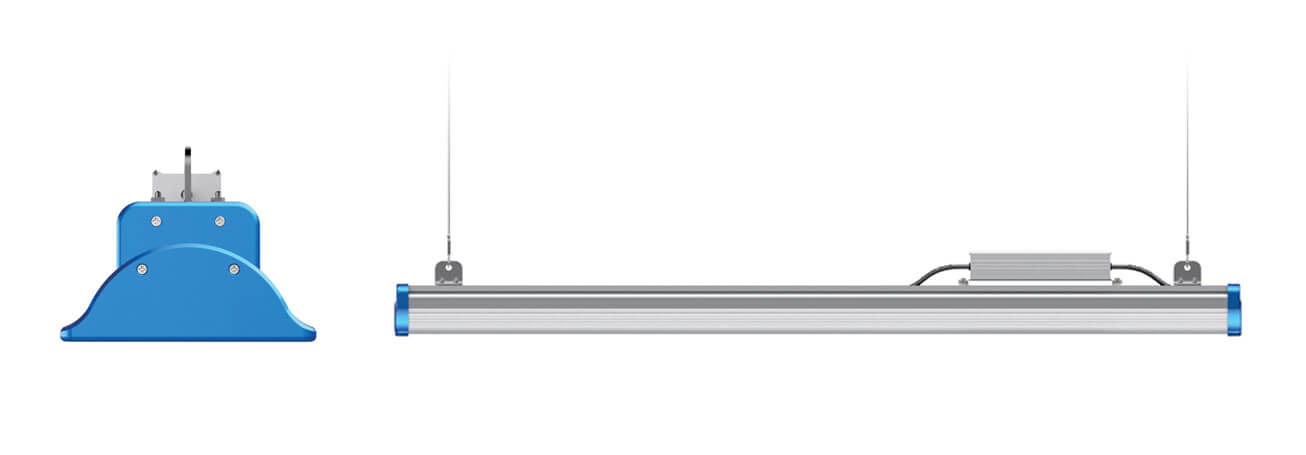

Our T13B, also called “The Blue Ghost”, is a second generation linear LED high bay specially designed for manufacturing areas, warehouses, production lines and high halls. The unique and stylish design fits perfectly in modern industrial environments. High grade Refond SMD2835 chips and highly developed driver technology assure up to 140 lm/w efficiency. The massive aluminum housing and the aluminum reflectors provide excellent cooling abilities and a long lifespan. Due to the IP65 rating this high bay can be used even under harsh conditions. Suspended or surface mounted it will provide a perfectly homogeneous light distribution.

Options

-Optional Mean well driver available

-CRI 90 Ra available upon request

-1-10V dimmable and DALI available

-Microwave motion sensor available

-Optional emergency power supply

-Zigbee is available

Area of application

-Factories and warehouses

-High rooms and halls

-Exhibition- & showrooms

Certificates

-American market: UL, DLC Premium, cUL

-European market: TUV, GS, CB, CE (EMC, LVD, RoHS), D-Mark

-Australian market: SAA, C-Tick, RCM

High Bay & Low Bay-Blue Ghost Linear High Bay

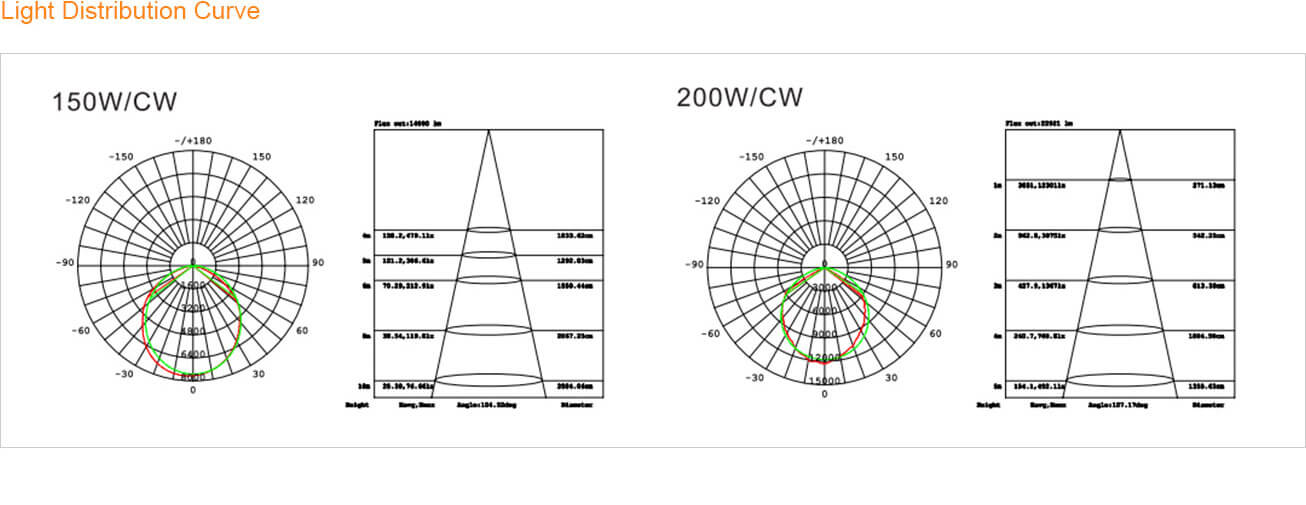

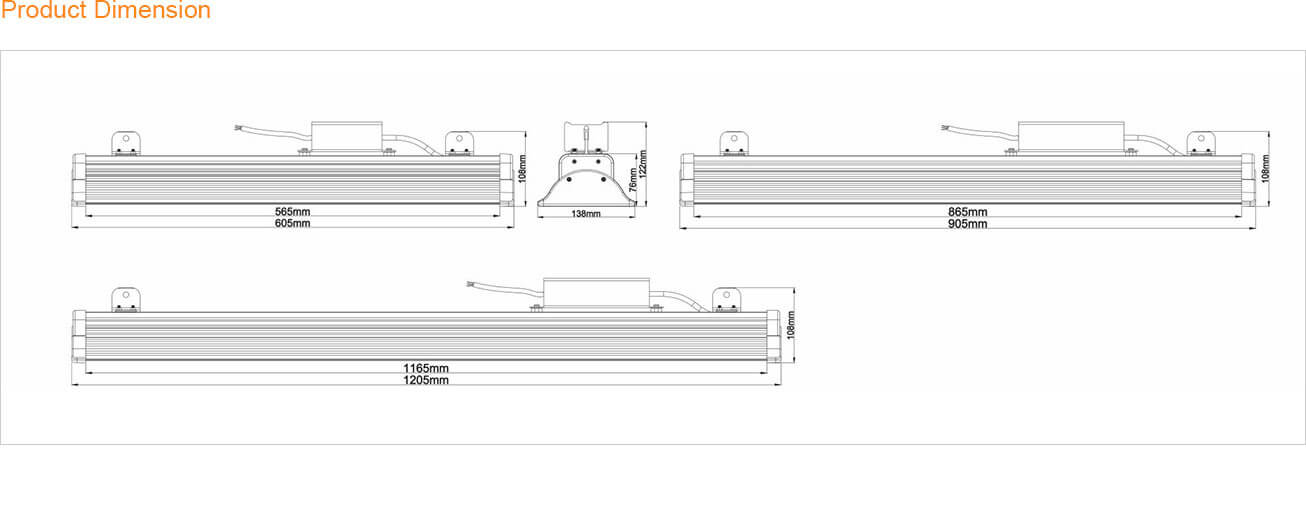

Product Dimension - Blue Ghost Linear High Bay Light Distribution Curve - Blue Ghost Linear High Bay

Specification

Basic Specifications
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T13B-100W 100 AC100~277V
50~60Hz
130±5 13000±1000 110° 336pcs 0.5W SMD2835  >80Ra
T13B-150W 150 130±5 19500±1500 462pcs 0.5W SMD2835
T13B-150W  lumen plus 150 145±5 21500±1500 630pcs 0.5W SMD2835
T13B-200W 200 130±5 26000±2000 630pcs 0.5W SMD2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >80
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <25
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 110°
Standards & Certification   Temperatures & operating conditions
Type of protection IP65 Operating temp -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE, D-Mark
Australian market: SAA, CTick,RCM

Energy efficiency class A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable,
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T13B-100W 605*138*122 650*33*17 2PCS 3.2 7.5
T13B-150W 905*138*122 950*33*17 2PCS 4.1 10.2
T13B-150W  lumen plus 1205*138*122 125*33*17 2PCS 5.2 12.6
T13B-200W 1205*138*122 125*33*17 2PCS 5.4 13

Specification -Blue Ghost Linear High Bay
