Magicline Module High Bay

1. Highly energy efficient - up to 130 lm/w

2. High Luminous flux - up to 78000 lm

3. Available up to 600W

4. Installation heights up to 30 meters

5. D-Mark tested for the use in paper production, wood processing etc

6. 5 Years warranty

INQUIRY NOW
High Bay & Low Bay-Magicline Module High Bay

Inquiry Now

Submit

Product Video

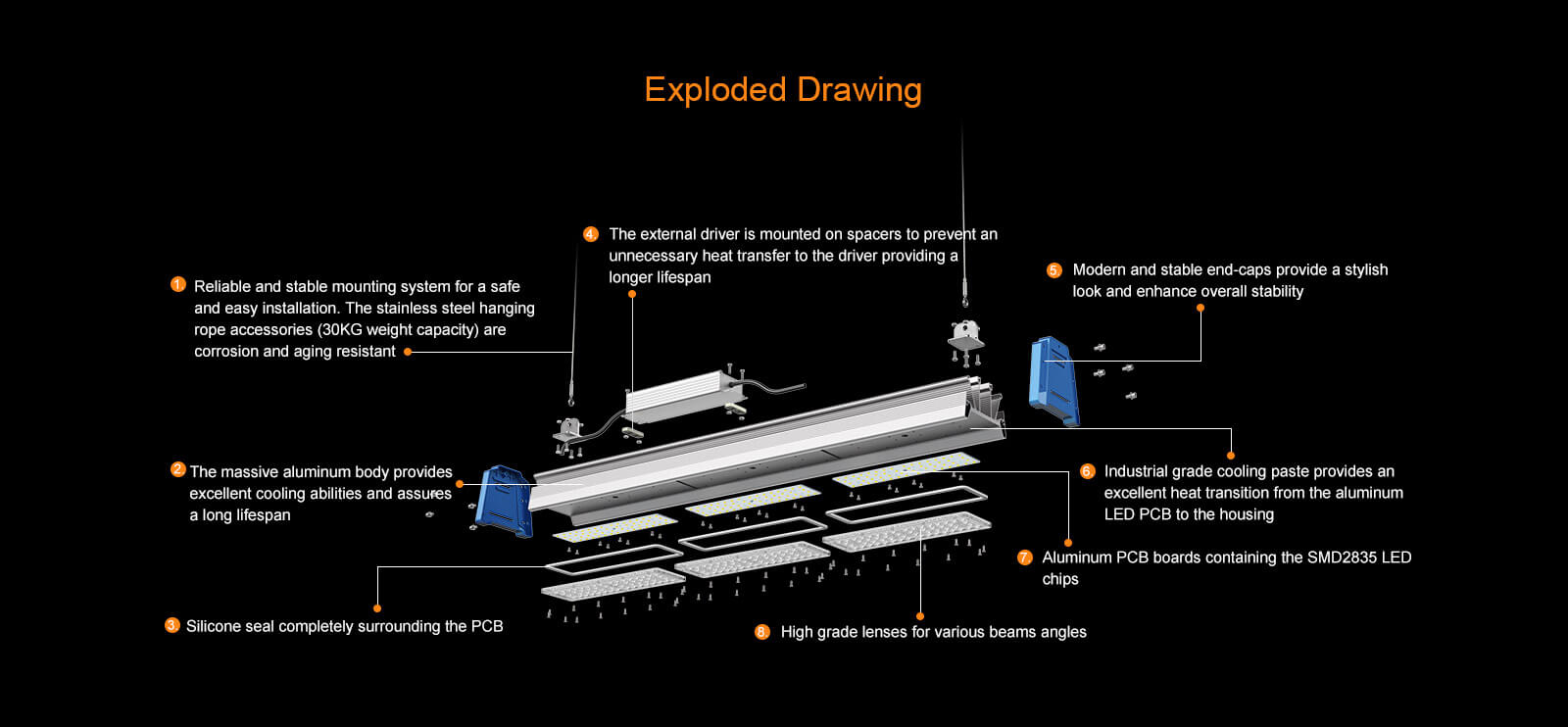

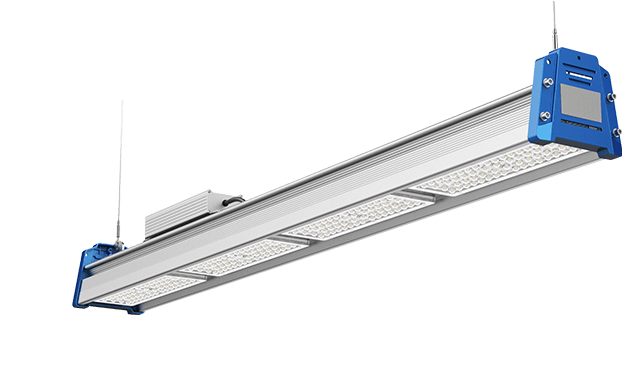

FYT’s Magicline, T31B, is a powerful and energy-efficient LED light fixture available from 100W to 600W. It was design for tall halls, high warehouses, loading areas and freight yards. Various lenses for different beam angels enable this linear high bay to be efficiently used in heights up to 30m. It’s weatherproof aluminum alloy housing and the high quality polycarbonate lenses make it dust tight as well as water and impact resistant for use in harsh environments. This extremely robust light can be flexibly configured for use in a very wide application range. Suspended or surface mounted it will provide a perfectly homogeneous light distribution.

Options

-Various beam angle options: 30°,60 °,90 °,30 °x70°,60 °x90°

-Optional Mean well driver available

-1-10V dimmable and DALI available

-Microwave motion sensor available

-Optional emergency power supply

-Zigbee is available

Area of application

-Factories and warehouses

-Loading areas and freight yards

-Exhibition- & showrooms


Certificates

-American market: UL, DLC Premium, cUL

-European market: TUV, GS, CB, CE (EMC, LVD, RoHS), D-Mark

-Australian market: SAA, C-Tick, RCM

High Bay & Low Bay-Magicline Module High Bay

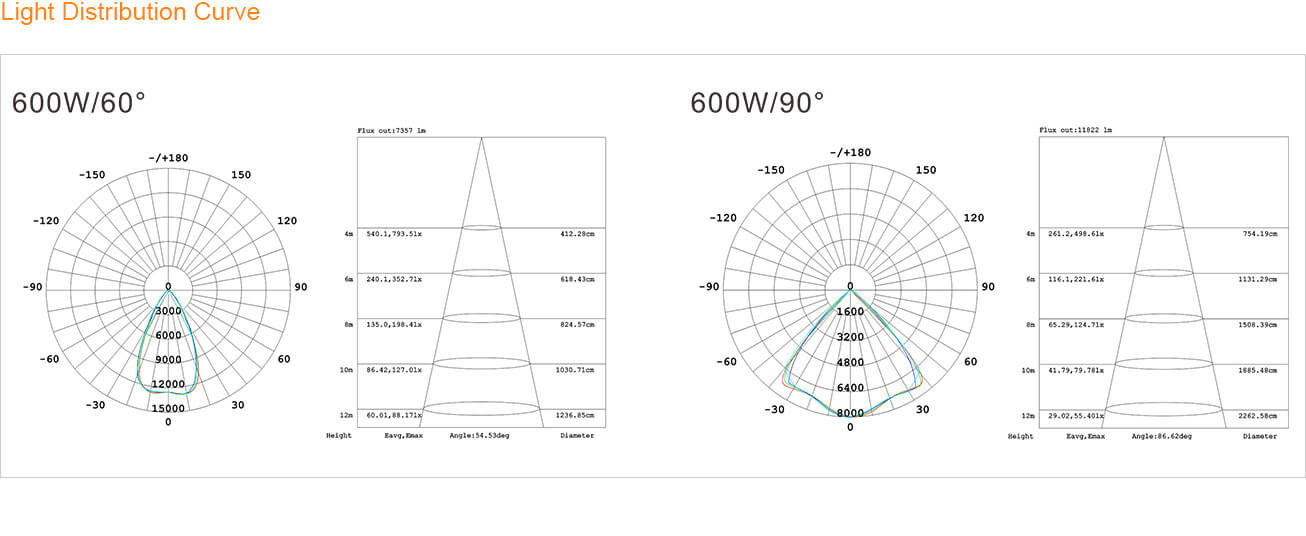

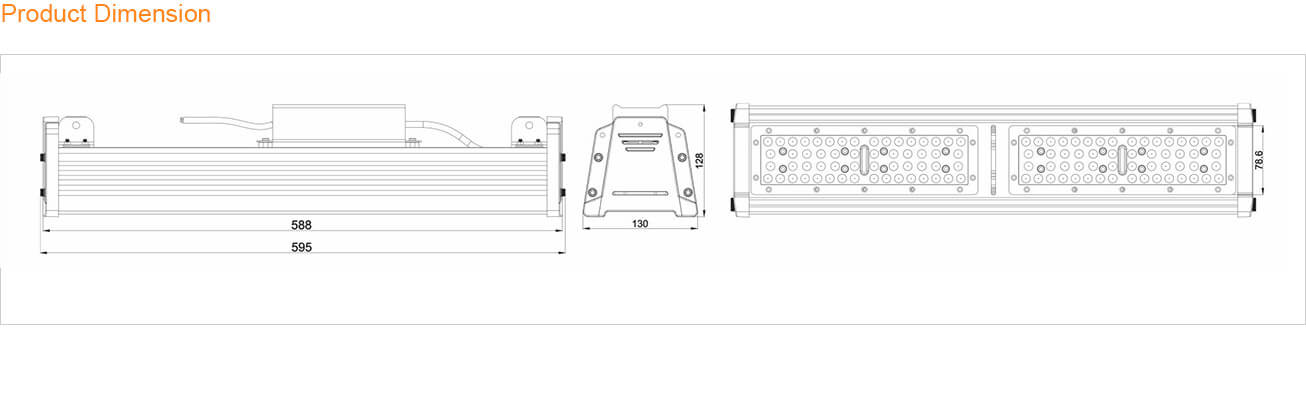

Product Dimension - Magicline Module High Bay Light Distribution Curve - Magicline Module High Bay

Specification

Basic Specifications

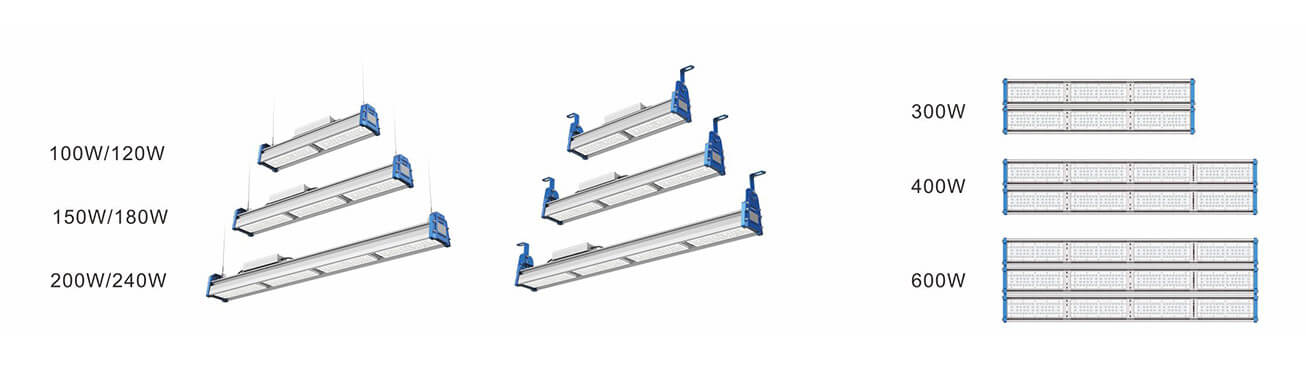

Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T31B-100W 100 AC100~277V
50~60Hz
130±5 13000±500 30°/60°/
90°/30*70°/60*90°
112pcs 3030  >70Ra
T31B-120W 120 130±5 15000±600 112pcs 3030
T31B-150W 150 130±5 19500±750 168pcs 3030
T31B-180W 180 130±5 23400±900 168pcs 3030
T31B-200W 200 130±5 26000±1000 224pcs 3030
T31B-240W 240 130±5 31000±1200 224pcs 3030
T31B-300W 300 130±5 39000±1500 336pcs 3030
T31B-400W 400 130±5 52000±2000 448pcs 3030
T31B-600W 600 130±5 78000±3000 672pcs 3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 30°/60°/90°/30*70°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Operating temp -20~+68℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE, D-Mark
Australian market: SAA, CTick,RCM

Energy efficiency class A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable,
Lumen maintenance at e.o.l. 70%
Product Weight & Package Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(g) Gross Weight /CTN(kg)
T31B-100W/120W 600*130*130 65*31*18 2PCS 4 9.6
T31B-150W/180W 890*130*130 94*31*18 2PCS 5.5 12.8
T31B-200W/240W 1180*130*130 123*31*18 2PCS 7 16.5
T31B-300W 890*270*135 94*31*18 1PCS 11.3 13.5
T31B-400W 1180*270*135 123*31*18 1PCS 14.3 16.8
T31B-600W 1180*405*135 123*45*18 1PCS 21.8 24.8

Specification -Magicline Module High Bay
