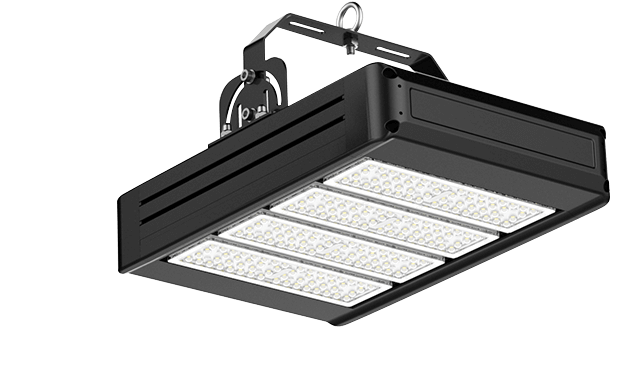

MagicSquare Module High Bay

1. Highly energy efficient - up to 130 lm/w

2. IP67 for indoor and outdoor use under all conditions

3. Robust and modern design

4. Long lifetime due to high quality LED chips and drivers

5. D-Mark tested for the use in paper production, wood processing etc

6. 5 Years warranty

INQUIRY NOW
High Bay & Low Bay-MagicSquare Module High Bay

Inquiry Now

Submit

Product Video

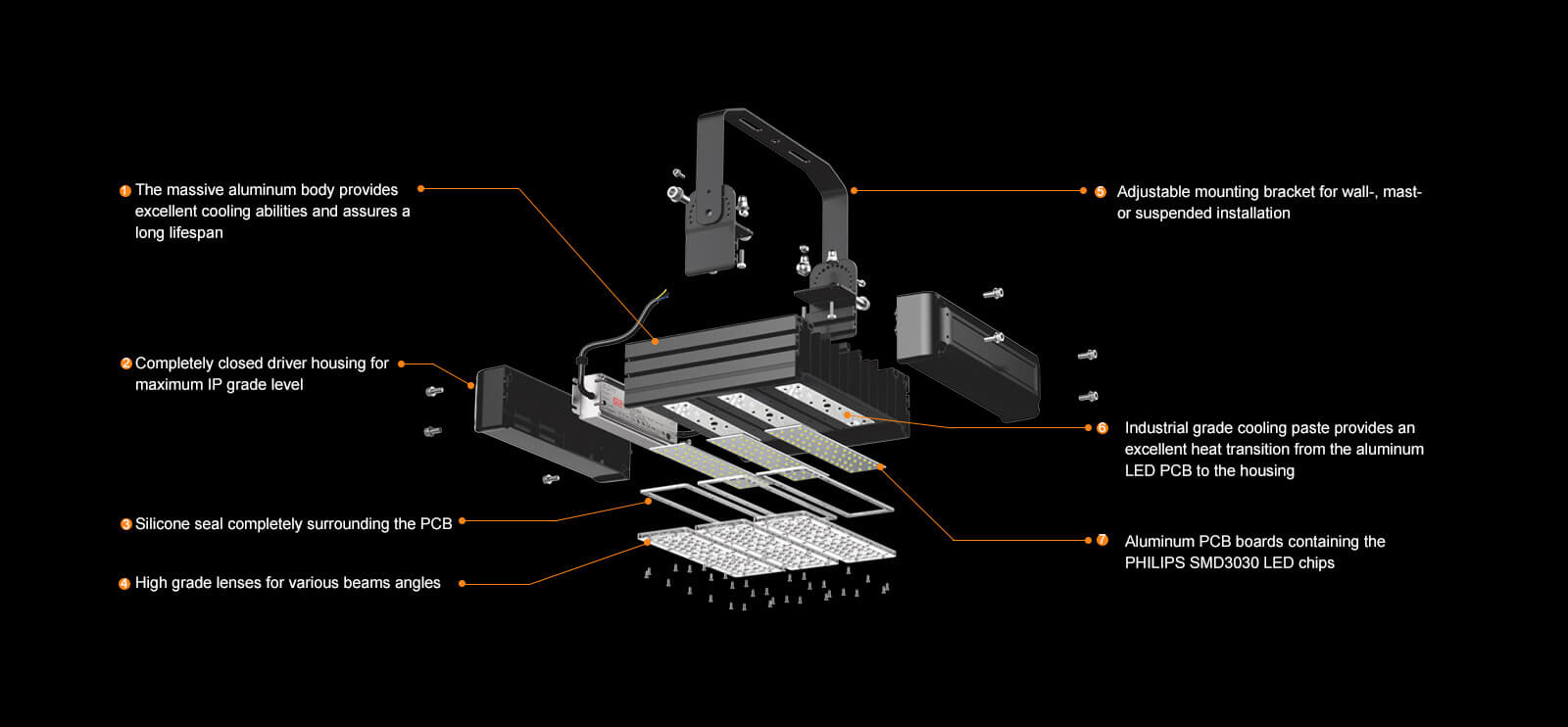

Our T36B MagicSquare series is designed for industrial and commercial lighting harboring the newest LED lighting technology for a wide range of applications. High grade materials and perfect workmanship provide excellent cooling abilities, low maintenance costs and a long lifespan. The enormous light output and the high efficiency make this modular high bay an ideal replacement for all sorts of traditional industrial lamps. Thanks to instant-on light the T36B series is ideally suitable for use combination with microwave sensor technology. The alignable brackets allow for precise light alignment.

Options

-Various beam angle options: 30°, 60°, 90°, 30°x70°, 60°x90°, 90°x120°

-Optional Mean well driver available

-1-10V dimmable and DALI up to the 240W model available

-Microwave motion sensor up to the 240W model available

-Zigbee is up to the 240W model available

Area of application

-Factories and warehouses

-Loading areas and freight yards

-Agriculture, Barns and riding halls

-Gas stations

Certificates

-American market: UL, DLC Premium, cUL

-European market: TUV, GS, CB, CE (EMC, LVD, RoHS), D-Mark

-Australian market: SAA, C-Tick, RCM

High Bay & Low Bay-MagicSquare Module High Bay

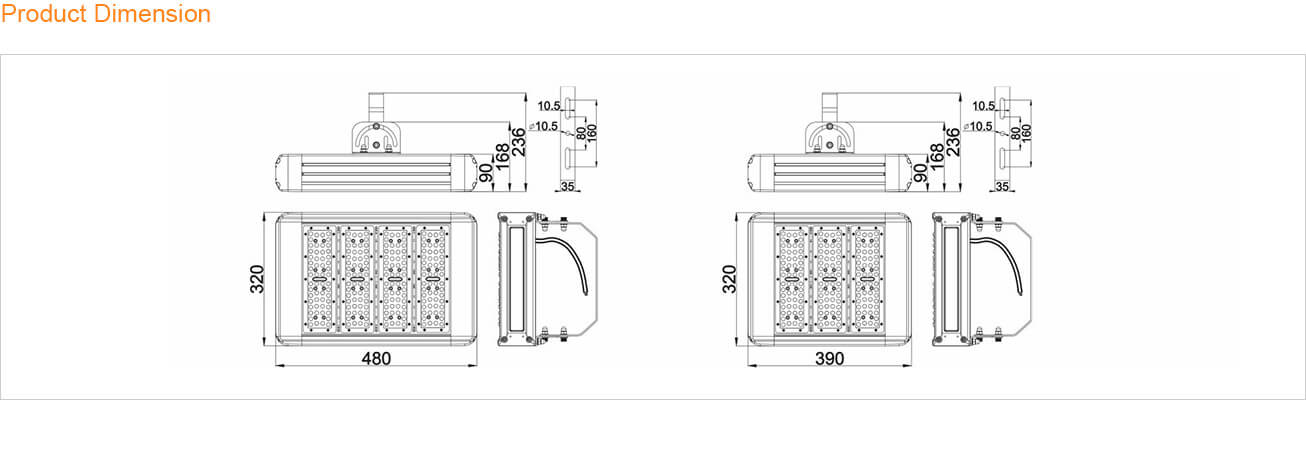

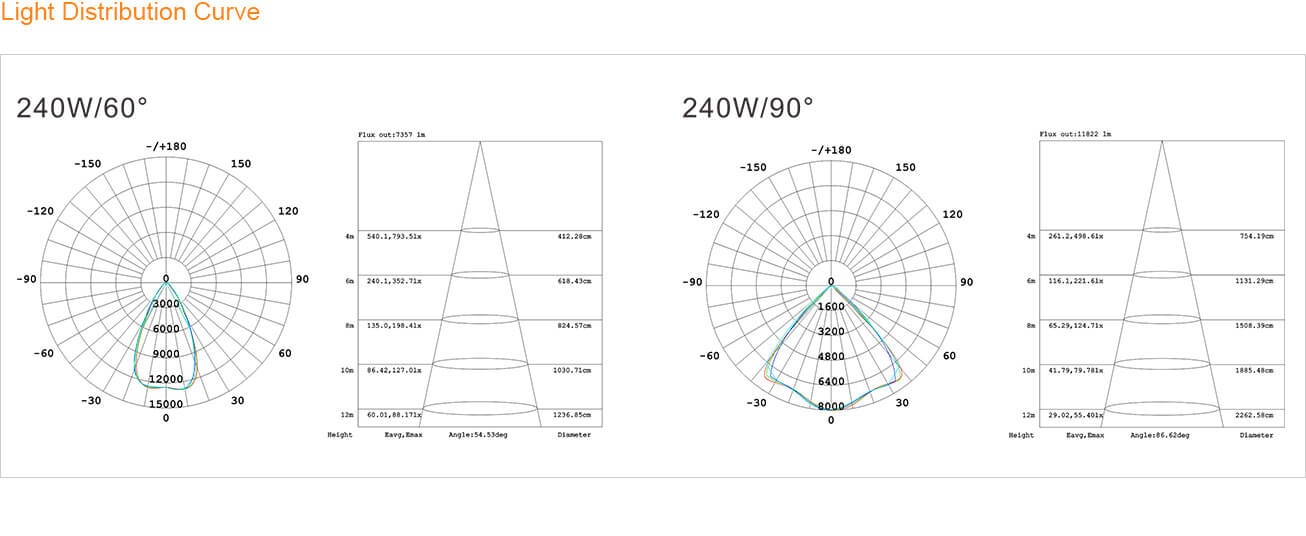

Product Dimension - MagicSquare Module High Bay Light Distribution Curve - MagicSquare Module High Bay

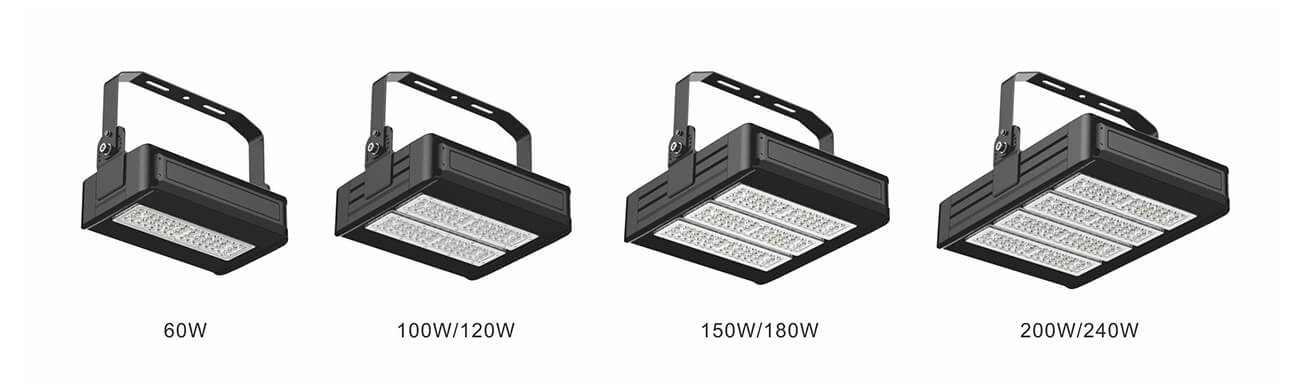

Specification

Standard lumen (lm) (120lm/W-130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T36B-60W 60 AC100~277V
50~60Hz
130±5 7500±300 30°/60°/90°/
30*70°/60°*90°
56PCS         SMD3030  >70Ra
T36B-100W 100 130±5 13000±500 112PCS        SMD3030
T36B-120W 120 130±5 15000±600 112PCS        SMD3030
T36B-150W 150 130±5 19500±750 168PCS       SMD3030
T36B-180W 180 130±5 22500±900 168PCS        SMD3030
T36B-240W 240 130±5 30000±1200 224PCS      SMD3030
Electrical datas Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 30°/60°/90°/30*70°
Standards & Certification Temperatures & operating conditions
Type of protection IP67 Heatsink temperature -20~+65℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE, D-Mark
Australian market: SAA, CTick,RCM

Energy efficiency class A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable,
Lumen maintenance at e.o.l. 80%
Product Weight & Package Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(g) Gross Weight /CTN(kg)
T36B-60W 210*320*236 48*38*21 1PCS 4.5 12.5
T36B-100W/120W 300*320*236 35*39*24 1PCS 6.5 8.2
T36B-150W/180W 390*320*236 44*39*24 1PCS 8.5 10.5
T36B-240W 480*320*236 53*39*24 1PCS 10 12.5

Specification -MagicSquare Module High Bay

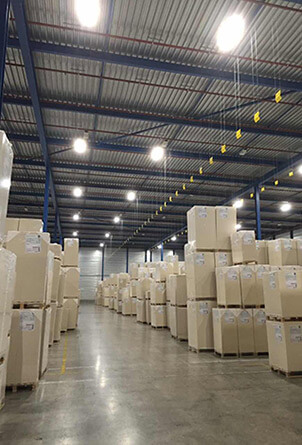

Cases

Learn more about our case information Readmore
