High Mast & Flood Light

1. Highly energy efficient - up to 130 lm/w

2. High Luminous flux - up to 130000 lm

3. IP67 for indoor and outdoor use under all conditions

4. Available up to 1000W

5. D-Mark tested for the use in paper production, wood processing etc

6. 5 Years warranty

INQUIRY NOW
Outdoor Lighting-High Mast & Flood Light

Inquiry Now

Submit

Product Video

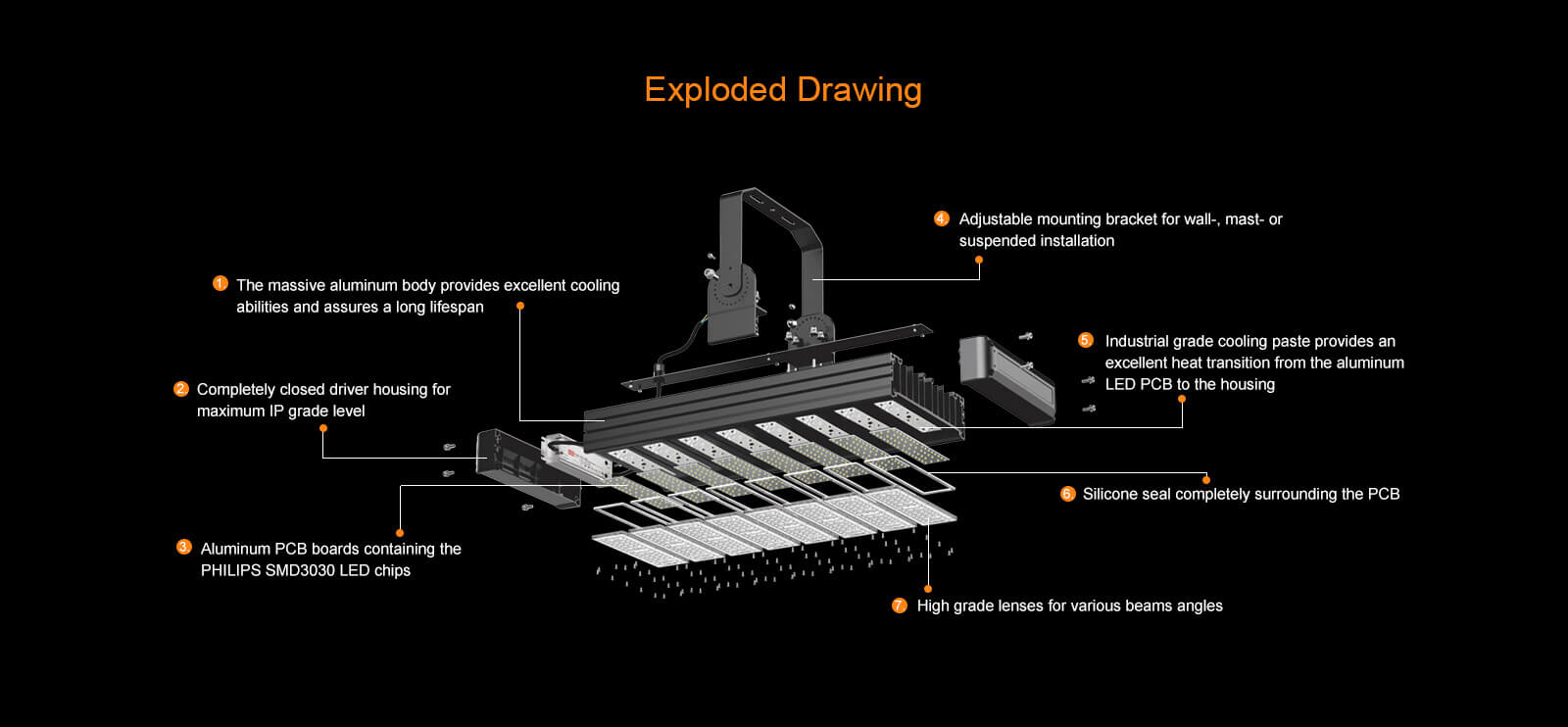

The HIFocus T36B is a modern and stylish LED high mast light for a very wide range of applications. It is mend to be used for sporting venues, freight yards, airports, commercial parking lots and shopping centers. With 130lm/w and up to 130000 lumen it can truly shine a light even in the darkest corners. Various beam angles through different lenses, high quality PHILIPS SMD3030 LED chips and advanced driver technology provide a perfectly homogeneous light distribution and a long lifespan. It is flexibly configurable and easy to install. Thanks to the high protection grade of IP67 it can be used indoor and outdoor even under harsh conditions.

Options

-Various beam angle options: 30°, 60°, 60°x90°

-Optional Mean well driver available

-1-10V dimmable and DALI up to the 240W model available

-Microwave motion sensor up to the 240W model available

-Zigbee is up to the 240W model available

Area of application

-Highways and parking lots

-Loading areas and freight yards

-Ports and airports

-Sporting venues

-Industrial plants & power plants

Certificates

-American market: UL, DLC ,Premium, cUL

-European market: TUV, GS, CB, CE (EMC, LVD, RoHS), D-Mark

-Australian market: SAA, C-Tick,RCM

Outdoor Lighting-High Mast & Flood Light
High Mast Light High Mast Light

Specification

Basic Specifications

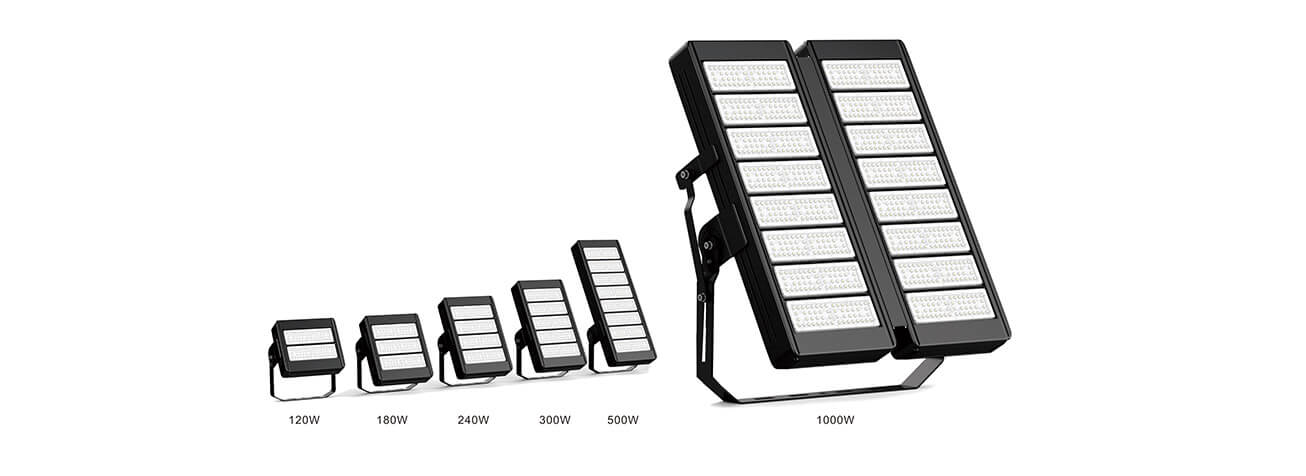

Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T36B-120W 120 AC100~277V
50~60Hz
130±5 15000±600 30°/60°/90°/
30*70°/60*90°/90°*120°
112PCS SMD3030  >70Ra
T36B-180W 180 130±5 23400±900 168PCS SMD3030
T36B-240W 240 130±5 31000±1200 224PCS SMD3030
T36B-300W 300 130±5 39000±1500 280PCS SMD3030
T36B-500W 500 130±5 65000±2500 448PCS SMD3030
T36B-1000W 1000 130±5 130000±5000 896PCS SMD3030
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <3
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 %  (1.5s / 2s / … ) 0.5S Available beam angles 30°/60°/90°/30*70°/60*90°
Standards & Certification Temperatures & operating conditions
Type of protection IP67 Operating temp -20~+65℃
Tested dielectric strength 3.75KVac Ambient temperature -40~+50℃
Safety features Open circuit protection;
 short circuit protection ;
overvoltage protection
Storage temperature -40~+80℃
Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, CE, D-Mark
Australian market: SAA, CTick,RCM

Energy efficiency class A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable,
Lumen maintenance at e.o.l. 70%
Product Weight & Package Information

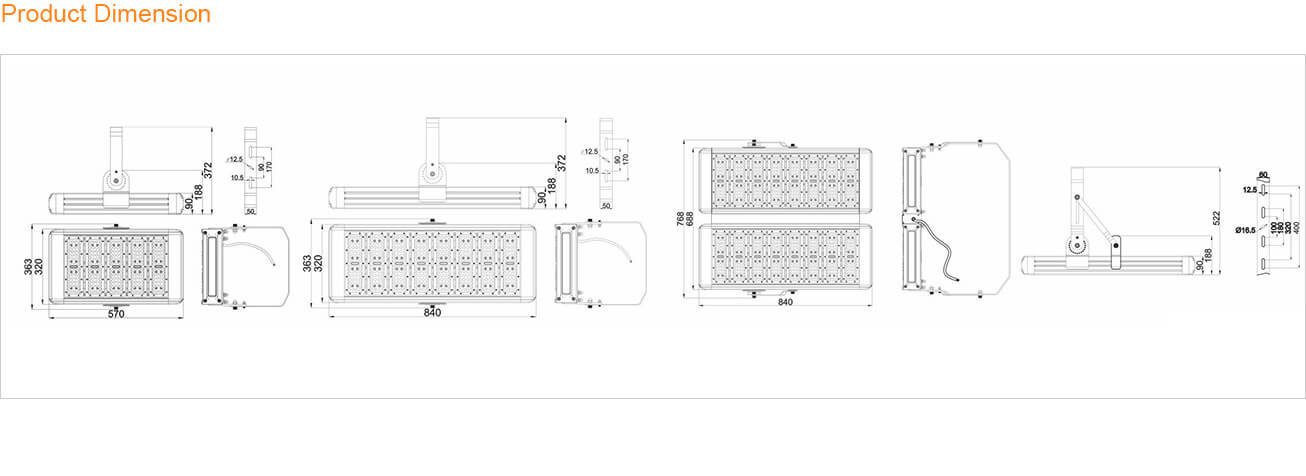

Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T36B-120W 300*363*372 35*39*24 1pcs 7.8 9.3
T36B-180W 390*363*372 44*39*24 1pcs 9.5 11.5
T36B-240W 480*363*372 53*39*24 1pcs 10.8 13.8
T36B-300W 570*363*372 62*39*24 1pcs 13.2 16.5
T36B-500W 840*363*372 89*39*24 1pcs 18.5 22.3
T36B-1000W 840*768*522 89*79*24 1pcs 38.5 43.5

Specification -High Mast & Flood Light
